FAULTY GROUND CONNECTOR

Recommended Posts



Well, I hope this sheds light on things and helps people with their electrical woes... hope it helps me too hahahaha.



:blink::blink::blink:



My bike's history:



2003 VTEC (Spain: so no wiring harness nor stator recall)



Installed VFRness around 55000 km.



1st stator fried at around 65000 km



Replaced with aftermarket stator.



Short time later R/R fried (dead battery put me onto it... stator readings were fine)



Replaced both



2nd stator fried at 75000 km



Replaced with OEM stator and replaced R/R (aftermarket) and battery (YTZ14s) just in case.



Few days later the stator-R/R connector fried. Cut out the connector from the equation and hardwired stator to R/R.



85000 km (just the other week) I was going over the electrical system and noticed the 3 yellow wires dowstream from stator-R/R connector (that is to say: between this connector and the R/R) getting very hot... disconnected it to take stator readings... fine... connected it back up and it started to smoke... shut off bike and curse Mother Honda and the horse she rode in on.



Discovered that one of the yellow wires was so hot you couldn't even touch it... the others were relatively cool (they will warm up, this is normal, but usually you can keep hold on them for several seconds at least... even longer is better). So my question to myself and fellow VFR buddies was... R/R or Stator?? An engineer friend of mine who deals with this stuff all day long had the brilliant idea of pulling the hot one and taking readings to see if at least this might get one back home... it probably would work if you disconnected one headlight and were real smooth on the throttle as the rectification of the AC volts would no longer level peak voltage into a smooth DC wave... and if you're radiator fan weren't coming on all the time (i.e. cool ambient temps)... and you didn't spend too long with the motor idling.... anyway, this is just a long-way-from-home desperate-act-of-survival tip...



So, in order to eliminate R/R or Stator as the culprit, we swapped the order of the wires around... let's call the female half of the connector (stator side) F and the male half (R/R side) M... so wire-wise we have the stock order of F1-M1, F2-M2, F3-M3. The M side wires are the ones getting hot and we had removed these from the white plastic housing and stuck them into the female housing in a different order... previously F1-M1 would get hot (well, really M1, but M1 connected into F1)... if we rearranged things, as in F1-M2, F2-M3, F3-M1... then if F1-M2 were the one heating up, the rpoblem would probably reside in the stator side of things... but actually F3-M1 was the one getting BBQ hot... so it was fairly certain the R/R was fugged...



While we were at it, we decided to check out the (famous over here in Spain) BYC... bit like KFC... Big Yellow Connector (read "Kentucky Fried Connector")... this is a reasonably large yellow connector through which a whole bunch of ground wires run, in the front subharness... it's not really large in size, but there are 12 wires running through it... each of a different thickness (guage)... three thicker ones and the rest are puny. This connector seems to join all sorts of ground wires (seemingly from sensors and the like) but with the surprising effectiveness of an ashtray on a VFR. Nill, null, zero, ziltch, none and sweet f-a effectiveness. It's a piece of crap and hardly creates any decent connections whatsoever. So we eliminated the connector, twirled the ends together and wrapped another section of cable around this (to bolt the other end of this to ground on the chassis) and soldered the lot with a torch solderer...










I can say my VTEC transition and Fi system in general is running smoother so this probably means the ECU is receiving proper readings from sensors now because the surging issues had been getting intolerable lately.



I'm currently running a second hand OEM R/R a buddy lent to me for the meantime... Although I picked up, courtesy of Josh (Tightwad) at Wiremybike.com... the supposedly YOU-BEAUT mofset supercool R/R unit... so I'll be installing it this weekend to see how it goes... thing is it doesn't have the B&W feedback... so wondering if I should wire in the one from the VFRness (which I currently have completely disconnected) or not bother...



I'm getting a stable 14,3 V with the 2nd hand OEM R/R... battery reads 12,9...



Seems OK but it used to give out 14,6 V... before all this. Keen to try out the Mofsetter... 'cause I'm about to give up on the VTEC forever.... hope this helps people...



Link to 5th gen equivalent:



https://www.vfrdiscussion.com/index.php?/forums/topic/66045-urethra-i-found-it/&do=embed&comment=773553&embedComment=773553&embedDo=findComment#comment-773553

Link to post
Share on other sites
  • Member Contributer

Top work mate - that ground connector is probably a major root cause of all the issues with VFRs. I think I'll tear into mine soon to do the same mod.

I'm getting a stable 14,3 V with the 2nd hand OEM R/R... battery reads 12,9...

Seems OK but it used to give out 14,6 V... before all this.

Be aware that some regulators are set to different voltages - a different R/R may regulate at 14.3 compared to 14.6. I wouldn't worry about that kind of difference.

Link to post
Share on other sites

Top work mate - that ground connector is probably a major root cause of all the issues with VFRs. I think I'll tear into mine soon to do the same mod.

I'm getting a stable 14,3 V with the 2nd hand OEM R/R... battery reads 12,9...

Seems OK but it used to give out 14,6 V... before all this.

Be aware that some regulators are set to different voltages - a different R/R may regulate at 14.3 compared to 14.6. I wouldn't worry about that kind of difference.

I'm trying to convince everyone to check this conector out on their bike... it's got to be a major part of the electrical woes on at least the early VTECs...

10-4 on the voltage setting... I haven't had a single electrical hiccup on the bike, no flat batteries, no blown fuses or light bulbs or fried conectors since I did this mod... this summer will be the proof of the pudding with the hot temps and mountain runs...

So does this R/R do as you mention on the other thread?? Maybe I should check out the R/R you mention...

Link to post
Share on other sites

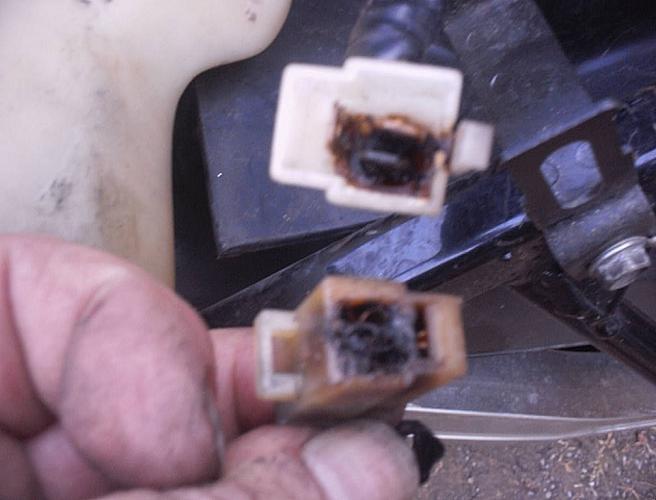

One thing that will kill a stator instantaneously is any short between the 3 yellow wires when the plug melts.

post-3647-0-00311000-1307219035_thumb.jp

Link to post
Share on other sites

So... I had been starting to think this was just a Spanish based glitch... but... lo' and beeholdee:





Link to post
Share on other sites

Thank you sire, will look at it all!

You are more than welcome Bailey... be sure to check out your good friend's Veefer800Canuck's "URETHRA" thread as linked above.

Link to post
Share on other sites

can someone please tell me where to find the big yellow connector?

On my 06 I think its an orange connector, but I checked it and looked good so I just shot it with some wd40. I dont want to do the CLOD weld unless I have to.

But its on the left side of the bike as pictured

Link to post
Share on other sites

In the front subharness, on the leftward running line which runs along the front fairing bracket's lower left arm... right about where you can see the thing in this picture... (wrapped in black electrical tape, so you'll be looking for a larger swelling along that line near the relay



Link to post
Share on other sites

I opened up my big yellow ground block. I was surprised. The thing was immaculate. No brown, no crud, just perfect looking wires. There were only 8 wires I believe in this block, I have the latest wiring harness (the one from the recall) so maybe that is why.

I do however get hot stator wires. Like REAL hot, I think this may be normal, not sure. My connectors aren't fried and when I have done tests everything came out fine, but I am tracking down surging issues. I may try to feel each wire individually to see if I can diagnose as was described here.

Is the Big Yellow Block the only "block" style ground connector we have on 6th gens? Or is there any others where its in a box like that wrapped in tape?

Link to post
Share on other sites

As far as I know that's the only one.. It's actually orange on the new 2006-on harness, at least in Europe..

Thing is they don't appear on the wiring diagram so maybe there are more somewhere.

Too-hot-to-touch wires is a real bad sign.

Link to post
Share on other sites

That bundled up bunch of ground wires all twisted and soldered together looks a bit scary....... But I guess it works!

I suspect though, that most VFR owners might be too picky about how their wiring looks and will not be brave enough to do a "McGuyver" style solution like that. I think a nice terminal block used as a ground buss for all those grounds should also work better than the original BYC....

Link to post
Share on other sites

my 06 abs (U.S.) is orange too. To tell ya the truth the 2002 manuals (wiring colors) are damn near worthless. lots of wire colors differnces since the 2002 manual.

Link to post
Share on other sites

So after looking for grounding cluster (for days) somewhere near the battery, now I know better. On my 2002 front fairing is going off tomorrow!



But just to clarify. I am still waiting to hear from Honda (Australia) to hear if front harness recall has been carried out. If it hasnt, i wait with this mod? Correct?



And then on new or old harness I solder all together, and a thick gauge(?) wire I then lead to any nearby bolt, on the chassis?



Not just stupid, old as well.



Trygve

Link to post
Share on other sites
So after looking for grounding cluster (for days) somewhere near the battery, now I know better. On my 2002 front fairing is going off tomorrow!

But just to clarify. I am still waiting to hear from Honda (Australia) to hear if front harness recall has been carried out. If it hasnt, i wait with this mod? Correct?

And then on new or old harness I solder all together, and a thick gauge(?) wire I then lead to any nearby bolt, on the chassis?

Not just stupid, old as well.

Trygve
Affirmative
Link to post
Share on other sites

Found it! Thanks. Its in good nick. Will wait and see what Honda says, re recall. Then attack it with a soldering iron. In the mean time I've got panels to fix and then paint.



How thick a wire did you use from solder job to chassis. And where on chassis?





Link to post
Share on other sites
Found it! Thanks. Its in good nick. Will wait and see what Honda says, re recall. Then attack it with a soldering iron. In the mean time I've got panels to fix and then paint.

How thick a wire did you use from solder job to chassis. And where on chassis?


Thicker than the existing green wires... Maybe a 12 or 14 gauge I think.

There's a bolt which threads into the main arm of the chassis very conveniently on the left hand side about where the front and side fairings join. Ring terminal and you're sorted.
Link to post
Share on other sites

HI

May be a bit of the thread but

Recently had an issue with A 5 gen 1999 800

FI light glowing dim then getting brighter.. no running issues and people say it mat be the ground block as lights may try and earth back through the FI light so I checked the earth block and all seemed fine (in fact it looked like new) so sprayed contact cleaner and re assembled. All well for a few weeks (oh also installed a vfrness) today the same issue so read in a previous thread to turn lights off and see what happens … well main lights off just small bulb on (we in uk call this parking light) and the issue stopped instantly ..so waited a few miles an decided to turn main lights on again … the issue came back o I am thinking that maybe I need to take the groung block out of the harness and solder the wires together and run a separate earth for the FI light wire as some others have done … Am I on the right track here … or is there something more sinister ...At no time did I have any running issues



Any advice would be appreciated





Speed

Link to post
Share on other sites

Yes, you are on the right track, I have to clean the pins(in the orange block near on the left side of the seat)) about once a year when this starts to happen. (2000 FiY)

I've tried bending the pins in or out in the hope of a better connection, but it still seems to be an annual event (normally when the warmer(for the UK) weather starts).

I guess eventually I will have to replace the block and solder the wires together.

The connections have never looked dirty or corroded



Link to post
Share on other sites

Hi

Thanks for the reply

So do you just keep one set of wires together and solder them ... same with the other set ... and that's it ? Would it be advisable to run another earth



Regards Speed

Link to post
Share on other sites

Yes to another ground wire.

You can't see electrons so you can't judge the effectiveness of a connector with your eyes. That's why someone invented multimeters.

Again the advice of this thread, is firstly, read the thread... and remove the connector, solder all the wires together PROPERLY, there's more than one way to do this... But cold solder or otherwise poor quality solder jobs are defeating the purpose... and run an extra wire to ground.

Period

Link to post
Share on other sites

Hi

Has anyone got a picture of this on a 5th gen as the 6th gen mat be different

It seems on the 6th gen all the wires in the block are connected … may be wrong here but I seem to remember that there were 2 sets of prongs in the 5th gen

A picture would really help



Speed

Link to post
Share on other sites

×
×
