indianagenius 41 Report post Posted March 17, 2018 I want to re-finish my Heat Shield on the right side of the bike. I want to remove it. It is attached to the footpeg assembly. There is one square nut on the back side of the heat shield that I cannot get to for the life of me. I'm thinking I need to remove the entire footpeg mount assembly since I cannot get to the square nut. Any hints? Thanks Share this post Link to post Share on other sites
Auspanglish 492 Report post Posted March 17, 2018 Needle nose pliers (self-clamping if possible) or just remove footpeg mount as you suggested. Share this post Link to post Share on other sites

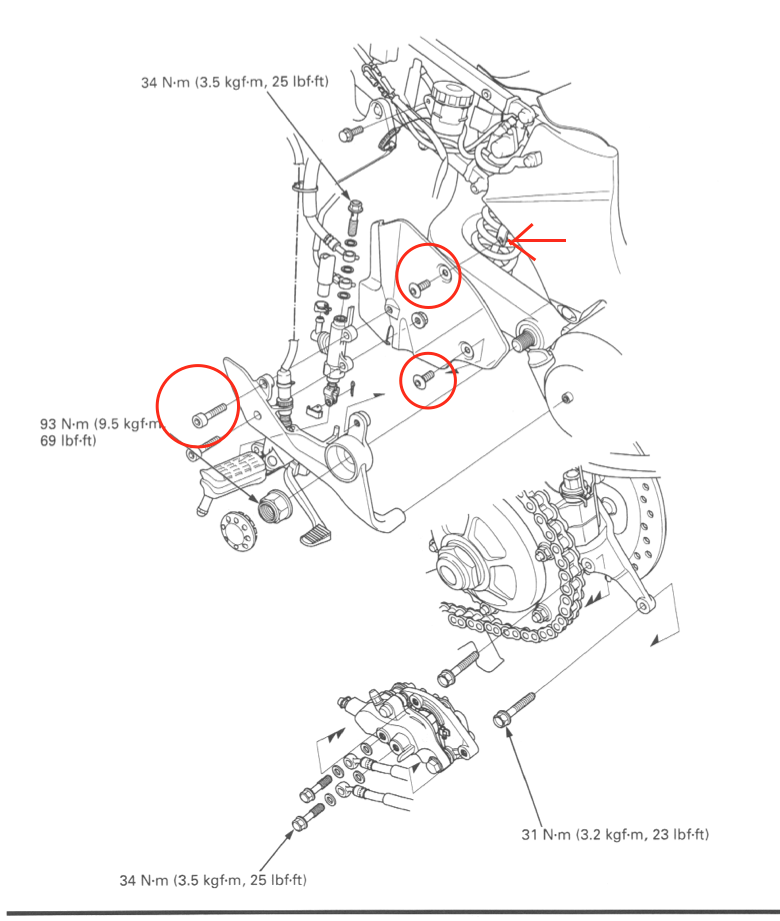

Lorne 376 Report post Posted March 17, 2018 It looks like there are three fasteners attaching the heat shield, as per p.15-1 of the service manual (see below). I'm guessing that the top/middle one is giving you fits as it is the only one to attach to a tab on the frame. That means removing the footage off cannot help. Use some penetrating oil and take your time. As Auspanglish notes, locking pliers might help. If all else fails you can drill out the head of the fastener. What colour are you repainting it? I never liked the black finish and had it painted silver/grey on my long gone '99. Share this post Link to post Share on other sites
indianagenius 41 Report post Posted March 17, 2018 Yes, that worked after removing the rear wheel and pipe to fit the clamping needle-nose plyers in. The Heat Shield is physically no longer bolted-in, however I still cannot get it out from behind the rearset assembly. Lovely. Share this post Link to post Share on other sites
indianagenius 41 Report post Posted March 17, 2018 Alas, she is out. It can come out without removing the rearset, but is tight and will be fun to get back in. It will be cleaned-up and re-painted black again. Thanks for all the help, gents. Share this post Link to post Share on other sites
hellindustries 64 Report post Posted March 17, 2018 It's a royal pain to remove. I took mine out without removing the rearset, and had to squeeze and scream at it to get it back in. If i ever have to do it again, i'll be removing the damn rearset... Share this post Link to post Share on other sites
VFROZ 312 Report post Posted March 18, 2018 A lot easier if you remove the rear master cylinder. You don't need to dosconnect the hoses, just off the foot peg hanger. It is still a pain in the arse. Share this post Link to post Share on other sites
gig 130 Report post Posted March 18, 2018 14 hours ago, indianagenius said: Alas, she is out. It can come out without removing the rearset, but is tight and will be fun to get back in. It will be cleaned-up and re-painted black again. Thanks for all the help, gents. Just be prepared to touch it up once back in the bike, I've tried, and its impossible to get it back in without bending and scratching the new paint job. TI wrap and removal is the best option, IMO Share this post Link to post Share on other sites

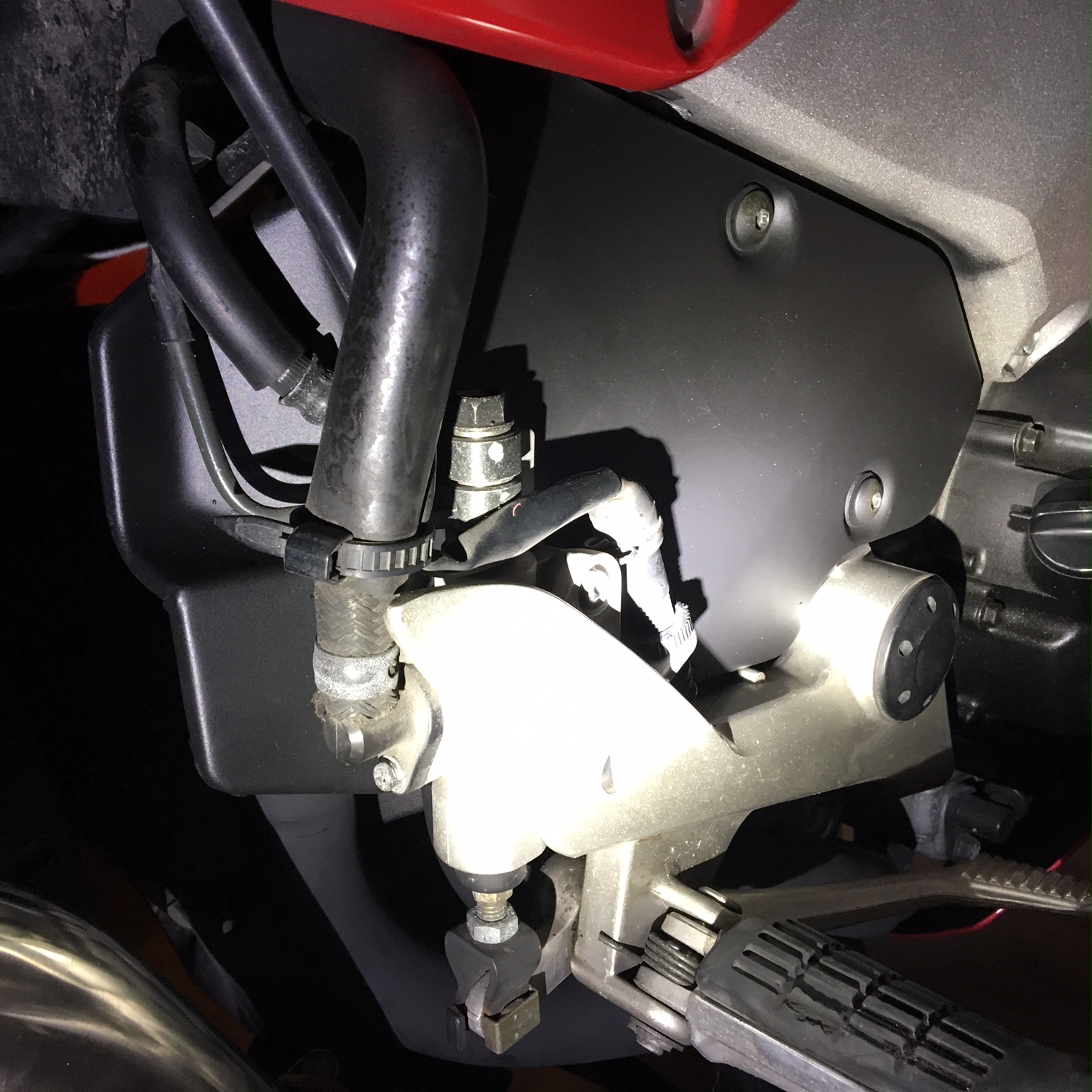

indianagenius 41 Report post Posted March 19, 2018 Thanks for all of the great help from the international group. It is input like this that makes VFRD great! This is not a great photo but suffice to say it turned out very well and was able to ride the bike today in good weather here in SE Indiana. Share this post Link to post Share on other sites
