streetfightervfr Posted January 14, 2018 Posted January 14, 2018 Hi, I've got a 2000 model 5th gen Australian VFR800 all of the wiring diagrams i have been able to find don't show the bank angle sensor on them :/ Has anyone come across this problem before? Cheers Ian Quote
Member Contributer VFROZ Posted January 14, 2018 Member Contributer Posted January 14, 2018 Try this. It's called the tip sensor. Quote
streetfightervfr Posted January 14, 2018 Author Posted January 14, 2018 Here is a photo of the plug that went into the bank angle sensor :) The main reason I am wanting the exact wiring diagram is i am about to heavily modify the location of a lot of things and remove a lot of unnecessary wiring as i have a new speedo (daytona asura) I did look at the 2002 Australian model u and it had the bank angle sensor with the right coloured wires but it was still not right beyond that :/ Quote

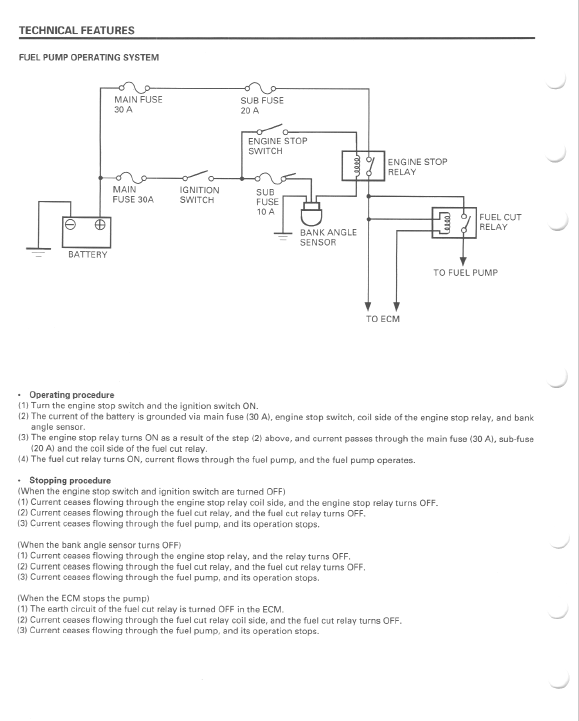

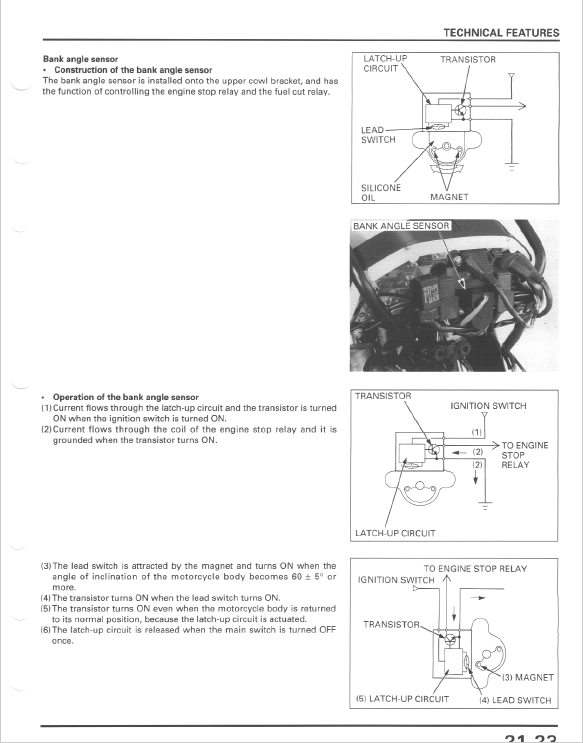

Member Contributer Terry Posted January 15, 2018 Member Contributer Posted January 15, 2018 The pages below are from the 5G service manual. Quote

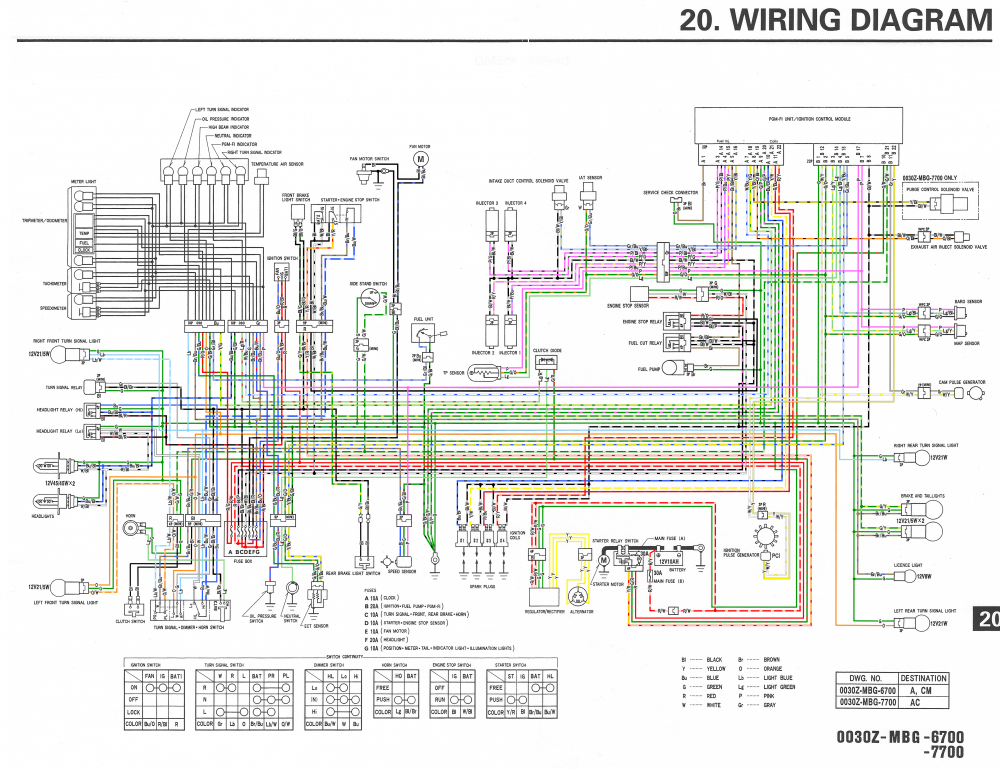

Member Contributer Terry Posted January 15, 2018 Member Contributer Posted January 15, 2018 I think in the wiring diagram it is referred to as the Engine Stop Sensor. The TP sensor is the throttle position sensor I think. Quote
streetfightervfr Posted January 15, 2018 Author Posted January 15, 2018 6 minutes ago, Terry said: I think in the wiring diagram it is referred to as the Engine Stop Sensor. The TP sensor is the throttle position sensor I think. Terry you are a legend! Thank you, you have just ended 5 days of torment for me! Quote
Member Contributer Terry Posted January 15, 2018 Member Contributer Posted January 15, 2018 2 hours ago, streetfightervfr said: Terry you are a legend! Thank you, you have just ended 5 days of torment for me! Feel free to reward the charity of your choice. Glad to have been of some help. Quote

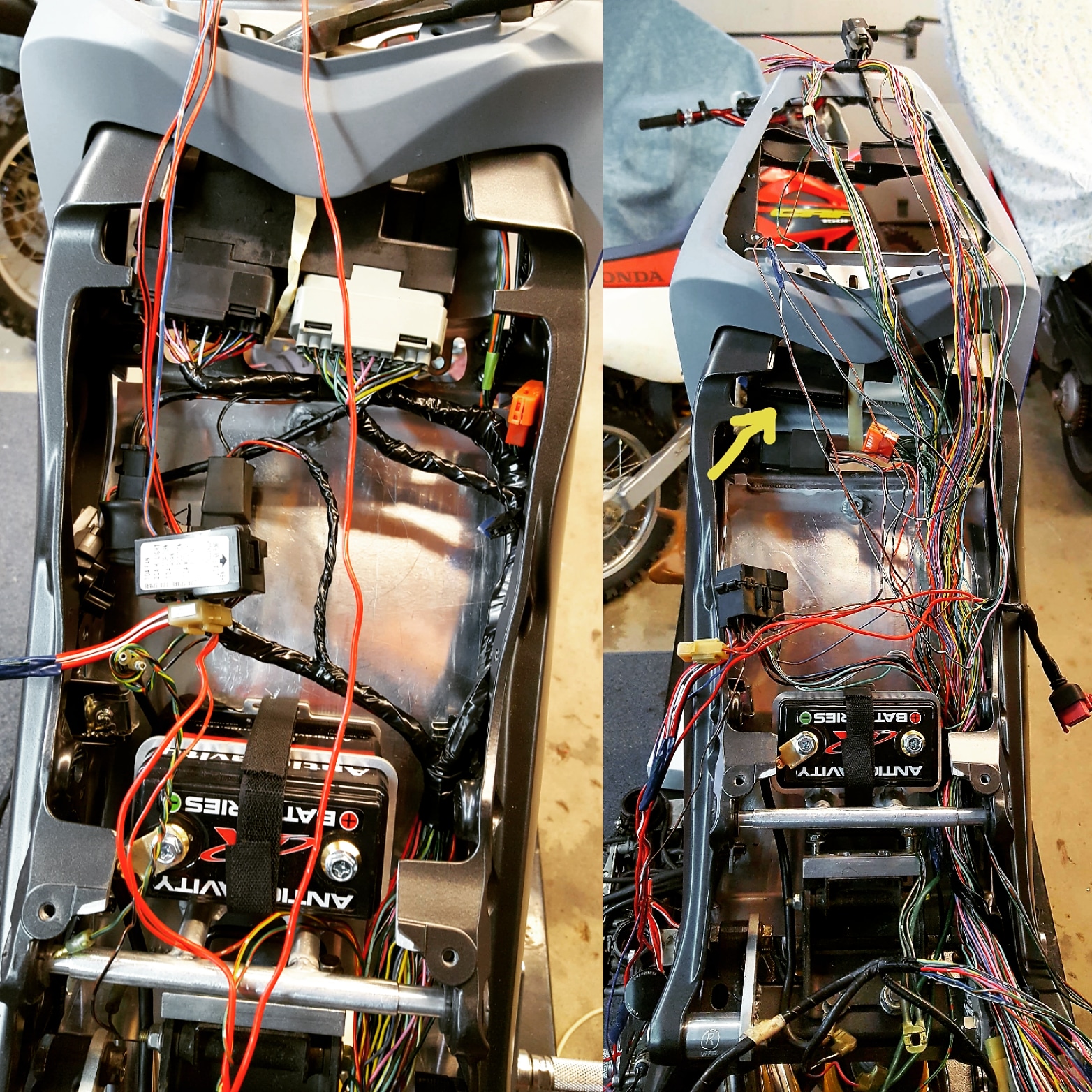

SEBSPEED Posted January 15, 2018 Posted January 15, 2018 3 hours ago, streetfightervfr said: Terry you are a legend! Thank you, you have just ended 5 days of torment for me! Pretty sure I answered this on FB the other day? Now that you've found this site, stick around. It's infinitely more useful than facebook. You can download thw factory (best!) manual here and you'll need it if you're going to do a proper job on that harness tuck. I'm in the middle of doing one myself right now: Quote
streetfightervfr Posted January 16, 2018 Author Posted January 16, 2018 22 hours ago, SEBSPEED said: Pretty sure I answered this on FB the other day? Now that you've found this site, stick around. It's infinitely more useful than facebook. You can download thw factory (best!) manual here and you'll need it if you're going to do a proper job on that harness tuck. I'm in the middle of doing one myself right now: Damn that is sexy ? Couple of questions... What tail piece is that and how did you mount the sub frame? That battery is tiny... What sort is it and do you have any issues with it cranking? Quote
keef Posted January 16, 2018 Posted January 16, 2018 I've got an antigravity like sebs, and bought in Sydney. It started mine first crank, even though it had no petrol tank for about 6 months. My bank angle sensor is now tucked in next to the battery. Quote
streetfightervfr Posted January 16, 2018 Author Posted January 16, 2018 3 hours ago, keef said: I've got an antigravity like sebs, and bought in Sydney. It started mine first crank, even though it had no petrol tank for about 6 months. My bank angle sensor is now tucked in next to the battery. Cheers I'll have a look at them. On the back angle sensor, you can get rid of it all together if you bridge to outside two wires ? Picked up that trick from a stunters forum Quote
