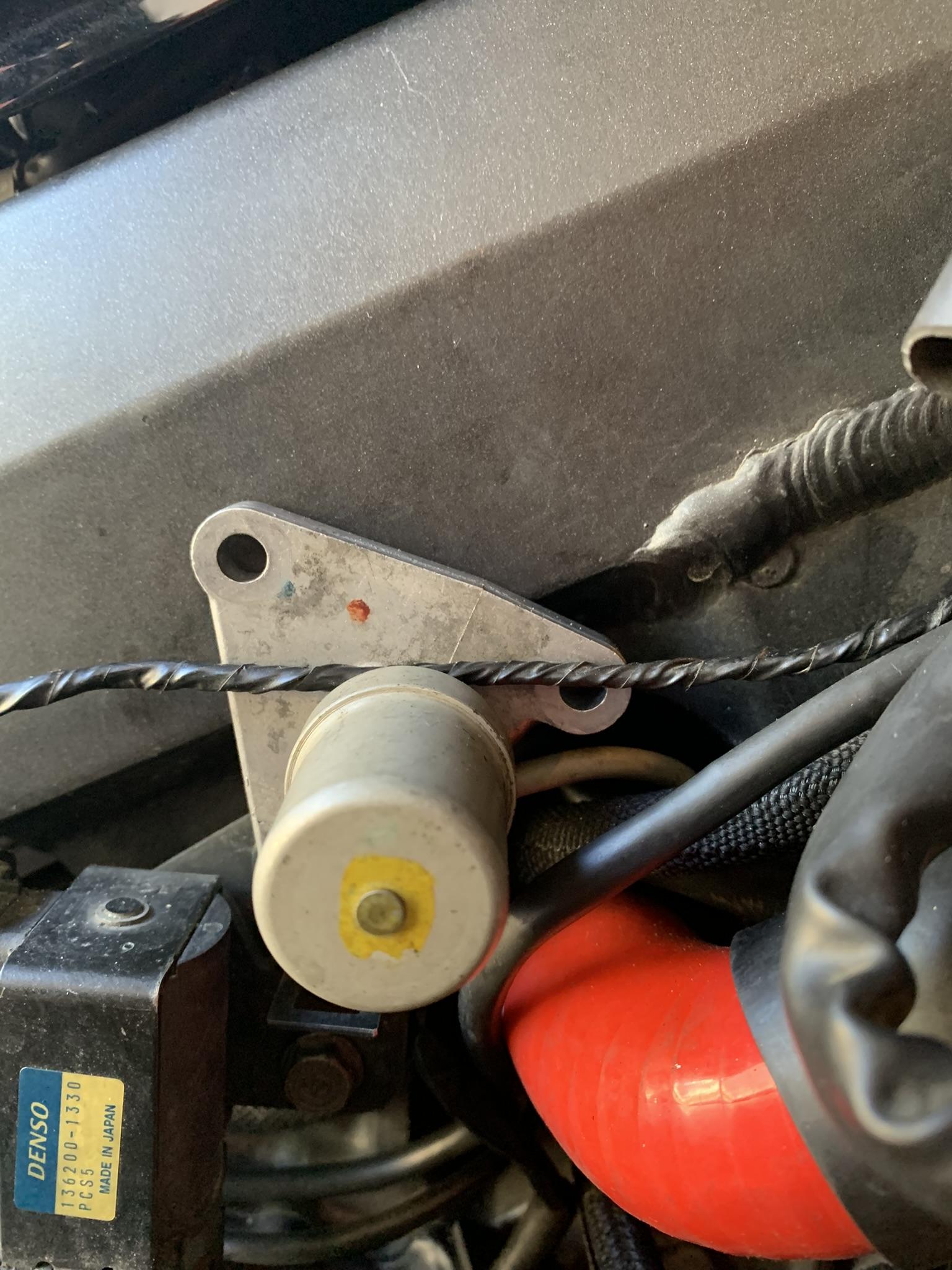

As we all know, when things go too smoothly, there has to be something we forgot or missed, right? Right! Seems that rather than terminate the VTEC spool valve, I just removed it. Well, that little oversight will trigger the FI light to stay on. Well, a call to fellow VFRD member Christian, he pointed out what he did so, I had to do some slight disassembly and get that spool back in and mount it somewhere. Yep, somethings missing... ...This! OK, now let's get this more put together...

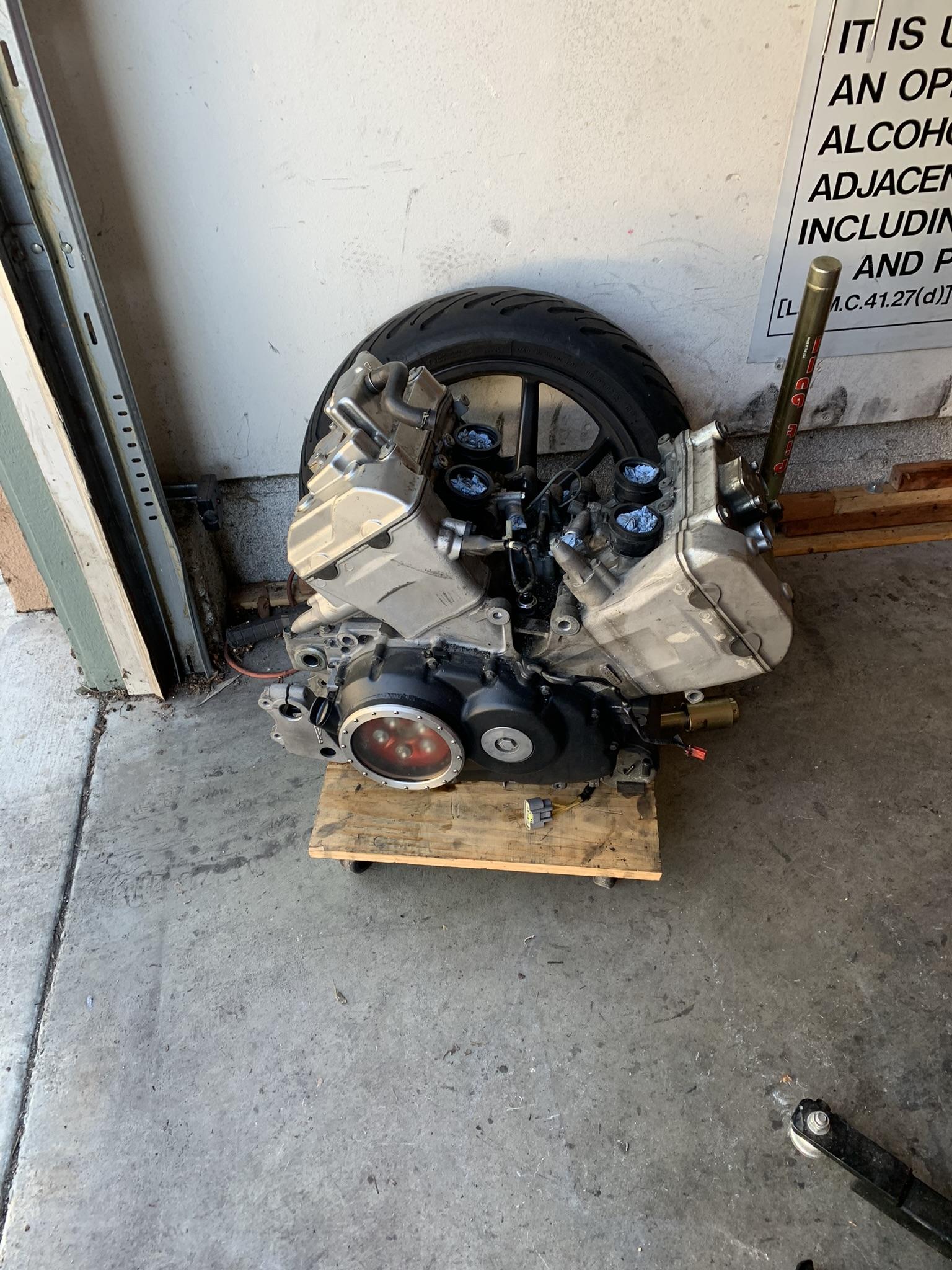

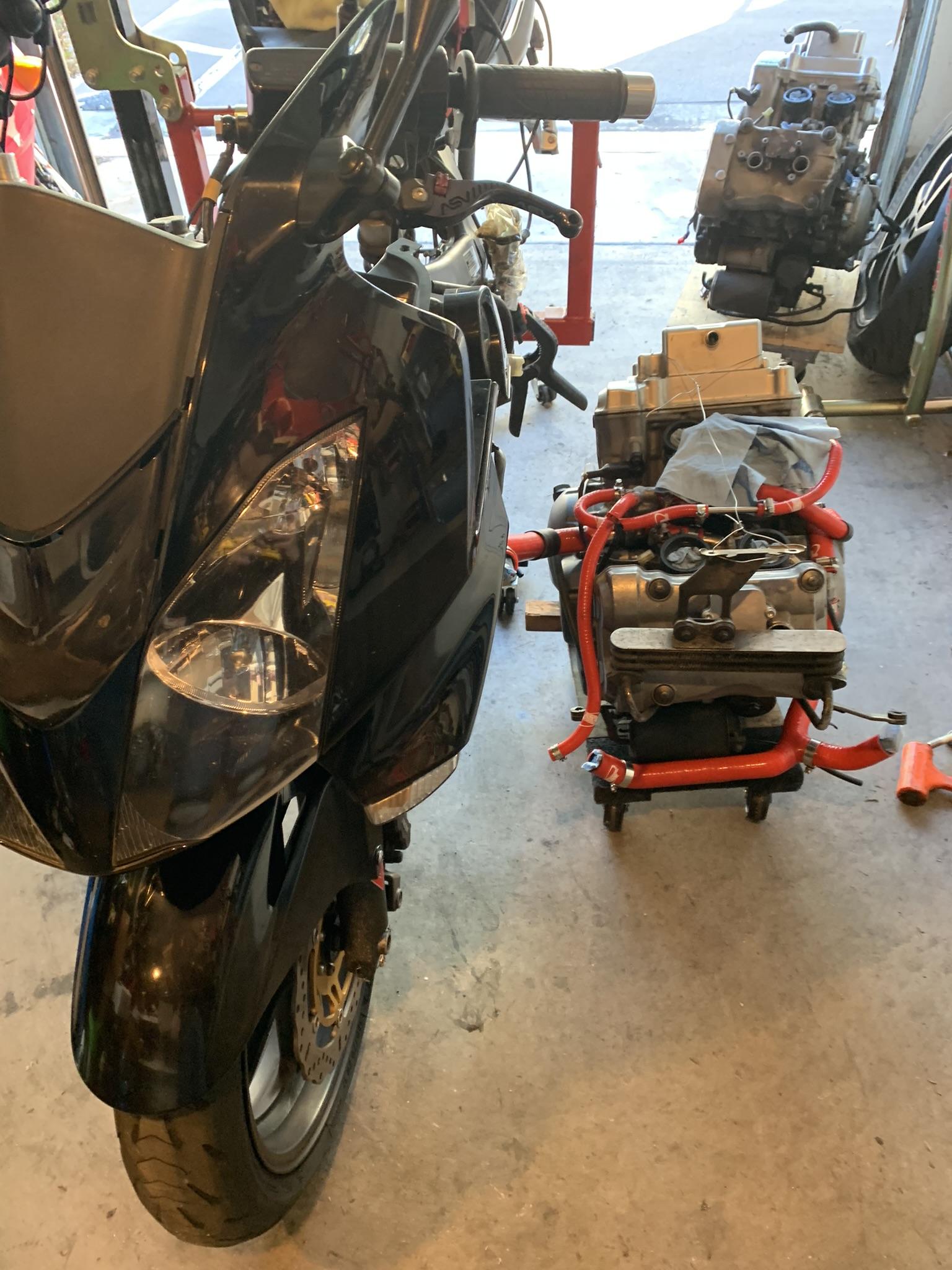

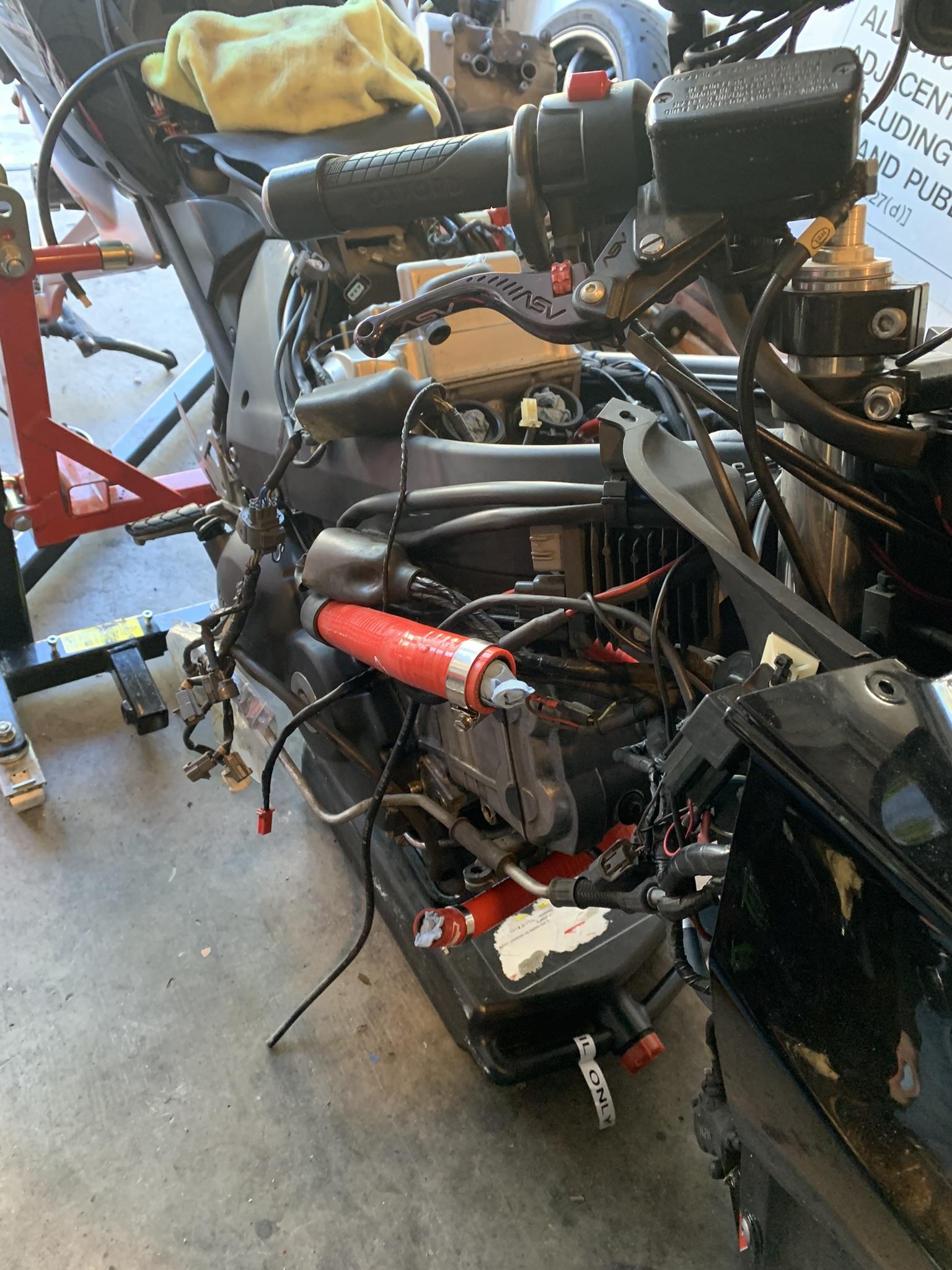

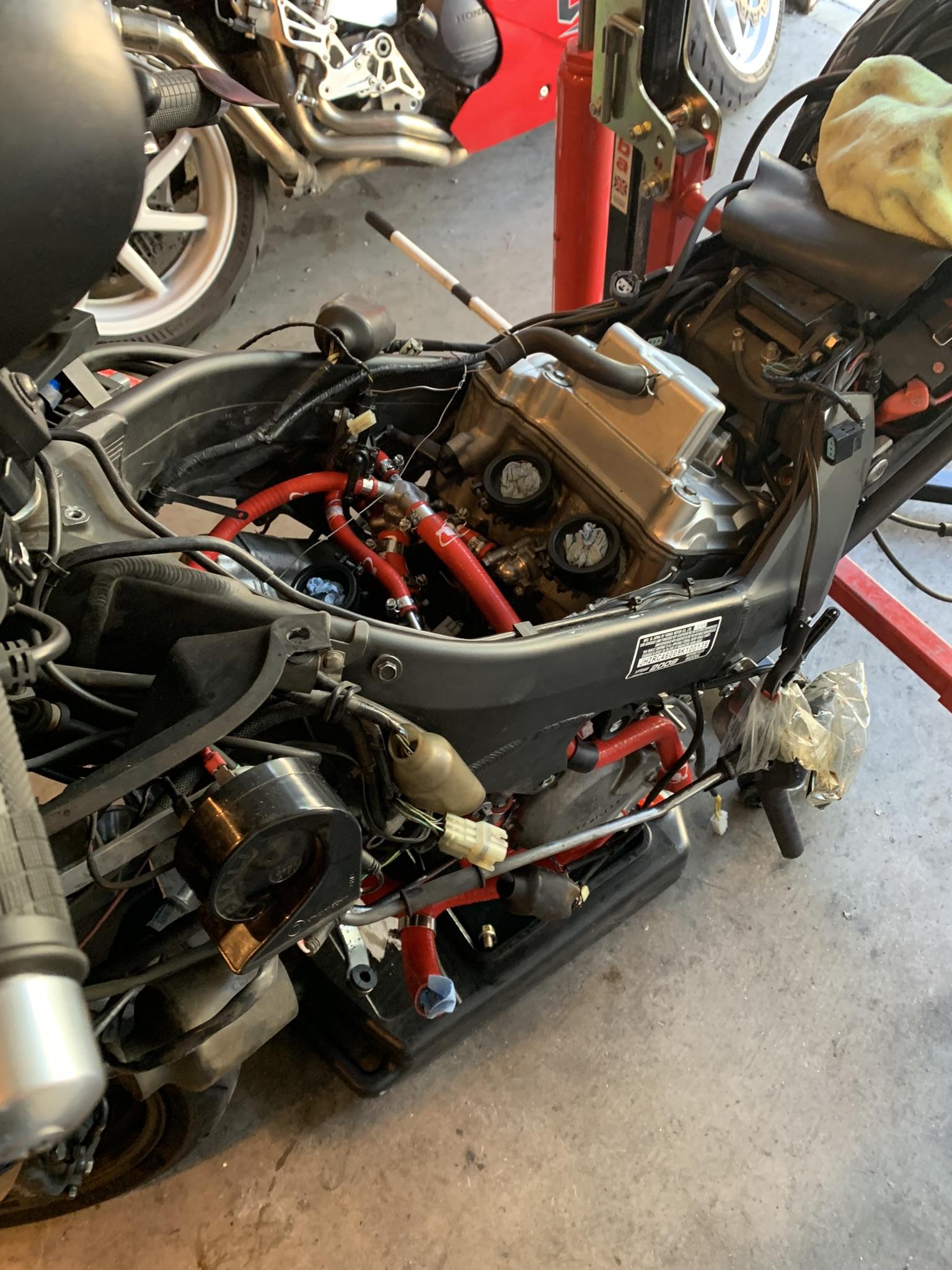

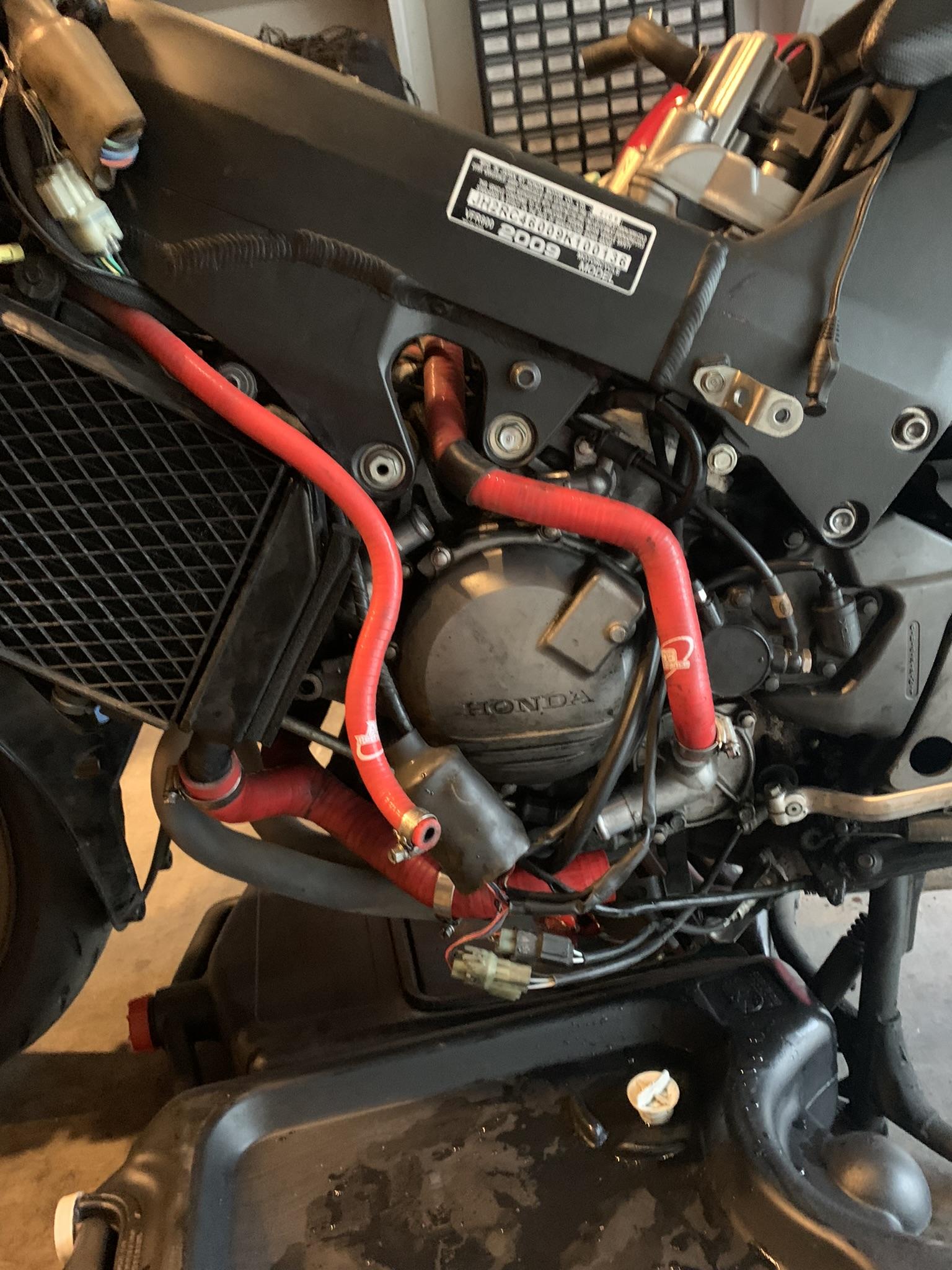

With the original motor removed and all of the coolant hoses put on the replacement motor, I went to work getting that installed and tightened up.

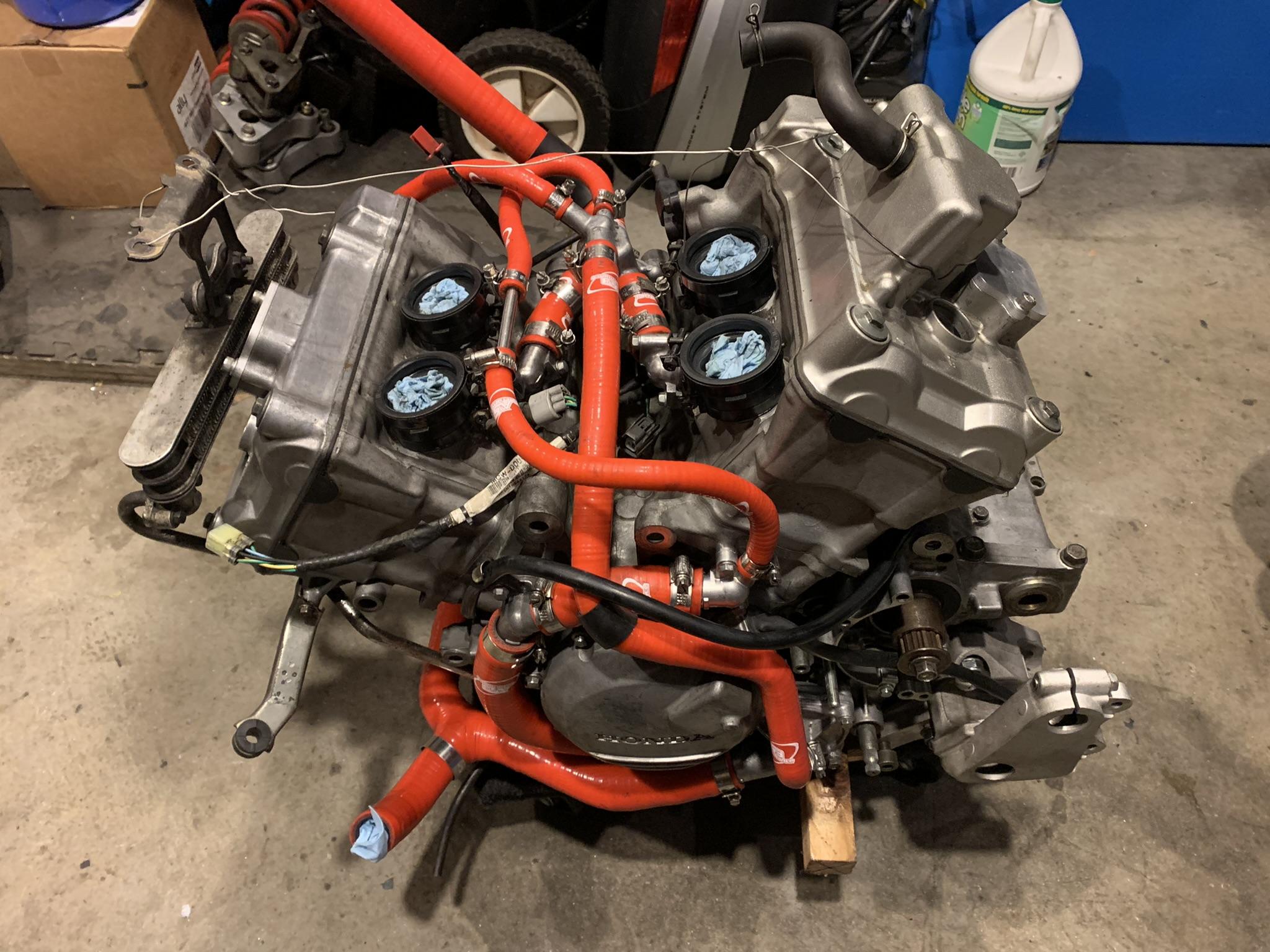

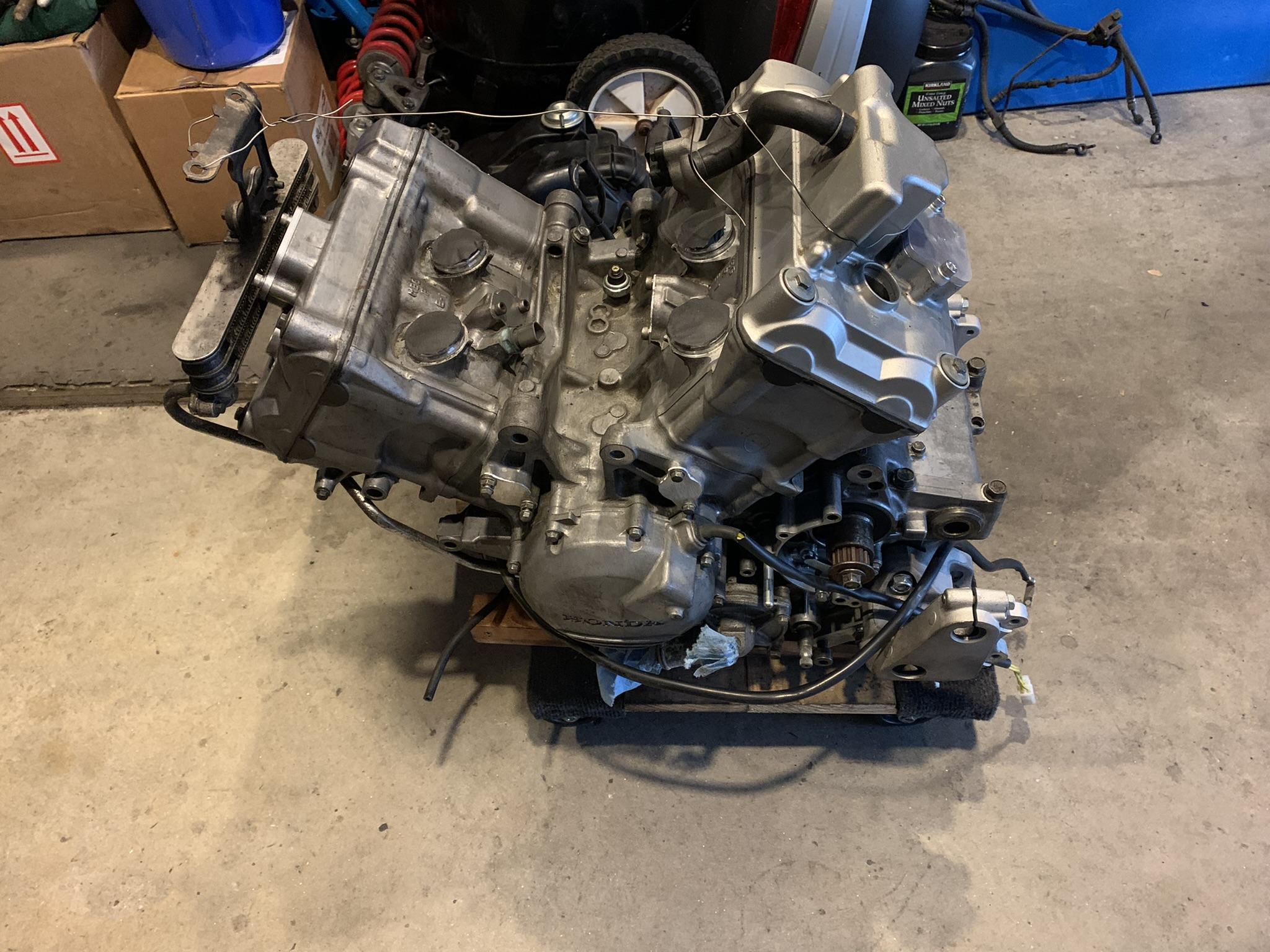

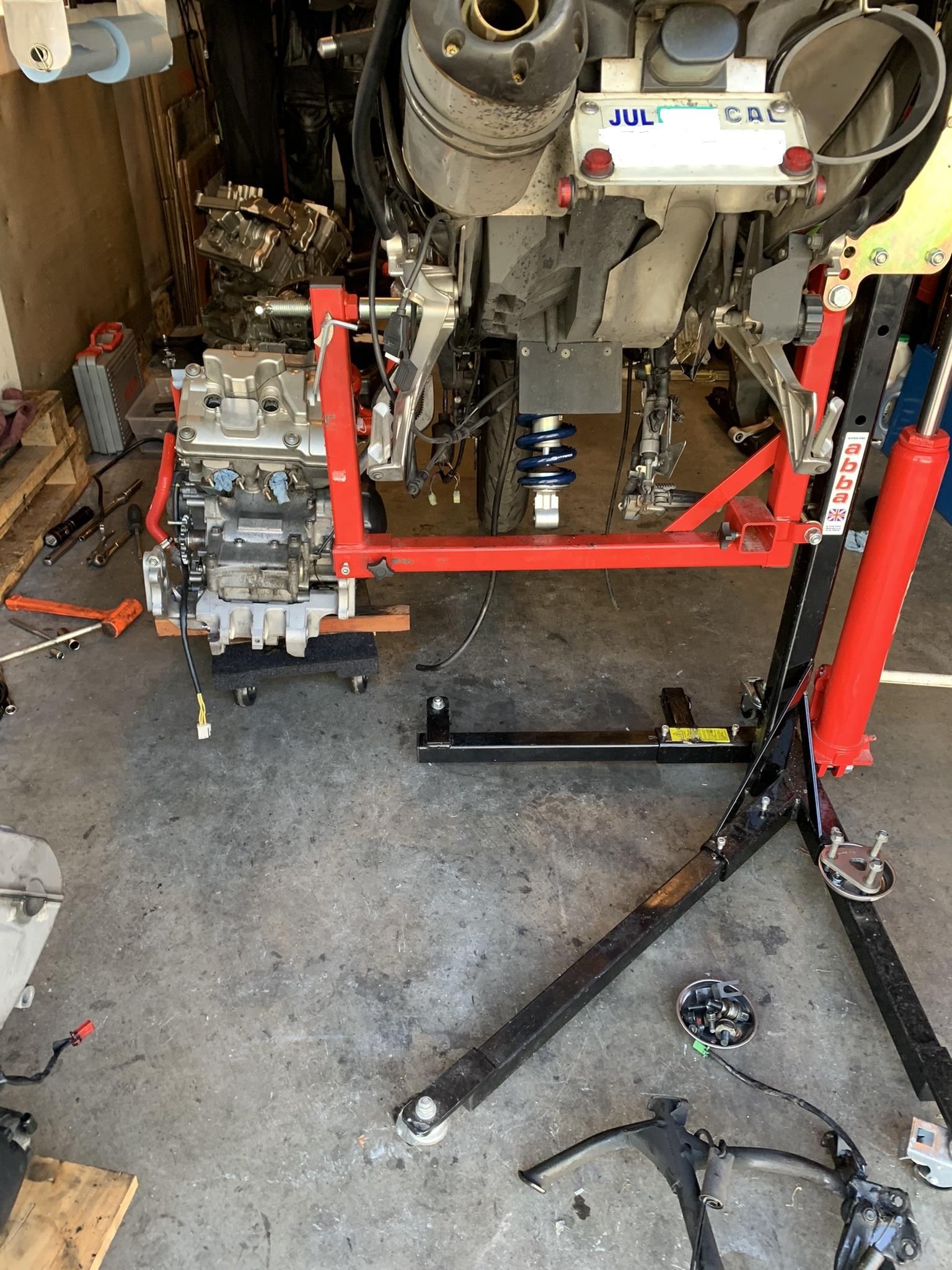

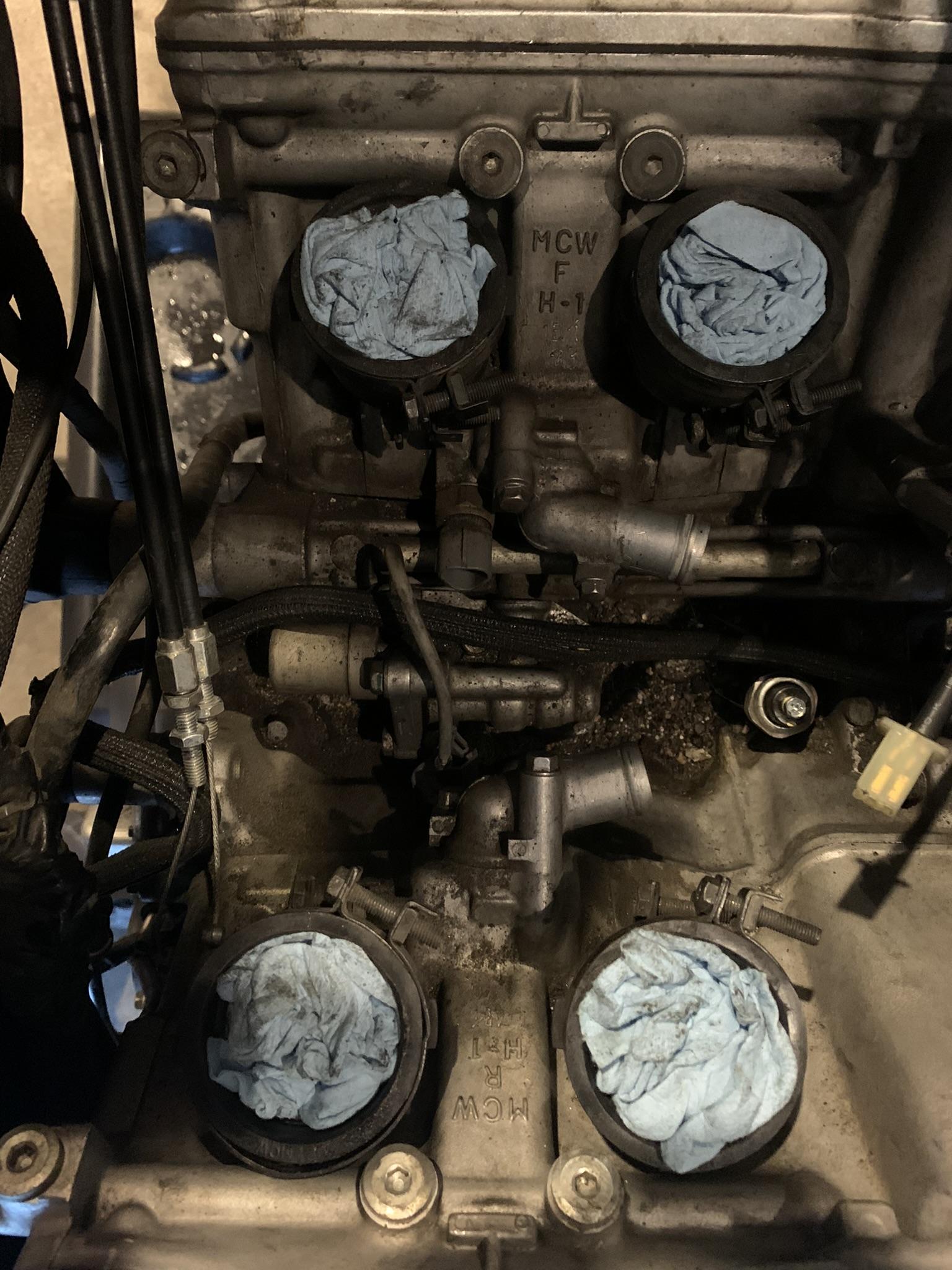

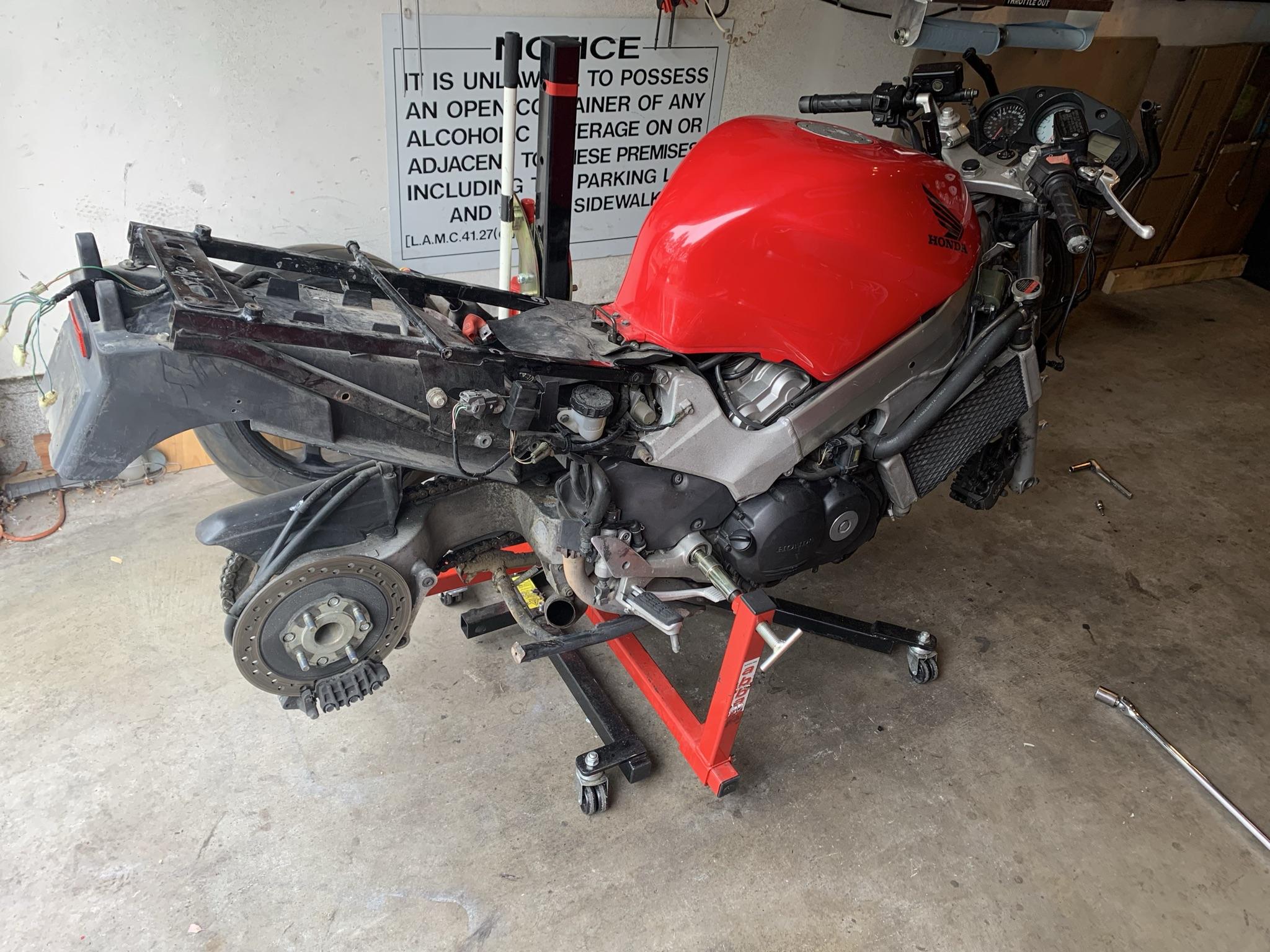

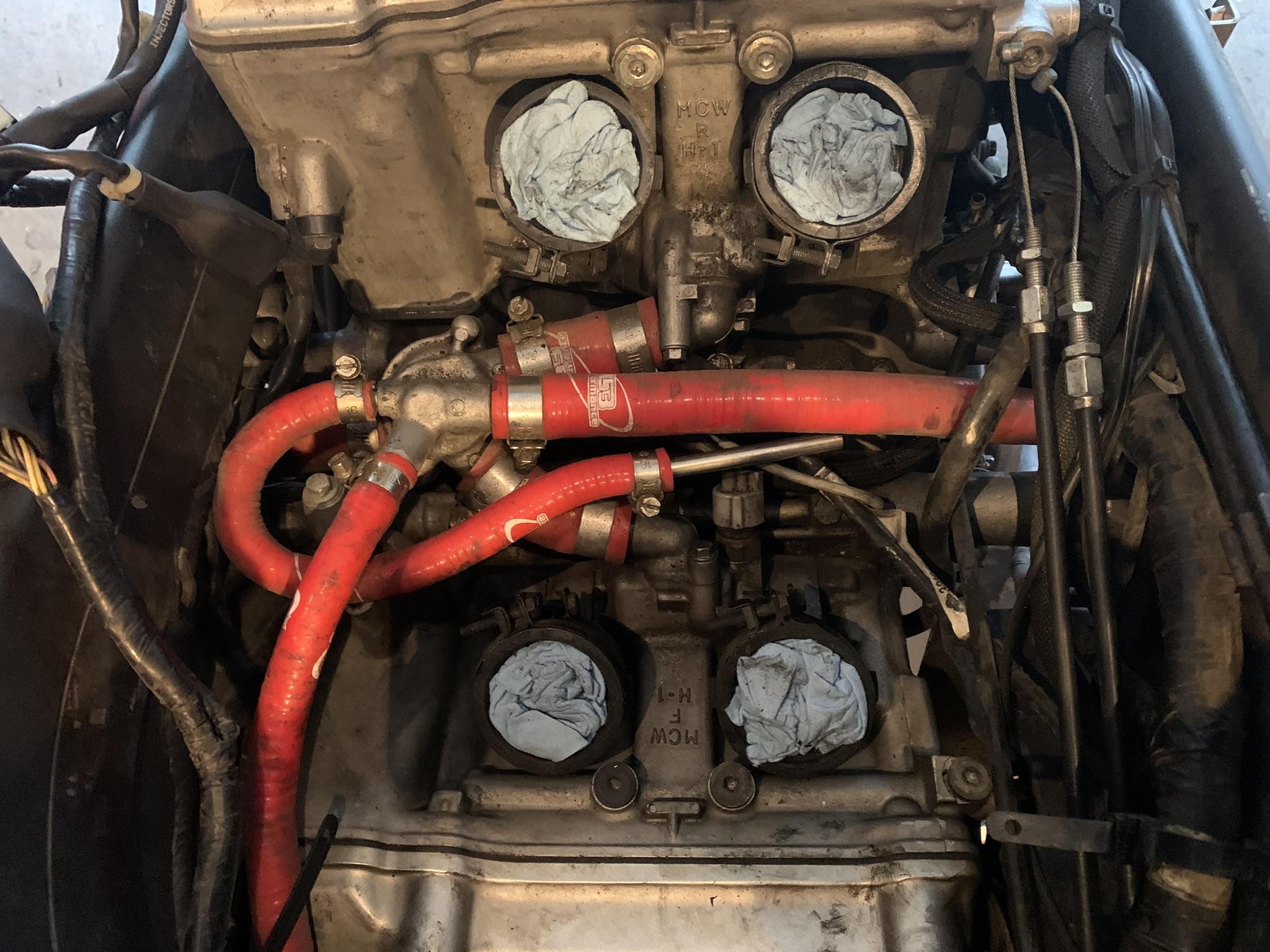

After doing some more stripping and investigating, I was surprised to find a rather new and "full sized" K&N air filter. Once the 5 Gen engine was out and all the other parts and pieces set aside, I put the 6 Gen onto the Abba stand and got to work there too. Started by draining the fluids and removing vital bits to be reused, like the throttle bodies and coolant hoses.

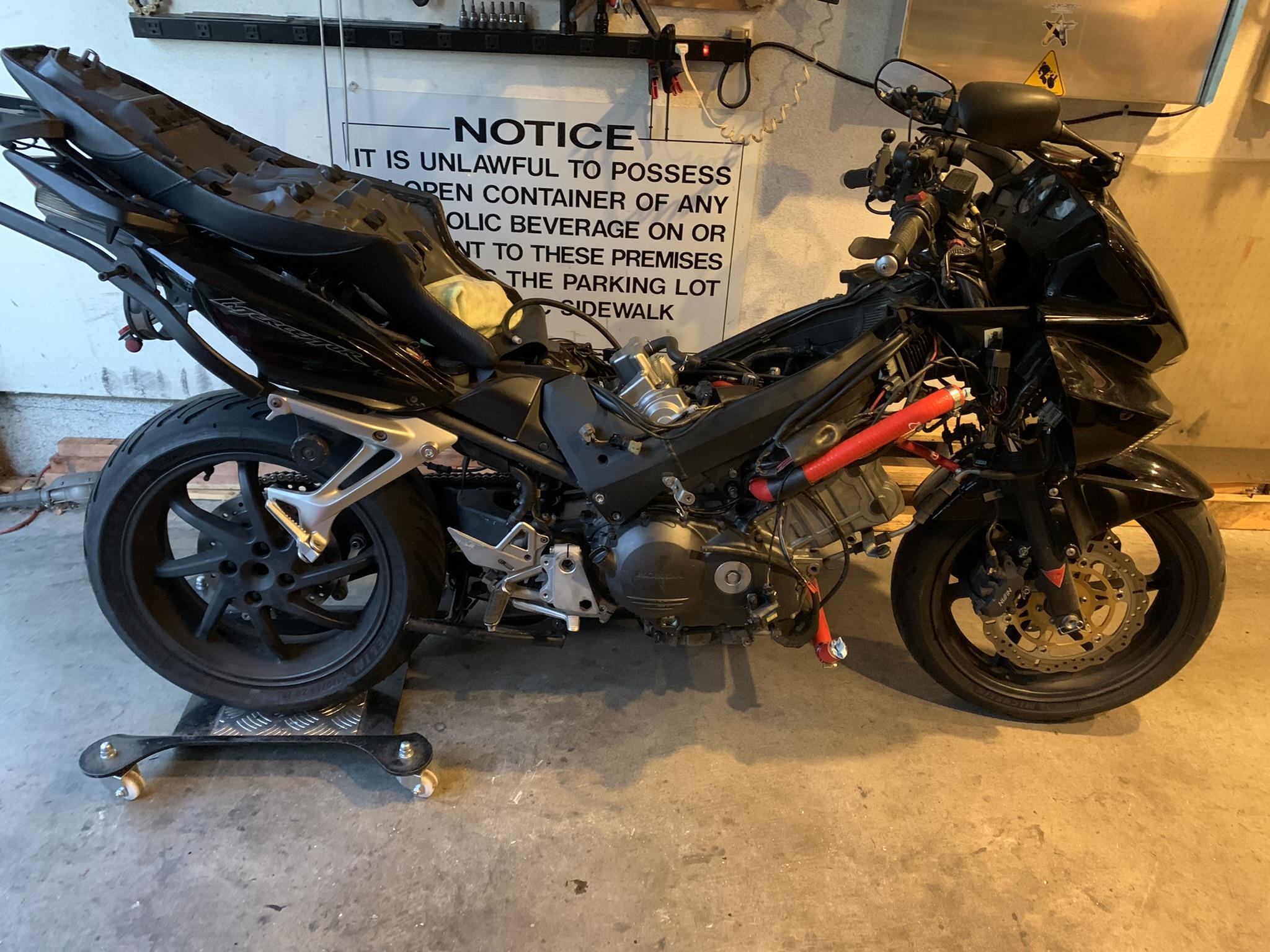

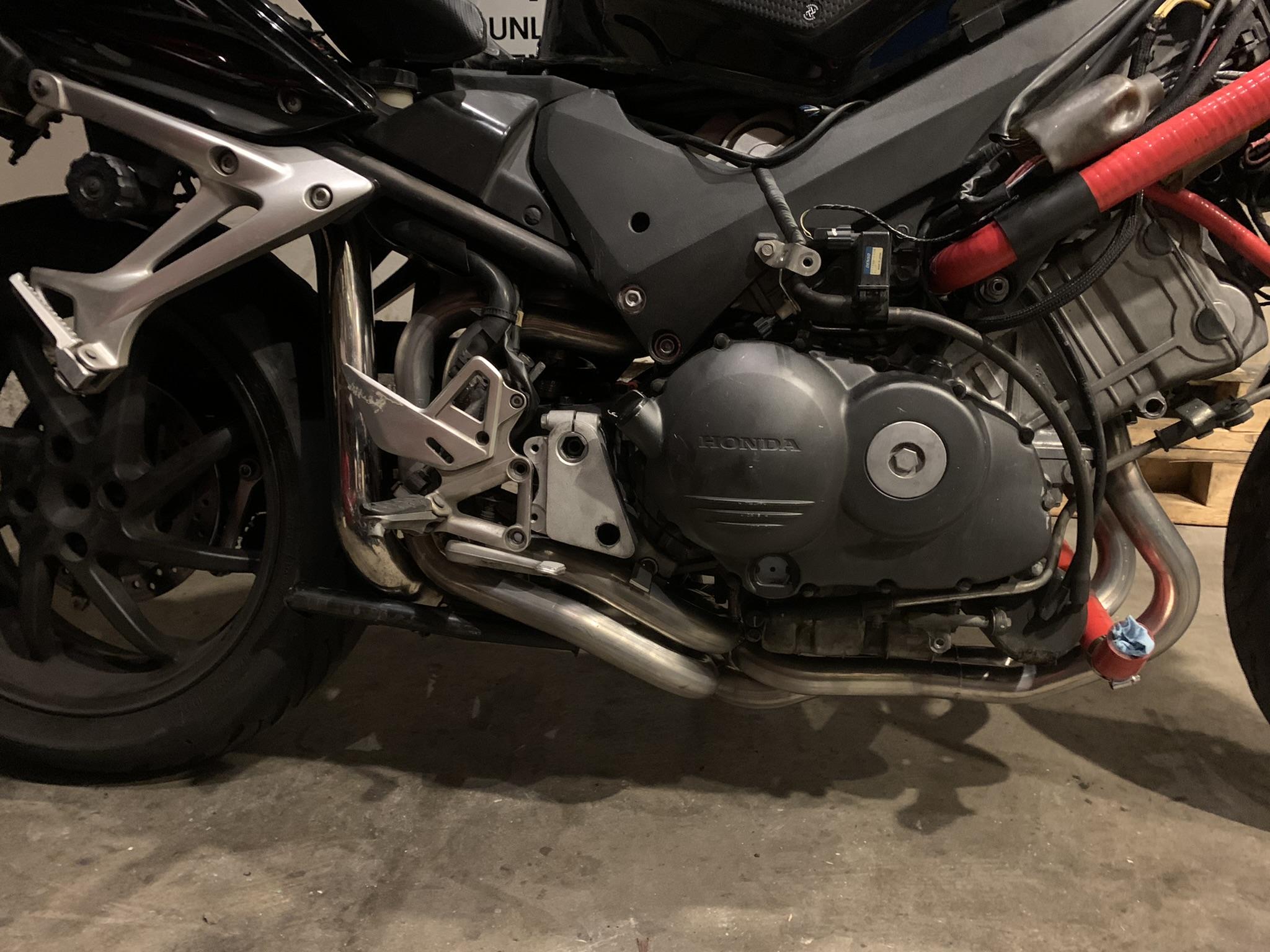

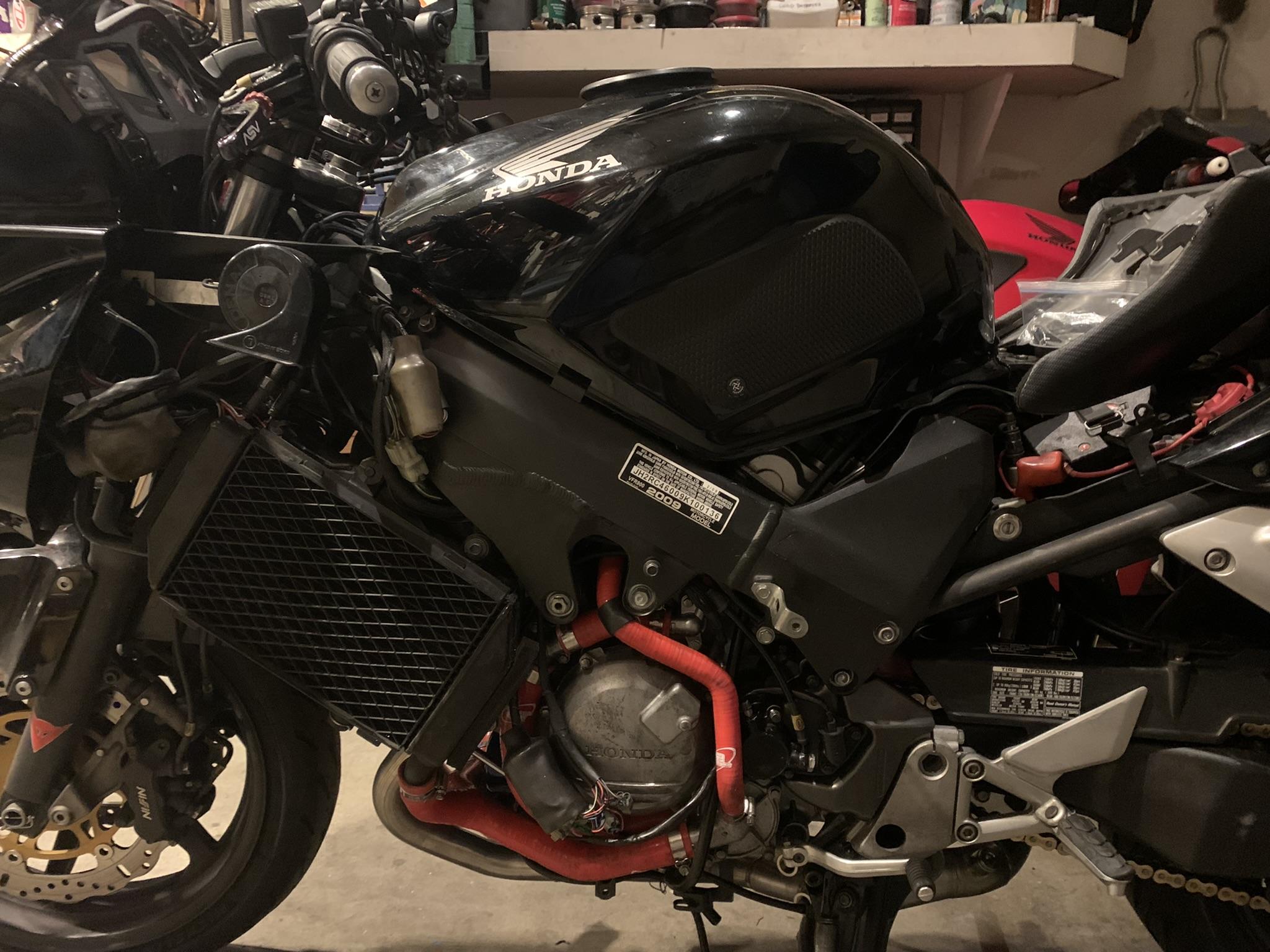

So yeah, I did a thing, that was put a 5 Gen engine into my 6 Gen frame. For the most part, I was really loving my 6 Gen, got it setup for my comfort and was really enjoying how it was running. Well, up to a point, seems that I had a coolant leak and it wasn't external but rather internal and after every ride, mostly commuting at this point, I'd be low on coolant. After several searches for where the coolant was leaking from, it was determined, it was leaking into the combustion chamber! Yeah, not cool, no pun intended. So what to do, repair the motor? Replace the motor? Sell her and get a new one? Well, as luck would have it, someone on a Facebook forum was looking for a buyer of his 5 Gen. His son bought it and was going the "stunter" route when dad stepped in and said we are either going to build this right and for normal use or we're selling it. Well, looks like the latter ended up being the choice. I reached out to him and had a couple of conversations, mostly to get a read on him and the situation and I felt comfortable with both so agreed to buy it from him. Luck would have it he was in California too, albeit a few hours North of me, but no out of state travel or concerns (California plated). Anyway, got my friend to help me go pick it up using his van and company to go grab it. All went well, got up early, hit the road, stopped for breakfast, met the seller, stopped for lunch and home just after dinner time. I think we might have stopped for dinner too, don't remember though. One of the first things I did after I got the bike home was throw it on my Abba Sky Lift and did an assessment of what I got. One of the first things was to inspect the stator. That turned out to be almost brand new! Then I took compression readings of all 4 cylinders, again good to go there too. Then I pretty much stripped it down to the motor.

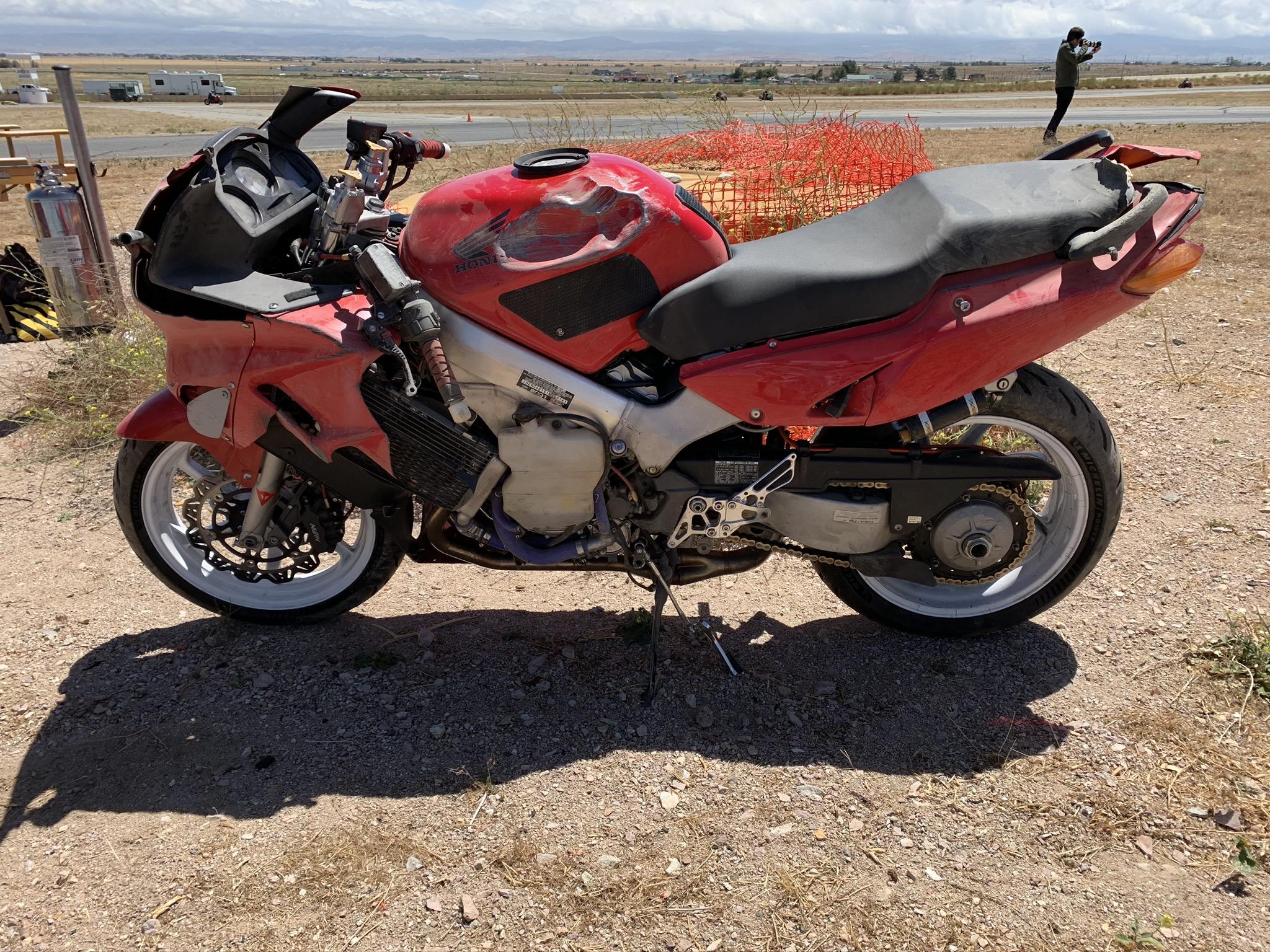

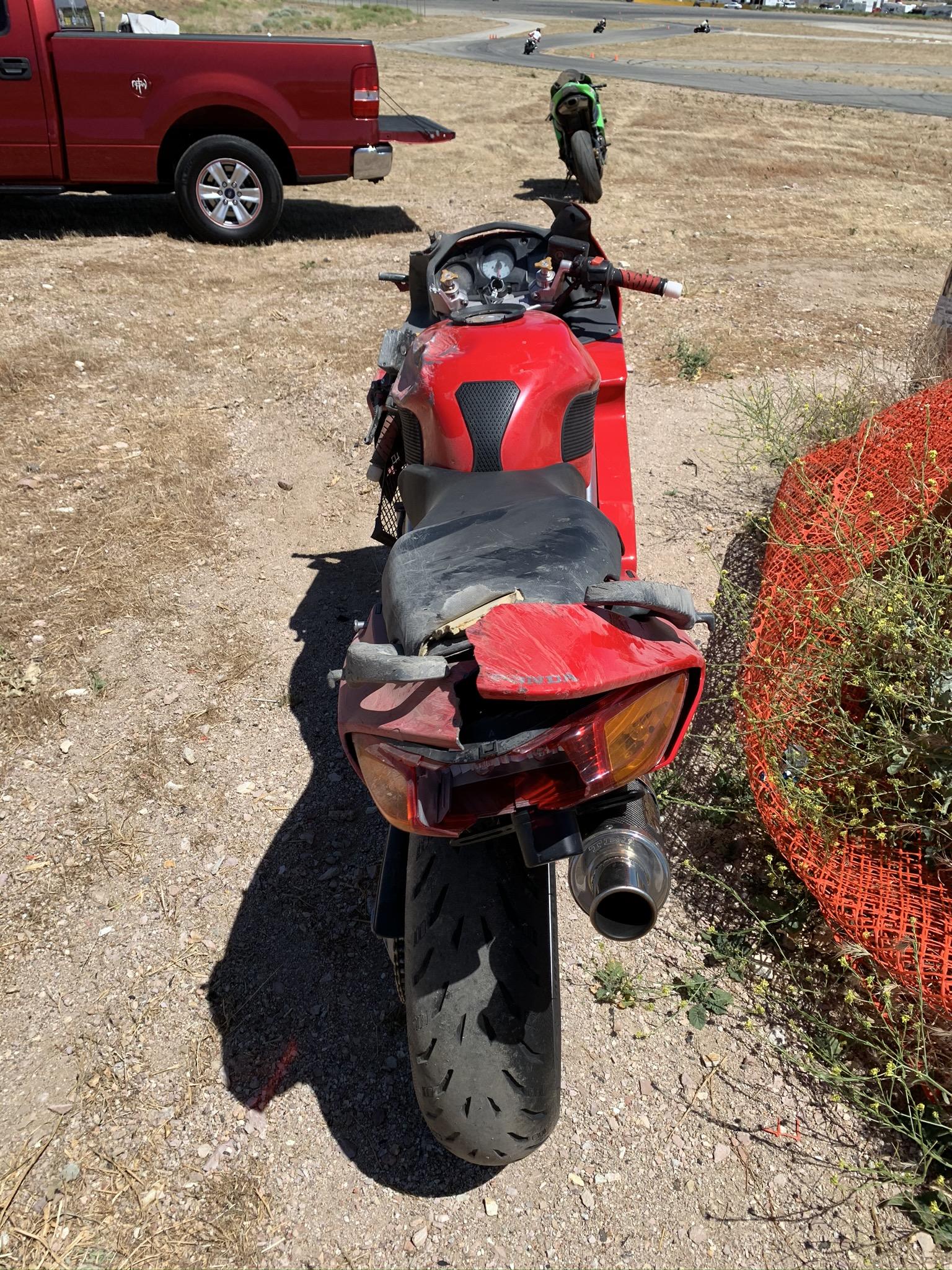

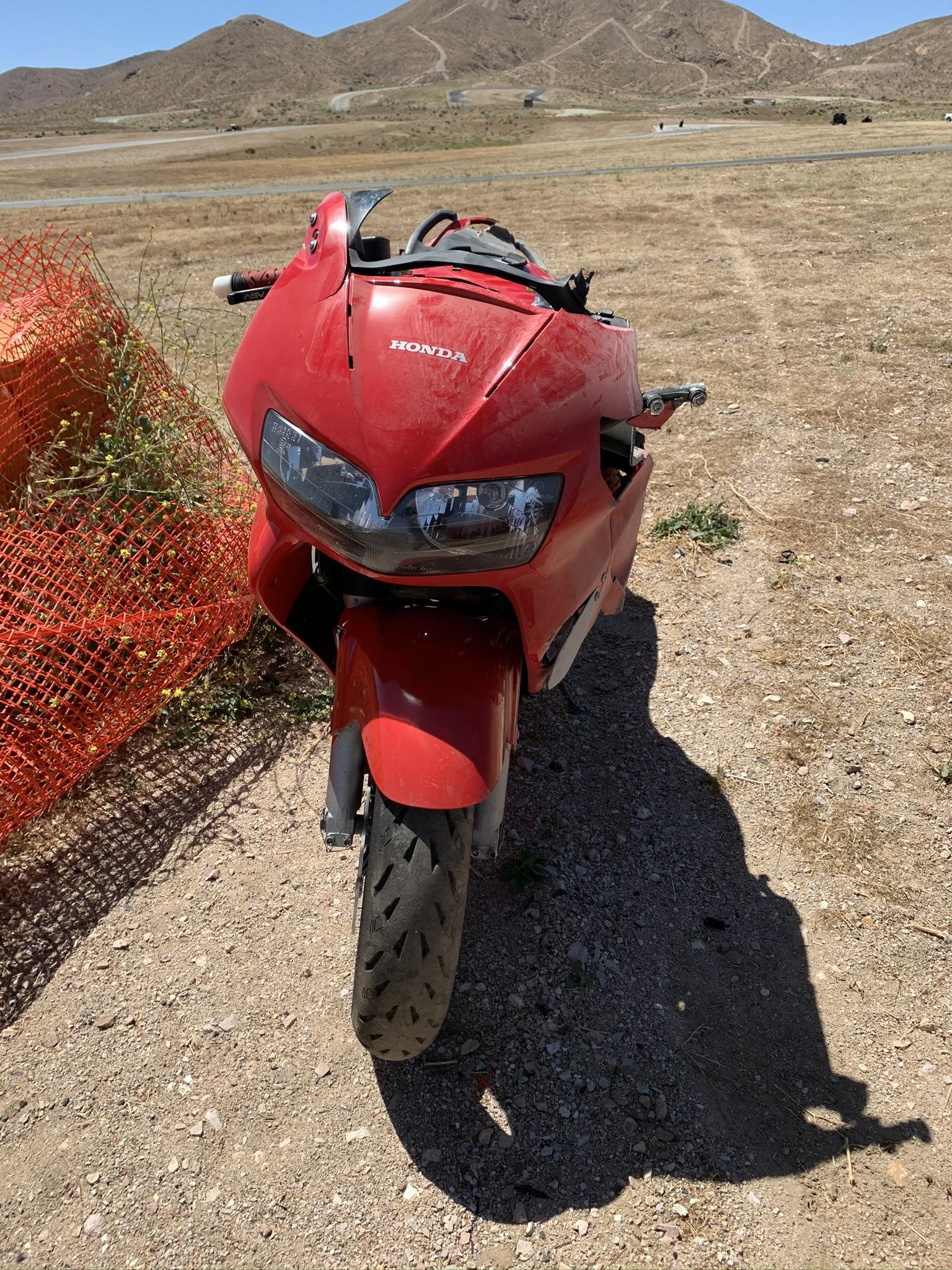

Hi VFRD folks, long time no post, you probably might remember me from such post as, "What did you do to your VFR Today?", the "VFRD Golden State Rides", the numerous "Palomar-Borrego Springs" and "Malibu Ride" posts and probably the most watched, "New 5th/6th/8th gen performance header now in production in USA post". Well, sorry for the lack of anything substantial or interesting in such a long time but somehow life got in the way of a lot of things, fun rides being part of them. So what's being going on during this hiatus, well apart from the pandemic? Really not much, at least in terms of rides go. I sort of took a break from riding public roads in favor of doing some track time. I was able to get onboard with the California Superbike School's corner working group. In exchange of my time monitoring and reporting on student riders, I got a load of track time as compensation, how cool is that? Unfortunately, on my last session with them, 6/2020, I ended up crashing my 5 Gen at about 100MPH! Last look at my speedometer coming out of turn 9, I saw 110MPH, then saw the ground, the sky, the ground, the sky, the ground, the sky...you get the idea. Ended up with some bruising, tore up gear, a dislocated pinky and two fractured vertebrae (Ouch!) All in all, it was more detrimental to my bike than me but the cost of Dr. visits still seems to be lingering on but the bike and I are all healed up and doing well now. Since it took a bit of time to heal and restore the bike, I decided to just hold off the fun riding and work on all three of my bikes. The 5 Gen was first, then my Ducati 900SS/SP. The latter was kind of leaking oil out of the cylinder heads, so a top end rebuild was in order. That went well and even had a few friends come over and let a hand, if not a beer. So she's now looking and riding as good as ever. Then, had to address the real issue, my 6 Gen. She has given me many miles, a little over 106k to be more precise but she was doing something a bit more sinister than the Duc. She was losing coolant and not in the typical way of leaving some here and there any time she was parked, she was burning it! Yeah, somehow, there was coolant disappearing and no trace of it being expelled externally. So, decision time, rebuild like I did the Duc or just swap in another motor that doesn't have a leak???? Well, decision was made, find a 5 Gen engine and put that in instead of a 6 Gen motor...Hmm, good idea. Why this instead of another 6 Gen motor. Well considering it was time to do a rebuild of the top end, I also figured it was getting near time to also change out the cam chains, as the number of miles would suggest they were getting long in the tooth and there is only so much the tensioner would take up as slack. No such issue with a 5 Gen motor, got to love those gear driven cams! Well, I was lucky and found a gentleman on a Facebook forum looking for someone who wanted to buy a 5 Gen. Me, me, me, I PM'd him and spoke with him over the phone. Turns out he was in Northern California only a few hours’ drive for me, so deal was made. I was able to secure my friends van and he and I drove up to a little town just outside Stockton, where met up, exchanged money for vehicle and away home we went. Since I was mainly in it for the engine and had a few friends who wanted or needed some 5 Gen parts, I was able to extract the engine and lose some of the extra bits to those in need. So, took some time, figured out what parts and pieces I was going to need from Honda, like O-rings, gaskets, seals, etc. and that's where this pandemic really intervened! Took a long time to get some parts and even some orders got cancelled because the dealer only holds the order for so long and will cancel the order if they don't get the parts in that time frame. Oh well, eventually all the stuff I ordered came in but took a lot longer than I was expecting. So what was the plan entirely, remove the 6 Gen engine, replace with 5 Gen engine and finally install our infamous "WyLD" headers! Along with that, replace some seals and bearings that probably, if not for grins, should be refreshed with new. So anytime I had no family or work obligations I went at it. Took my time with this beauty as she is my main "Squeeze", my commuter, tourer and yes, even my track lady once in a while, so that's what I did. So after several months and many hours, I completed my mission. A beauty who not only looks lovely but runs very well and not only has a lovely voice but a little whine to go along with it! Standby there will be more to come...

I have a feeling the battles will be with MM and the Ducati's and a few "wild cards" thrown in here and there. I anticipate that Raul Fernandez to find a podium or two, at least that's what my gut says.

Gen X'er here. I'll be 56 in April, started riding when I saw around 14-15 and got my motorcycle license at 16 and been pretty much riding ever since. Had a few moments when riding wasn't high on the priority list but that has typically been few and far between. Last few years I did a lot of track riding and really enjoyed the lack of other vehicle types on the road creating road hazards. Right now the 09 is my main vehicle for work and my 01 my play/track bike but I have on occasions taken the 09 on the track, does pretty well even in "touring" shape.

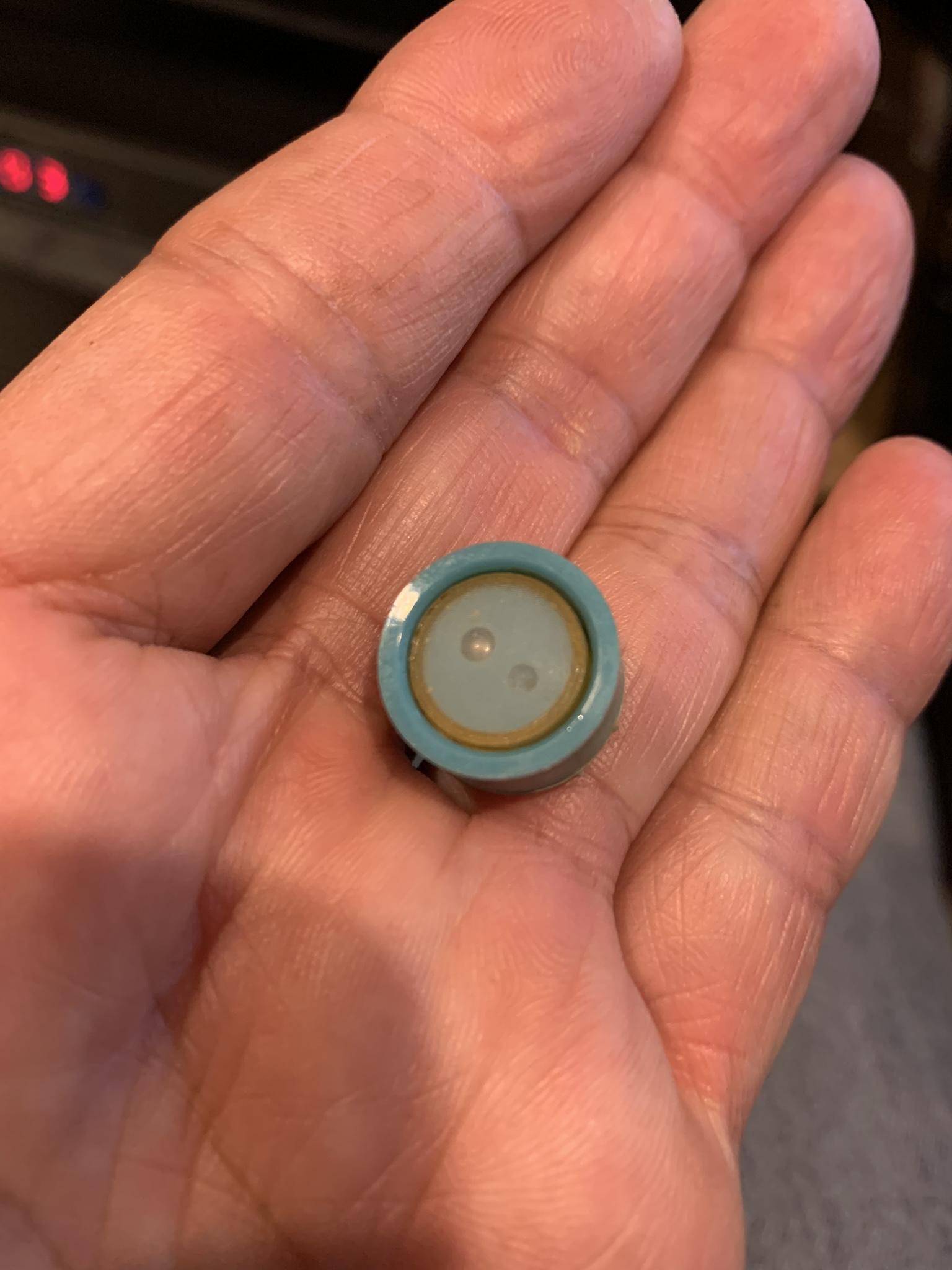

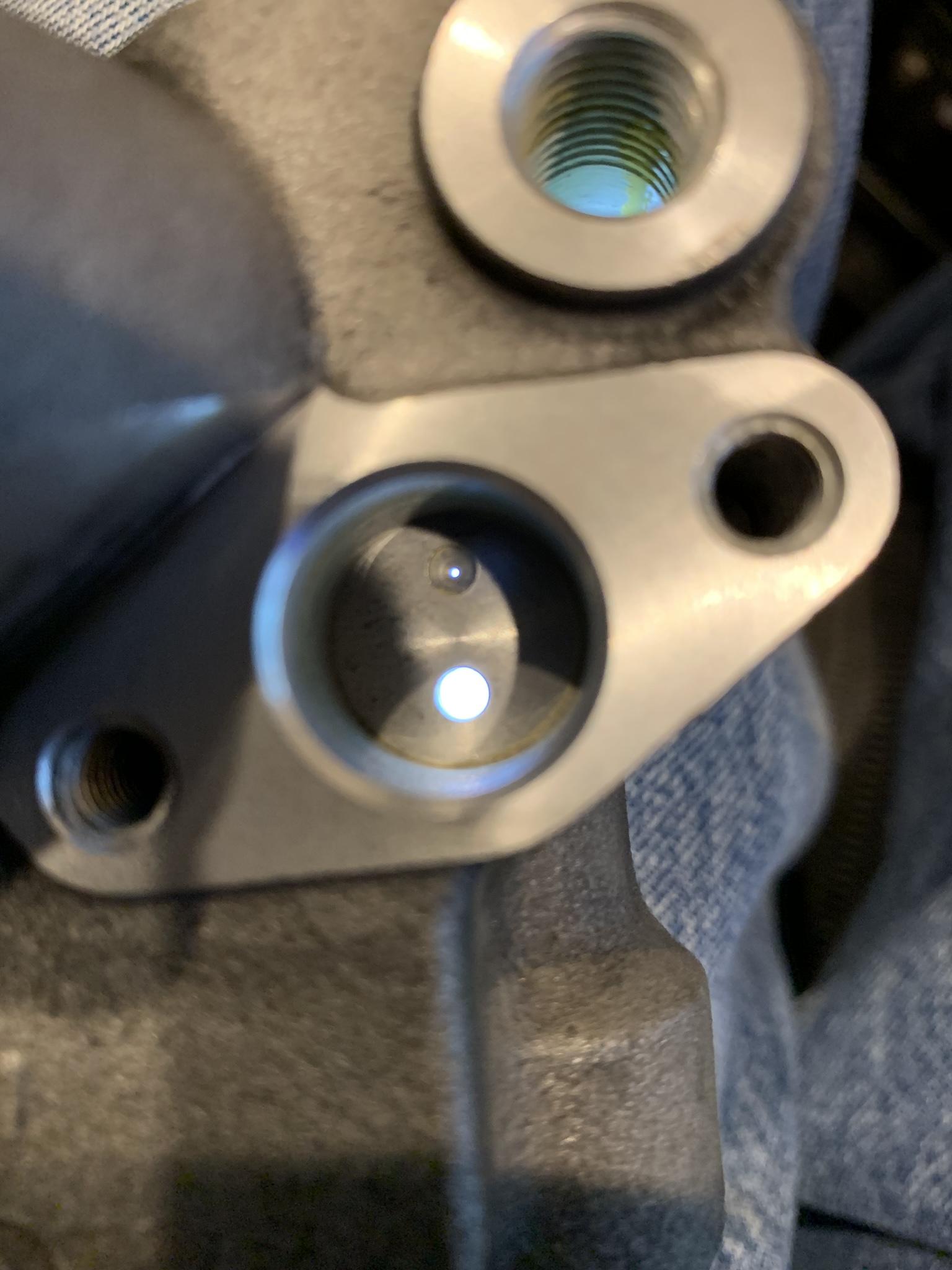

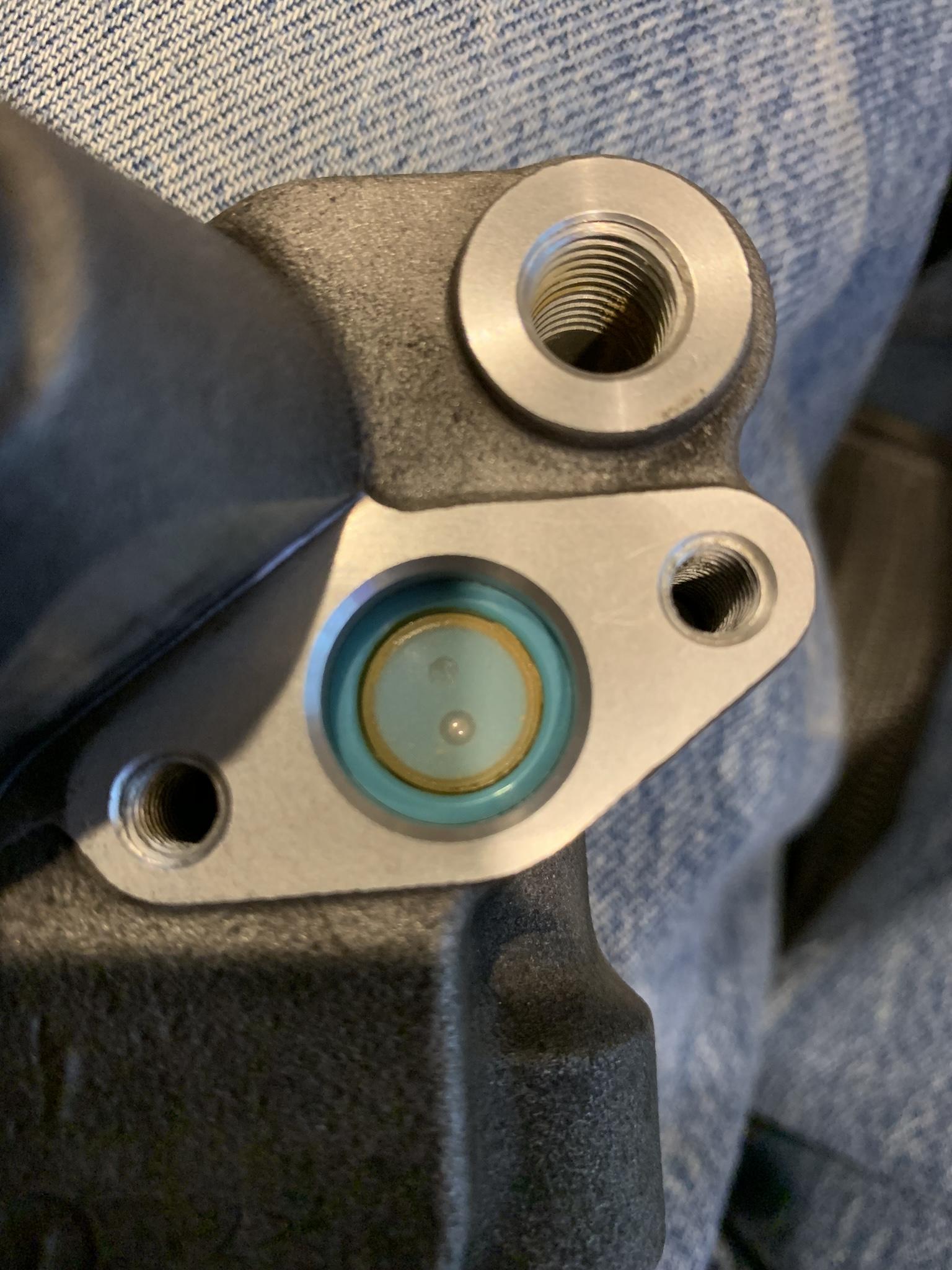

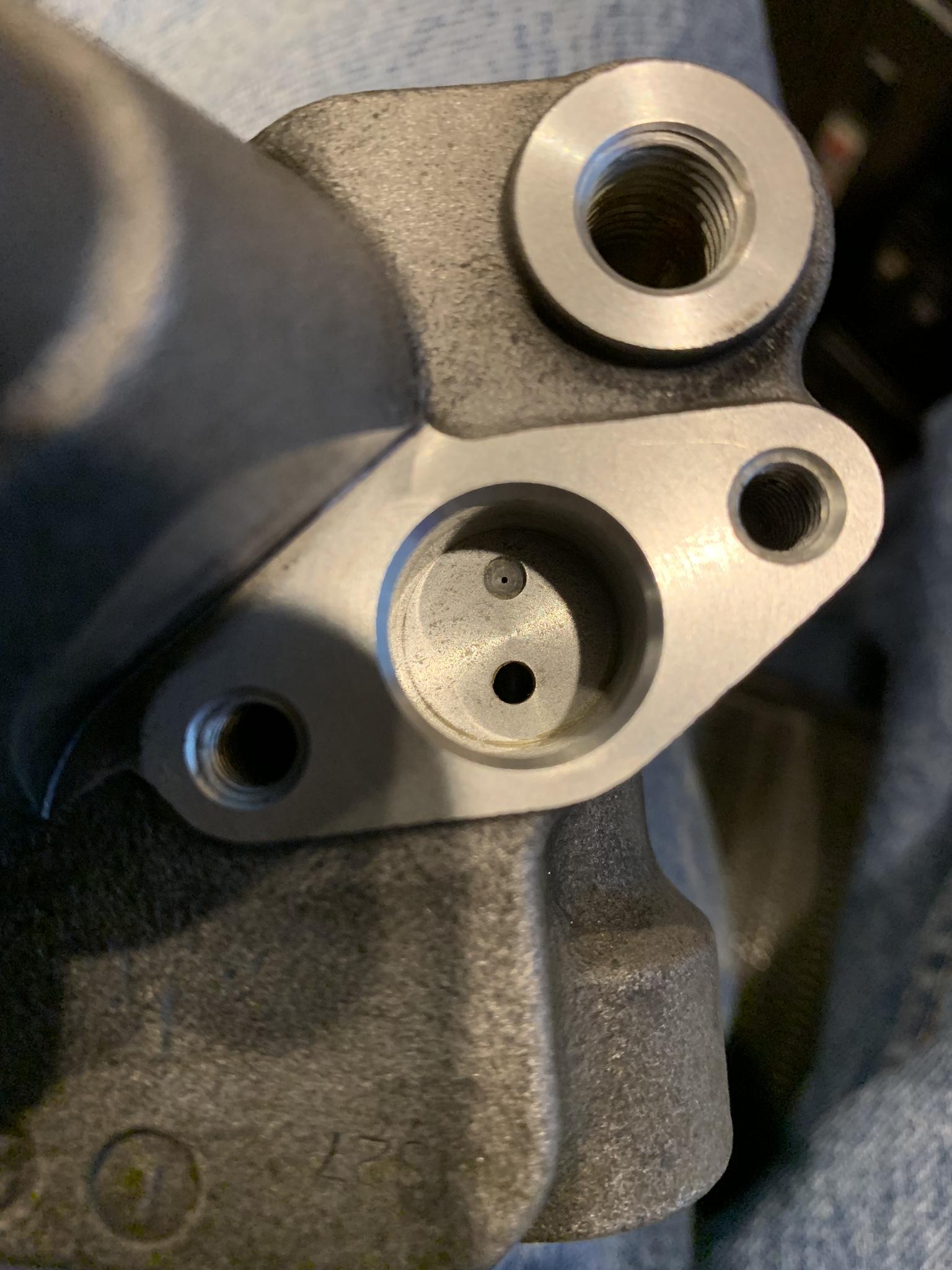

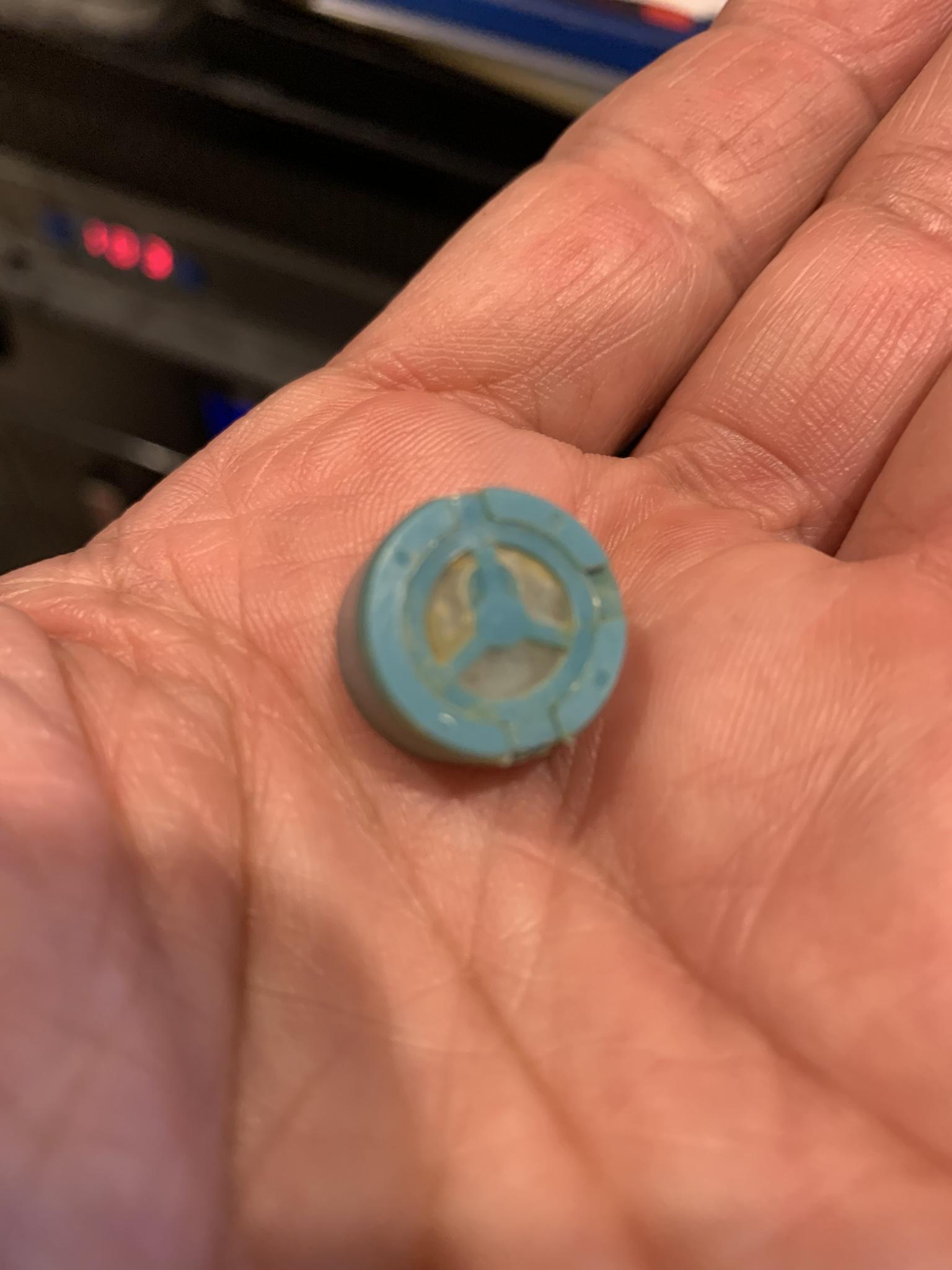

I was helping a fellow 5 Gen owner with his brakes because the rear kept locking up, although kind of the opposite of your issue, there might be a common culprit, or one to at least look into. Inside the SMC there's a check valve and we found that his was completely clogged and ultimately he ended up just buying a new SMC, as cleaning it didn't seem to resolve the problem. I took some time to look at this check valve when dealing with another SMC for a different friend and found that if the orifices that the check valve is located get clogged as well as the check valve, bleeding the brakes and getting them to work properly can become a chore!

Looks like your post help get it done! Thanks for the push. I haven't been on much lately but still appreciate this site and want it to be around for us in the present and for new members in the future. Cheers!

Hi Duc2V4, Thank you for your donation of --. We look forward to improving the forums with your donation. Thanks VFRDiscussion

Sorry to hear about this, RIP Roy

Sent him a PM but haven’t heard back from him.

Thanks. I'll see if I can look up that name.

So I happened upon a bike that I am breaking down for the motor and a few other bits. Most of which have been saved, taken or sold. However, one item that I am contemplating on keeping or perhaps selling, is a rear hugger. I nor the previous owner knows much about it, as it was already on the bike when he got it. The way it was mounted was kind of haphazardly IMO, as the mounts that have bolts that you can tighten down were zipped tied to the rear brake hoses along the top of the chain guard. Additionally, there are two holes on the part that would sit on top of the swing arm behind the shock, that had a bit of wire that was tied to one of the shock mounting bolts!! I believe that there are mounts or mounting adapters that are missing but without knowing the make/model, not positive I would know for sure. Anyway, if I can find any possible missing bits (i.e. mounts) I might keep it, otherwise I would be willing to sell it and have the new owner figure out how they would mount it. Here are some pictures of the hugger, unfortunately though, I didn't take pictures of the way it was mounted, other than the one shown on the bike.

Welcome Jroberts3! Congratulations on your find. Hopefully it won't having you crawling down a rabbit hole but as you said, this forum has great resources, so I anticipate this group keeping you top side! Good Luck!

JW was actually always part of RMATV, they just decided to use the one name. I found the association one day a while back, also thought it was odd the two web sites looked so similar. That aside, currently I’ve been buying from Chaparral in San Bernardino, Ca. They’re somewhat local to me and I get a member discount on certain items. Last 2 sets of Road 5’s I bought from them. When I did a price comparison to JW/RMATV, they were maybe a few bucks more but they had the tires in stock, so I grabbed them from Chaparral. Here’s their website. https://www.chapmoto.com Hopefully they haven’t gone to pandemic level pricing like a lot of places seem to have done. Cheers, D

It fit, so had to be looks. 🙂

I'm 99% sure I made the swap, perhaps more than once. I think the first time I went from my 5 Gen to my 6 Gen after the 6 Gen blew out it's WP at the track. Here are some pics of the two. Don't ask me which one is which because I forgot to document that. So if you can't tell, I don't think your bike will either. 😉

The minimum is still 15. There was a misunderstanding with the builder but ultimately the builder's pipe supplier is the culprit here. That being said, sfdownhill and I are taking a little break from this for the moment. Never say never but probably won't be for a while, if we do go again. This last run seemed to take forever just to get in the orders and then to get them completed seemed prolonged as well. I'm glad to be part of it and can't thank everyone enough for being patient and even purchasing them. Also like to add a big thanks to CornerCarver, his loaning us his 2 Bros headers helped this all get off the ground. Cheers

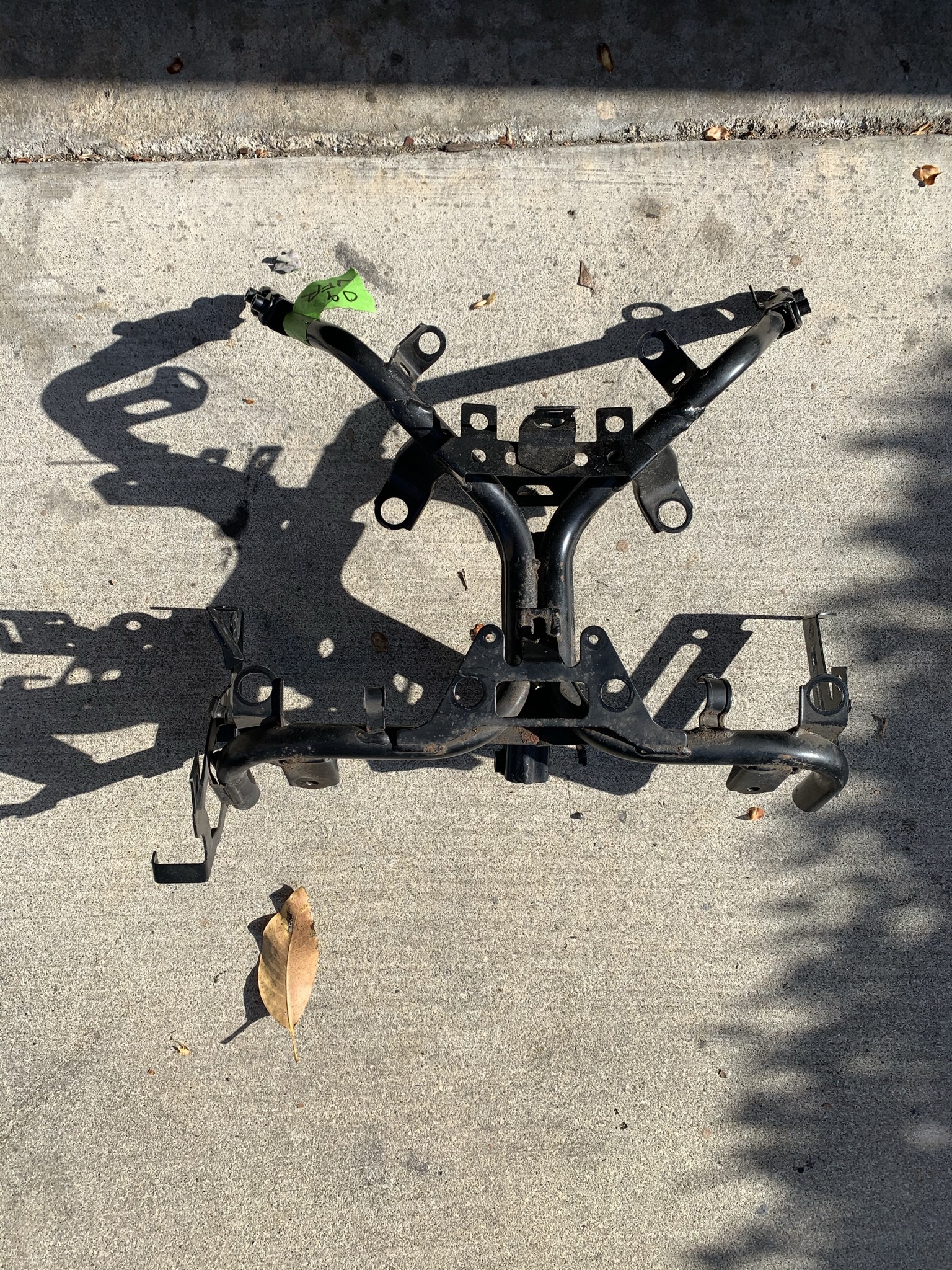

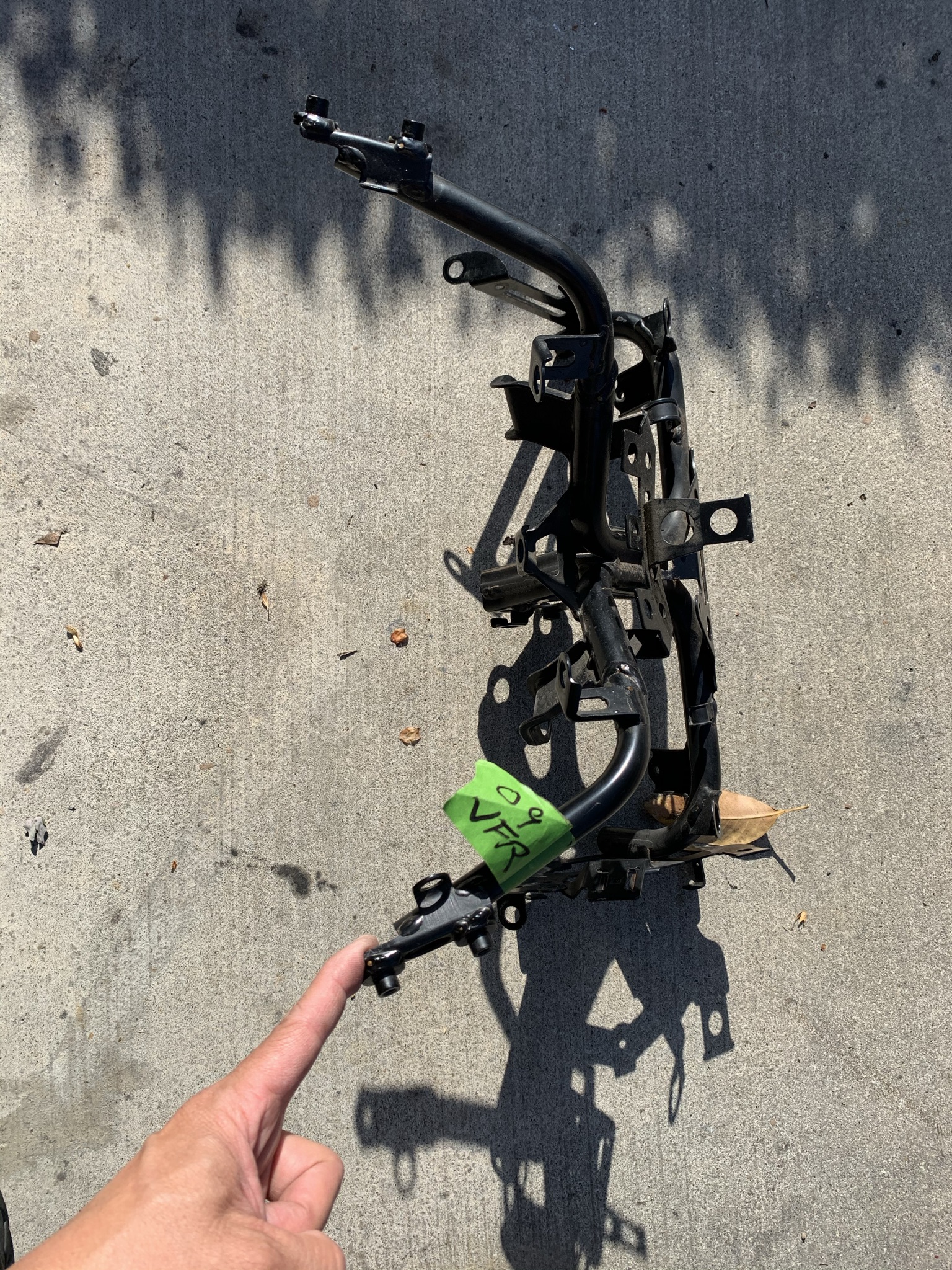

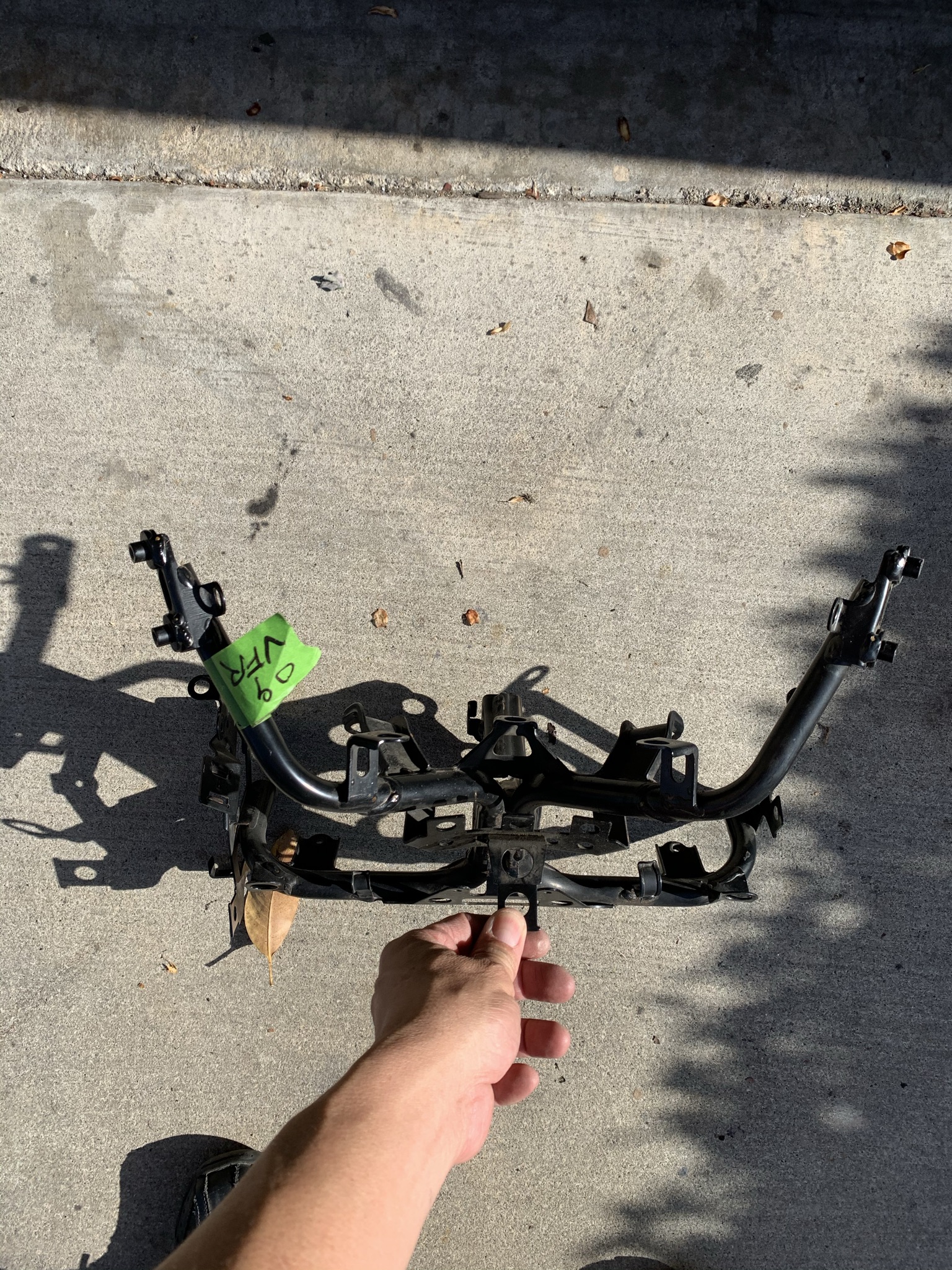

I have a front sub-frame that is off of my 2009 VFR800. It was bent slightly when the bike was knocked over in a parking lot. All of the tabs and mounting holes are in great shape. Holding it up I am having a hard time seeing where it is bent. I would imaging once it's on the bike it would become obvious. I was able to straighten out a bent front sub-frame on my 5 gen so I would imaging this one could be brought back into place as well. Asking $40 plus shipping

I have the left side fairing off of my 2009 VFR800. It was scratched up pretty good when the bike was knocked over in a parking lot. Other than the scratches, it's all intact. Asking $75 plus shipping

I have the front cowl off of my 2009 VFR800 for sale. It was scratched and had a small bit broken off near the top when the bike was knocked over in a parking lot. I managed to do a rudimentary repair so it wouldn't look so bad. It's overall condition is decent and other than the fore mentioned repair, is intact elsewhere, Asking $50 plus shipping.

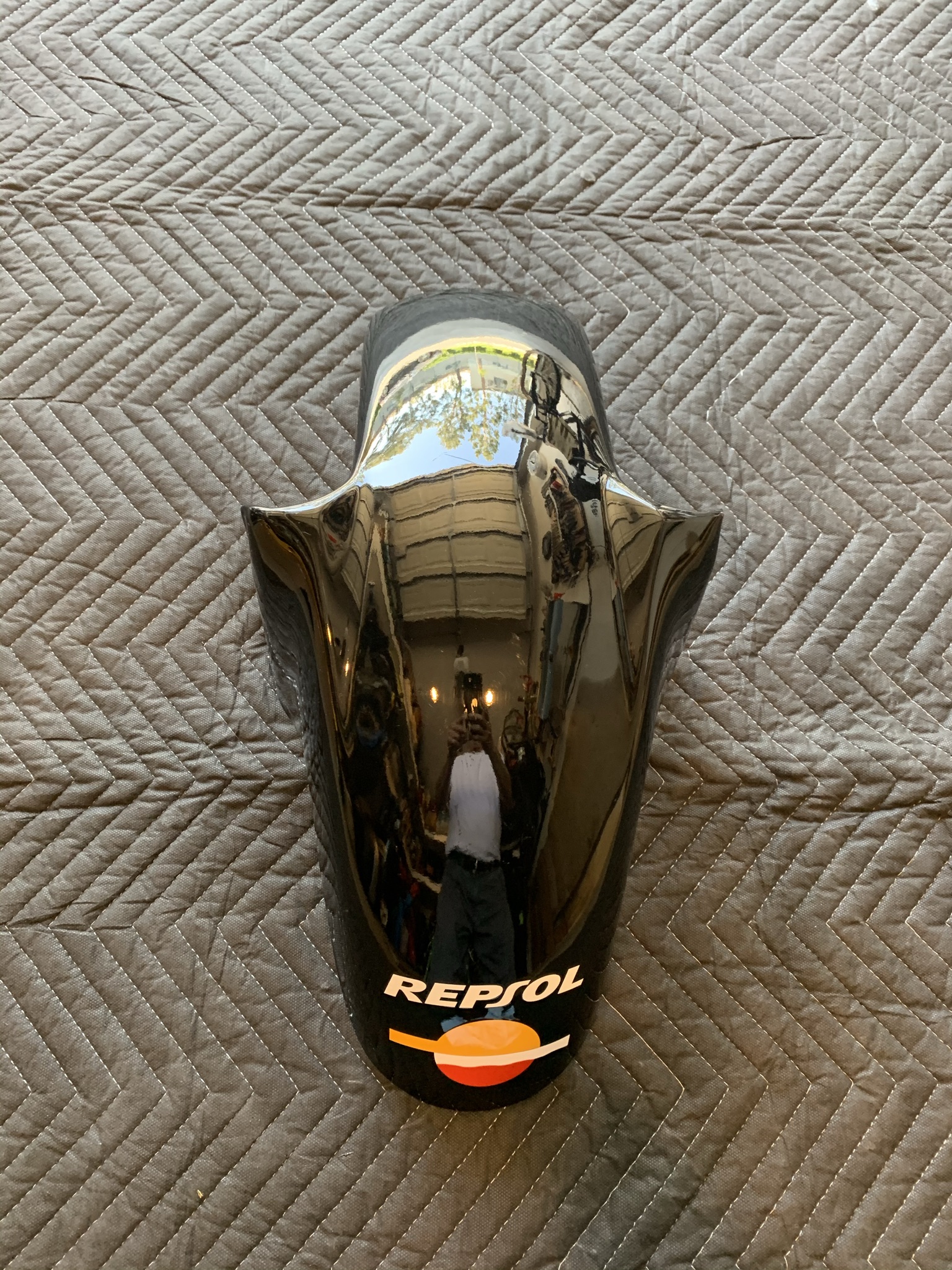

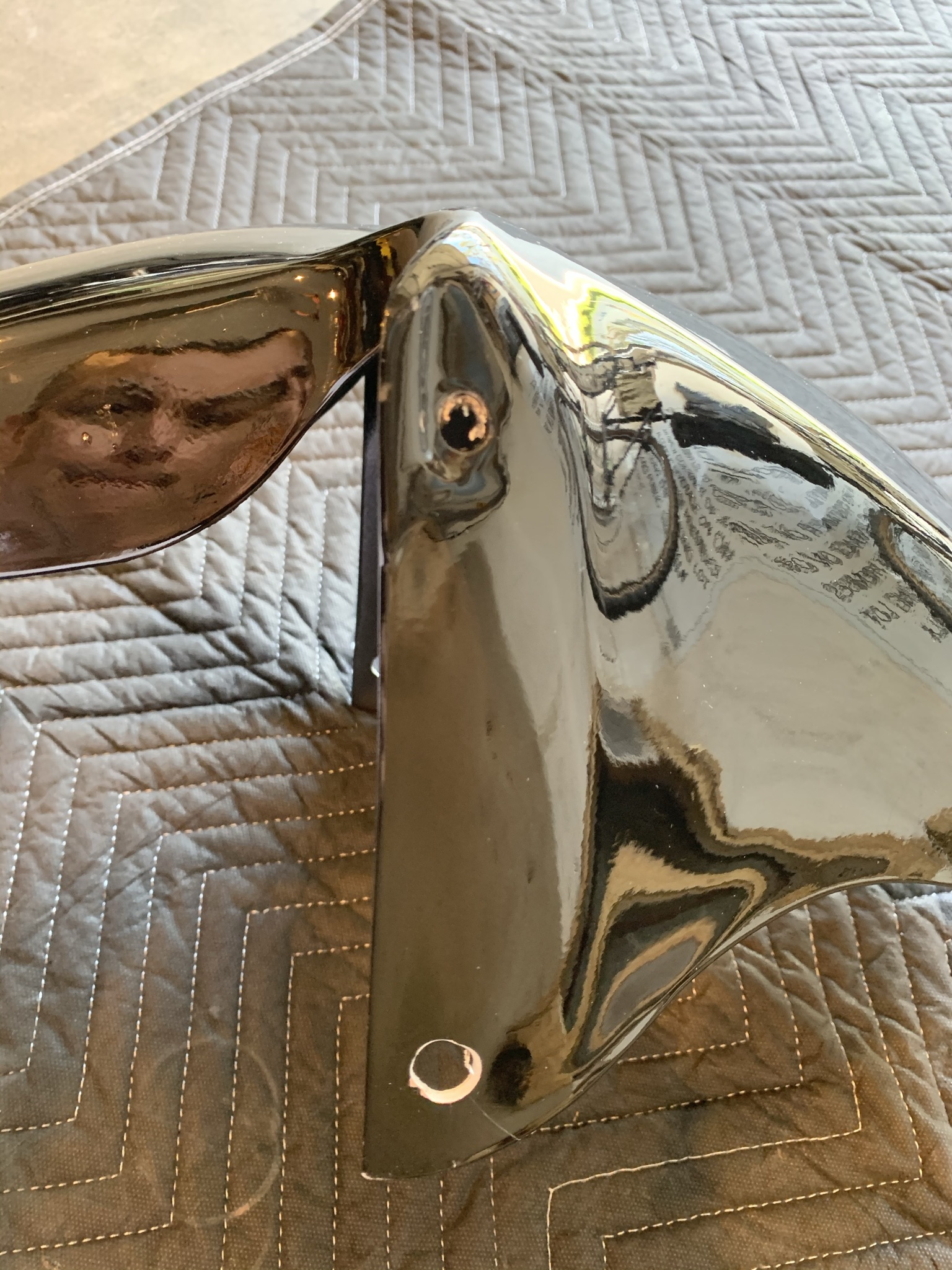

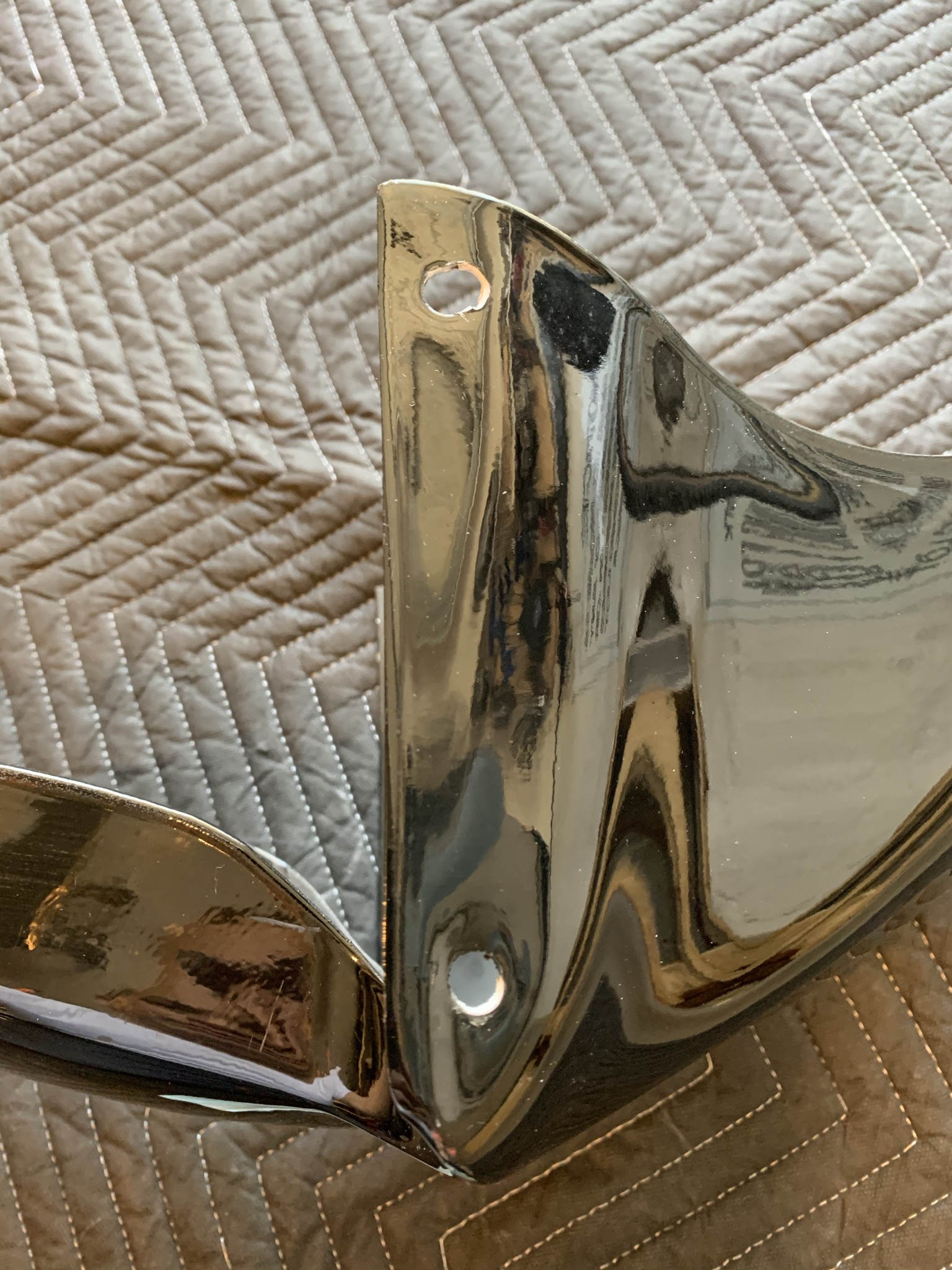

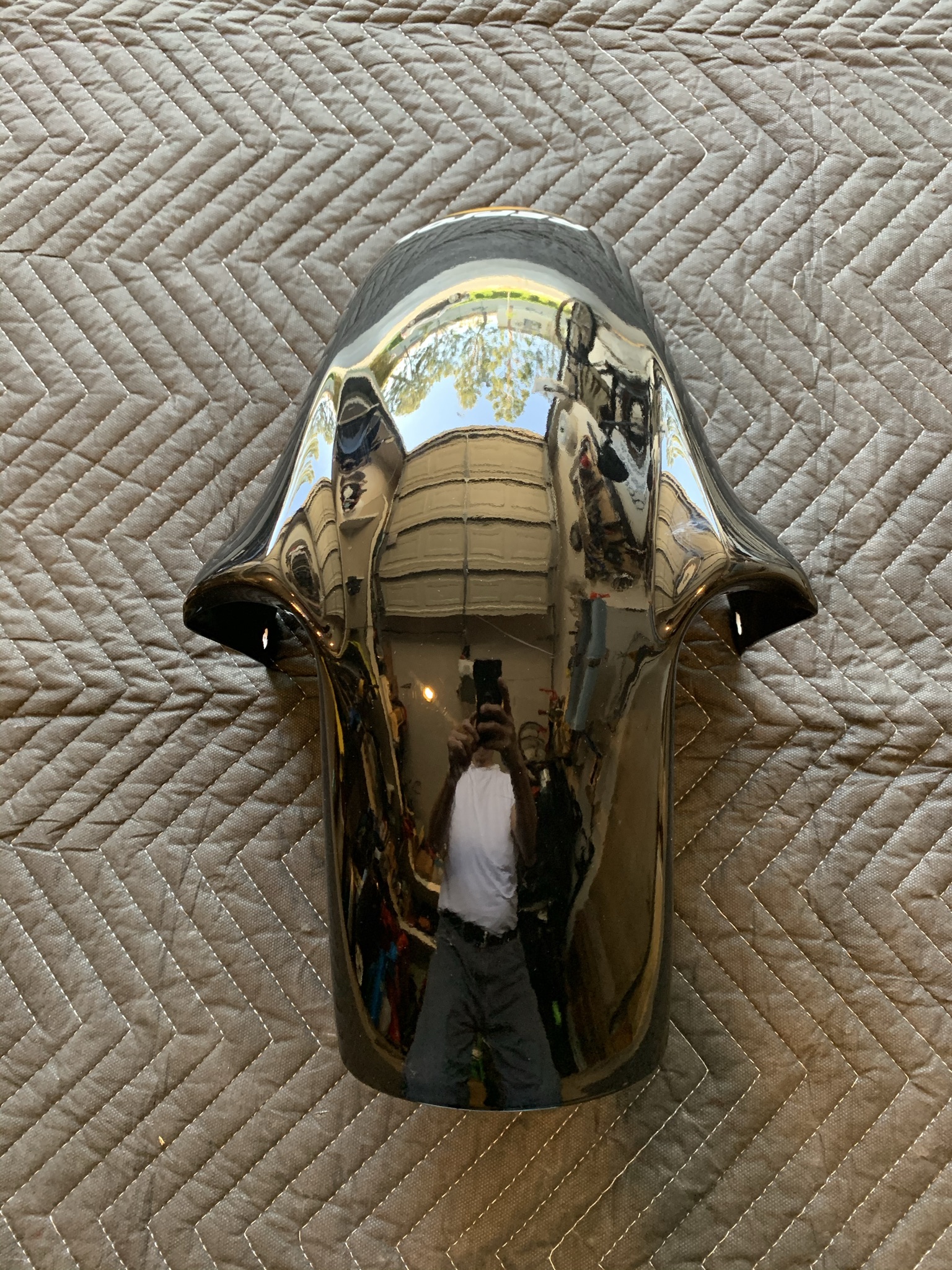

I have a black colored aftermarket 5 Gen front fender with Repsol sticker on it. For the most part the fender is in good shape but the mounting holes look like they could use some minor repair. Asking $40 plus shipping.

I have some aftermarket inner cowl bits for a 5 Gen. They are the dash cowl, the left and right side upper covers (near mirrors), the left and right inner cowls that go on the inside of the front cowl and side fairings, as well as the front inner cowl that goes in front of the headers between the left and right side fairings. NOTE: THESE ARE NOT GENUINE HONDA PARTS SO THEY MAY NOT COLOR MATCH YOUR EXISTING COWL PIECES IF YOURS ARE GENUINE HONDA PARTS. 2 Upper cowl bits ($10 plus shipping) 2 Inner side cowls ($20 plus shipping) 1 Dash cowl ($25 plus shipping) 1 Front inner cowl ($25 plus shipping)

That was my recollection, just needed confirmation. Thanks for the response.
