Wolf exhaust info


bmello
 Share

Recommended Posts

  • Member Contributer

Hi to All,

After picking around the net for hours trying to locate info and pics on how to properly install a Wolf Exhaust onto my RC46, I am left a bit more confused than when I started.

I would like to ask Wolf owners, if the would be so kind as to take as many pics of the setup including how the electrics around the battery box are remounted, FI computer is remounted, and any other custom fixes/upgrades that might help myself and others in the future.



Also, if any one has a copy of the original install instructions...

Thanks very much, in advance

Link to comment
Share on other sites

  • Member Contributer

Care to post some pics of yours now, so that those of us watching can provide a good idea? 🙂

Link to comment
Share on other sites

  • Member Contributer

I may have the original instructions, will take a look.



I've got the ECU strapped to the left side of the sub-frame. I made up a custom undertray kit though and didn't use the Wolf tray.








The attached instructions are not mine, but do include the original Wolf instructions with a lot of extra, unnecessary information. Use your best judgement in fitting it up. These were posted probably 15 years ago, all the embedded links are dead.



 Wolf System Installation.pdf

  • Like 1
Link to comment
Share on other sites

  • Member Contributer
On 11/27/2021 at 9:56 AM, bmart said:

Care to post some pics of yours now, so that those of us watching can provide a good idea? 🙂

Will do this weekend...



Link to comment
Share on other sites

  • Member Contributer
On 11/27/2021 at 10:47 AM, vfrcapn said:

I may have the original instructions, will take a look.



I've got the ECU strapped to the left side of the sub-frame. I made up a custom undertray kit though and didn't use the Wolf tray.








The attached instructions are not mine, but do include the original Wolf instructions with a lot of extra, unnecessary information. Use your best judgement in fitting it up. These were posted probably 15 years ago, all the embedded links are dead.



  Wolf System Installation.pdf 169.28 kB · 6 downloads

Thanks Cap.
In the pic the ECU looks to be strapped to the right...any pics of the left? Do you have a power commander or the like?

Link to comment
Share on other sites

  • Member Contributer
On 11/27/2021 at 9:56 AM, bmart said:

Care to post some pics of yours now, so that those of us watching can provide a good idea? 🙂

Here's where I am at right now






Link to comment
Share on other sites

  • Member Contributer

Some pics of my wiring. I found the stock steel Wolf tray can get quite hot which I think is why they instruct to attach the ECU to the side of subframe. My PC2 will go back on the left side of the subframe before I put it back together. (When I started to take these pics today I noticed the ECU zip tie was broken and it was just loose behind the tail. So I got to tear in to this also! Beefier tie now added.)






Link to comment
Share on other sites

  • Member Contributer

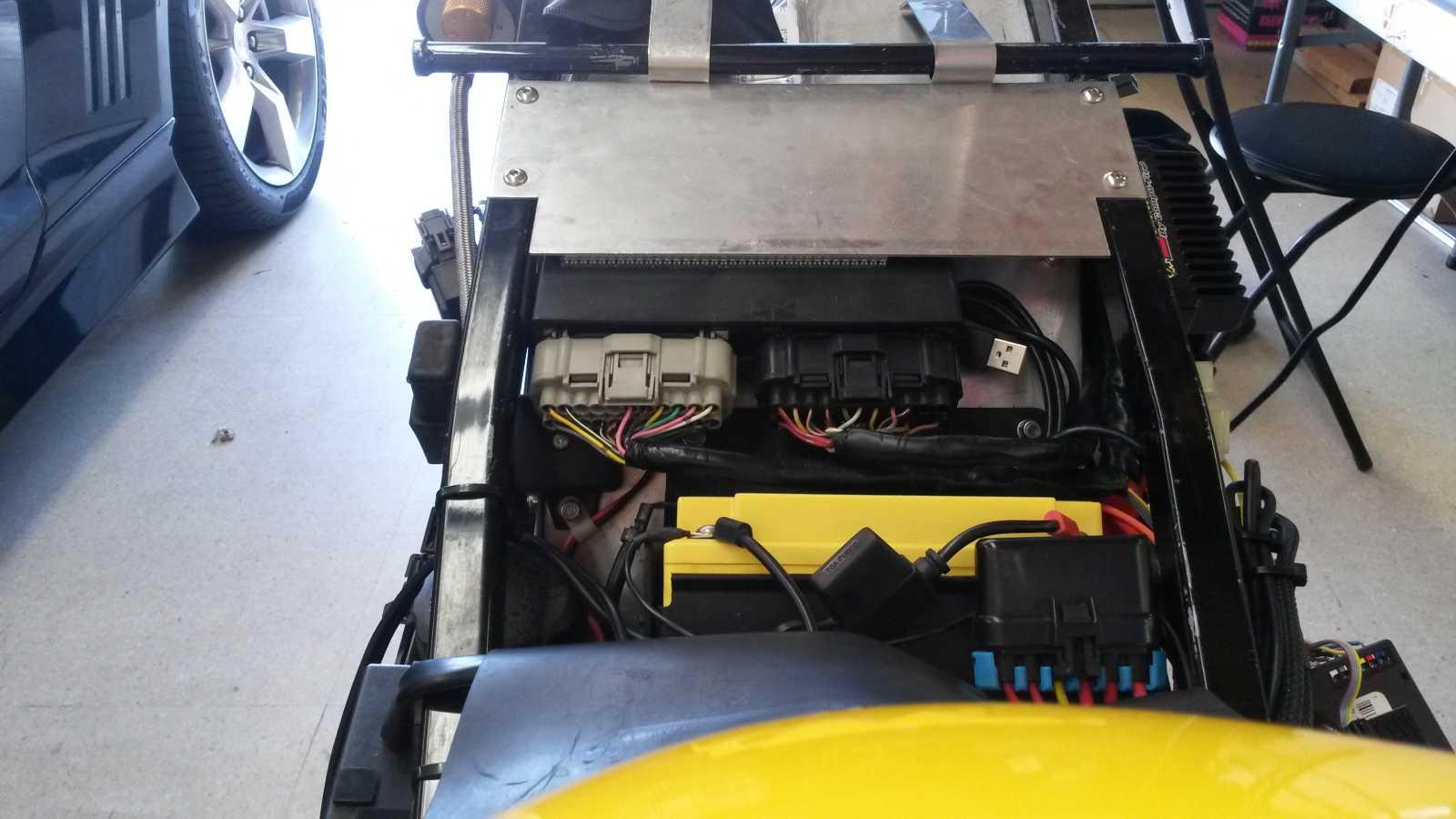

This is not a Wolf, but here's how I addressed the heat problem on my custom Laser underseats.  The PGM-FI unit is attached to the underside of a Home Depot/OSH-sourced alloy sheet with outdoor Scotch Dual Lock tape, so it doesn't touch the hot alloy undertray at all.  The cut-outs are to clear the seat mounting points.  I didn't bother with nut-serts--the fasteners are screwed into tapped holes in the subframe (but I would probably use nut-serts if I were to do this again).






Ciao,



JZH

  • Like 1
Link to comment
Share on other sites

  • Member Contributer

vfrcapn, mind posting a few pics and some info about the rear luggage rack?

Link to comment
Share on other sites

  • Member Contributer
2 hours ago, bmart said:

vfrcapn, mind posting a few pics and some info about the rear luggage rack?

It's just the original Givi trunk mount for the 5G. Integrates with their tubular side racks.


Link to comment
Share on other sites

  • Member Contributer

Interesting. I have muhc longer side mounting bars on the yellow bike and the wing rack system on the red bike. I've not seen your option before.

Link to comment
Share on other sites

  • Member Contributer
18 hours ago, vfrcapn said:

Some pics of my wiring. I found the stock steel Wolf tray can get quite hot which I think is why they instruct to attach the ECU to the side of subframe. My PC2 will go back on the left side of the subframe before I put it back together. (When I started to take these pics today I noticed the ECU zip tie was broken and it was just loose behind the tail. So I got to tear in to this also! Beefier tie now added.)







I see...My stock setup will not allow a right side mount that "looks safe", so these pics beg the question:

Where did you source the wiring loom/ECU "extension cords"?

Link to comment
Share on other sites

  • Member Contributer
14 hours ago, JZH said:

This is not a Wolf, but here's how I addressed the heat problem on my custom Laser underseats.  The PGM-FI unit is attached to the underside of a Home Depot/OSH-sourced alloy sheet with outdoor Scotch Dual Lock tape, so it doesn't touch the hot alloy undertray at all.  The cut-outs are to clear the seat mounting points.  I didn't bother with nut-serts--the fasteners are screwed into tapped holes in the subframe (but I would probably use nut-serts if I were to do this again).






Ciao,



JZH


This seems a straight forward solution. How long have you been running this setup?

Can you tell me what it is that the arrow is pointing to?






Link to comment
Share on other sites

  • Member Contributer
On 12/5/2021 at 4:35 PM, bmello said:

I see...My stock setup will not allow a right side mount that "looks safe", so these pics beg the question:

Where did you source the wiring loom/ECU "extension cords"?

It's all stock wiring except for the PC2 plug-in you can see in the pics.

Link to comment
Share on other sites

  • Member Contributer
On 12/6/2021 at 12:39 AM, bmello said:


This seems a straight forward solution. How long have you been running this setup?

Can you tell me what it is that the arrow is pointing to?








Sure, that's a sealed Delphi Metri-Pack 280 6P female connector, TPA and terminals, holding three ATM fuses and topped with a cover.  Very handy for adding three light-duty circuits.



https://www.easternbeaver.com/Main/Elec__Products/Fuseholders/body_fuseholders.html



The set-up in that pic has been there since 2014, but I seldom ride that bike, so unfortunately it's not like it's been used in anger for six years...



Ciao,



JZH

Link to comment
