RyleeV4

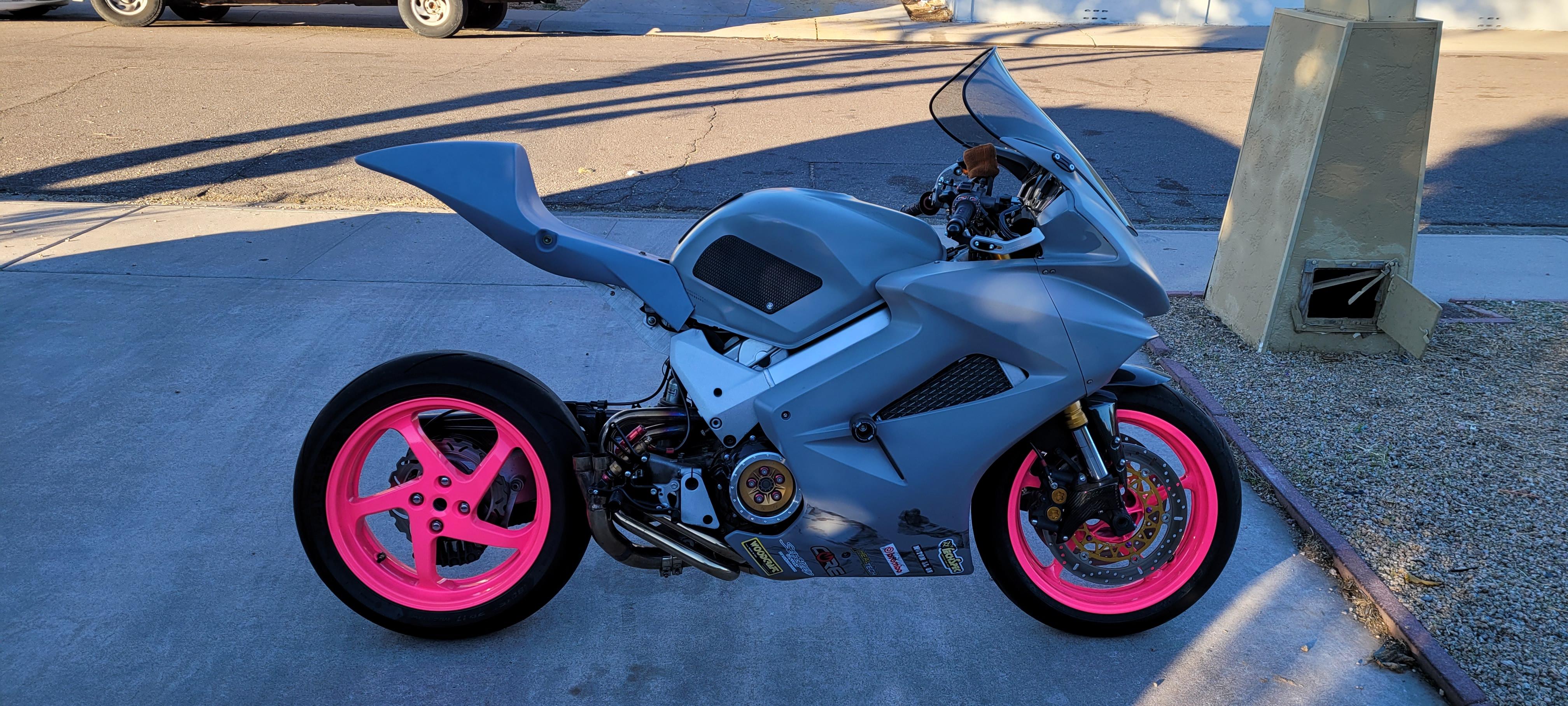

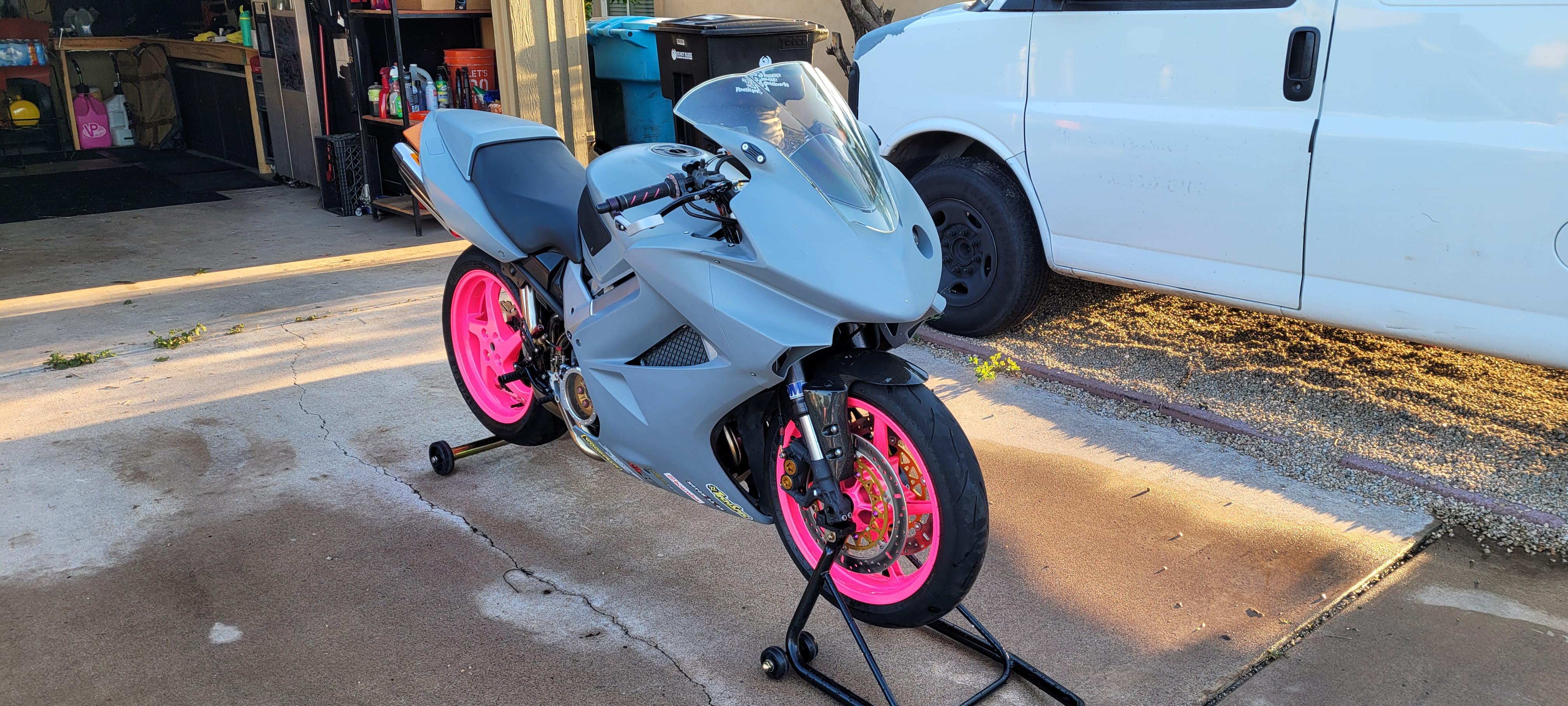

I was searching something and came across this thread. Realized I never finished my build thread. to answer the question Absofuckinglutely! 2002 with 77k on the clock 08 engine and ECU with just under 7500 miles 2006 LE YZF-R1 complete front end Sebspeed custom triple trees forks built by Jamie at DMr There is an absolute ton more done to this bike but that’s the front end setup and here’s a few pics.

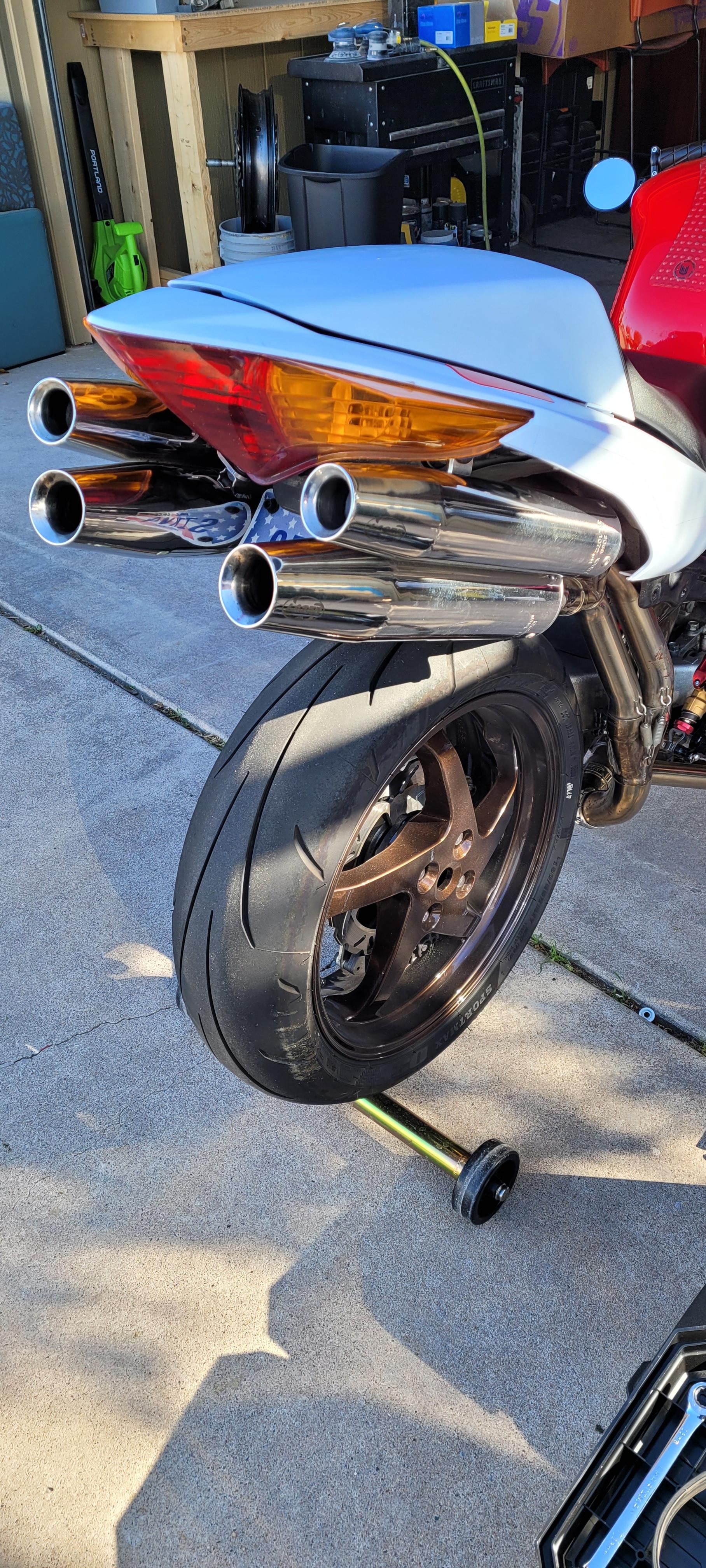

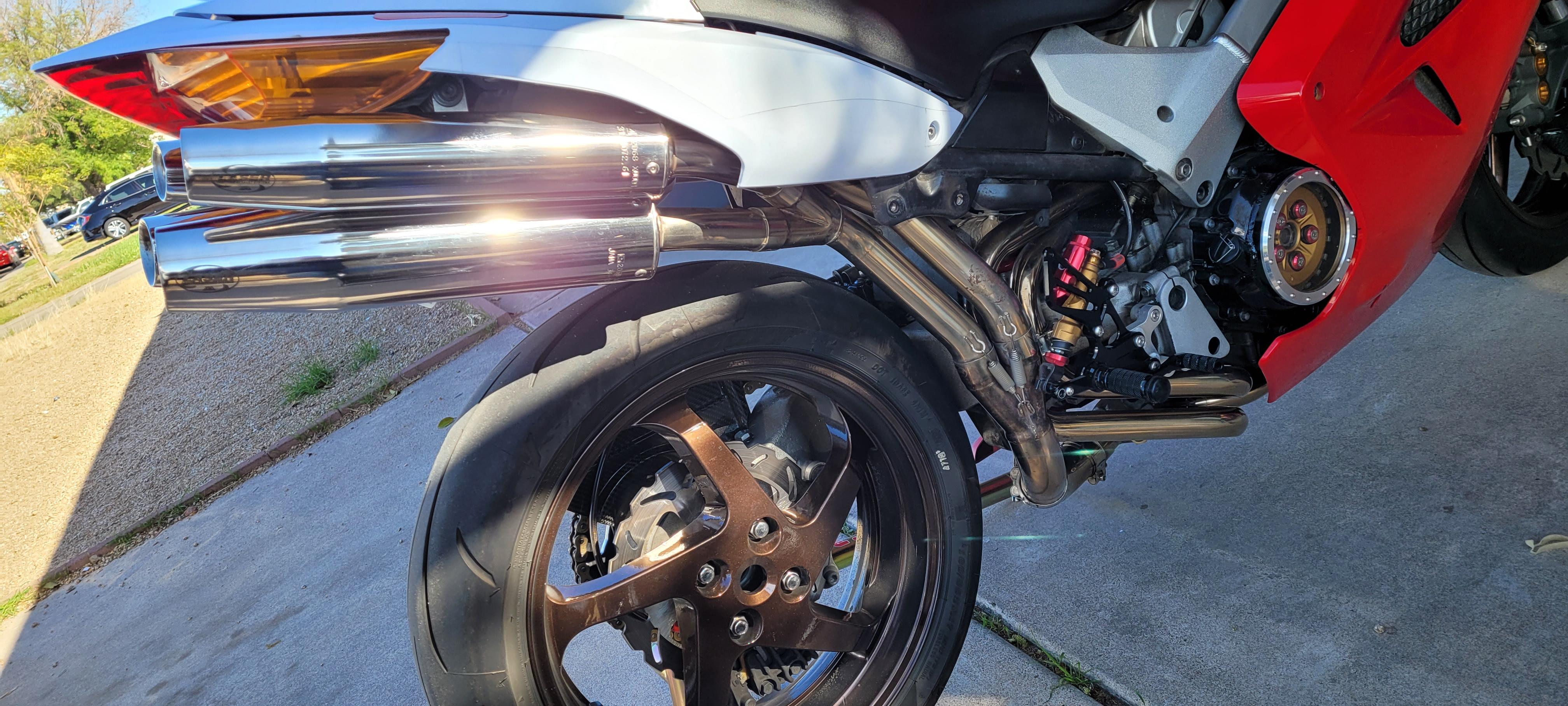

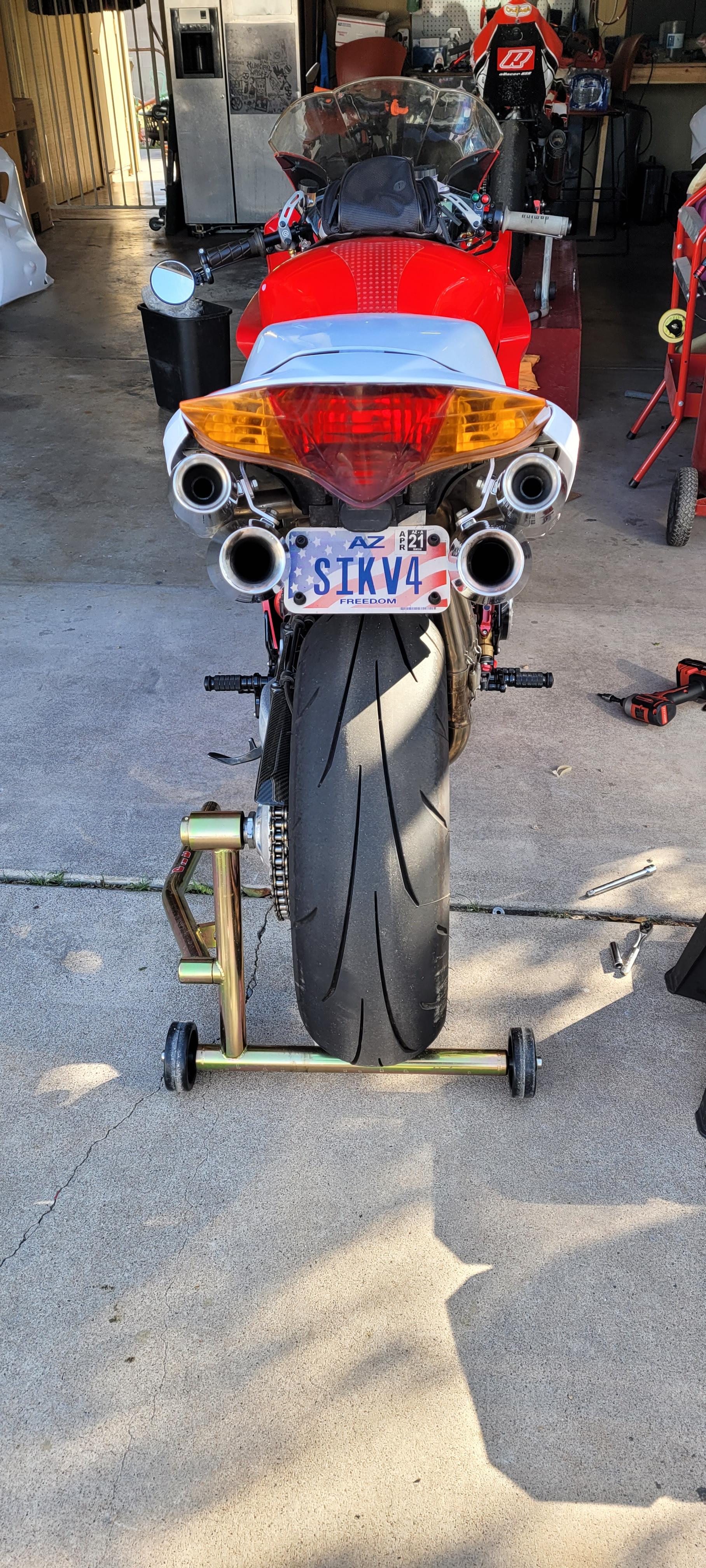

Here it is everyone, your chance to own one of the coveted exhaust systems. With the new RS125 tail section/subframe it is no longer usable. I was looking at using 2 of the cans and fabbing up a swing arm side exit system like the RC45 race bikes but it would require me to cut up the mid pipes and I don't wanna ruin the system seeing how they are virtually non existent. System is in very good shape. No dents or dings and only minimal scratch/age wear. All of the clamps and springs are original and in working order. I've included a sound clip for those who have never heard the system. Sound clip is Delkevic header with single wideband o2, Rapid bike tuner and BMC air filter for reference. $700 shipped in the conUS. I can ship international will just need to figure out cost. System breaks down pretty good so not a large box and weight is just under 20lbs. I can take better pics as it's off the bike now. I went over the cans with some super fine grit steel wool just to get the road grime off and polish them back up a bit. Mid pipes have normal tarnish from time on them but can be brought back very easy as they're in very good shape aesthetically. VID_58221014_213917_097.mp4

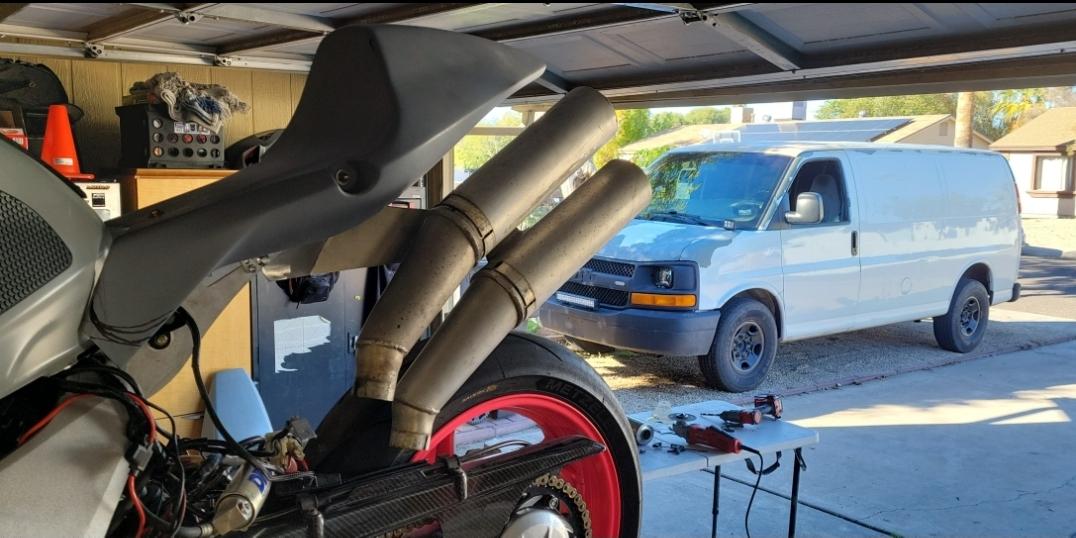

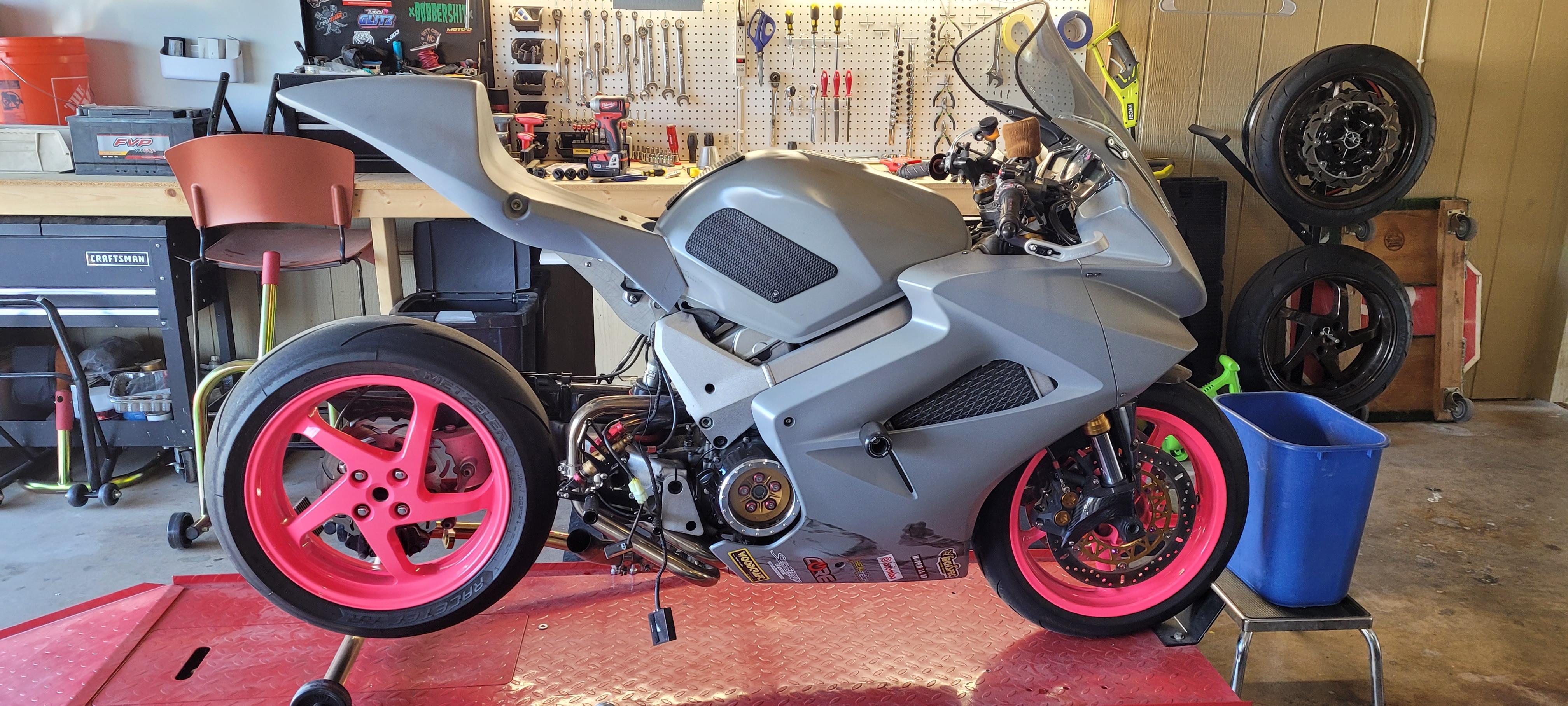

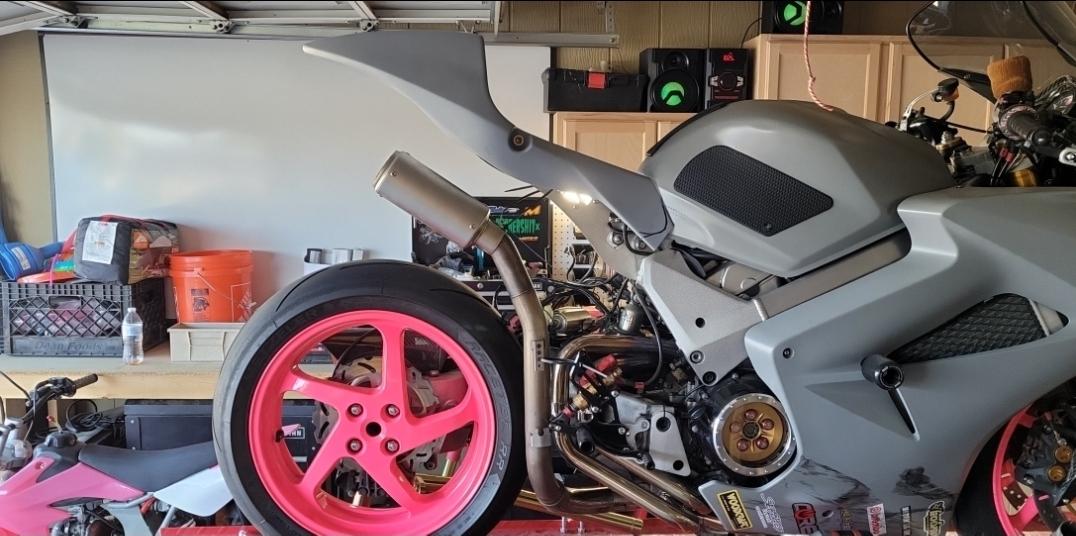

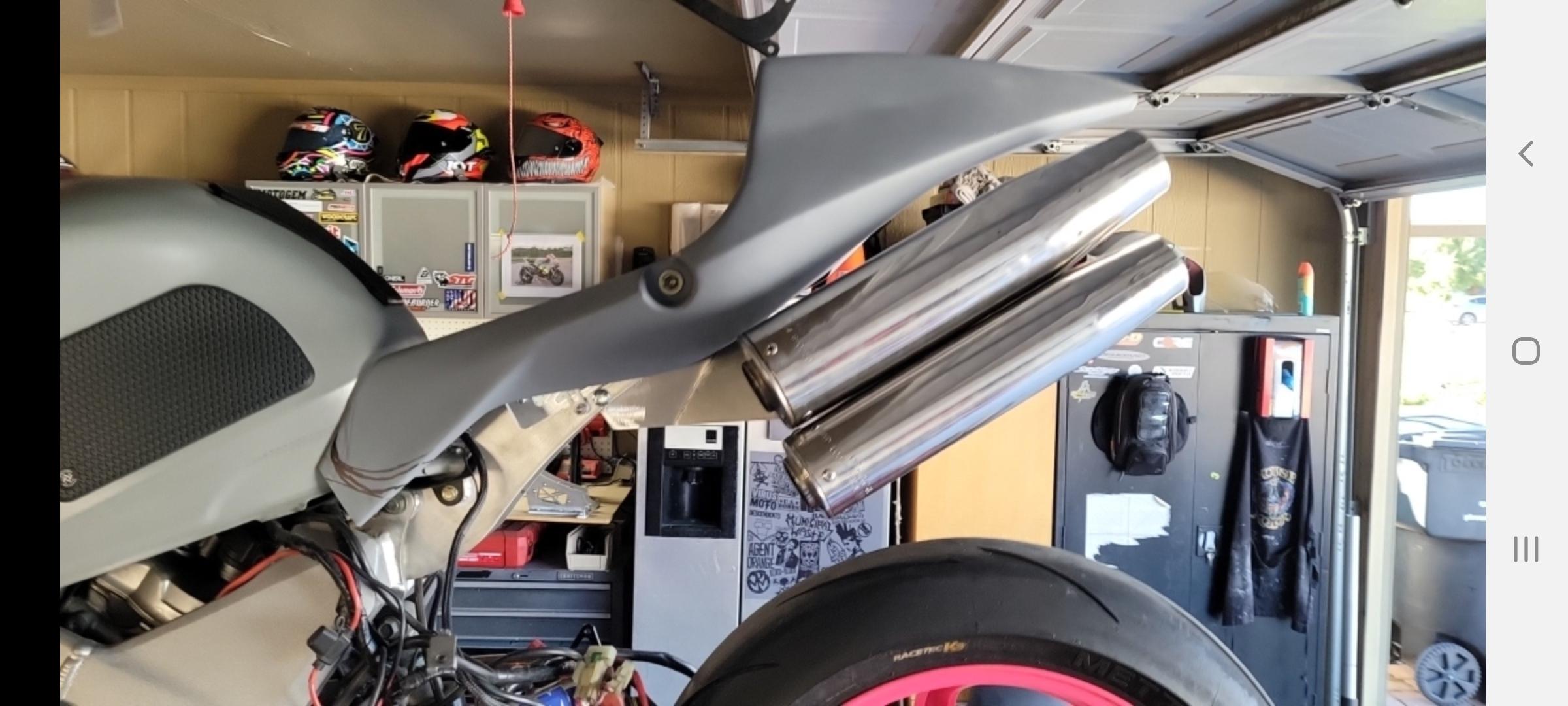

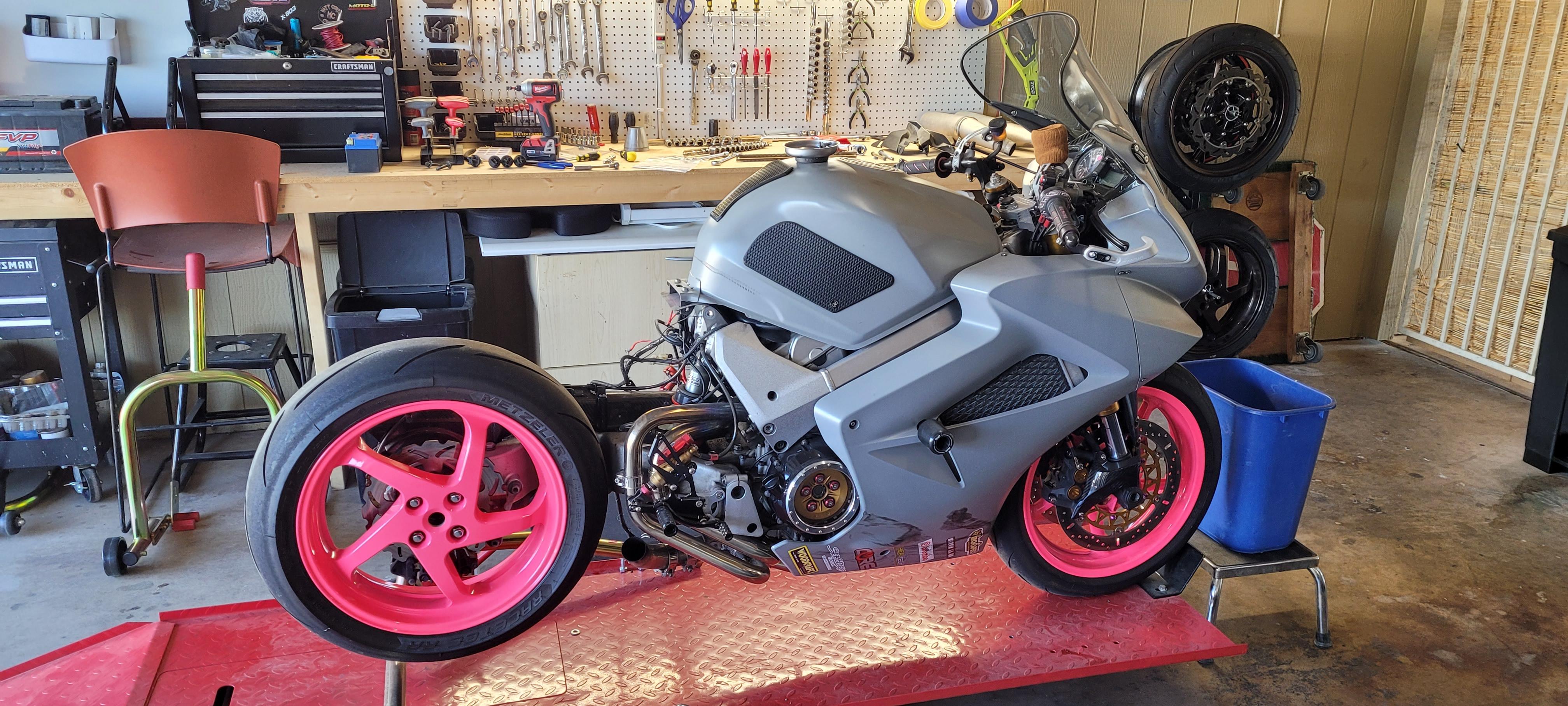

So what should be my final mod is now done and test fit. Now I need to tear the entire bike down for paint! For this who wondered... OEM weights Tail fairings w/empty tail light. 2lbs 13oz Factory seat with solo cap. 5lbs 9oz Subframe with undertray. 19lbs 14oz Laser exhaust from collector. 18lbs 3oz New tail section weights Sebspeeds aluminum subframe 2lbs 15oz Hotbodies RS125 tail section. 4lbs 13oz Working on 2 different exhaust setups. Going to do a super single in 51mm pipe on the open wheel side in a Panigale fashion. And use 2 of the Laser exhaust trumpets to do a RC45 inspired high exit stack on the swing arm side. And now some pics

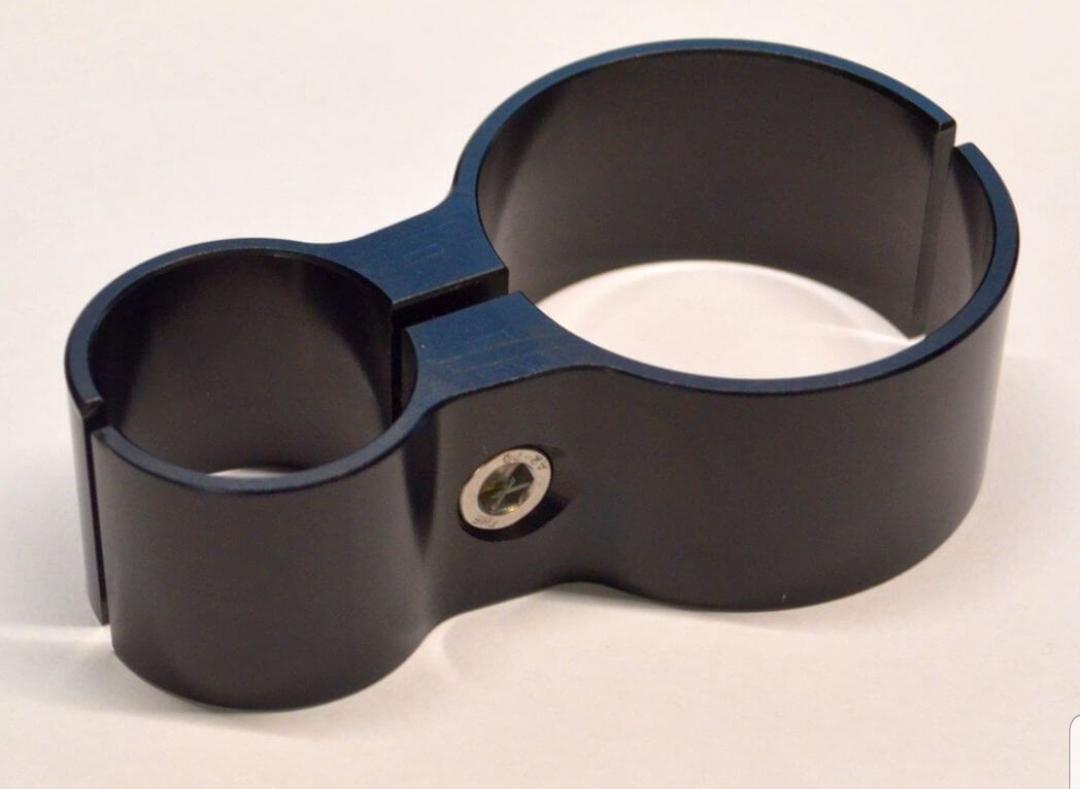

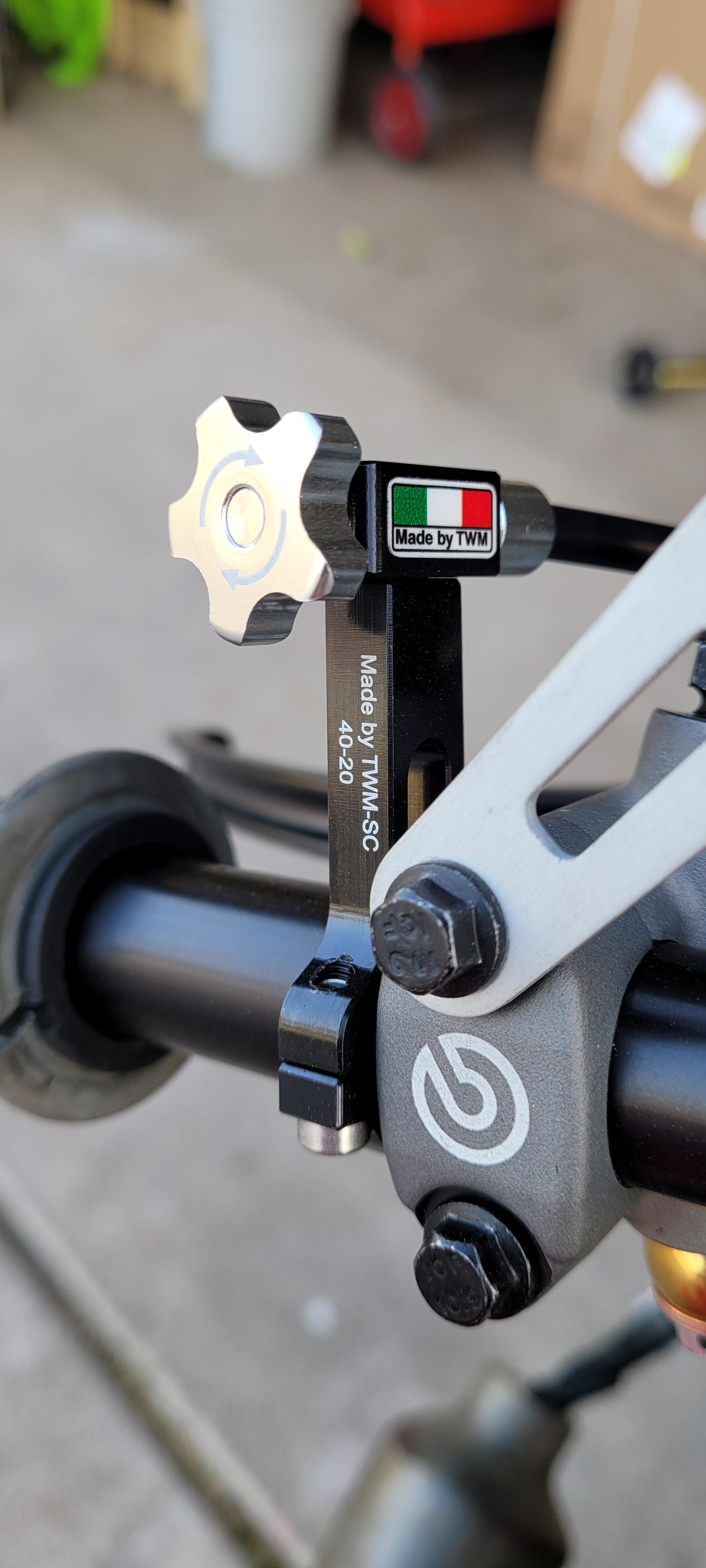

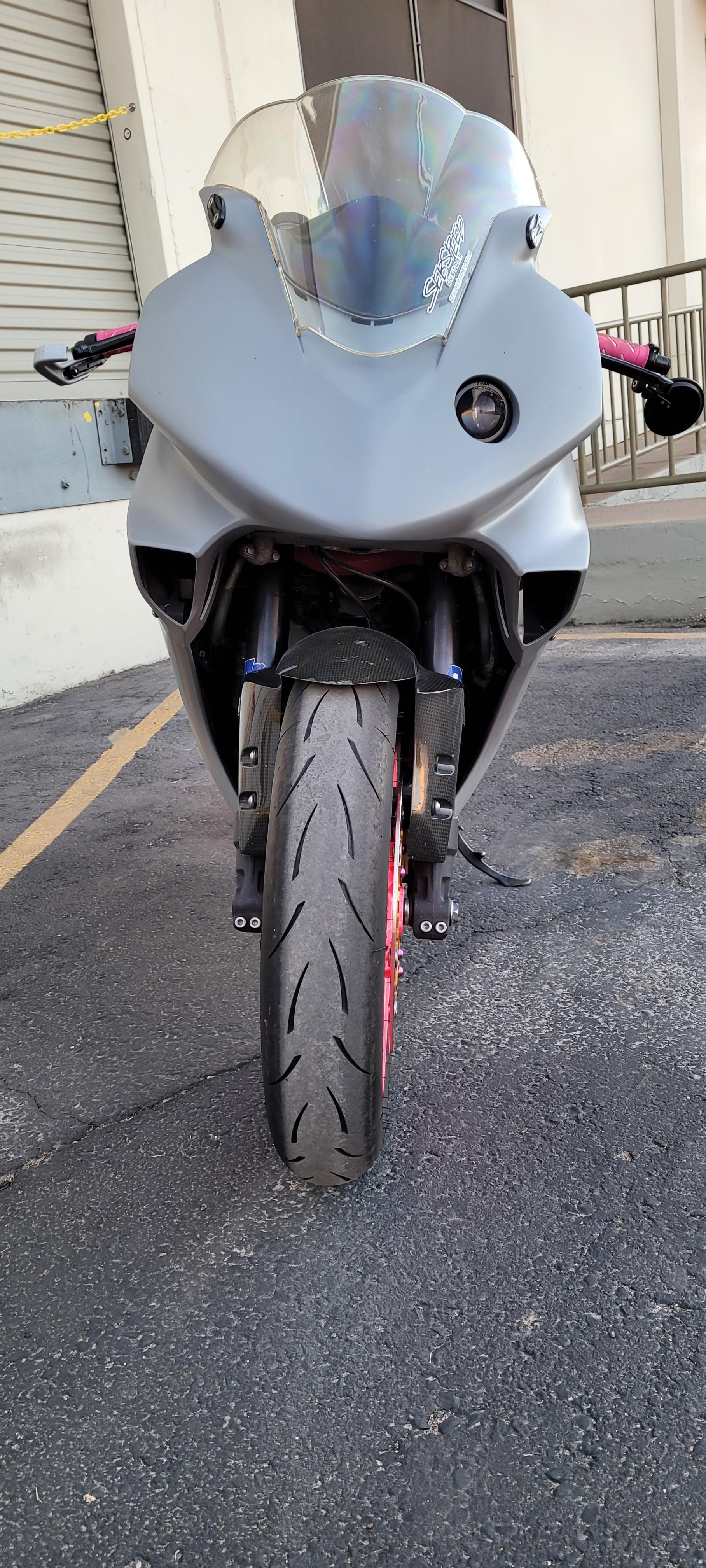

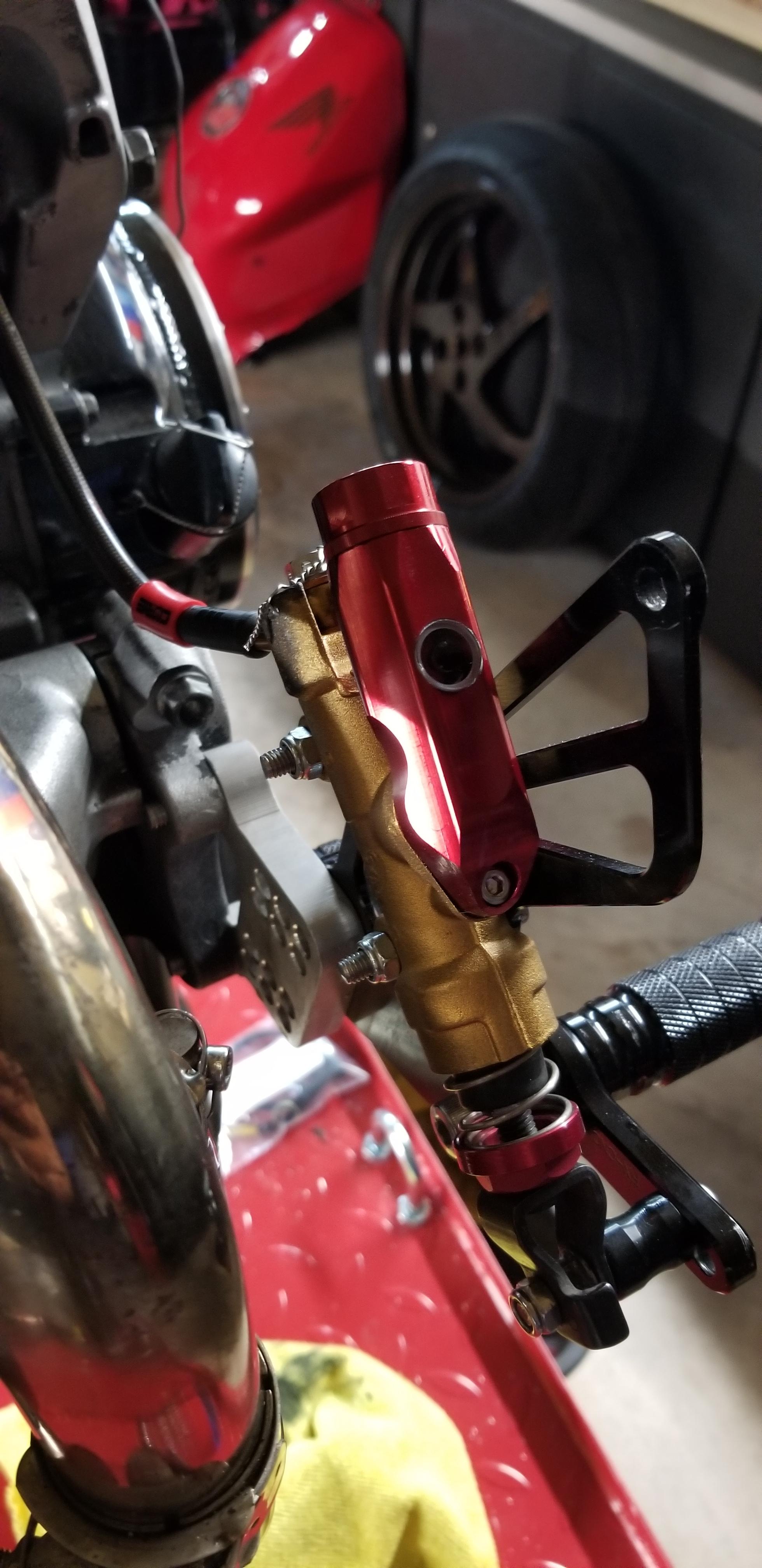

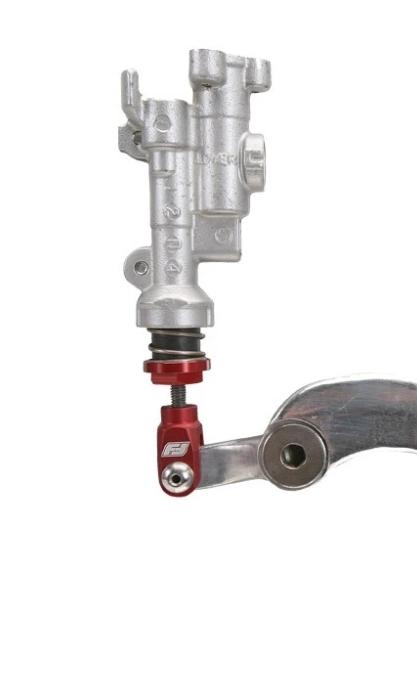

Front view of the fairing with the 55mm projector. When I track the bike I remove this and have a hose setup that I connect to the mount port. That hose spilts and directs air to both radiators. Very simple setup using duct hose from home depot that works perfectly Probably one of my fav trick parts. Remote brake adjuster. Allows me to dial in the lever while I'm riding. Since I'm running an F4i rear brake master I didn't want to do the typical "hose with a bolt in it" for a reservoir. Found this really trick hard mounted reservoir that connects directly to the master. Only downside is it is a process to bleed because it only holds about 2 tablespoons of brake fluid!

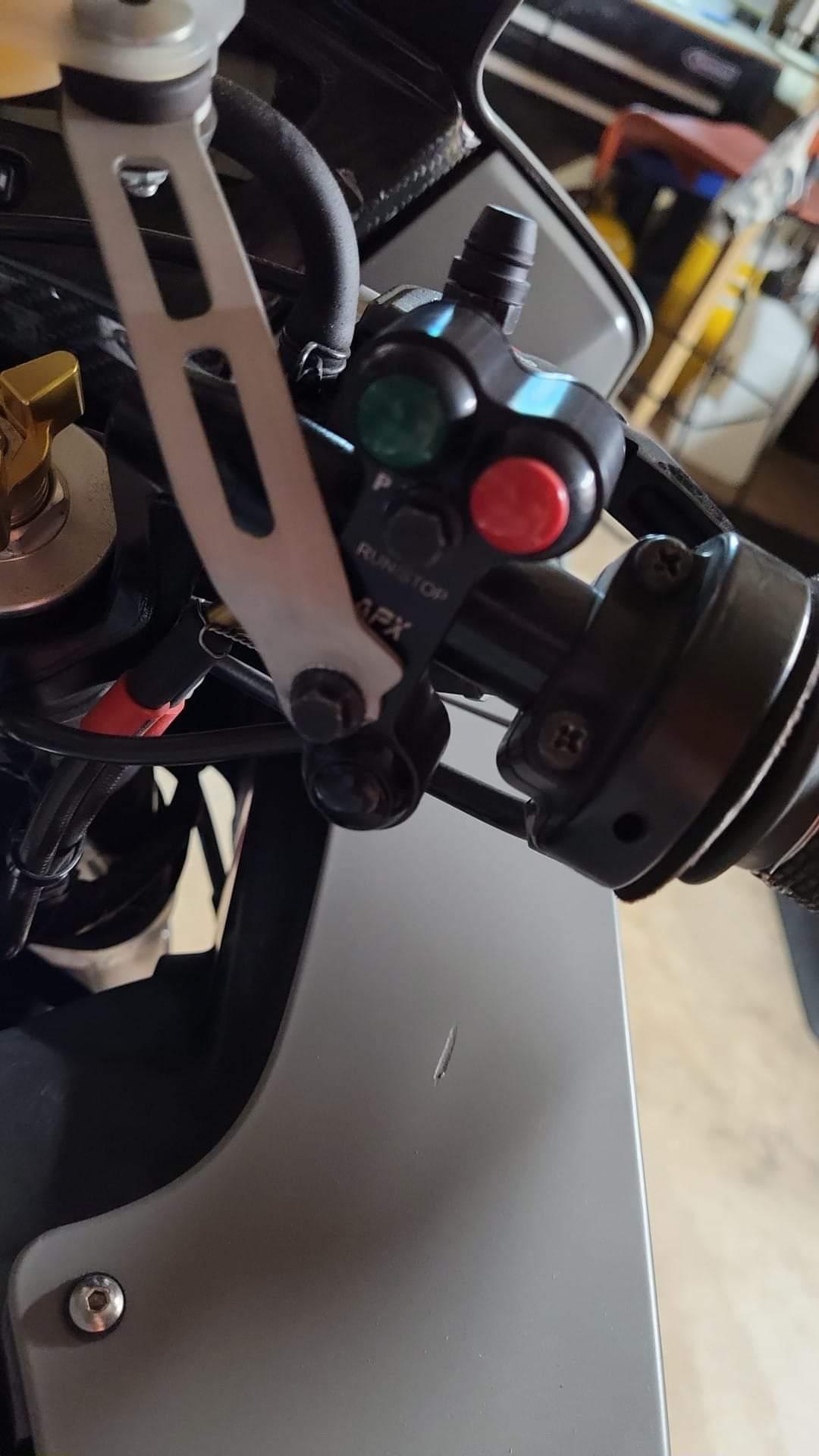

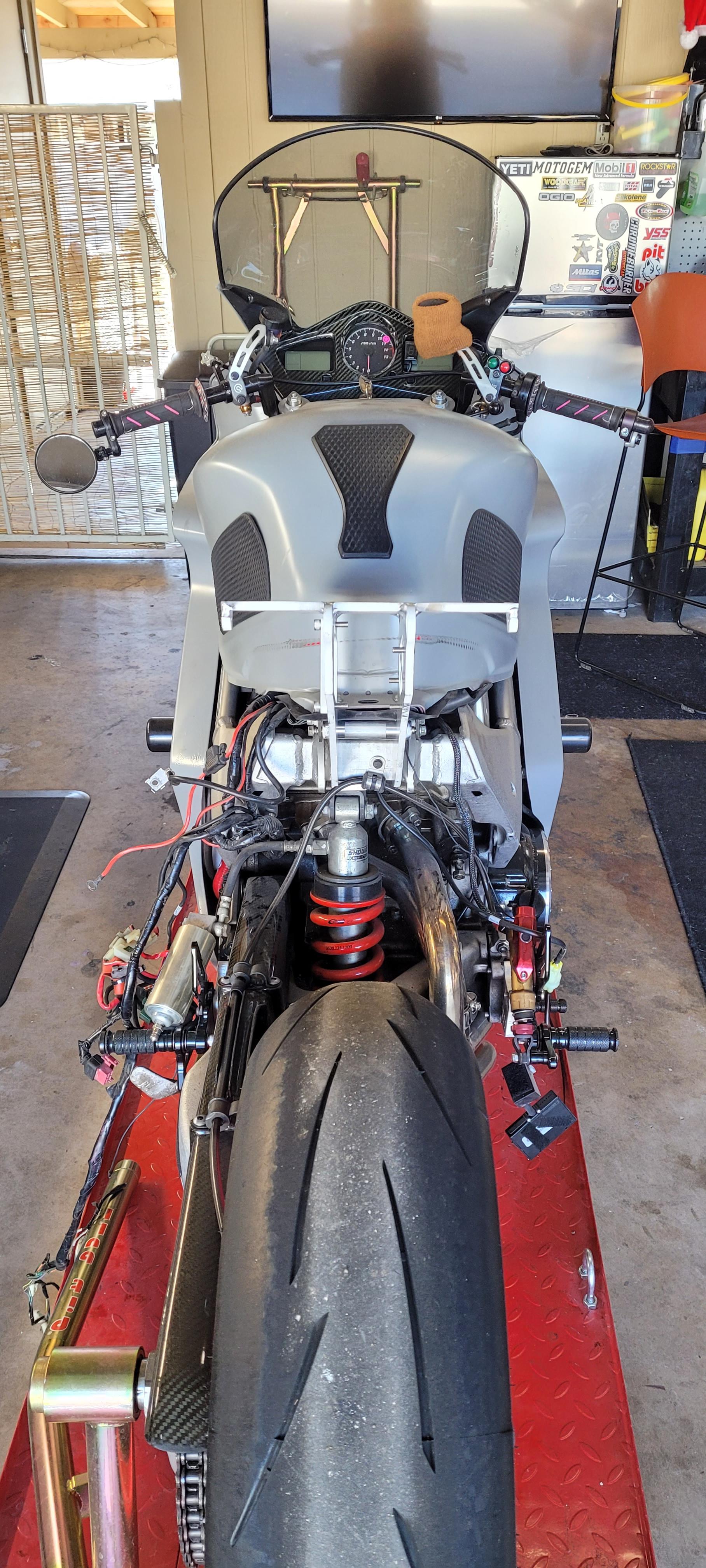

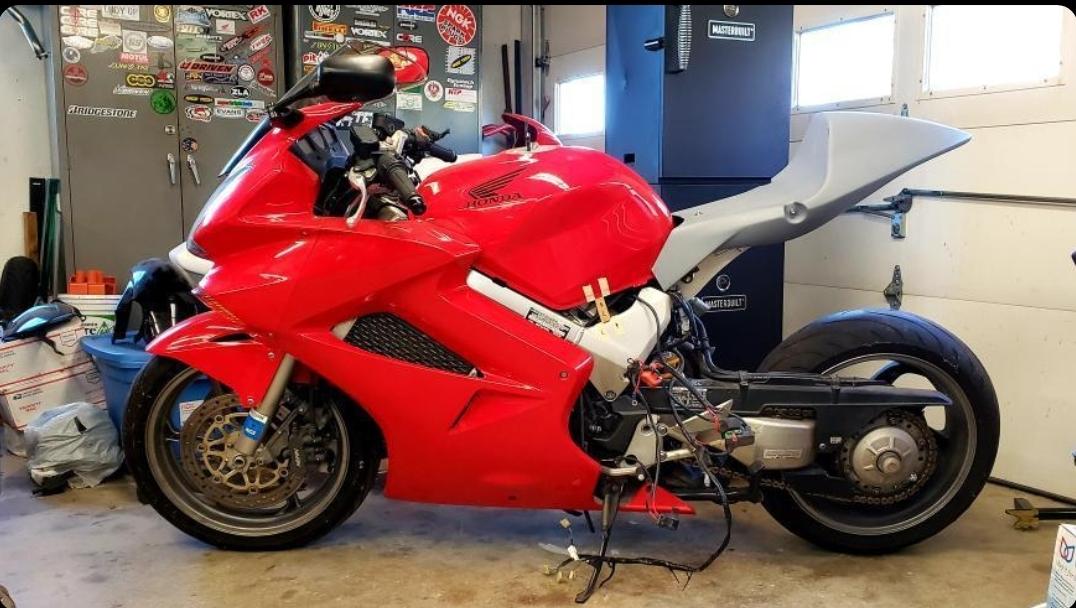

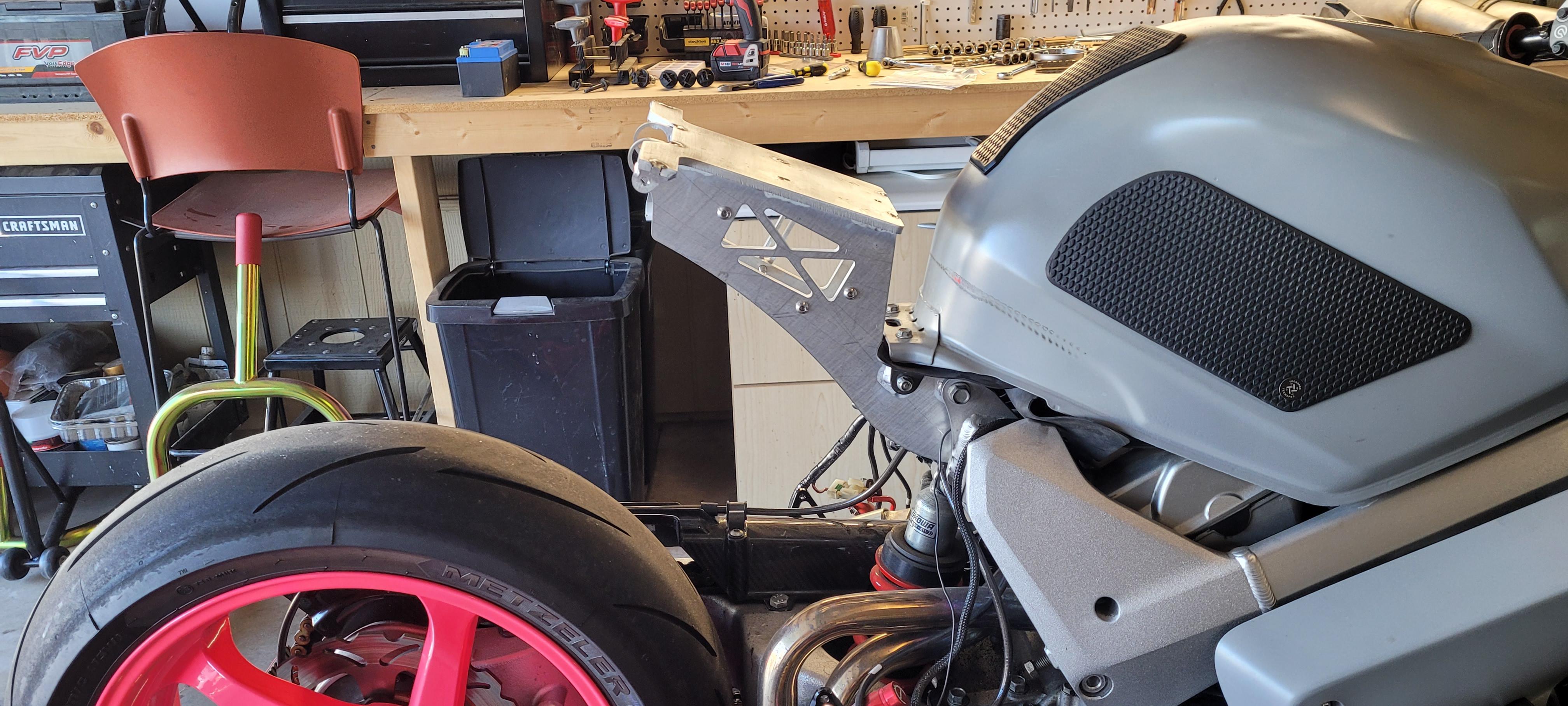

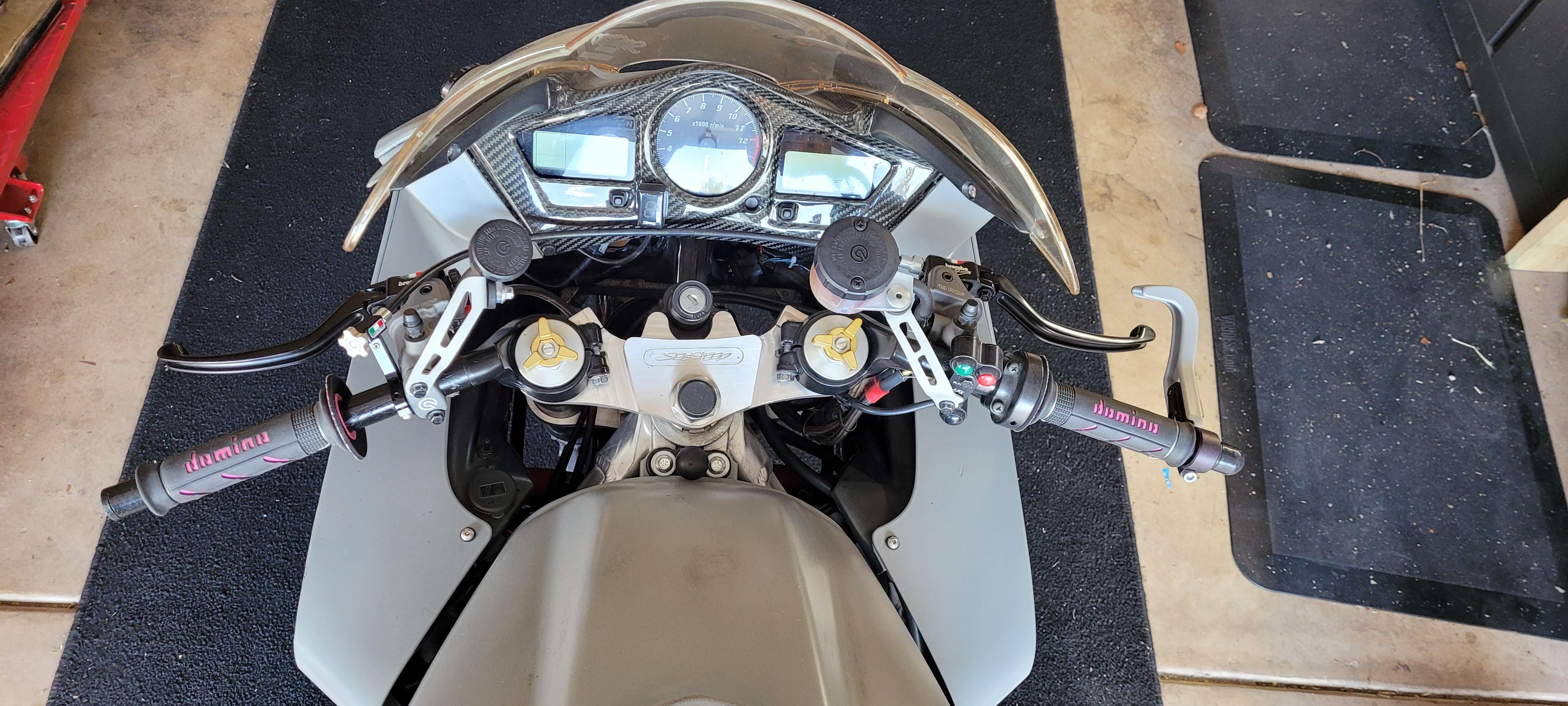

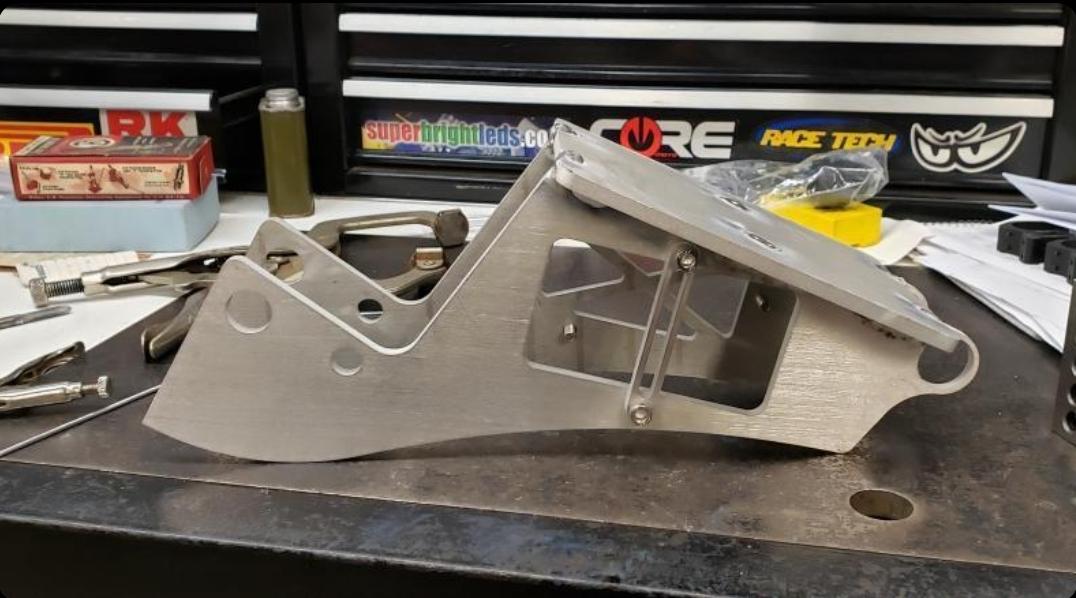

Now that I'm home with a good connection let's see if I can post some detailed pics RS125 tail on Sebastians bike as he finalizes fitment Cockpit view Aluminum subframe from scratch (Sebspeed is a mad scientist!) Switch pod Red is power, black is start and green is headlight

I really want to do a 5th gen swap! I had a clevis custom made that raises the rear 12mm. I'd be willing to answer any tech questions and would love to do a real write up.

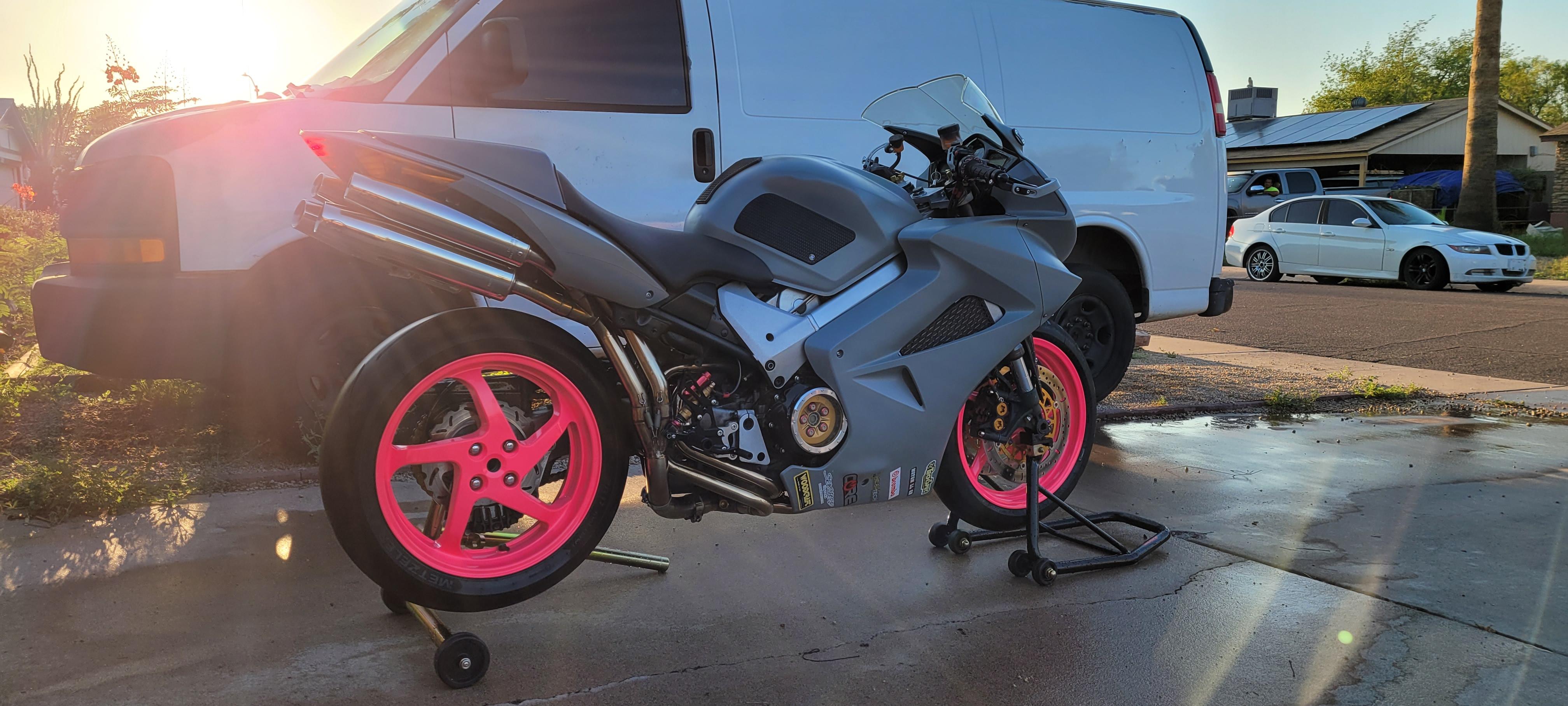

Been a long time since I posted so I wanted to catch up. 2002 6th gen that I purchased with just over 36k on the clock. After about 2 years of riding it as a commuter almost entirely I decided to have some fun. Fast forward to now and here we are. Bike currently has just under 71k. I track this bike regularly now and it doesn't see much if any street miles anymore. Current setup: Sebspeed custom triple trees 2006 Yamaha R1 front end (trees cut for stock width so no spacers) DMr built forks to my weight with all the add-ons possible EBC prolite rotors up front Brembo RCS 19 brake master Brembo RCS 17 clutch master cylinder with braided line Brembo remote brake adjuster Vfr 1200 clip ons Switch pod delete on both clip ons with custom 3 button Ducabike pod for start/fuel pump on throttle side cbr1000rr throttle with quick turn cam Domino grips Oberon slave cylinder Core moto braided lines front and rear on a de-linked system Vesrah pads Vented pistons in front calipers Ducabike Carbon brake vents Ti predrilled for safety wire hardware on entire front end: all pinch bolts, banjos and standard bolts/nuts Sebspeed windowed clutch cover Sebspeed rear set adapters with Woodcraft CBR 954 rearsets Laser exhaust with delkevic headers Rapid bike tuner w/autotune and single wideband o2 - tuned for MS100 and 91 octane 111hp, 64ftlbs on MS100 1 down, 3 up Vortex sprockets with 520 chain Healtech QS Healtech speedo healer Healtech gear indicator F4i rear shock with remote res built to my specs by Jamie at DMr Few carbon pieces for fun; dash surround, chain guard, front fender, filler pieces between seat and subframe arms. Keyless fuel cap As3 silicone hoses Water wetter coolant VFRness harness Antigravity battery with Li reg/rec wired direct 5th gen stator EBC clutch with heavy duty springs 4 complete sets of wheels; 6th gen rear/R1 front in hot pink 6th gen rear/R1 front in Fluo Yellow CB1000R rear/R1 front in Fluo Blue 8 spoke rear/R1 front in Fluo Orange Custom front upper with headlight delete for the track. I run a 55mm projector when I want to run on the street that I got from MotoForza. The final piece is almost finished. Honda RS125 tail with custom aluminum subframe from Sebastian. I'm sure I've missed a few things! Now for the downside... Engine is done! Toasted it Sunday at the track. 3 laps in coming down the back straight and starting to downshift I could hear it and it sounded very hurt. Set up to take the turn and as I started to lean in the rear stepped out a bit. Instant pucker, stood it up and went off track into the dirt to avoid a lowside because I had passed 3 on the brakes and I didn't want to end anyone else's day. Nursed it thru the dirt and back around, stopped to see what was going on and noticed smoke coming from the exhaust. Waved at the corner worker and he came over as I shut the bike off. Told him there was a good chance I had leaked oil on track cause I could see it on my left lower fairing, swing arm and my rear tire was shiny on the left side. Crash truck towed me back to the pits and sure enough catch can was full of oil. Inside of fairing was soaked, rear set, kickstand, swing arm, tire were all soaked. Thankfully there wasn't noticeable oil on track. So here's my question. 5th gen swap? Newer 6th gen replacement? What do you suggest and why? Here is a shot of the bike. If you'd like to see more detailed shots of some of the mods let me know...

Ok I finally have the exhaust situation sorted and its time to move on from the Delkevic. 9" oval stainless shorty's with midpipe. Midpipe has been wrapped to dissipate heat. Still have the original box to ship in with all the hardware. Looking for 200+shipping (should be about $40-50 tops)

For sale is a near new Delkevic 9" Oval stainless exhaust, Mid pipe and mufflers. I've had this on the bike for maybe 2 months and its had about 500 miles at most run thru it. There isnt even carbon buildup in the cans. it's in the process of a tail swap and the system wont work with it so I'm having a custom midpipe made. Still have the original box with the tube of exhaust sealant. There are zero blemishes on the system. I recently (last week) wrapped the midpipe with exhaust wrap but that will come off before shipping. Everything needed to mount this system will be included. Asking for 250 plus shipping. This system retails new for around 350-375 plus shipping (depending on where you get it) and I can include the purchase order to show how new it really is. Message me with any questions

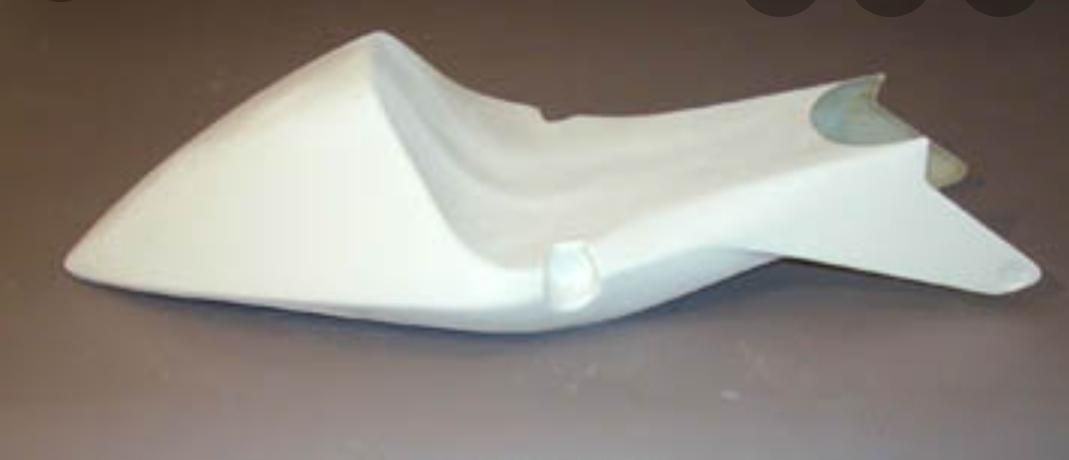

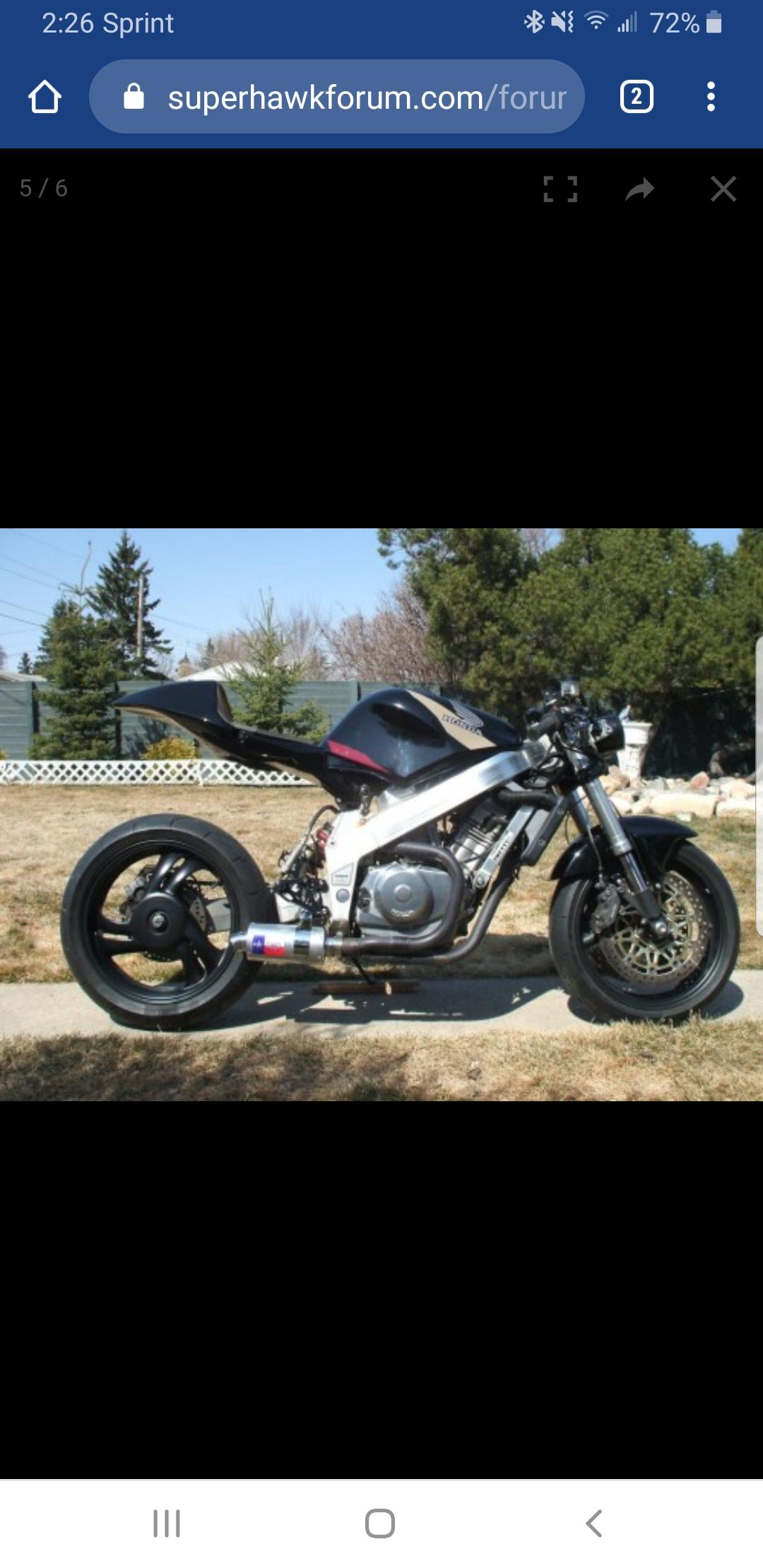

Just a quick update. Sebastian and I nailed out the tail swap details. Well I fell on a tail section coursing thru the internet and Sebastian (who is a little weary of aesthetics due to its size) has agreed with me. The plan is a Honda RS125 race tail. After days of searching and looking at images of this swap on other bikes as well as on the 125 itself I am extremely excited about the possibility. I ordered a race tail from Hotbodies Friday. 2-3 weeks delivery and then I can start fitment. Everything about this tail changes the visual aspects of the bike. It's pretty much flat on the bottom. This will give the impression of more space between the tire and tail. I will no longer be running an undertail dual system for exhaust. Instead I'll have one can that exits very high along the line of the tail. The only set of dimensions I could pull from a website that sells this particular tail was 78cm long, 36cm at its widest position and 23cm at its horizontal mount point mid tail. Just doing a rough pull from the tape starting at the furthest most point of the seat (due to the tails shape up front) it looks as if the tail will be 6-8" shorter than the factory tail. Personally the rear tire protruding behind the tip of the tail was hit or miss for me. But the more I look at images online the more I'm liking it. Basically imagine the tail section will be no longer or wider than a factory seat. It will essentially sit higher underneath and at a bit more of an angle than the factory setup. As soon as I have the tail, have done a test fit and sign off on it she will be in the mail to Sebastian. Where he will work his magic creating a custom subframe for it. There will be a gap between the framing and the seat pan to run wiring back to the hump where I will place a gravity battery. Tail light and license frame will hang down off the end of the subframe probably about 3/4 way back on the tail. Since it sits so much higher than factory there will be plenty of room between bottom of plate and tire. Since this is uncharted territory for both of us and I havent been able to find any real info other than a back half photo of it having been done on a VFR I'm overly excited at the endeavor. I have a set of GPR exhaust from the R1 I owned before my VFR and I'm half tempted to ask if they will fit to still run a dual setup under the 125 tail. I guess we will cross that bridge when we get there. The 1st pic I snagged from a Hawk GT forum. This tail swap is common for them. It's a member who said he did it on his VFR. It's only a tail shot from the side so if anyone knows who's bike this was and has a link or more photos I'd love to see. Last pic is the tail on a Hawk. You can get a proportion to the wheel and gaps from this. But being naked it's hard to get a real perspective of the tail in comparison to tank/front fairing size

I have a build thread going in the 6th gen forum. Have been trying to add photos as stuff shows up

Im in the process of doing an 05 R1 front end swap on my 02 VFR. I started off planning to go the SP2 route, just sourcing the factory parts to make it work. Ended up in a conversation with SebSpeed one day over availability of parts and the ins and outs of what I'd need to complete the setup and he threw the R1 idea at me. He had just got a deposit for a set of custom triples to make the R1 front end work without spacing the wheel or rotors. After about 30 seconds of googling R1 parts and realizing the availability and prices were hands down way better I quickly changed directions and shot him a deposit for the triples. Because of the length difference in fork tubes and the need for clip ons to be above the tree, Sebastian decided to replicate the 954/929 upper tree with a 19mm drop down on the outsides of the tree. This will allow me to run VFR1200 clip ons above the tree and not only be extremely close to factory ride height, but give me hand placement near factory specs as well. I have accumulated nearly all the big ticket items and Sebastian is almost done with the trees so it wont be long before the VFR goes under the knife! I went ahead and decided to send the forks to Jamie and have him re-spring the front end as I'm a heavy rider in full gear. This will match nicely with my rebuilt/revalved/resprung F4i rear shock. My bike has 63k on the clock and stock suspension so to say I'm excited to see the outcome of this new setup is an understatement. I ride the bike hard on the street and track so I can't wait for it to actually not fight me during corners!

Joseph, I am in the middle of swapping my front end on my 02 to an R1 setup. I'll have a complete front wheel with rotors for sale very soon. Just trying to recoup a little of the expense so I'd let it go for 150 +shipping. Wheel is straight with only slight blemishes to the black powder coat. To answer your questions from my research on finding a second set of wheels before I decided to swap front end setups entirely I found that 125-200 was about what you'd pay for a front wheel. Also you can use a 5th hen front wheel that may reduce the price a little but honestly not by much.

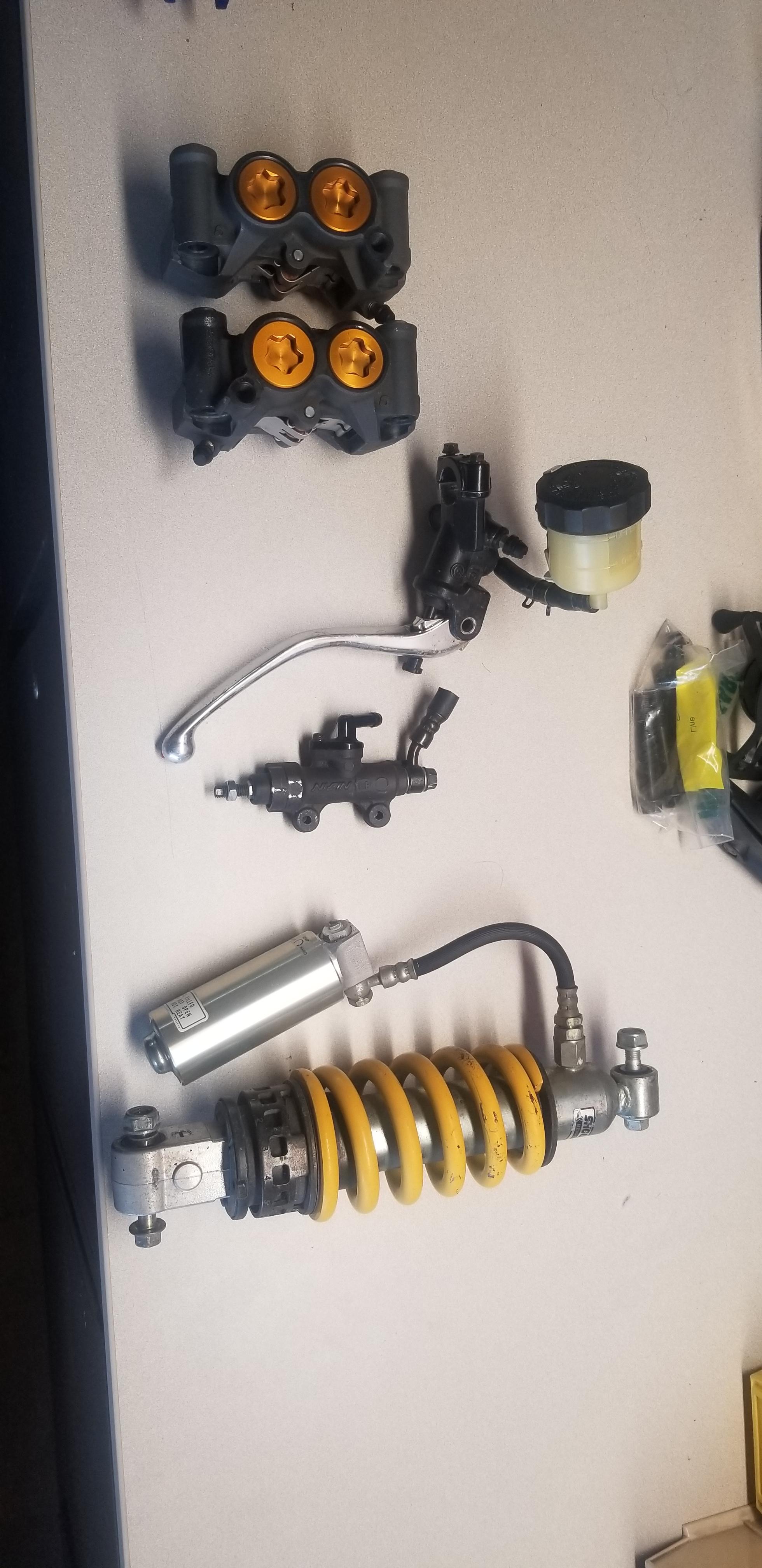

The R1 goodies started arriving today. Front calipers and master cylinder. Rear F4i master showed up today as well. Just waiting on the extended galfer steel braided line for the shocks reservoir to arrive so I can send it off to Jamie for a rebuild and spring upgrade. Ordered the front rotors (R1) and rear rotor (VFR) from Galfer today. Went with a wave style rotor with black center section as the fork tubes and caliper piston inserts are both gold and I didnt wanna over do it. Unfortunately because they're for different bikes front and rear the wave design is slightly different. Not really an issue but its gonna low key bug me as exposed as the rear rotor is. Found a set of vfr 1200 clip ons on ebay for 20 bucks shipped. This way I can test fit bar height before I drop money on woodcraft or convertibars. Kinda hoping the stock 1200 clip ons are a good fit so I can spend that money in other places.

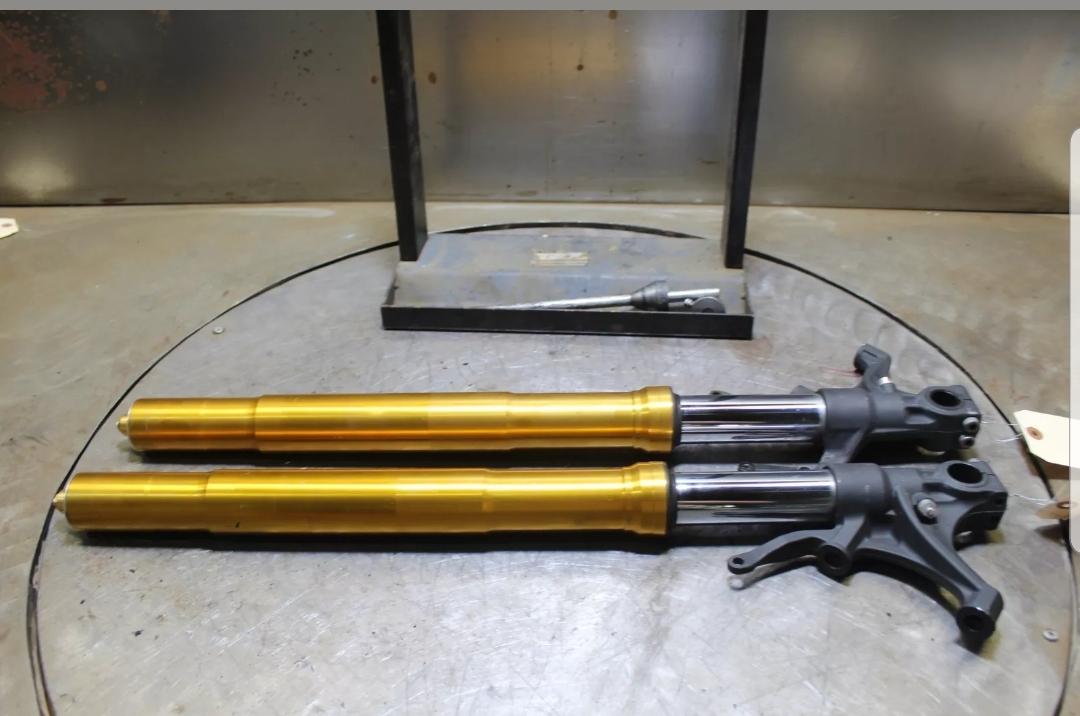

Just a little update. I let Sebastian talk me in to an R1 front end instead of a SP2. Deposit was laid down on Saturday for a set of custom trees and I'll start sourcing 04-06 Yamaha R1 forks and other parts this week. Sebastian (who planned to do the same swap) has kindly sold me some of his excess parts he gathered for his swap along with some parts I need for the delink he had around the shop. I need to get a few things still including the actual forks. From the conversations we have had and the threads I've read for an R1 swap I think my only real issue will be clip ons. I'm a taller guy and having to mount under the top tree will require some tall extensions to try and retain a seated position as close to stock as possible. My F4i shock showed up an Saturday and I ordered the eibach spring and racetech collars on Sunday. As soon as those arrive I'll take it all to my local indy shop and have the shock revalved and rebuilt. Gonna also have the reservoir line lengthened with a steel braided version from Core Moto so I can located it in a better spot. I wasnt expecting to move so fast but with everything that's going on in the world and not really riding very much right now with tracks closed what better time than to go ahead and get it done. Heres a shot of the beautiful forks! The rear shock and the adapter I purchased to mount the reservoir

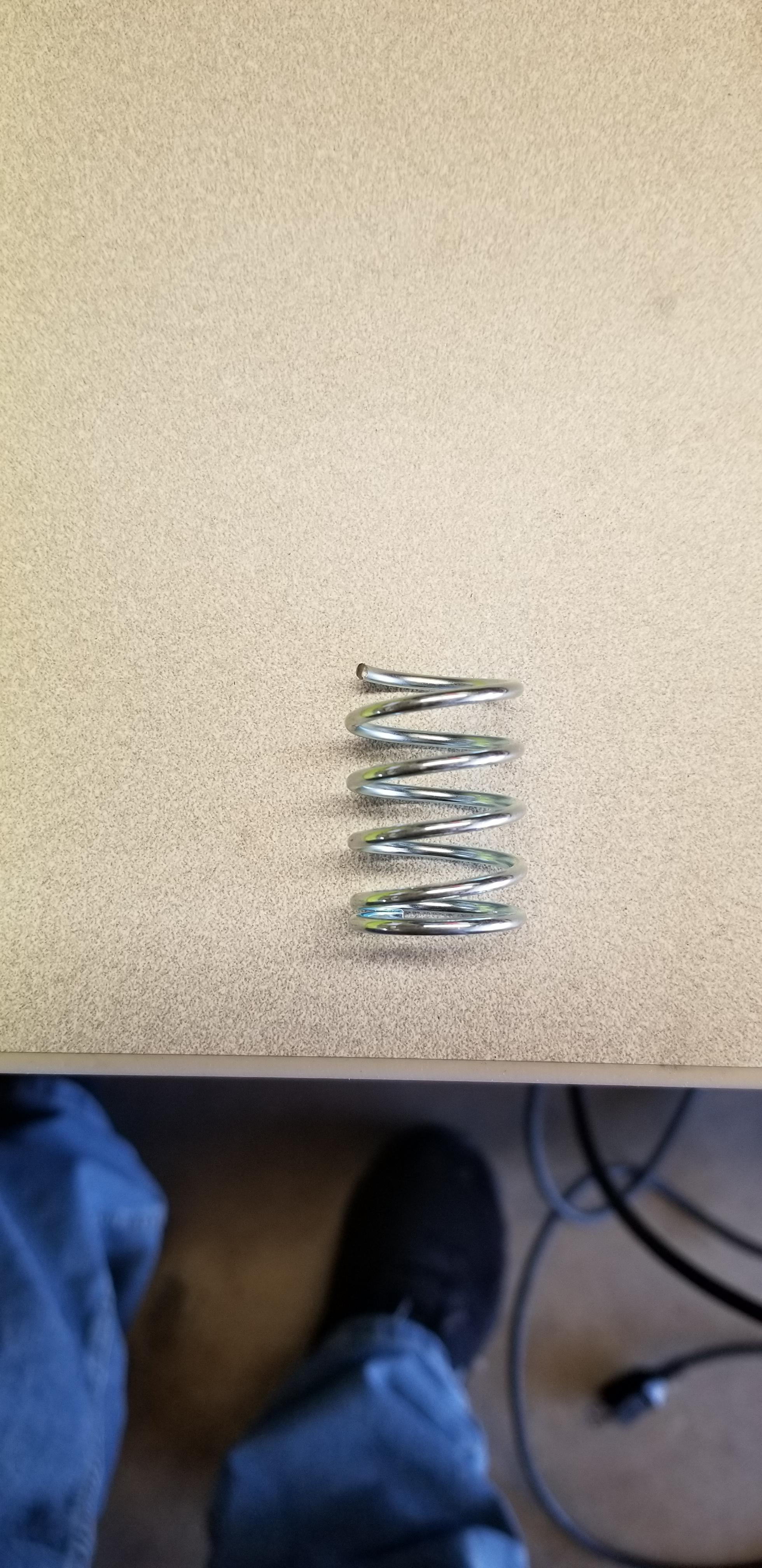

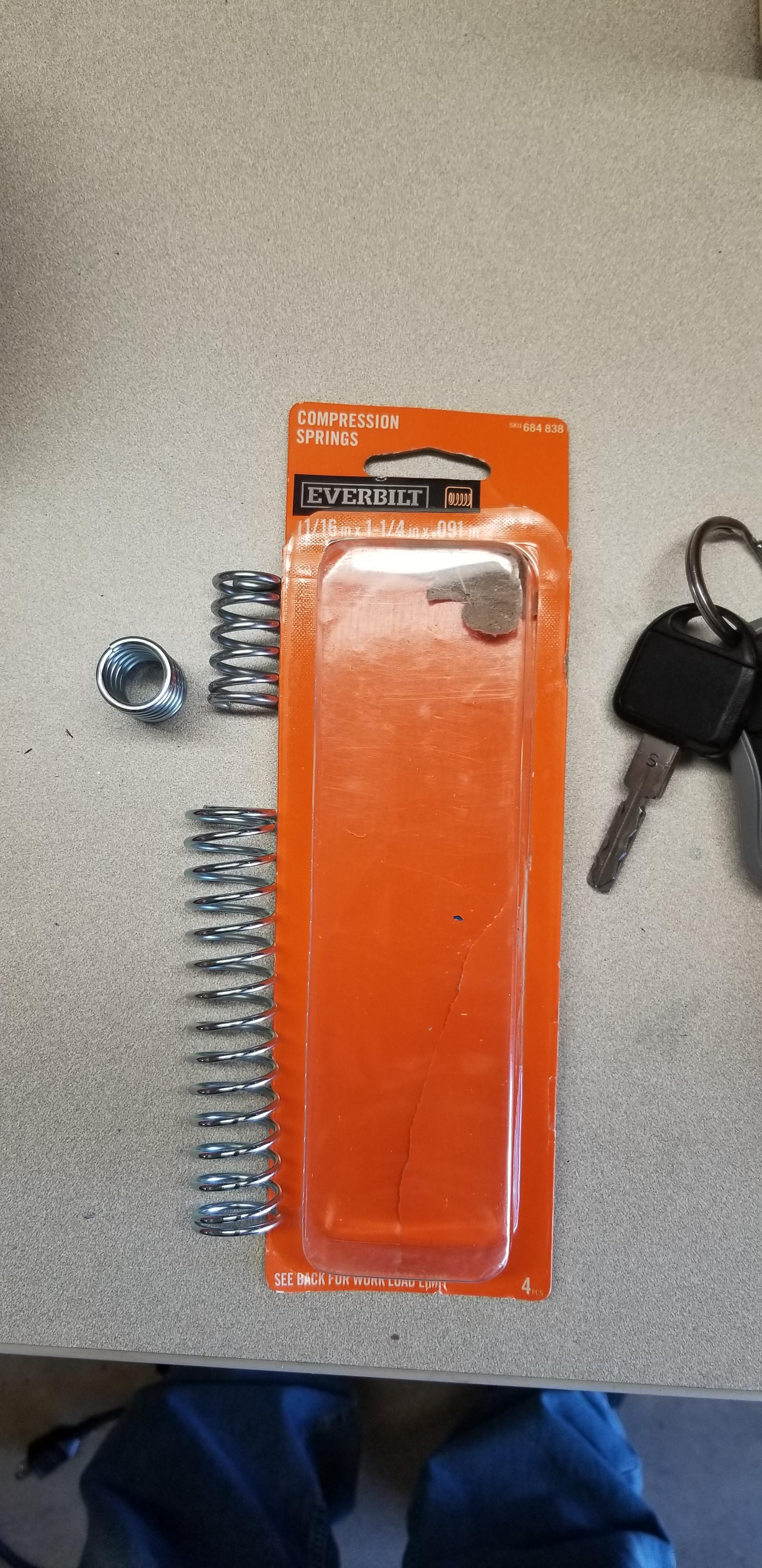

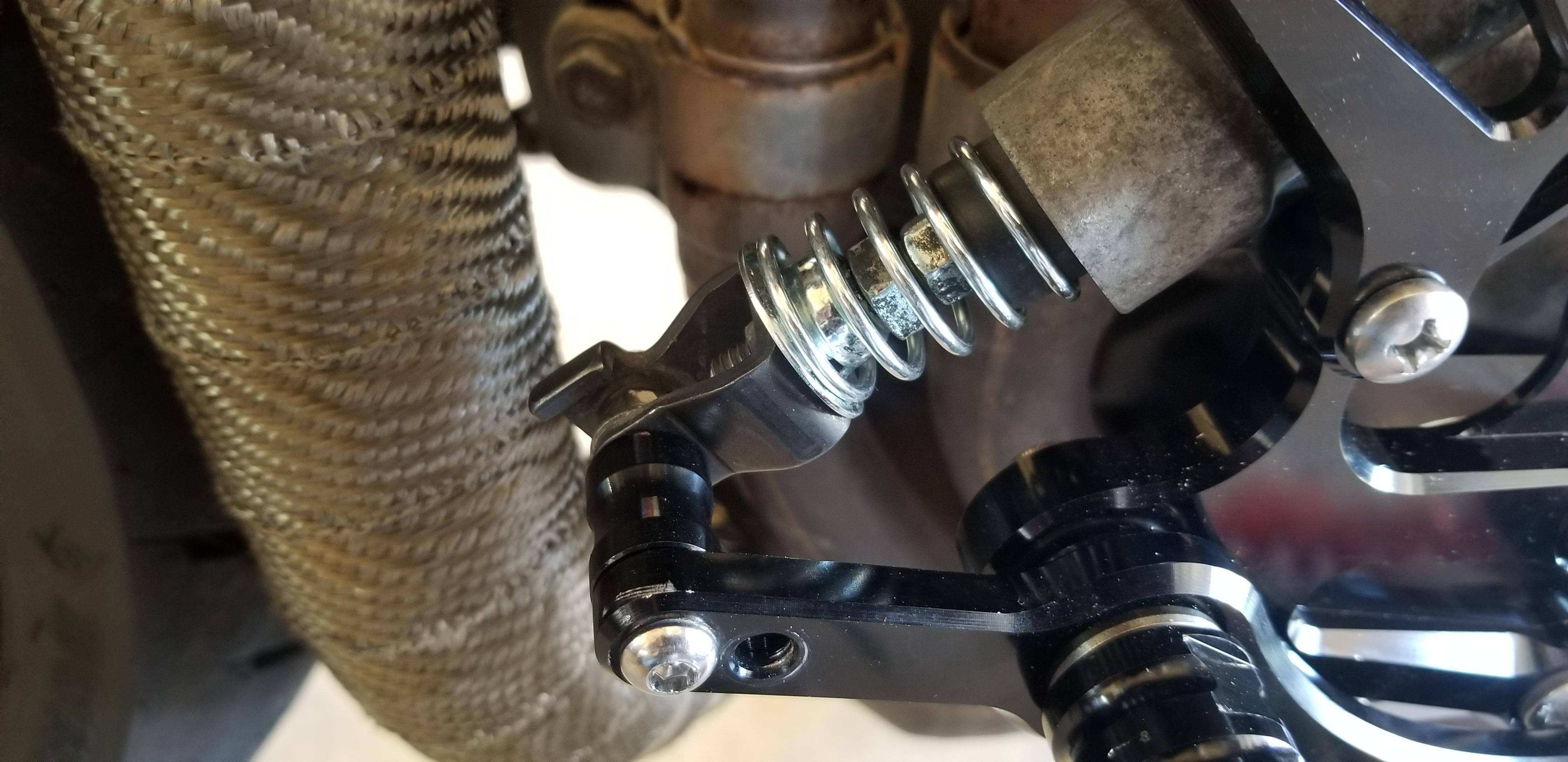

Since I really wanna ride like right now I woke up this morning a man on a mission. 2 stores and a few random parts later and I had a solution. Went to home depot and grabbed the hardware I needed to mount the master to the rear set. Also grabbed an axle washer and a box of springs from the door hinge section. Axle washer needed a hole drilled to let it pass thru. I took the spring that fit and fitted it to get a point to cut it down. Since the spring was long enough to use both ends I cut a tad past half just to add tension. If it's too much I can use the other half. Bolted it all up and pumped the brake with my foot a few times and it springs back perfectly. Also feels like theres a little more tension to push the pedal over stock which is nice.

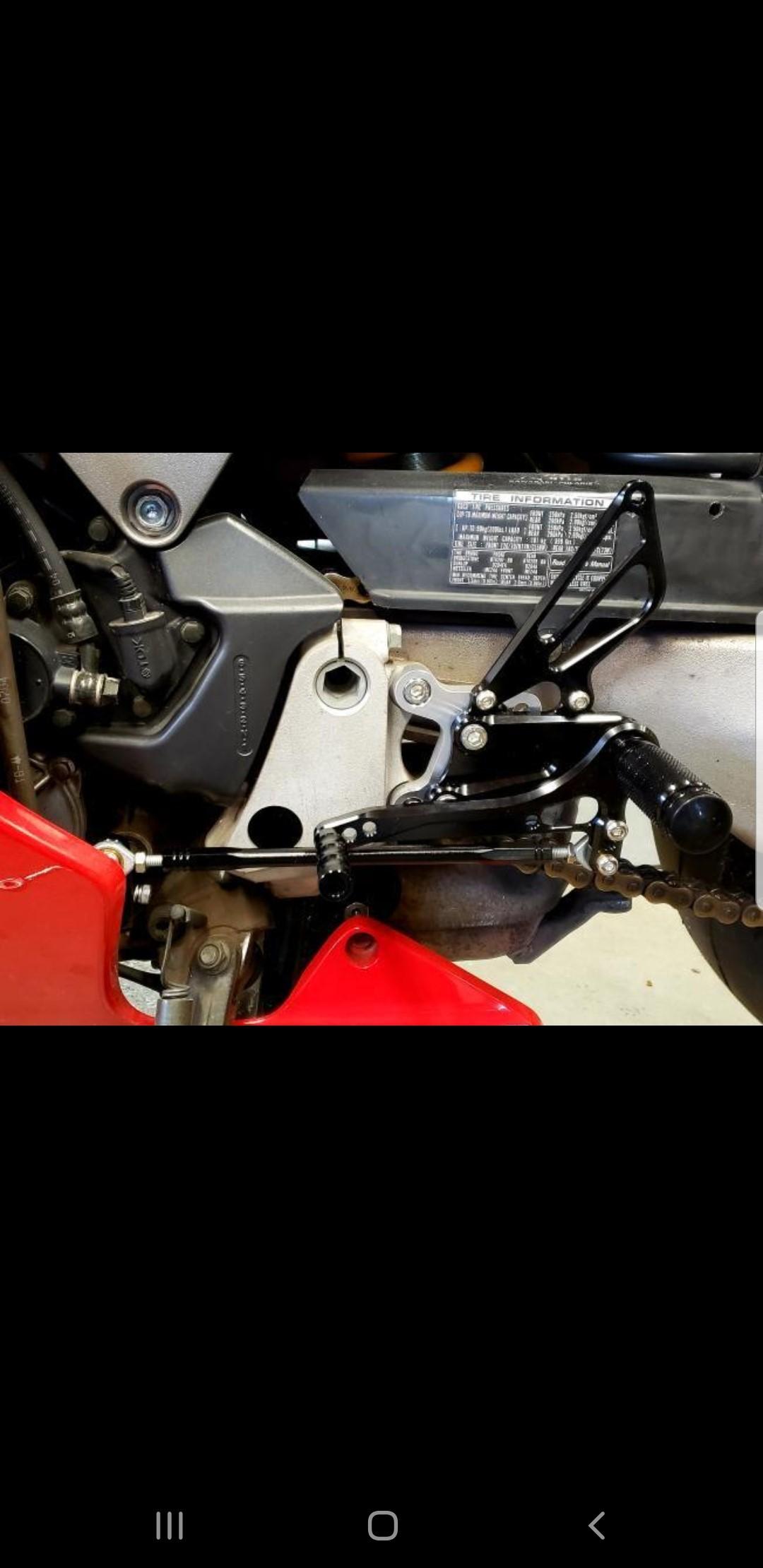

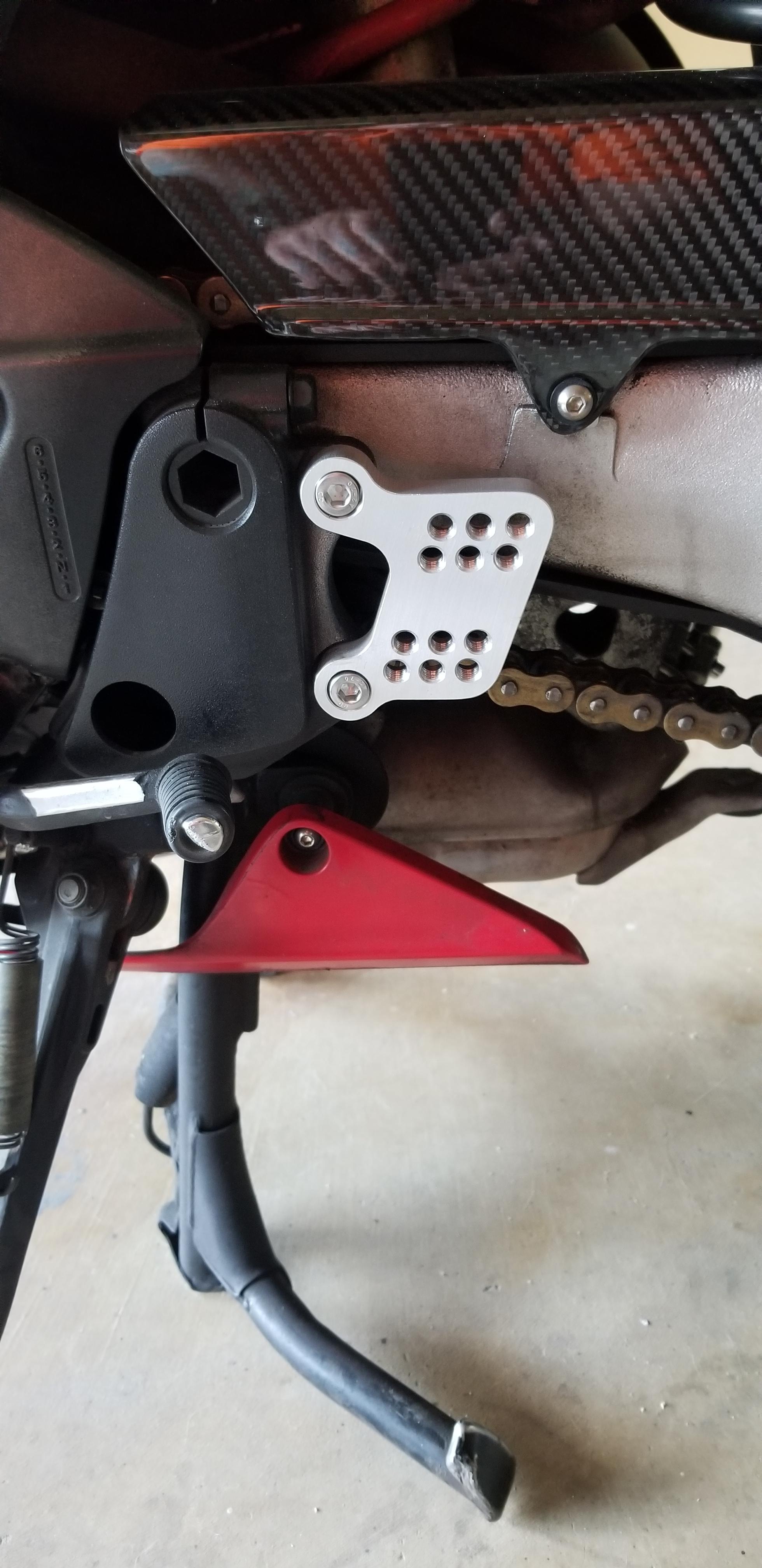

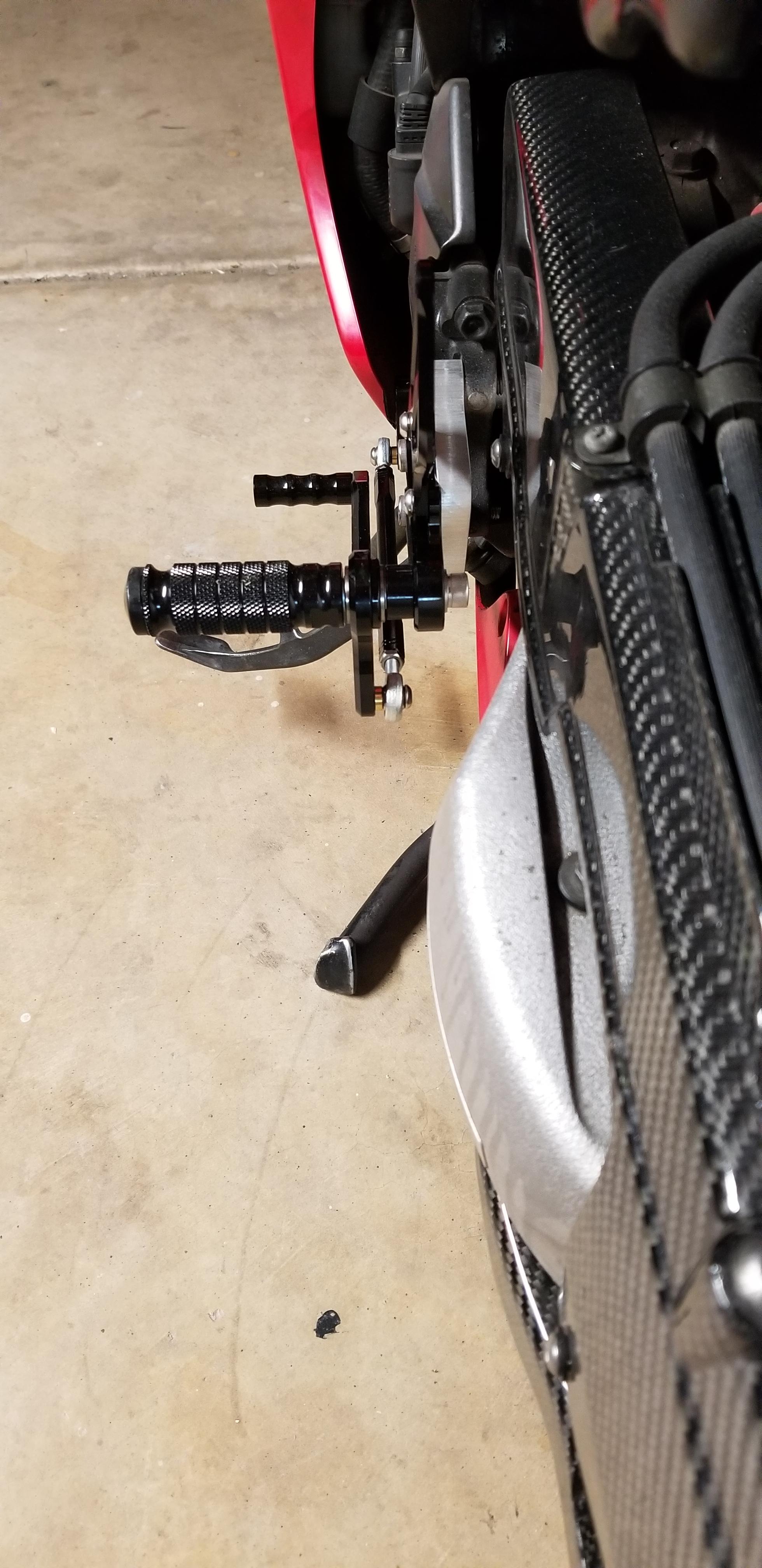

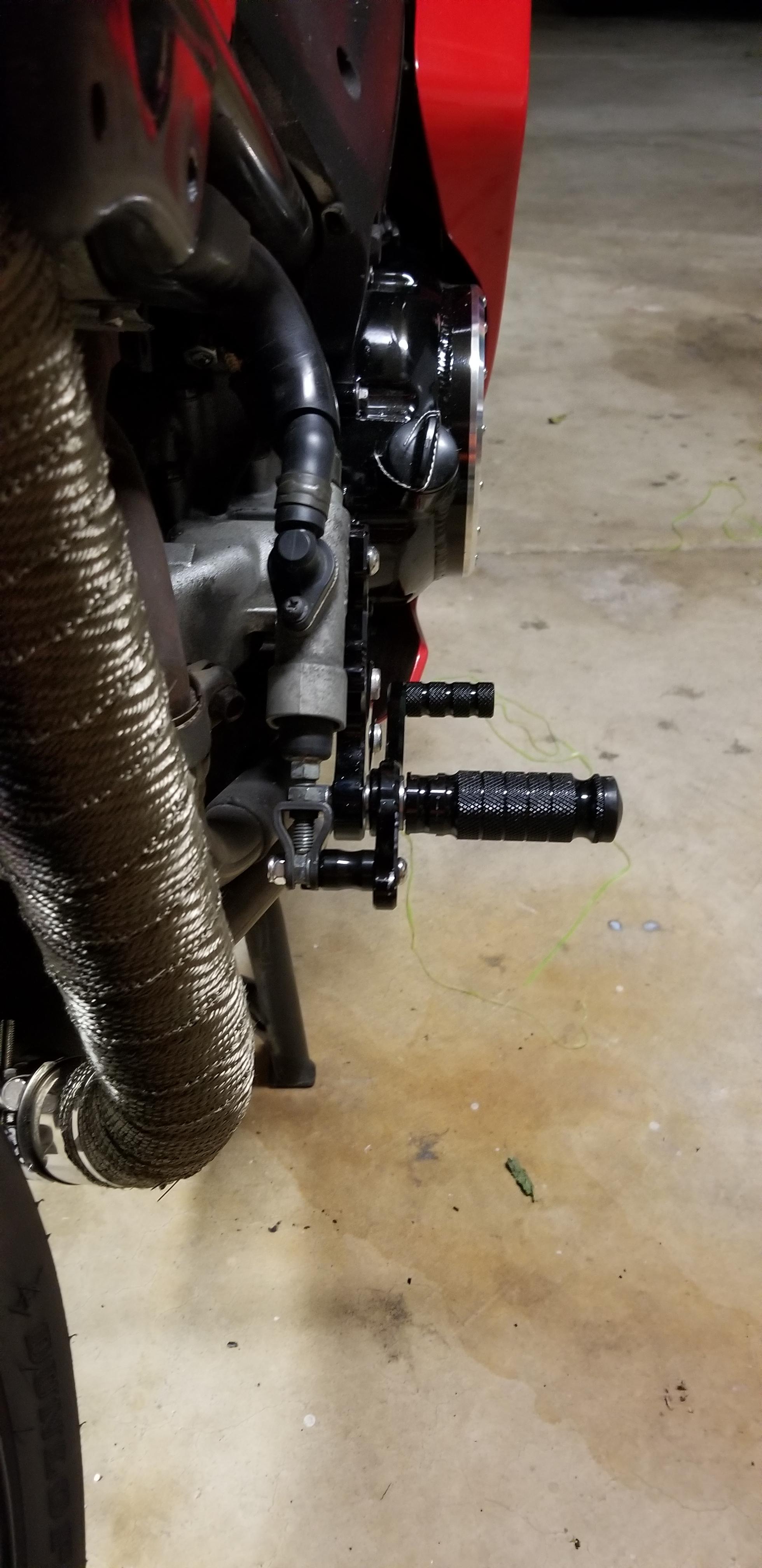

Figured I'd throw in a picture of Sebastian's (Sebspeed) adapter. This thing is beefy for sure. As far as adjustment goes I asked that he make all of my adjustment up and back from stock. I plan to track this bike and ride aggressively on canyons runs so I had no need for forward or down adjustments. I took a pic of the bike with the new rearset in the most forward and down position it had with the stock rear set still on the right side. This allowed me to get a visual of the new rearsets positioning against stock with no adjustment. I took 2 photos for reference. One from the rear at foot peg height and one looking down directly over the pegs. As you can see from the pictures the adjustable rear set looks to be about 1 position up and back over stock with them bolted in the starting position for adjustment. To say Sebastian knocked it out of the park is an understatement. I asked for all the adjustments to be in the up and back directions and he killed it. Knowing I plan to adjust for track/canyon riding he placed the "stock" setting already up and back 1 which allows me more adjustment.

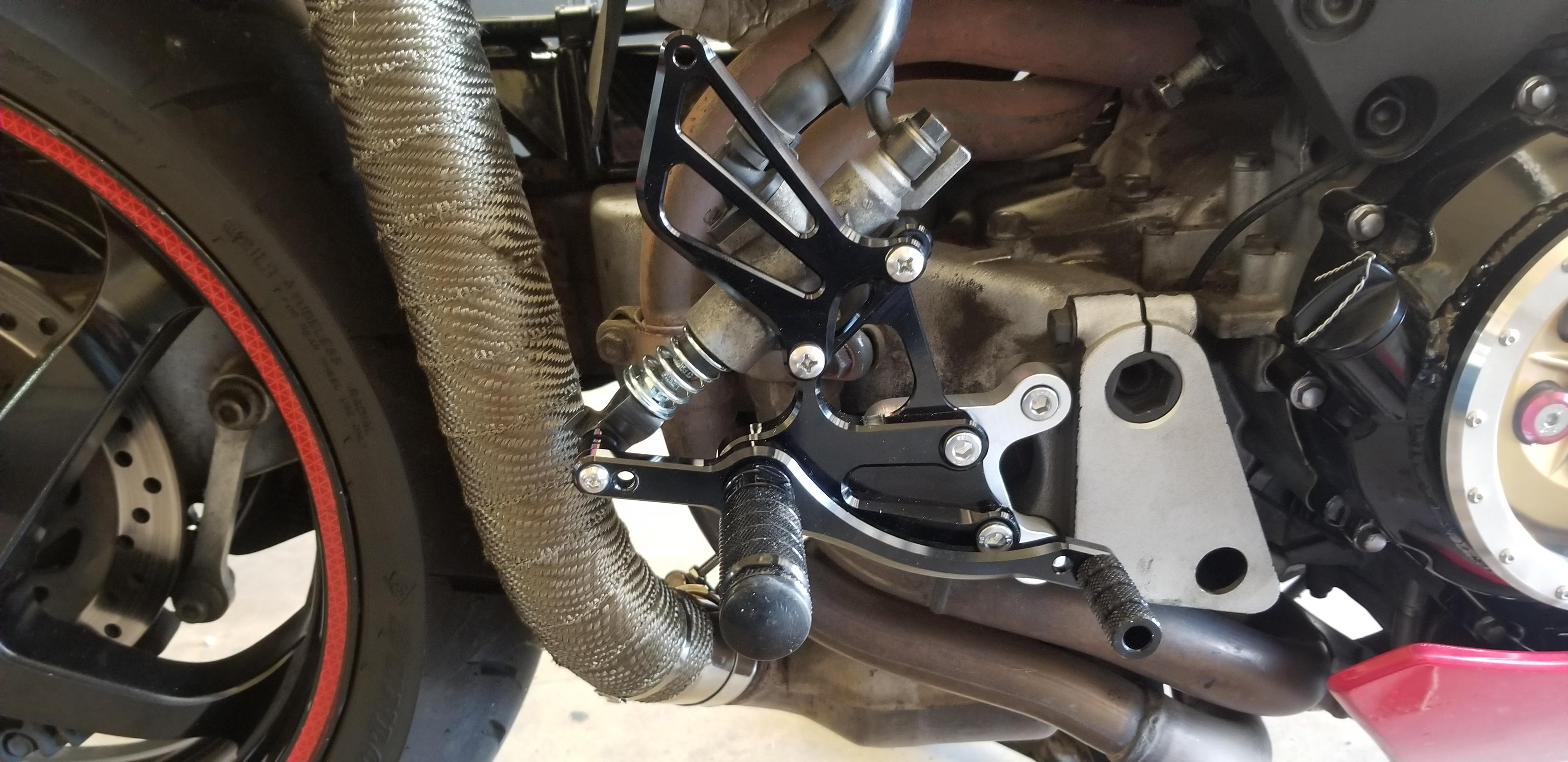

Brake side was not so simple. The 929 brake pedal (on this particular brand of rear set) does not have a tab for the brake return spring. The factory pedal has a tab in the pull portion of the pedal to attach springs for both the return spring and brake light switch. Had to go to the internet to figure out how to work in a return spring. I'm ok with no brake light from the rear brake as I never use it by itself. Note* To do this swap or something similar you'll need the adapter (Sebspeed makes these and the price is very reasonable) Factory master cylinder will require the shortening of the shaft bolt to accommodate the pedal design. (Look at pic) A compression style return spring (fasstco.com) Longer bolts for master attachment. (Maybe not, the kit I ordered came with bolts to mount the master that were a tad short. I could have made them work but wanted more threads thru the nut) If you plan to run GP shift you will need to clearance the fairing slightly, in a standard shift setup you will be fine You will not be able to run the heat shield as even at the "stock" setting with the 929/954 style rear set the master cylinder is pitched down and the placement is about 2"back from stock. Heres a pic to show you the rod on the master and how much I shortened it to still have adjustment. Also a pic of the spring I ordered

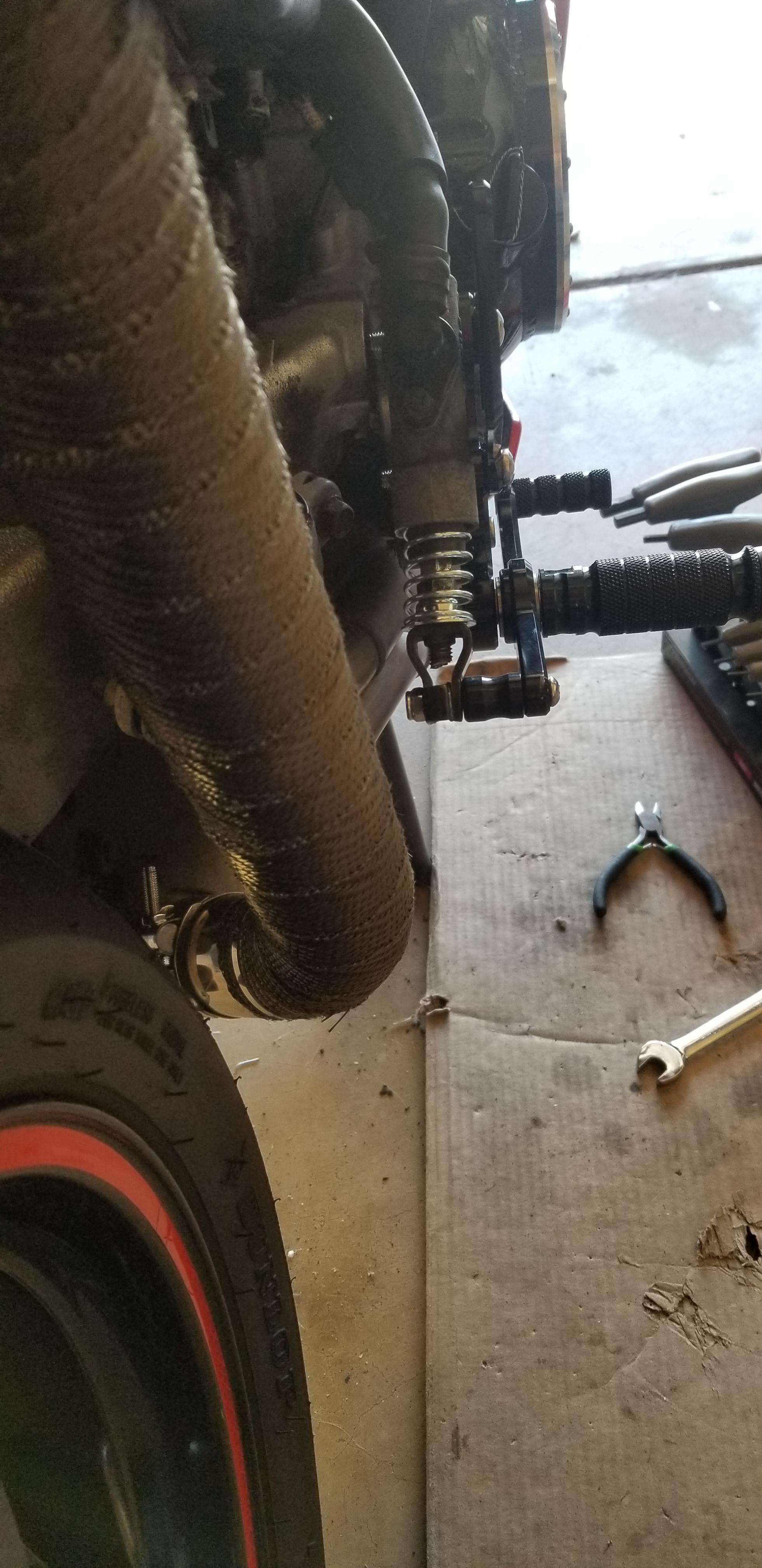

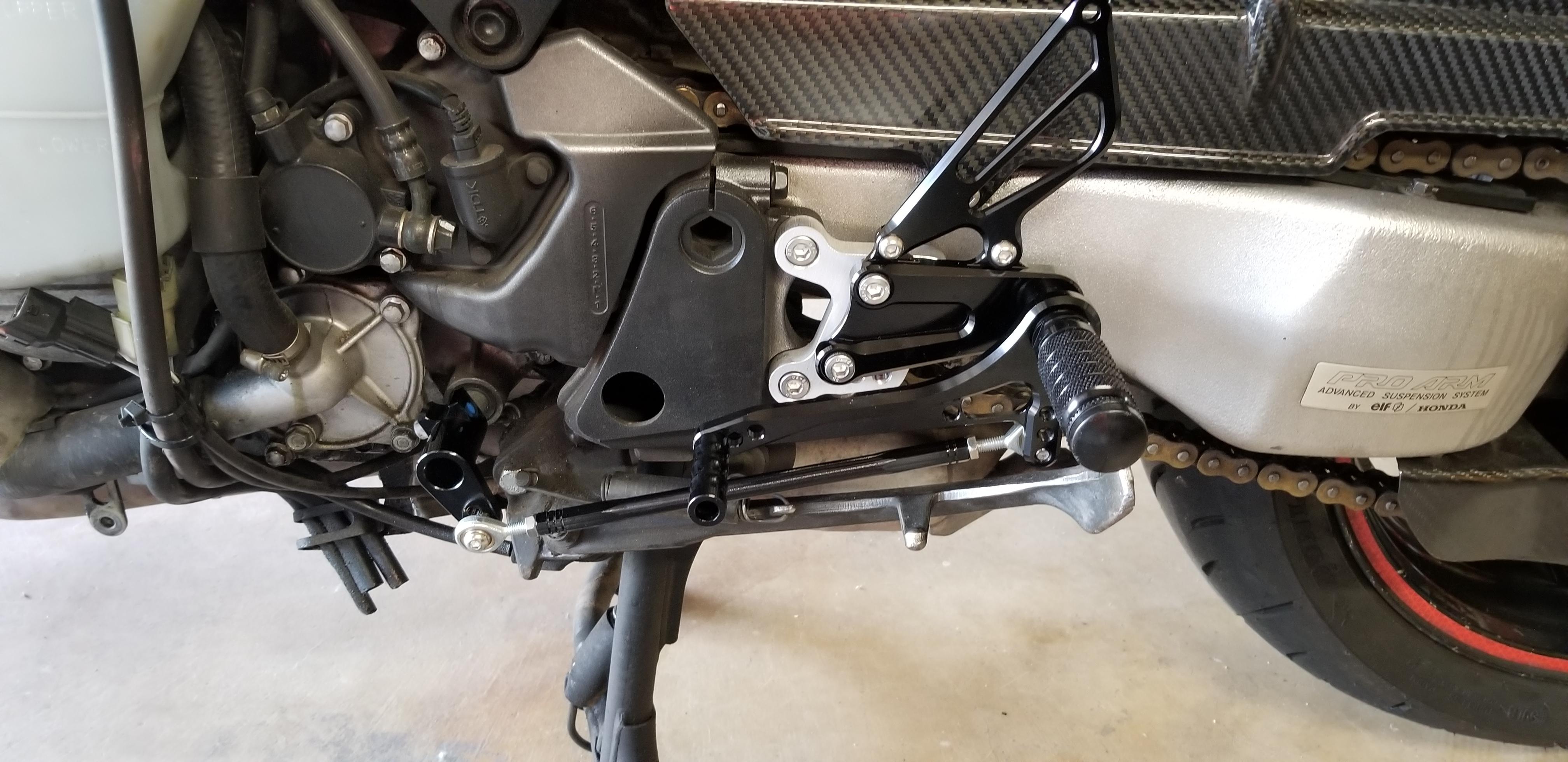

Rear sets arrived yesterday and man oh man I couldnt get out of work fast enough. Got home and ripped open the package, put the bike up on stands and went to work. Shift side after a little adjusting went on clean. I decided on just 1 position up from stock. As I ride the bike and get use to the new foot placement I may take them back a bit on the adjusters. I set up the linkage for GP style shifting as it's what I've always run from early on. To be honest the last 3 months I've ridden the bike in standard shift has been really difficult. Lots of "shit wrong gear" moments. Here are a few pics of the install

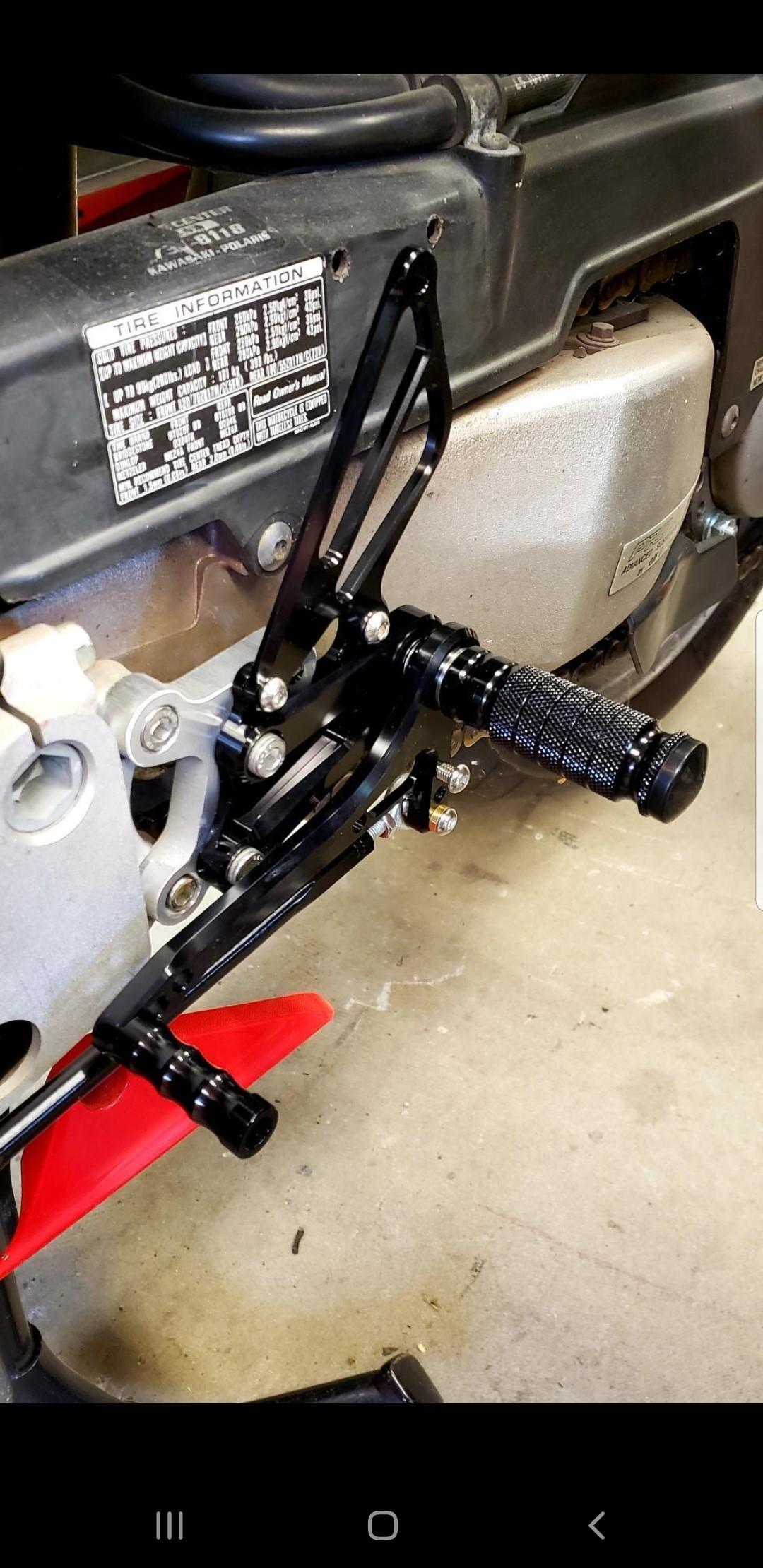

Few pics of SebSpeeds progress on the Rear sets these are 929 adjustable rear sets. Sebastian changed the mounting plate that attaches to the frame, then the rear set bolts to it as it came. Basically fabricated a new part to fit the VFR instead of just making an adapter. I'm choosing to run GP shifting so Sebastian had to work his magic on the linkage to make it all work. I will have to trim a little of the fairing to keep it from fouling but I'm perfectly ok with that!

A few pictures of the carbon goodies. And a side shot showing SebSpeeds beautiful windowed clutch cover. VFR1.jfif VFR2.jfif VFR3.jfif VFR4.jfif

Guess its time I start one of these. I've already done so much so I'm going to have to get this caught up to the moment. What I started with was a 62k mile, multiple owner 2002. As I went thru it the 1st few days I was happy to see solid maintenance had been done. At the same time there were a few "why do that" moments. Like all visible aspects of the frame have been Plasti-dipped black. But it wasnt really taped off so there's overspray everywhere. Headlight lenses, turn signals and entire taillight had been "smoked" by spraying thin coats of black over. (Yes I said headlight lenses) But there were definite pros! Staintune exhaust, Heli bars, 15/45 530 sprocket/chain kit that was fairly clean, tail tidy and a near new set of Dunlop Q4 tires. That's where I will stop for now. I'm posting this from my phone and I need my PC to upload pics as that's where most of them are. So as soon as I'm home I will add in pics and finish the rest of what's been done so far and where its headed.

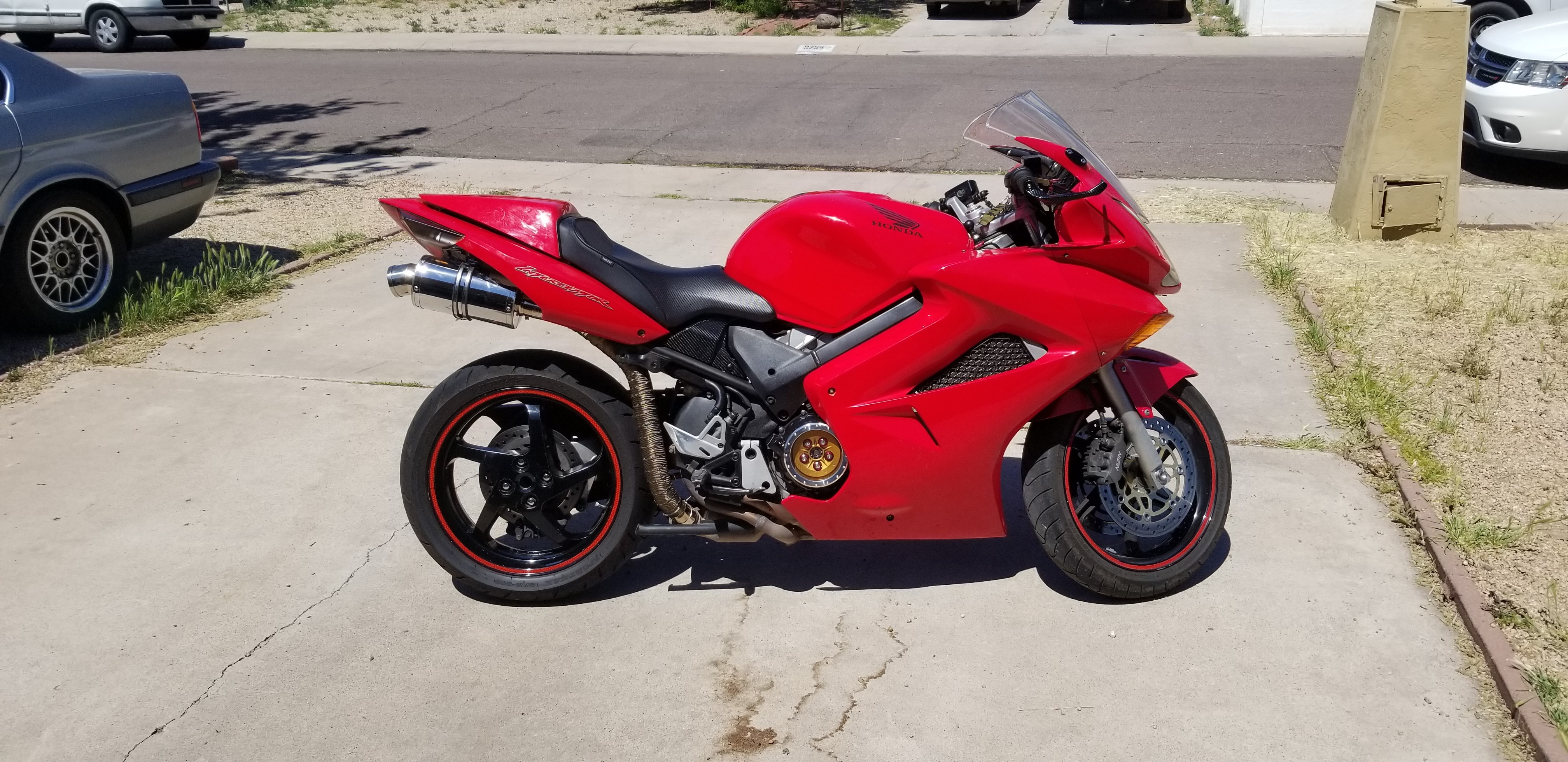

Had a chance to snap a few pics today in the parking lot at work. Sorry she's not cleaner but I ride her daily! VFR5.jfifVFR4.jfifVFR3.jfifVFR2.jfifVFR1.jfif

Hi RyleeV4, Thank you for your donation of 10.00 USD. We look forward to improving the forums with your donation. Thanks VFRDiscussion

Hello everyone! Recently picked up an 02 non abs vfr800. It's my second try at a VFR in my 22 years of riding. I had a 98 new from the dealer and loved the bike. Followed that with 5 years on a naked bike extravaganza that ended on a Buell XB12r. That transitioned me into harley cruisers and I'm glad to say after about a 6 year run I'm back in the sport saddle again. At a little over 62k on the clock shes been rode hard but surprisingly well cared for. As the bike currently sits she has a Delkevic full system, PCV programmer, a hand full of CarbonFiberRacing goodies and a Sargent seat. Just installed my Sebspeed windowed clucth cover and Im currently waiting on Sebastian to wrap up my adapters for a set of 929 adjustable rearsets. Sebastion and I have already nailed down the prices for RC51 SP2 custom triple trees for my front end swap and we've been toying with tail swap options but havent settled on anything as of yet. I have an 8 spoke from the UK along with a spare front wheel being powdercoated now, along with a few accessory parts. I'll be taking her down soon for paint and cleaning up a few of the "age" blemishes she has. I'm in the Phoenix AZ area so I'll be addressing the cooling system since we have 100+ degree temps for the better part of 5 months.I've already installed a Smart-Moto fan switch and will be doing the Fan mod here soon. I've just been commuting with her for the last few weeks to get a feel for her. Once I'm comfy in the saddle and I feel my throttle control is clean I'll start enjoying all the canyon runs we have locally. With the 8 spoke coming I'm gonna pick up a spare front wheel so I can have a set of stickier tires for those adventures and still be able to run a more touring style tire for commuting.I've been lurking since day one of ownership and felt I needed to get on board and introduce myself. My riding background is about a 60/40 mix from sport to cruiser. I had a solid 5 years as a track junkie on a very well built SV 650. My brand range has been from Japanese to British to Italian to American. From touring to street/track to cruiser and full on chopper. Thankfully I'm a little older now, a little more conservative on city streets and hopefully a little wiser. And the best part is I've finally reached that financial point that I can enjoy modifying! As soon as Im home from work Ill load a few pictures of how she currently sits.
