2002 VFR800 Engine Management Schematic 1.0.0

Sign in to follow this

About This File

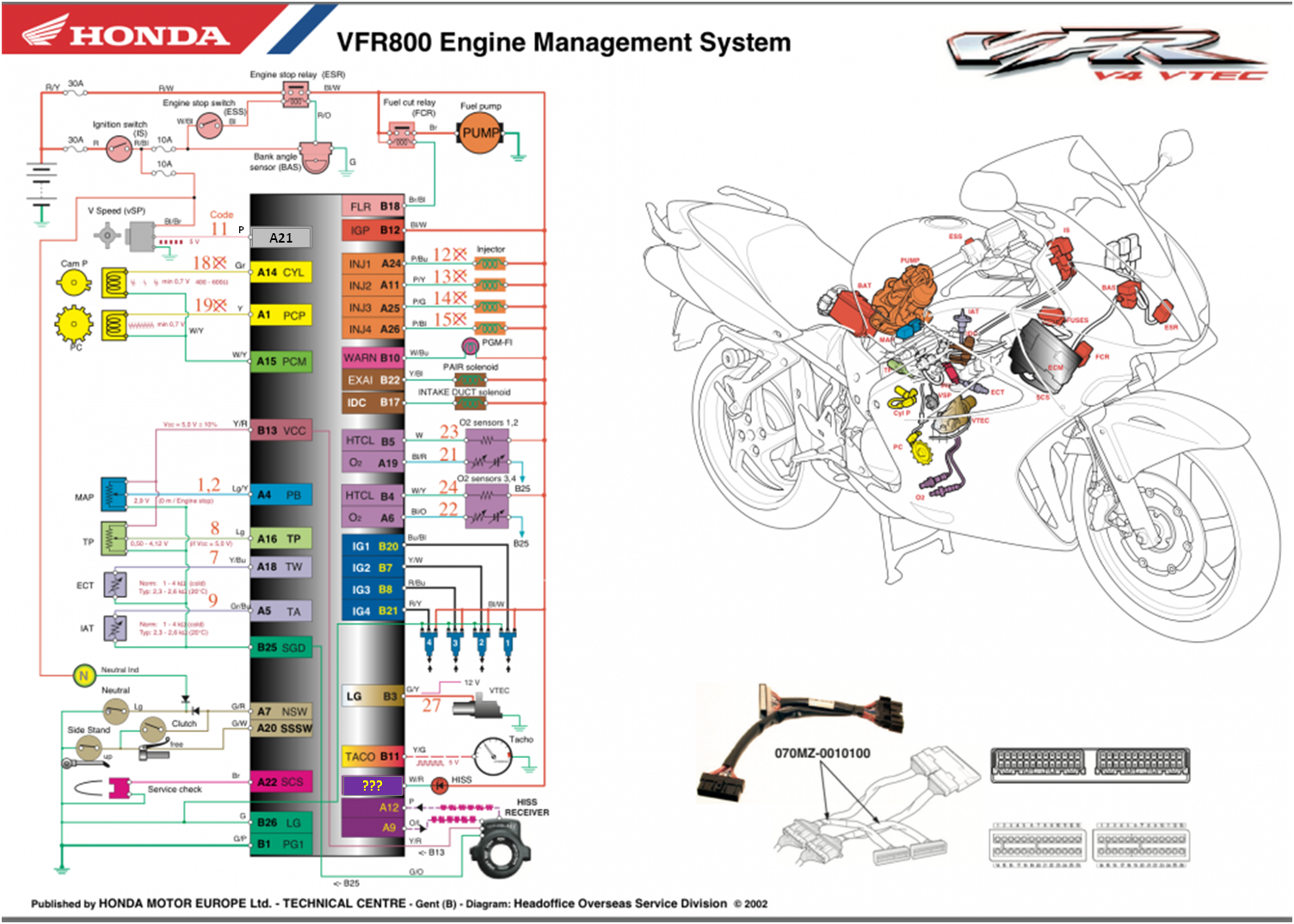

This version of the wiring diagram has updated to show the actual wiring as found on a 2002 VFR800 California Model.

1535290811_2002VFR800EngineManagementSchematicRevised5July2019forUSCaliforniaModel.png
