Hello everyone. I'm trying to get a hold of the electric diagram for my 1986 VFR750. I've been searching Google up and down, but all I find is bad quality pictures, or bad scans from the service manual. Does anyone have a better quality scan of the book, or do you have the book and could help me by taking a high res picture of the electrical diagram, I would be super happy. Thank you in advance for any help. 🙂

Thanks. Yes, I like riding things that isn't "main stream". People tend to gather around it, laughing. 😄 And that ok with me. As long as I can make people happy. 🙂

I wanted to get those old Sovjet gas mask, the ones with a hose connected in the front. But couldn't find it in black, only gray/green. And those was only made out of rubber. The one I've mounted is plastic, and is meant to be used for paintball/softgun. 🙂 The bike isn't meant to be a beauty. It's meant to look mean. 😄 Thanks for replying on my post. Ps. The gas mask is giving the bike it's name, GazGaz. 😄

I want to get a bigger rim on the front wheel and put on either dirt or enduro tires. I've already made a passenger seat that i mount a little more up and back. This will make the passenger see over my head as I lay forward. Cosmetic will come as I go. Will try making it look more "mean" in the future. 🙂 Thanks for your reply.

No, it's a digital instrument panel. Sorry, I chose the wrong word. 😄 All the original instruments was part of the original fairing, and I didn't get those when I bought the bike. So I had this digital instrument laying around that I was supposed to use on another rat-bike projekt earlier. It went to sh*t because it was in a worse condition than this one. 🙂 But it was nice of you to reply on my first post with a good tip. Thank you.

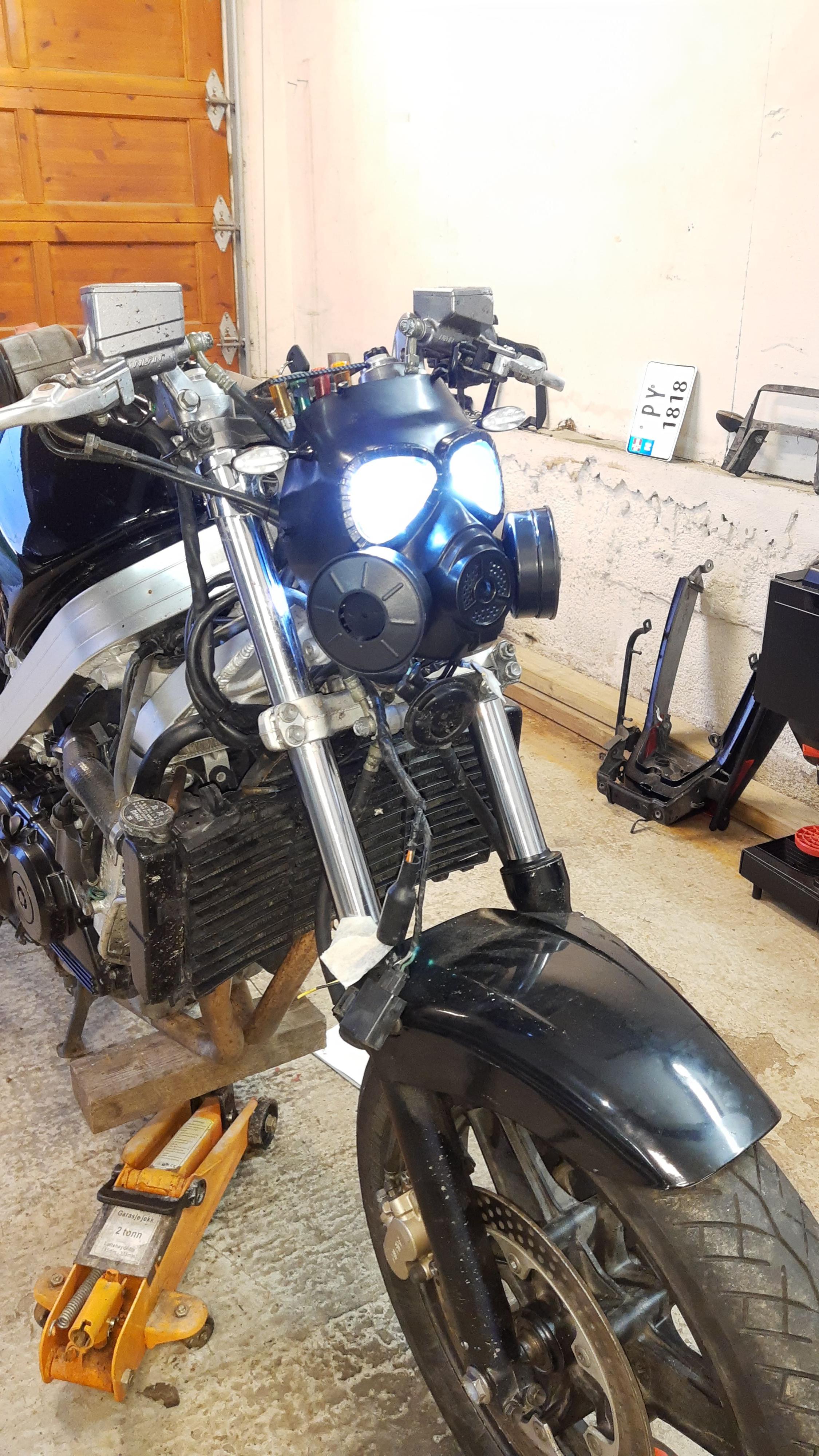

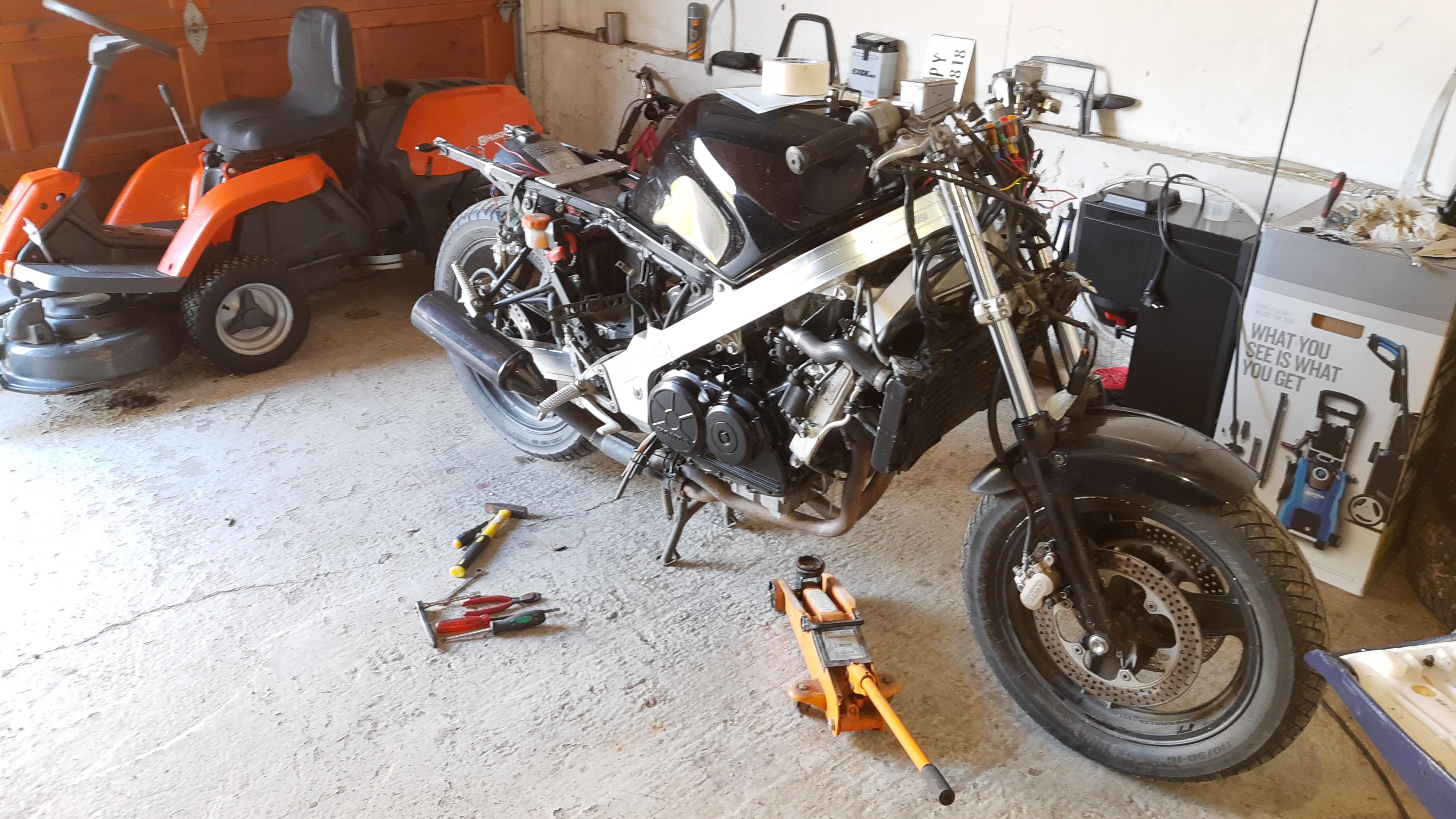

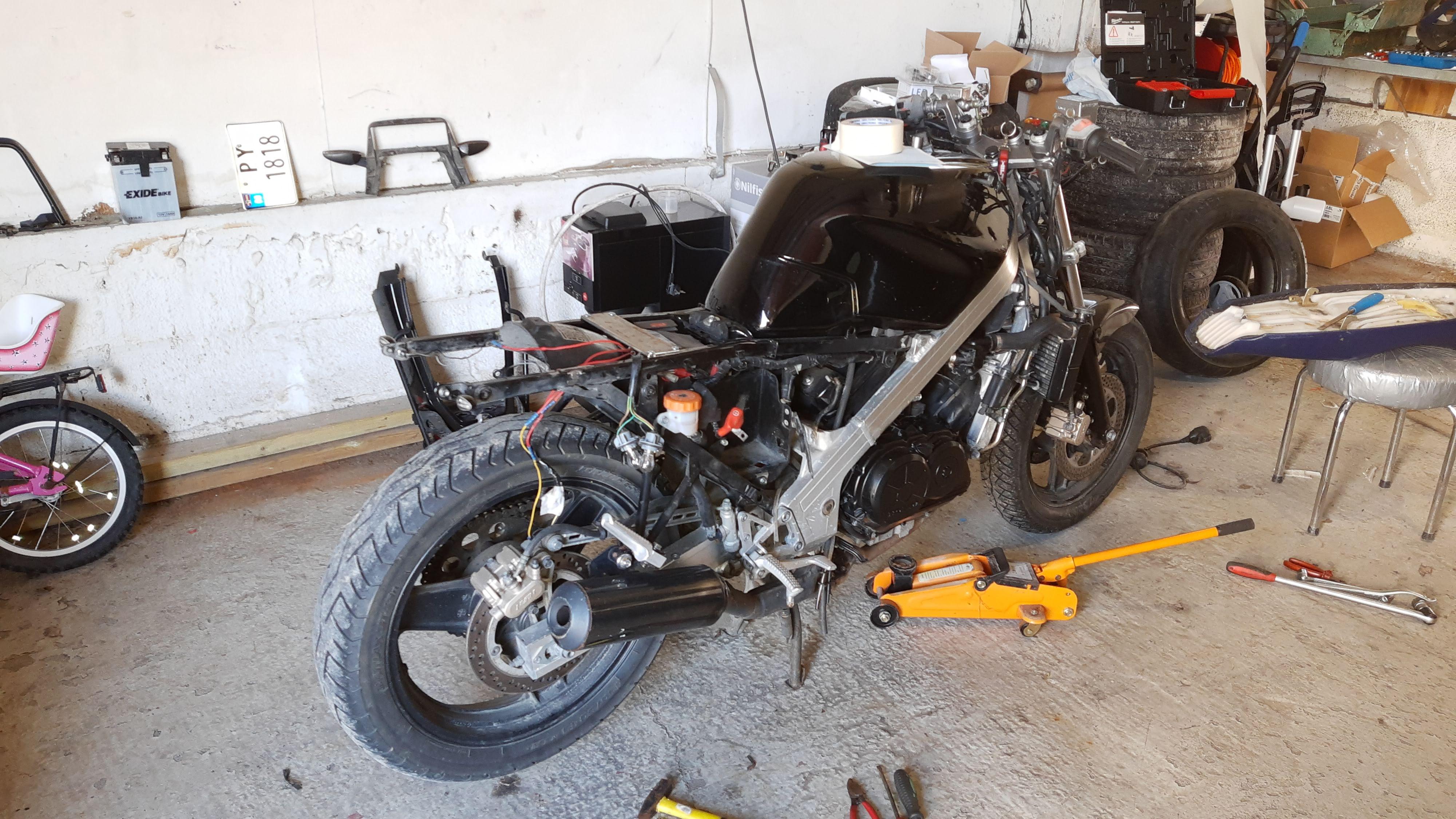

Hello everyone. I'm new to this forum, and I would like to ask for help regarding my little "GazGaz" (yes, I call him that :D). Here's some picture of him. I know that some of you will say I've raped the poor little thing, but the reason is that I bought him already stripped down, and iv bad condition. Some earlier owner had flipped it on it's side, and all the plastic was damaged. The owner after that did some modification to it, but it looked horrible. I want to make it into a sort of "Mad Max" bike, and I've gotten somehow a decent job out of it. Still lots to do. This isn't going to be a money pit. I want to get the cheapest parts available. Right now I'm trying to connect a digital instrument to it, but I can't find any wiring diagram that is clear to read. That's why I've joined this forum to see if anyone has a original workshop manual they can scan or take a high res picture of the diagram, and post it here for me. I would appreciate that a huge amount. 🙂 Anyway, hope you like my little GazGaz.
