Thanks bdouvill! 6 months, time to ride! 😄 The front fairings of Thurn are also really good. I had damage to some degree on each front part. Getting all pieces second hand online was a hassle and just as/more expensive. For me it was a no-brainer, knowing the rear cowl I got was such good quality. The only "downside" being that you have to give it a paintjob... I think you can get a decent result using spraycans, although using a spraygun is better obviously.
- 21 replies
-
- 1
-
-
- rc36i
- rc30 style
- (and 4 more)
-
JayRain changed their profile photo -
A matter of taste, agreed 🙂 The brake cylinder will touch the top fairing if you move it further to the right...
-
There are some things that I want to change. The dashboard needs to be updated to a newer one, 1. because it is not so nice, 2. because the brake lever of the CBR900RR is larger and touches the dashboard when in a very close turn. I'm getting progressive front springs and a new Hyperpro rear shock installed later this year.
-

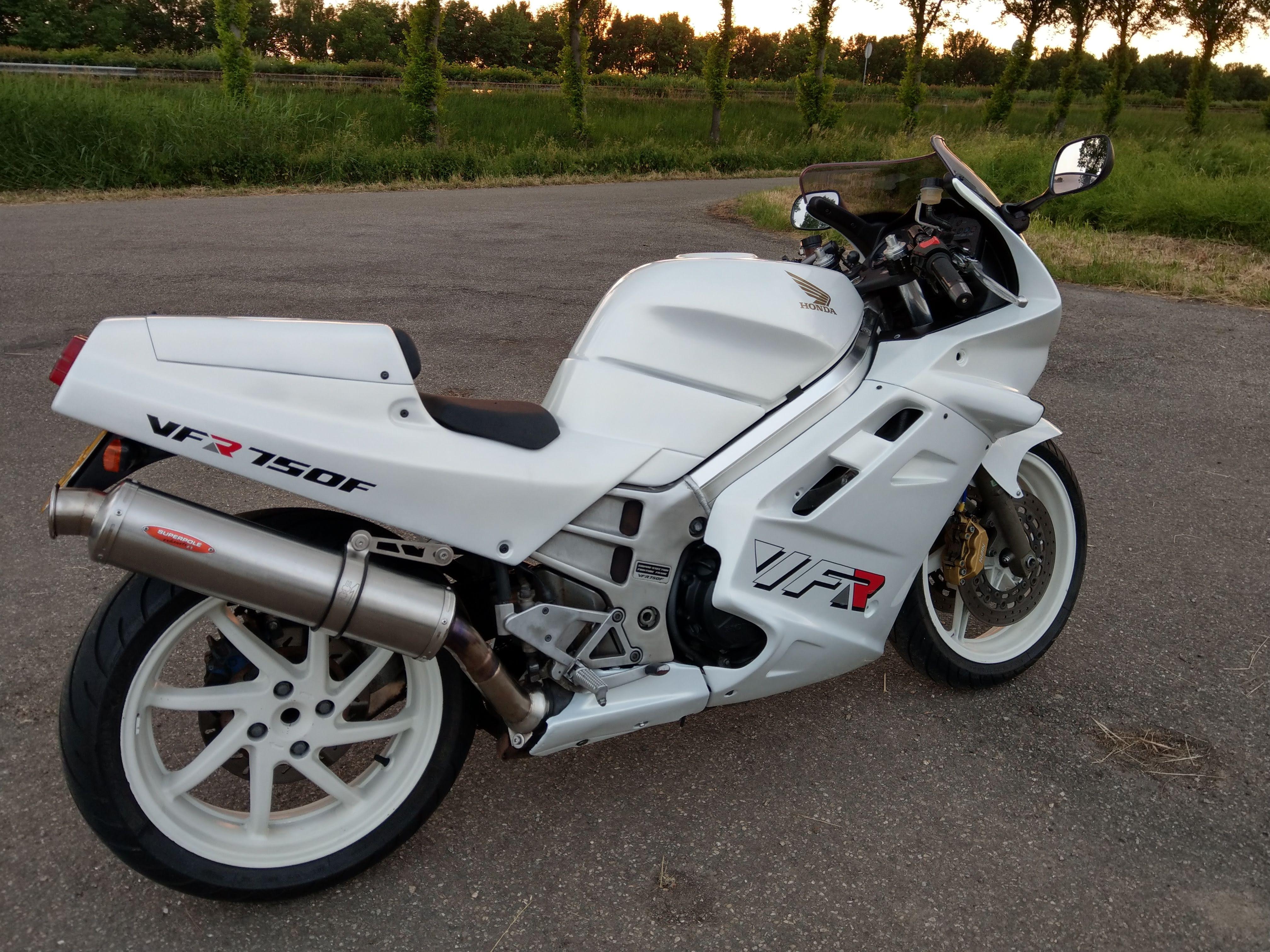

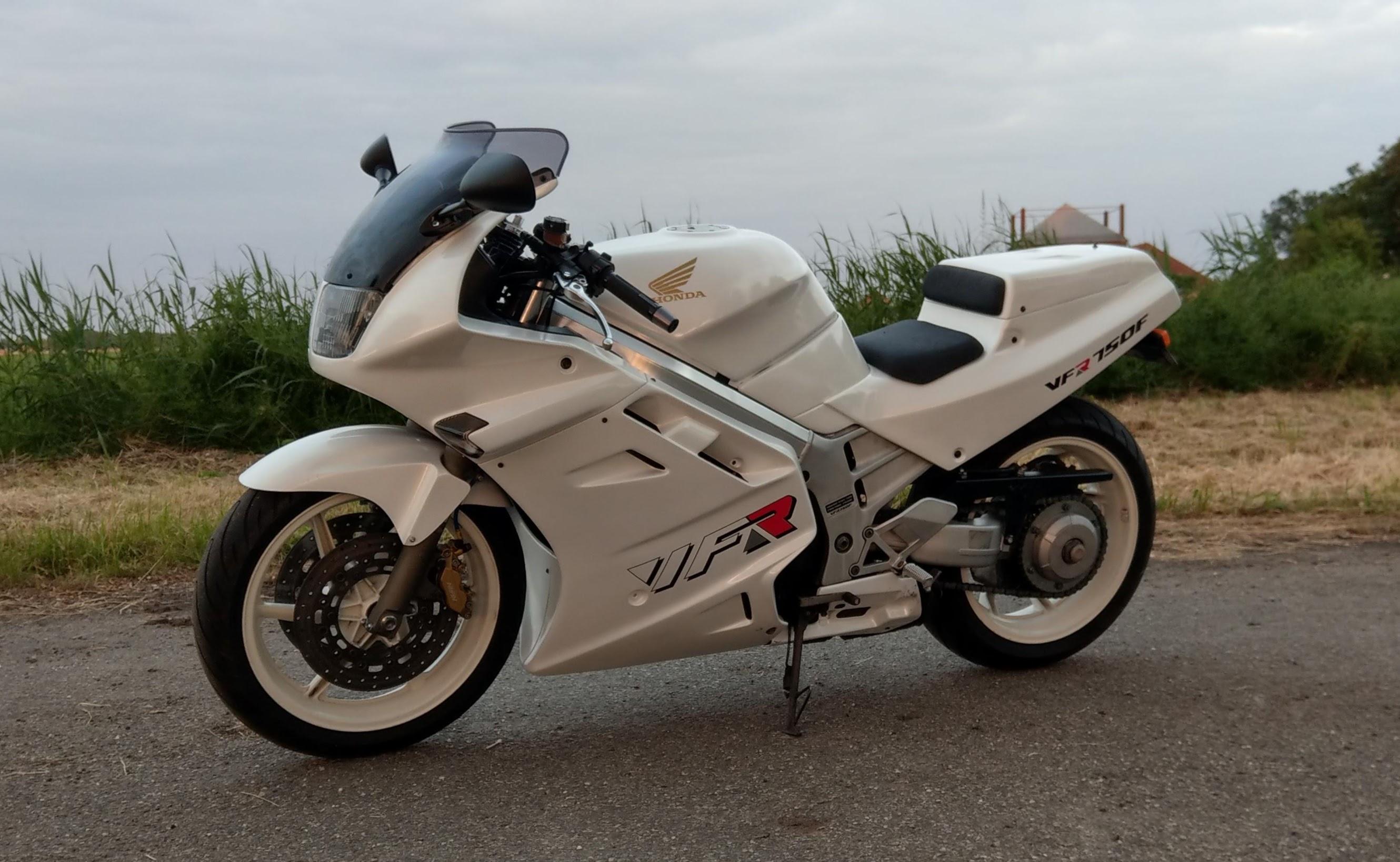

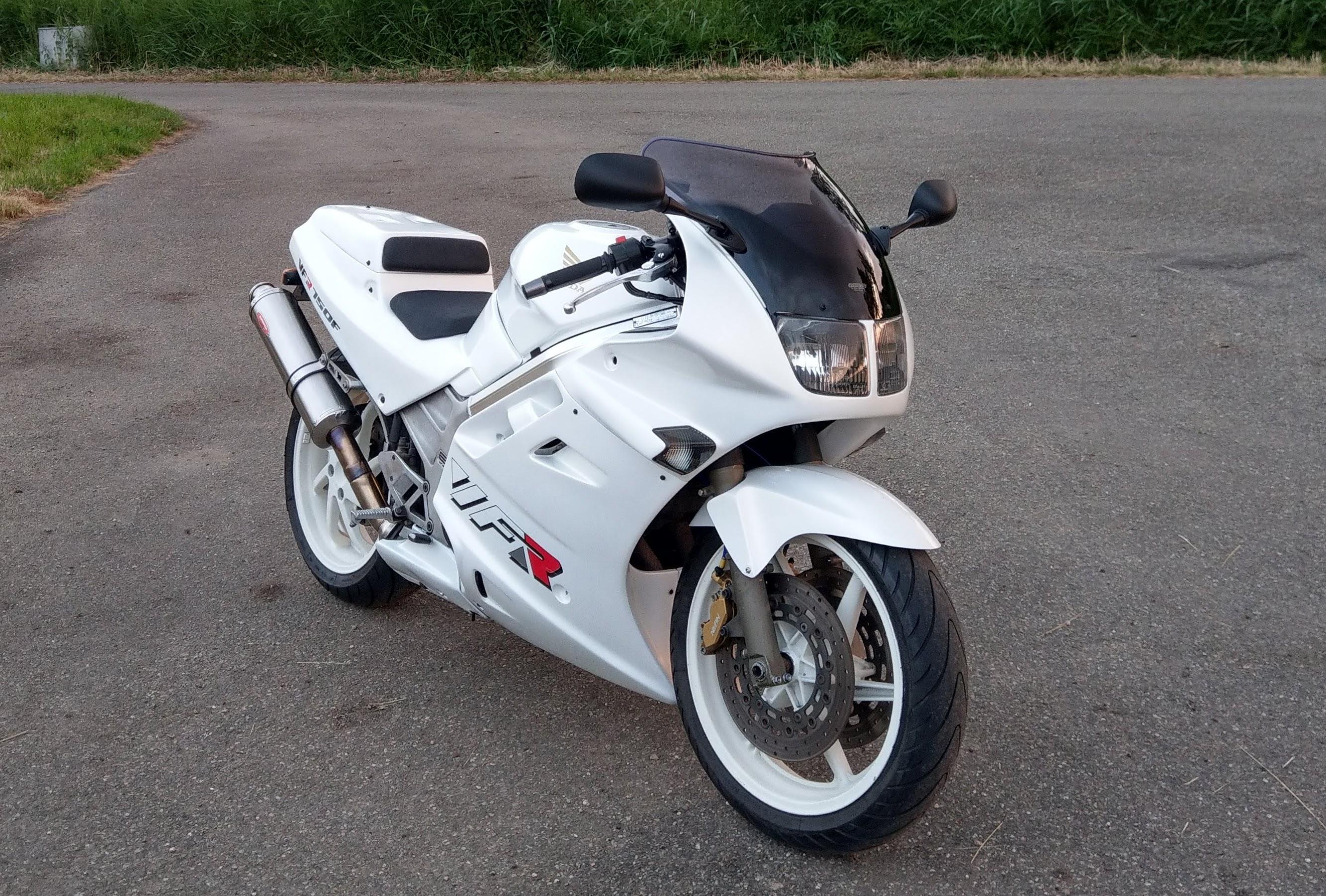

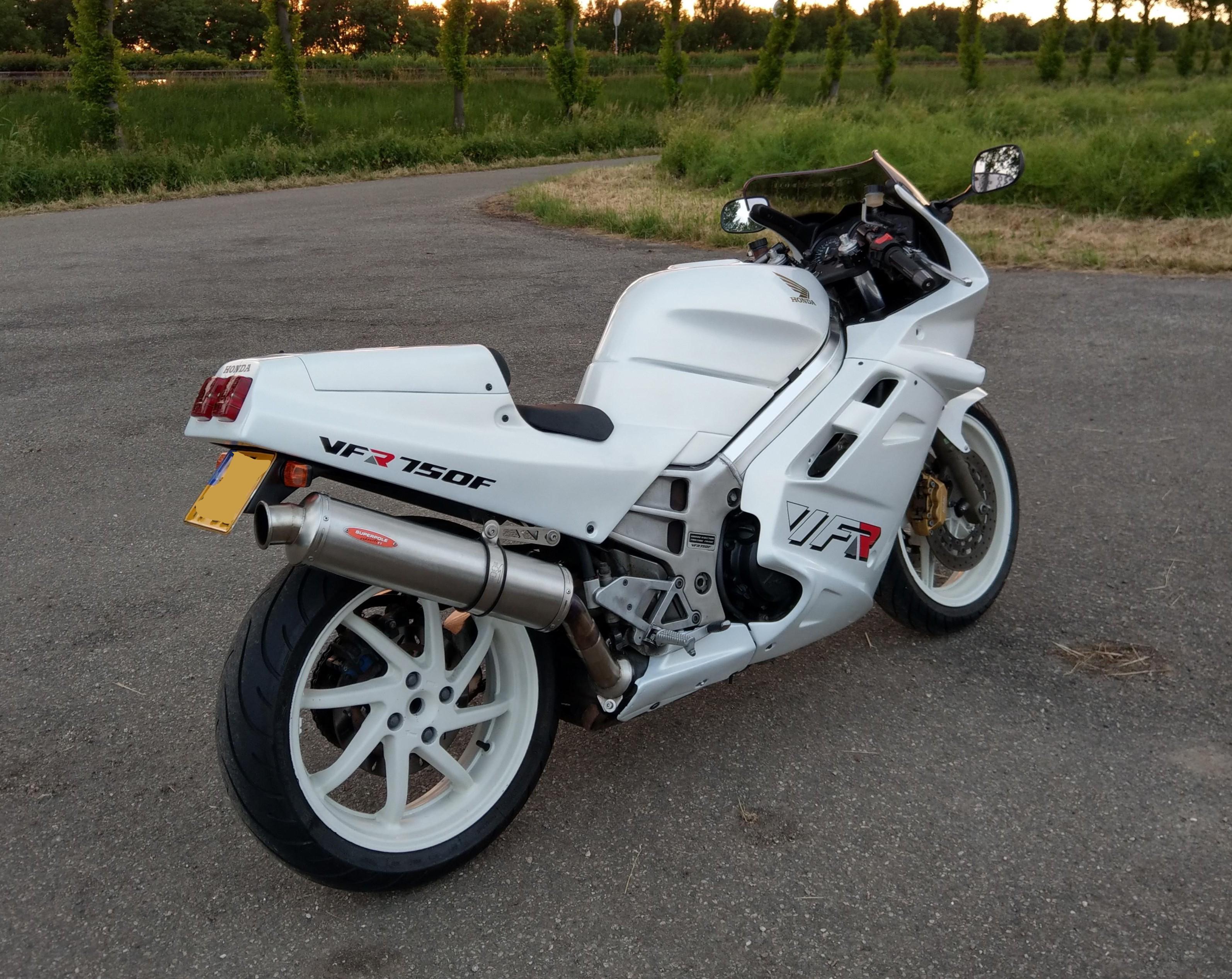

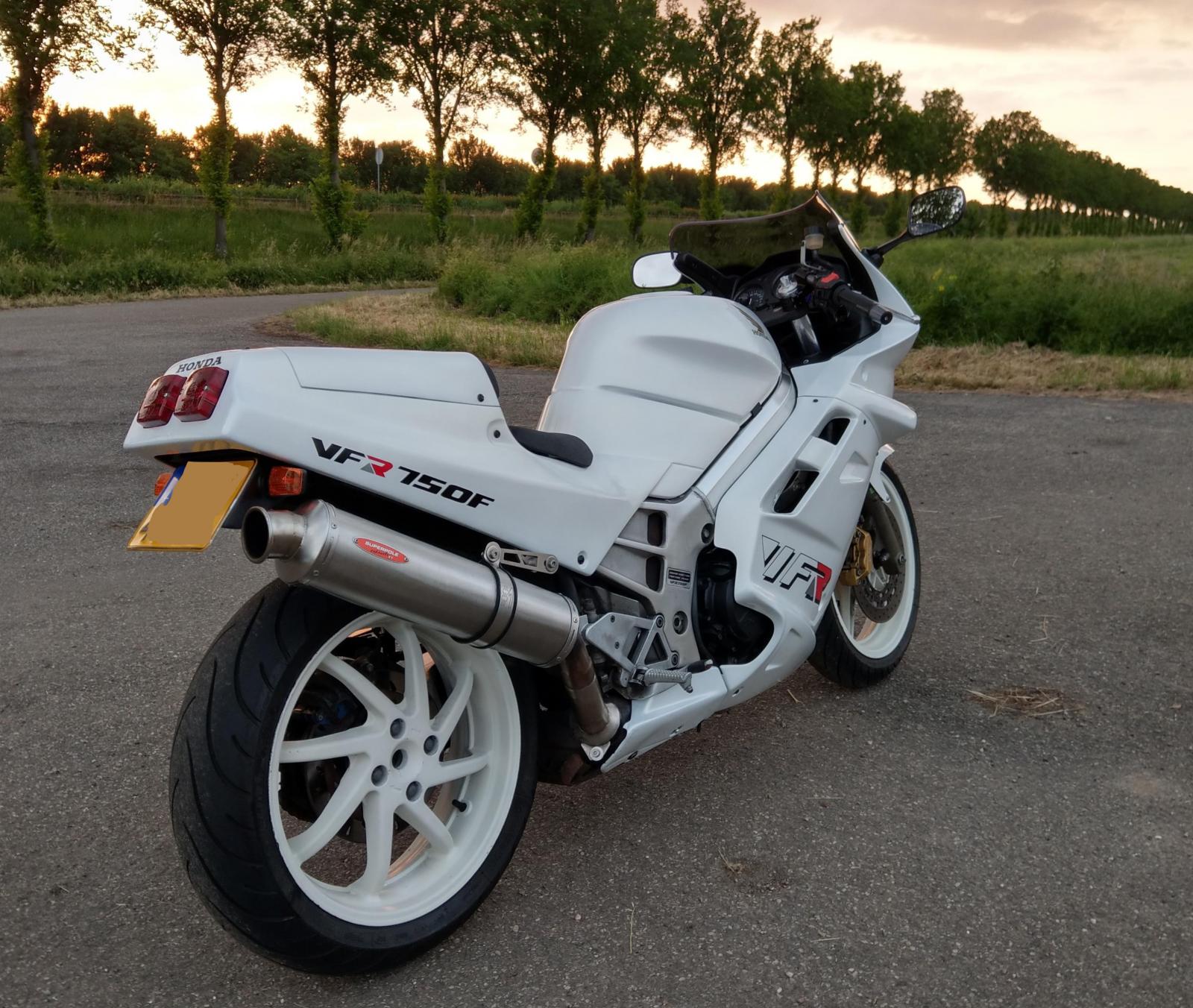

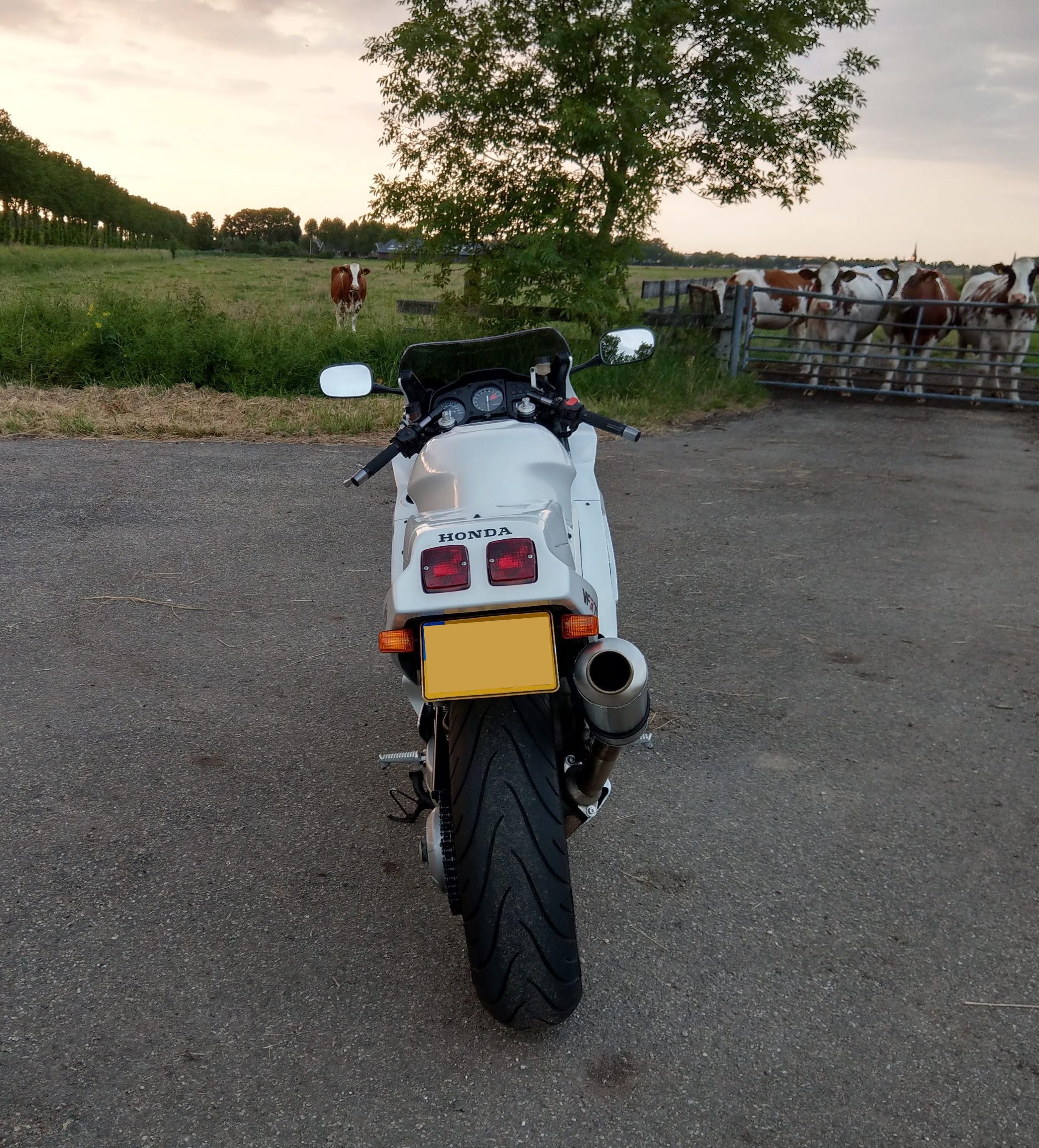

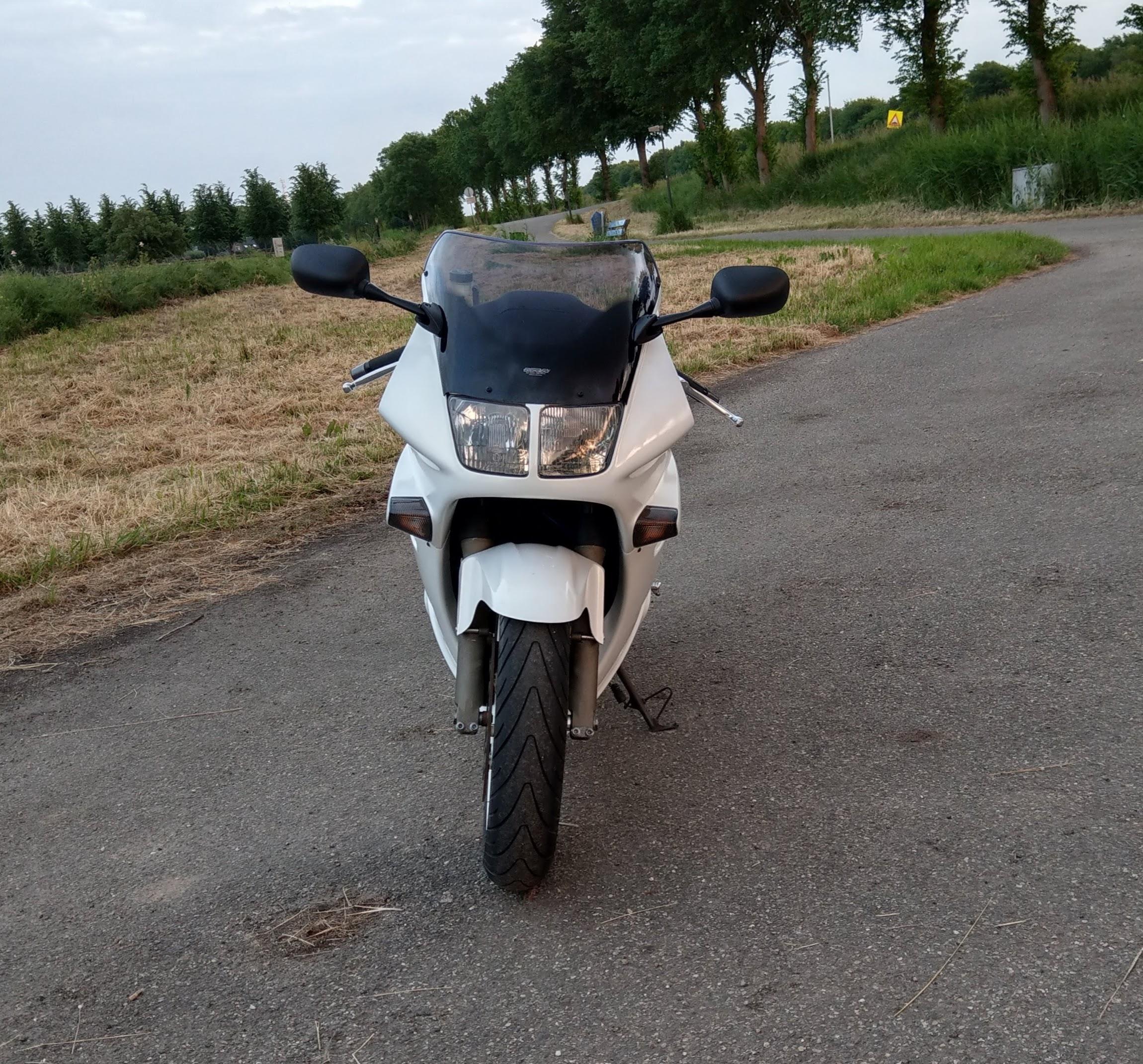

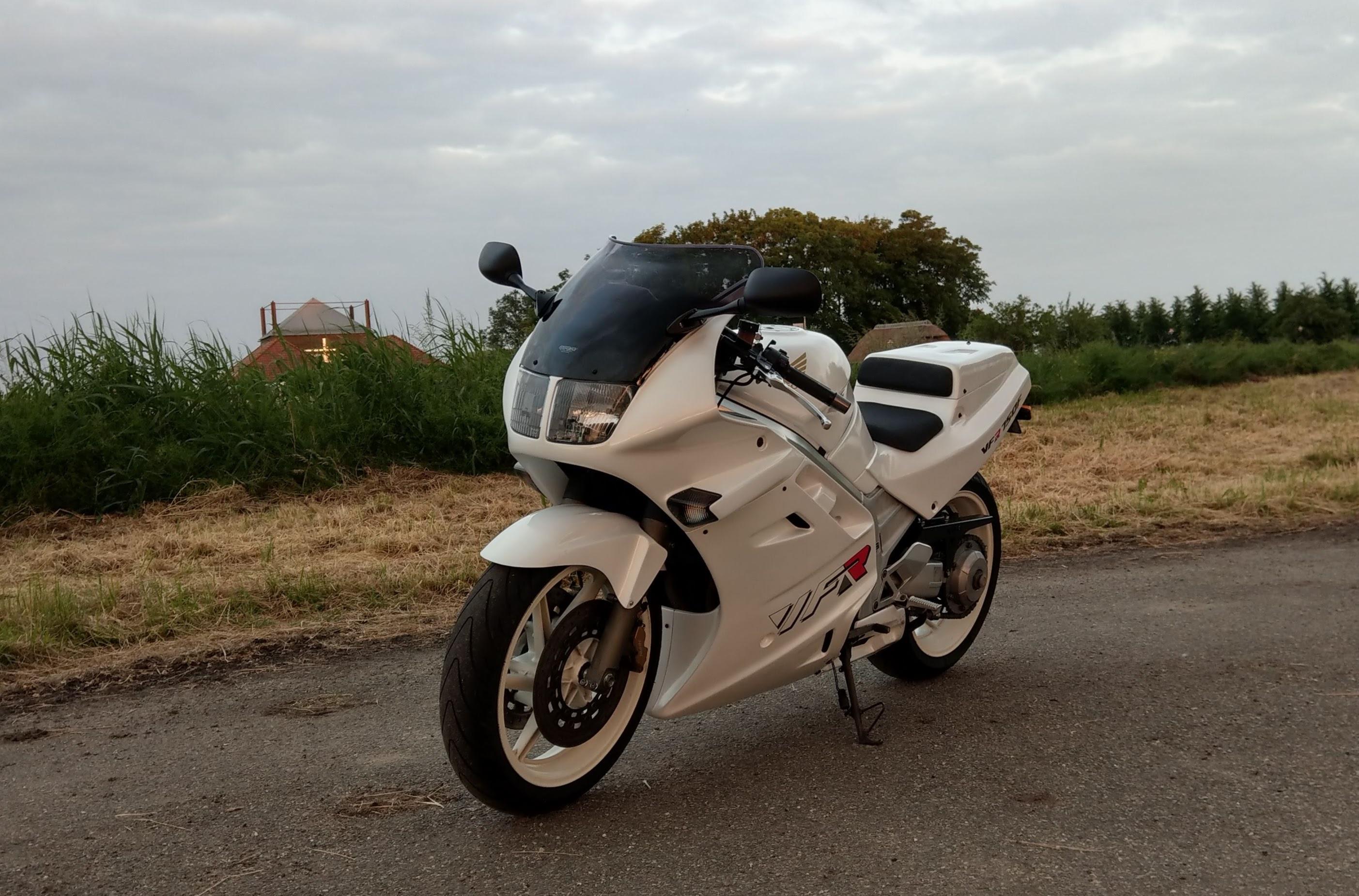

Finally, putting it all together. I love the end result...
- 21 replies
-
- 1
-
-
- rc36i
- rc30 style
- (and 4 more)
-

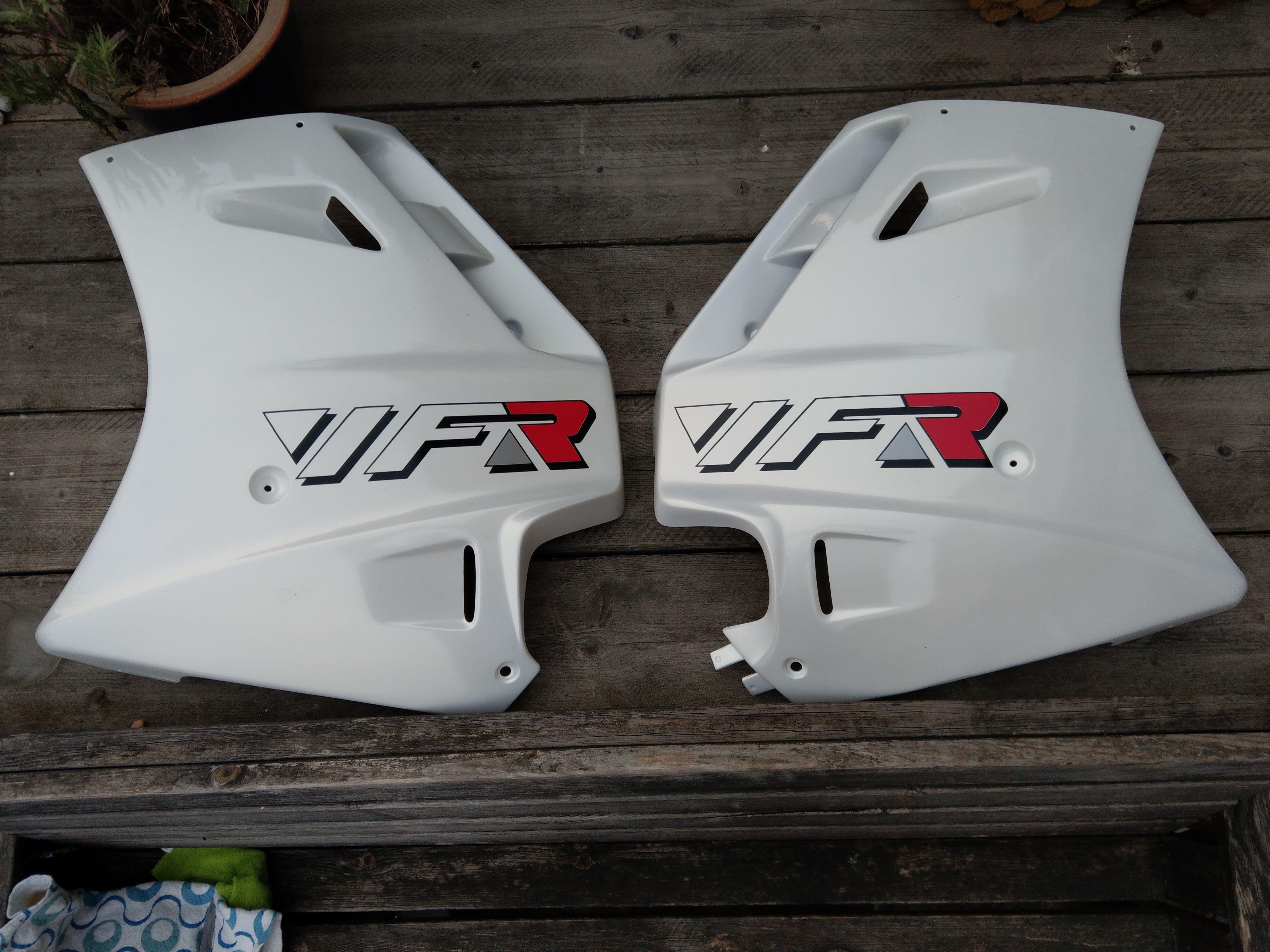

Next stop, decals.
-
One of the best upgrades was a cheap one: I changed the front sprocket from 16, to 15 teeth. So you gain torque, but loose top speed. Up to 200 km/h (125mph), it is just faster. Great upgrade!
-

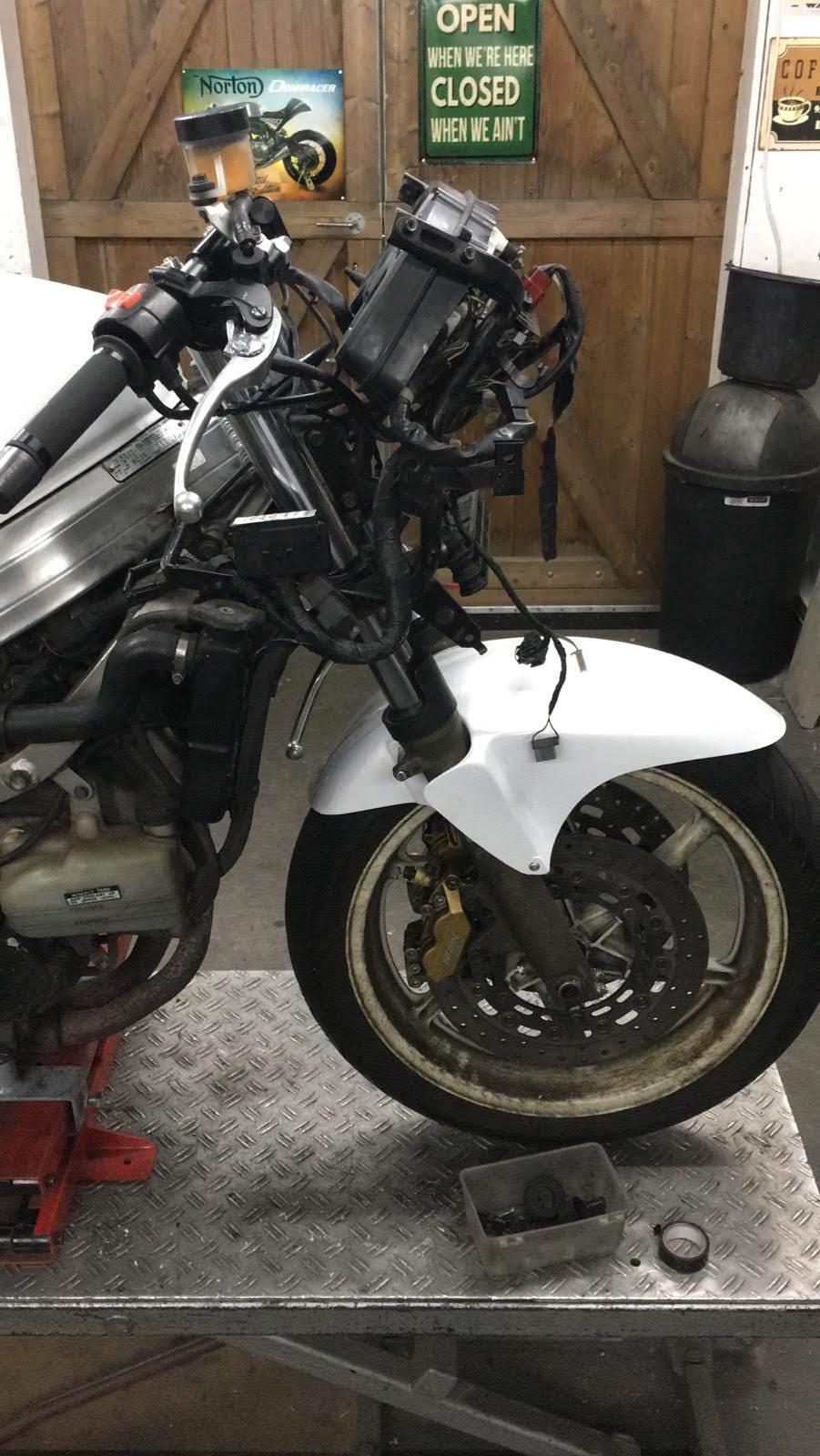

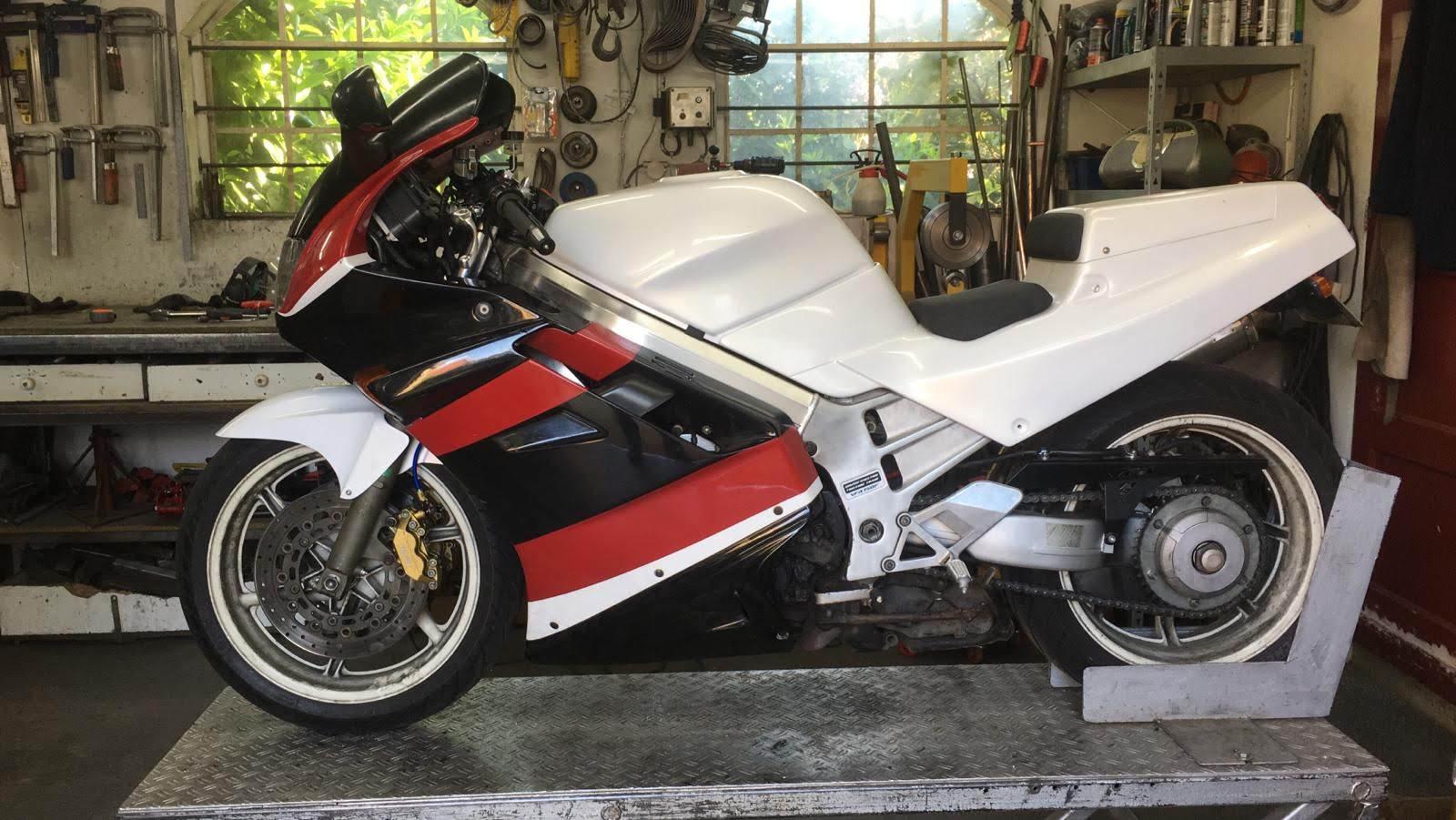

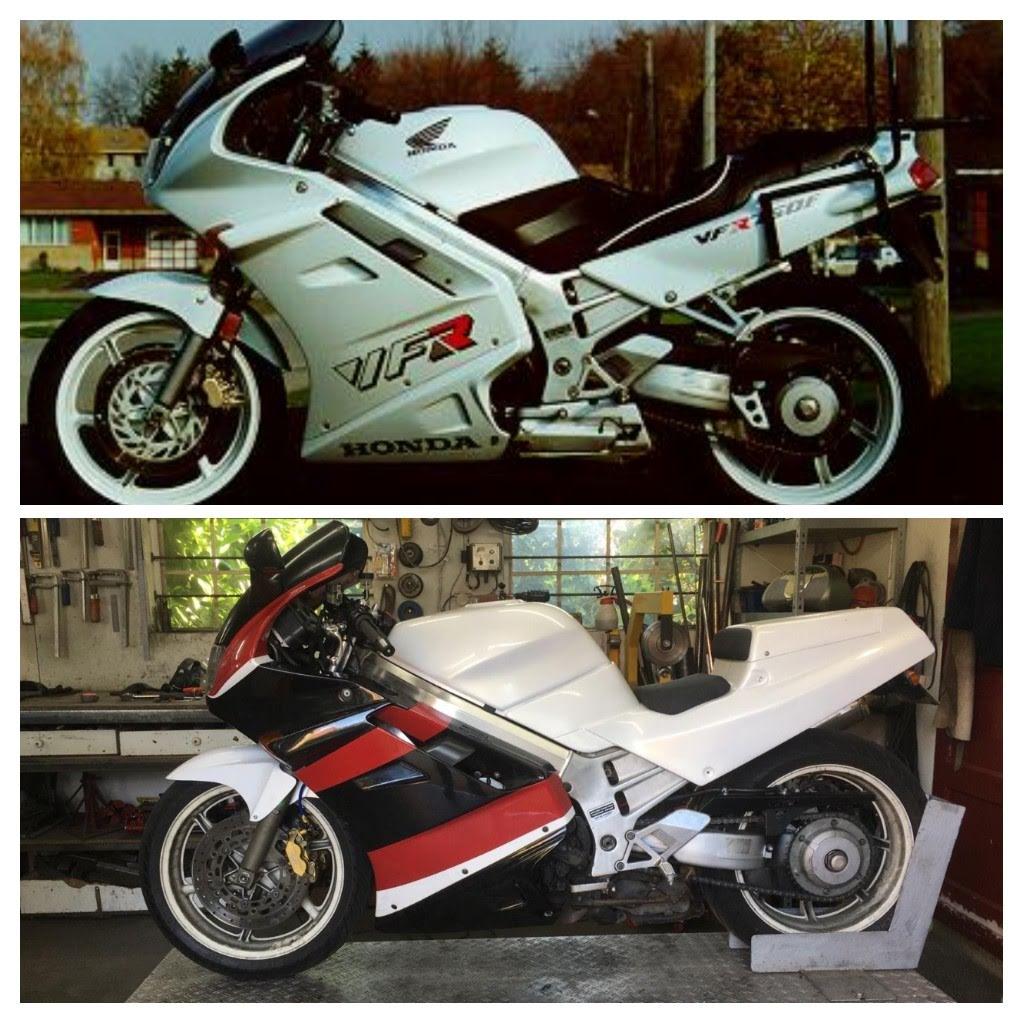

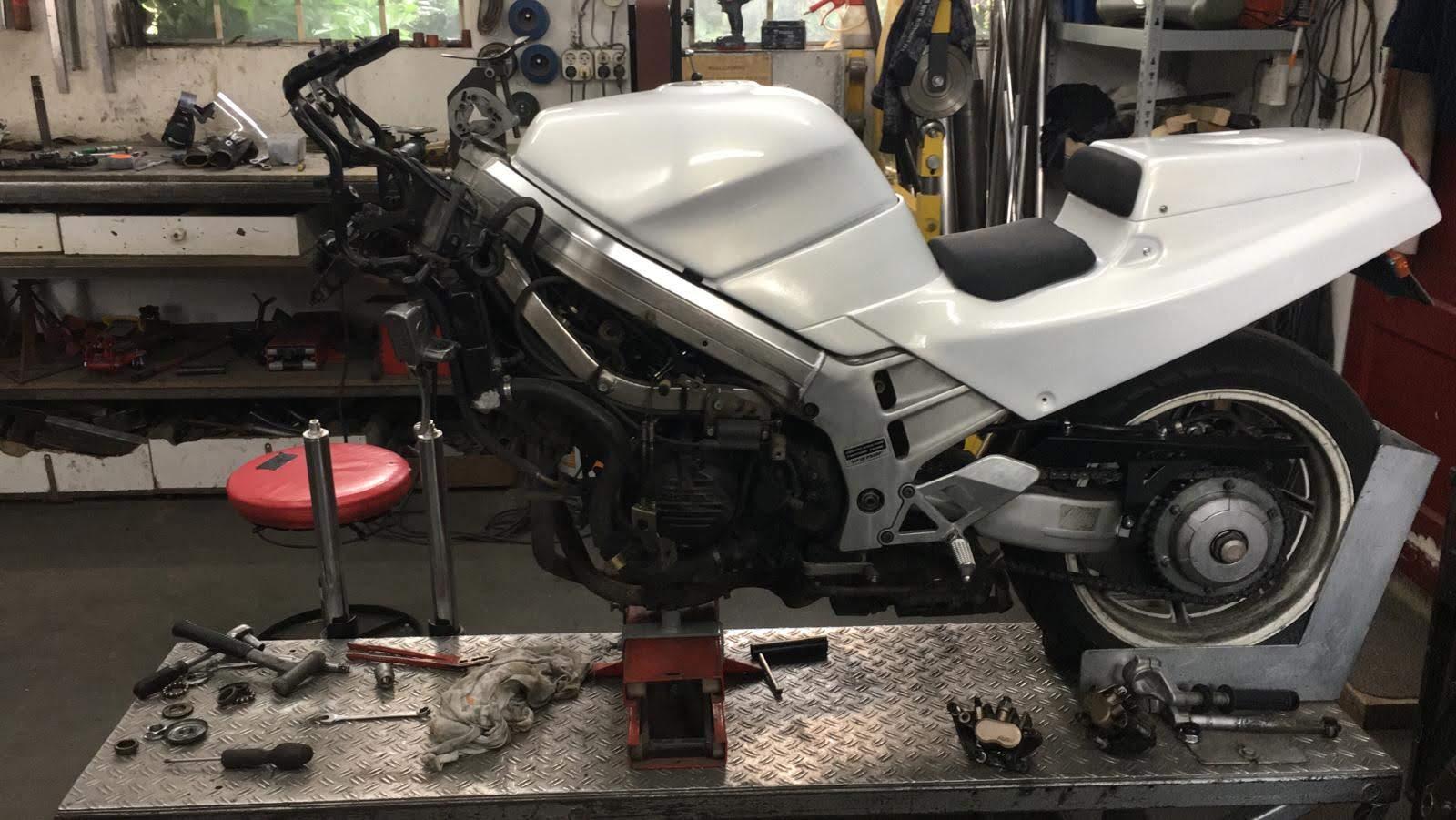

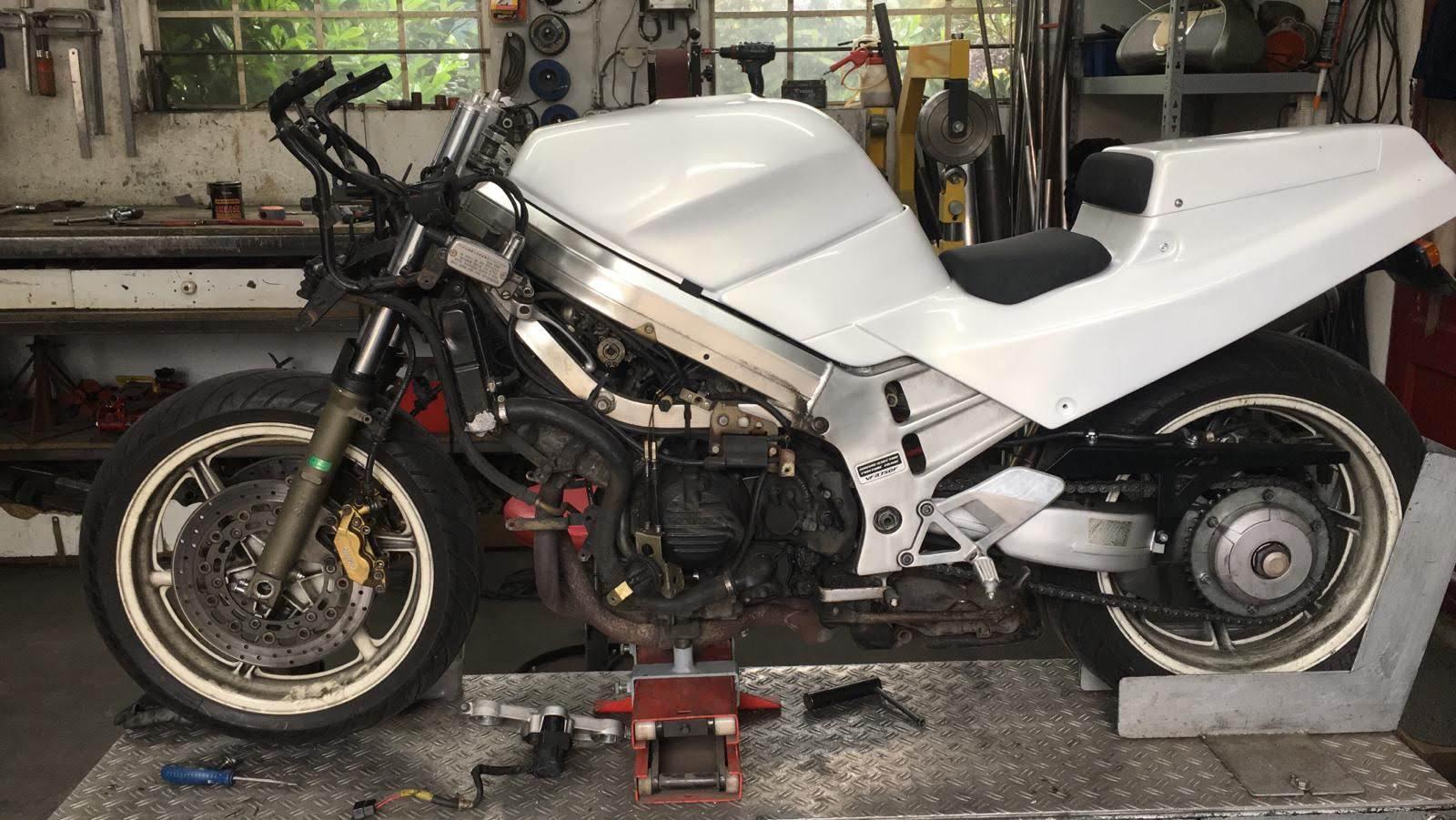

The next upgrade was the biggest one. I wanted to have better front forks and brakes, and I wanted the front to be lowered in order to get a more aggressive look. Since this was something I wanted an expert to perform, I got in contact with Gerard via a motorcycle forum, who creates motorcycles from scratch (really awesome stuff). He agreed to fix it. I had the complete front fork (including triple trees) form a Honda CBR600 F4 sport, calipers and brake cylinder of a Honda CBR928RR, clutch cylinder (not sure if this is the right English term) of a Honda VTR1000 SP1, aftermarket clip-ons (43mm), original controls for lights etc. The original wheel and brake discs were used. The last picture shows a random original VFR750 compared to my lowered VFR. Really love it!
- 21 replies
-
- 1
-
-
- rc36i
- rc30 style
- (and 4 more)
-

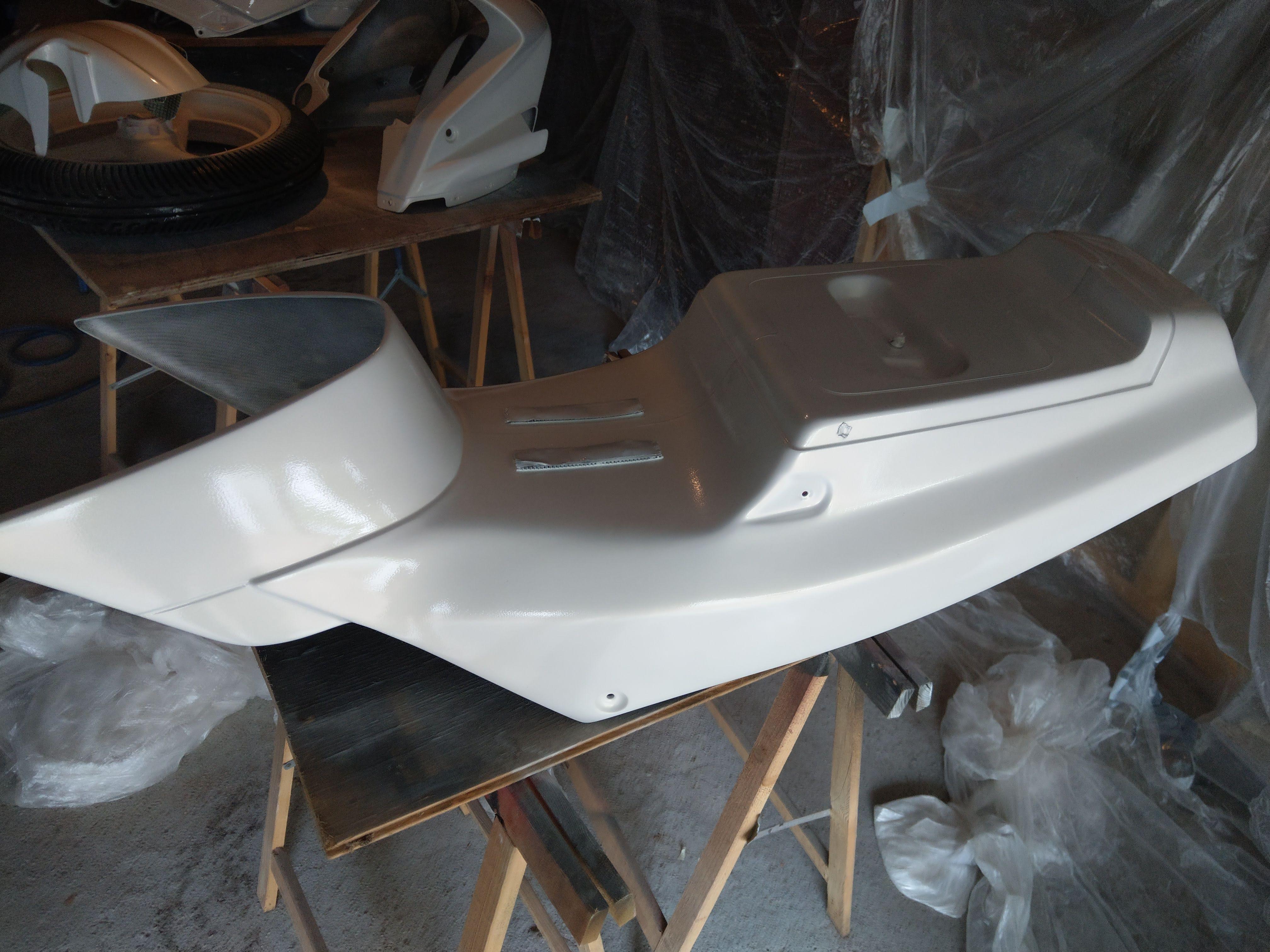

Painting time! I chose a Champagne white color (hard to see in pictures), but the paint job came out nicely, I think.
-

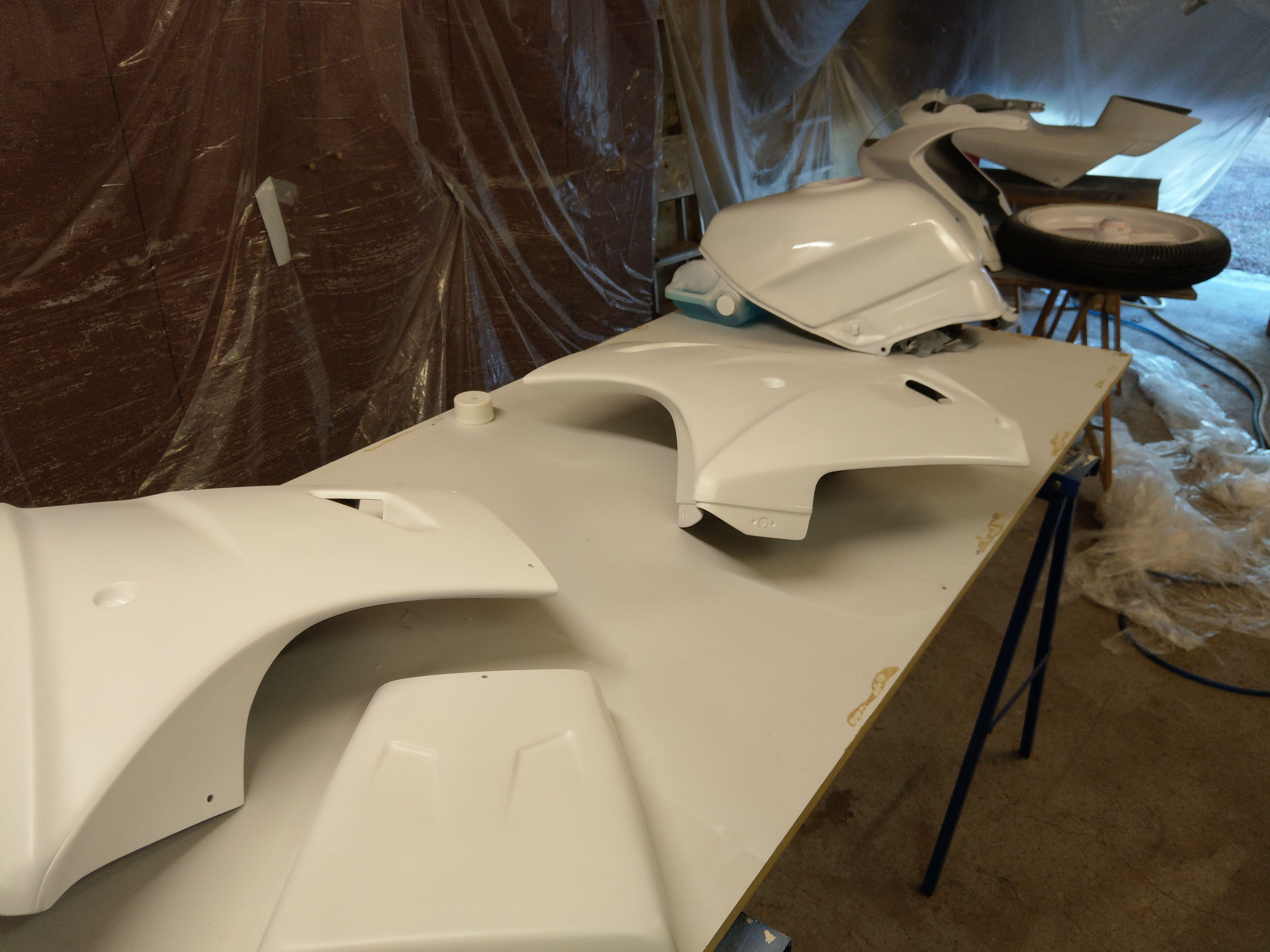

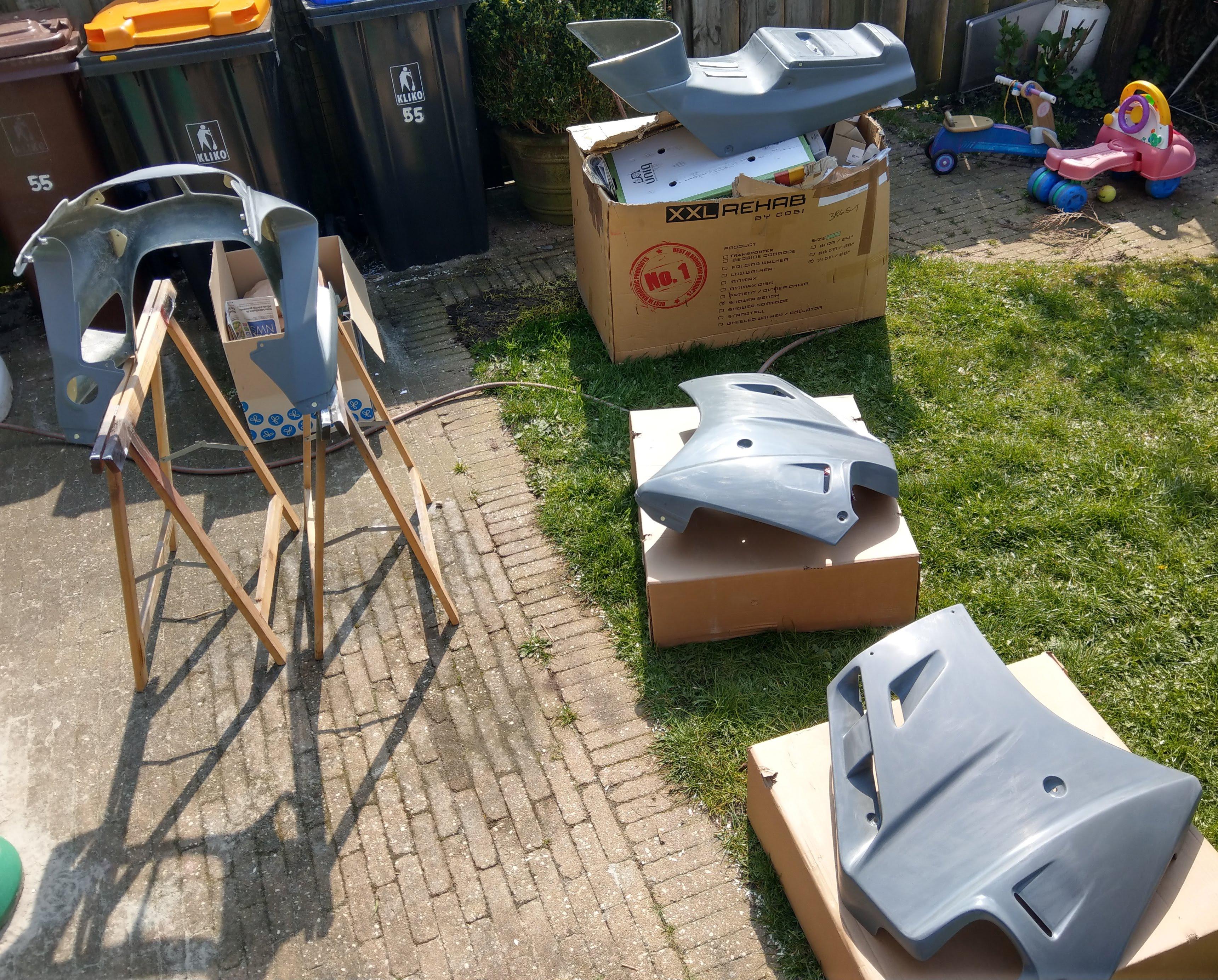

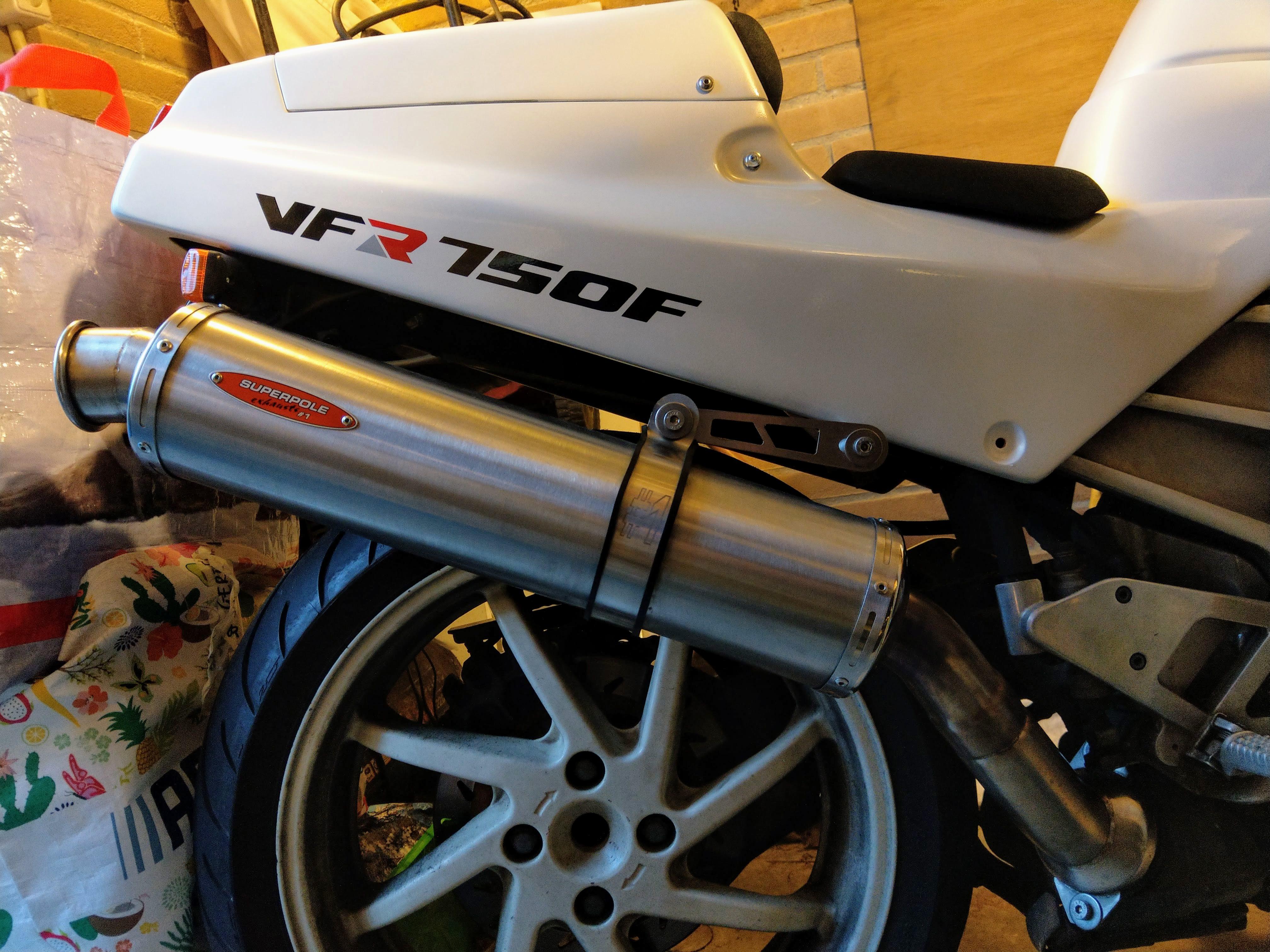

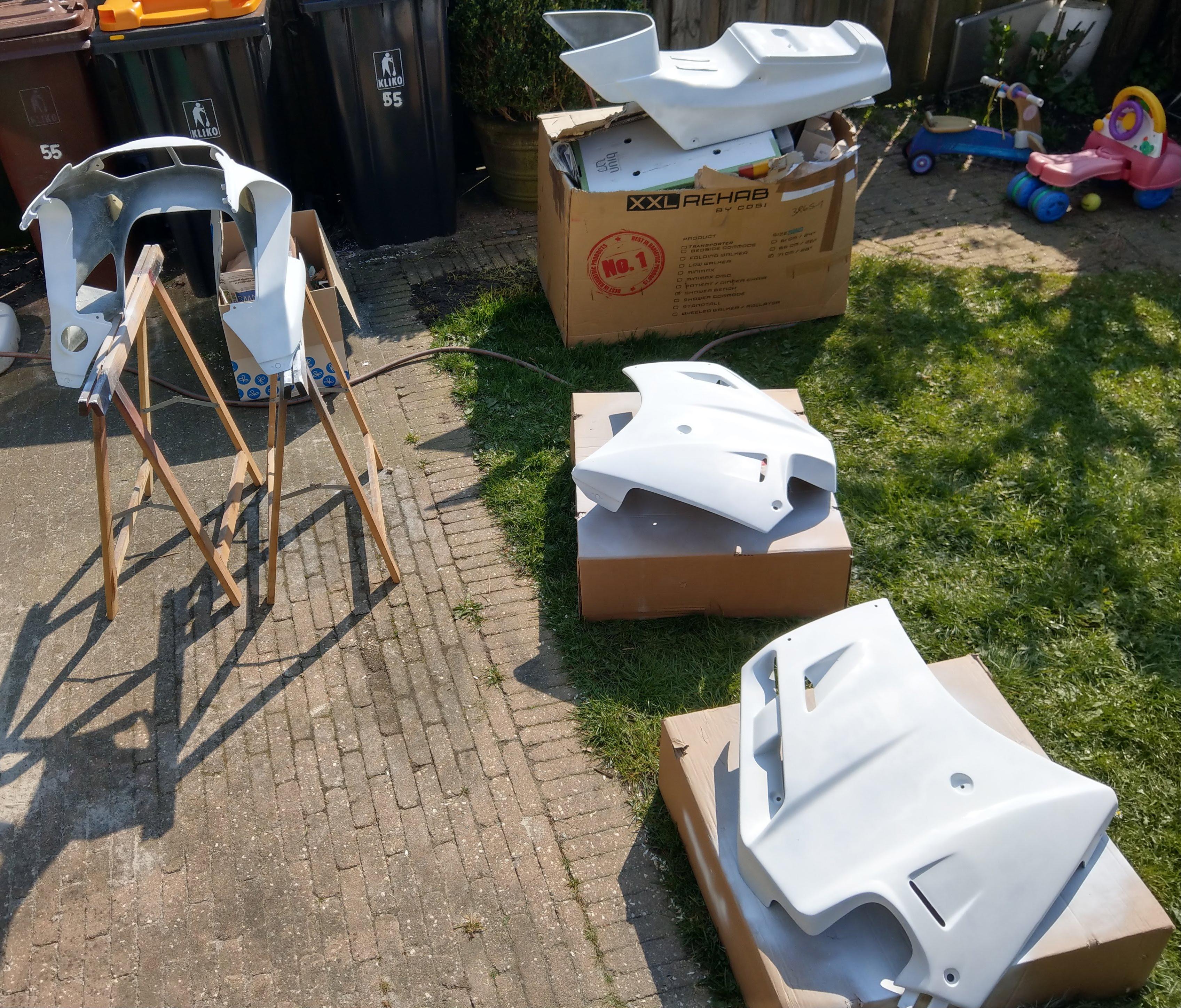

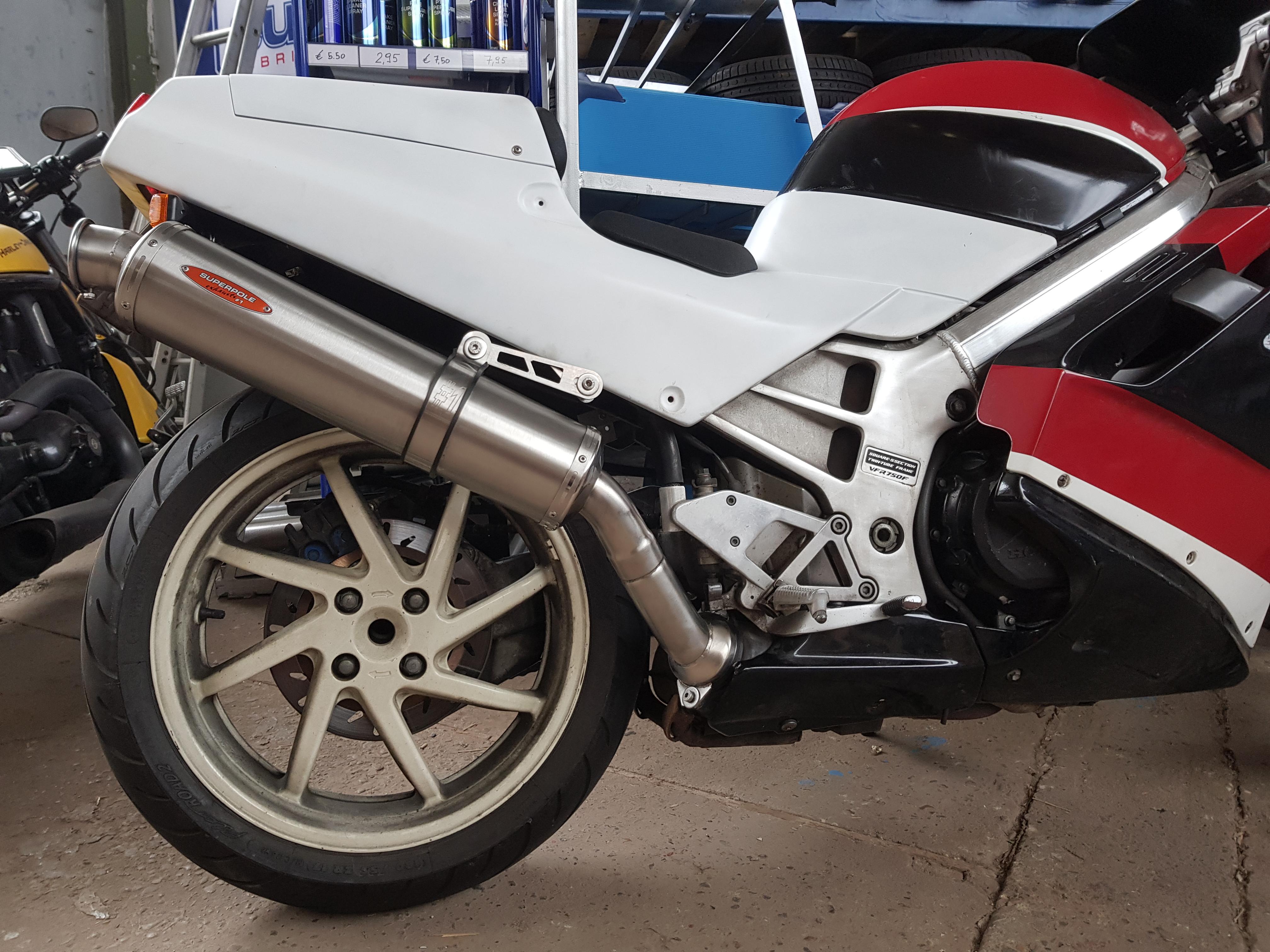

The next update I got was a custom-made muffler from Superpole. The sound is really awesome now: a low rumble, love it! As you can see from the picture, the rear has received a white primer-filler tan. I ordered new original fairings from Thurn for the front as well, since the quality of the rear was so good. Indeed, also the front fairings are of undisputed quality. So all parts received the white primer filler since the base color for spray painting also required a white background color (so the parts come in grey). AFter primer filler, they are ready for spray painting. PS. Check my daughter's rides in the upper right corner of the pictures. Sometimes I'm allowed to ride those as well, awesome!
-
@VFR750LF Hello cousin 🙂 Looking good! The left-side exit is very cool indeed, hard to get though.
-
Thanks! It is aluminum, and I got it from Thurn as well. They have a lot of nice products for the VFR! Thanks for the tip on the rear brake line, will check it out!
-

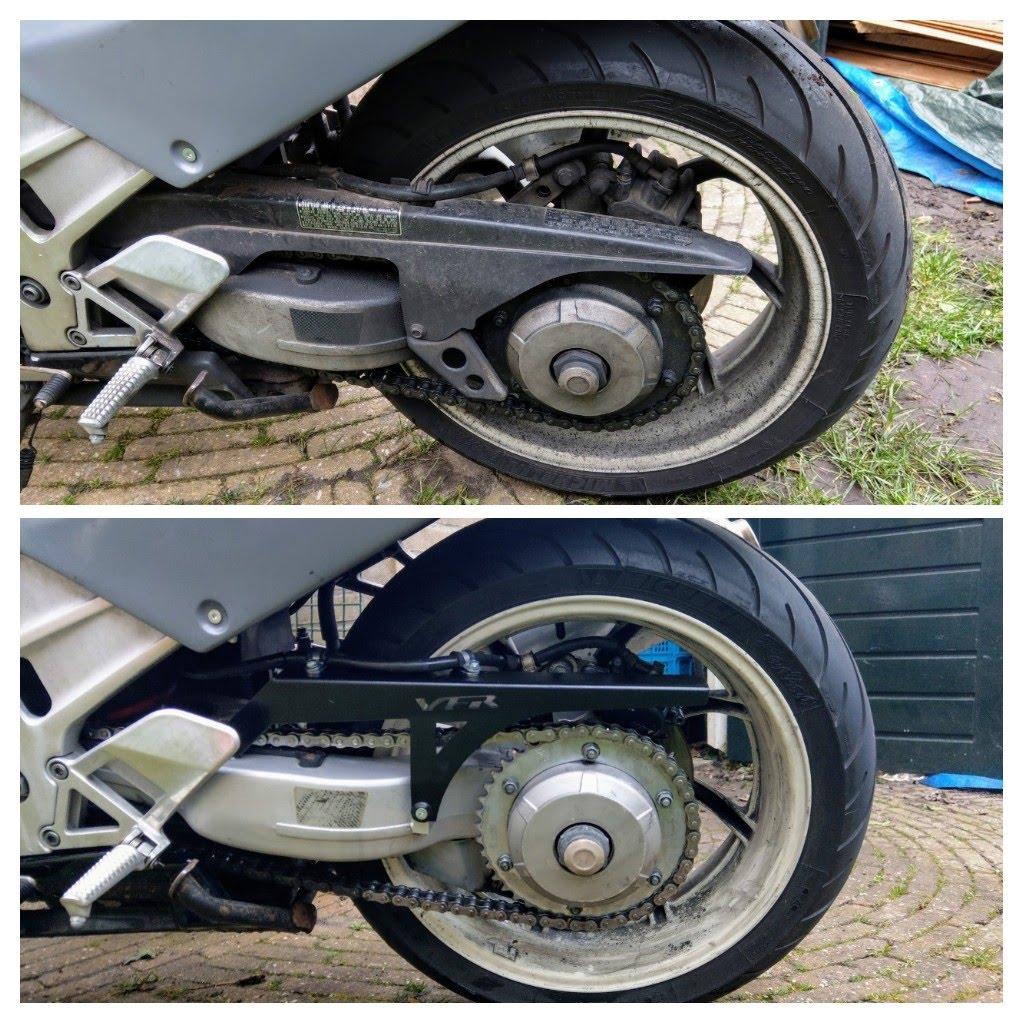

I installed a chain guard with the nice VFR letters carved out.
-

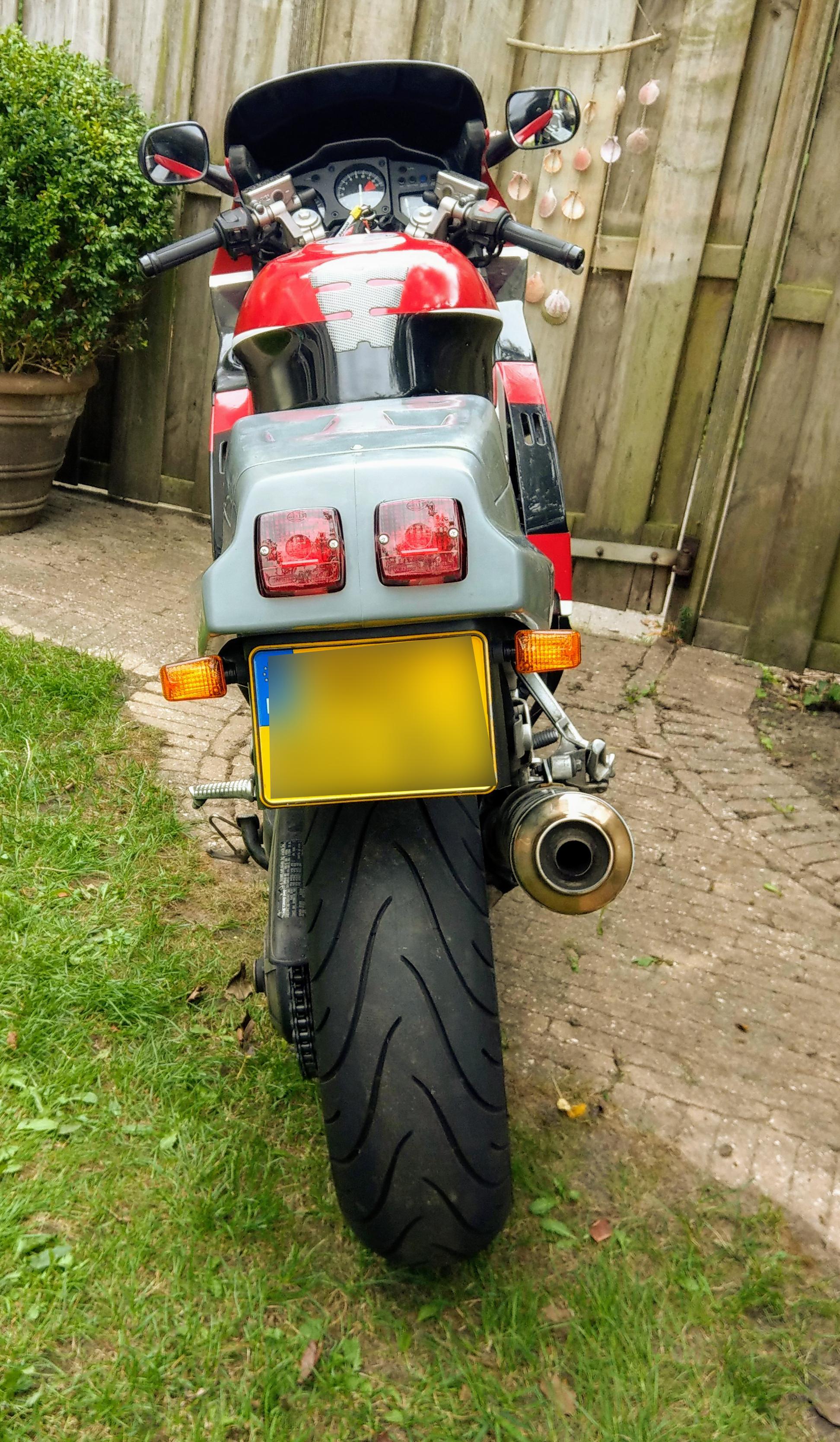

Next, I bought some aftermarket blinkers that nicely suited the design, and the bike started to look a lot better already, in my humble opinion.
-

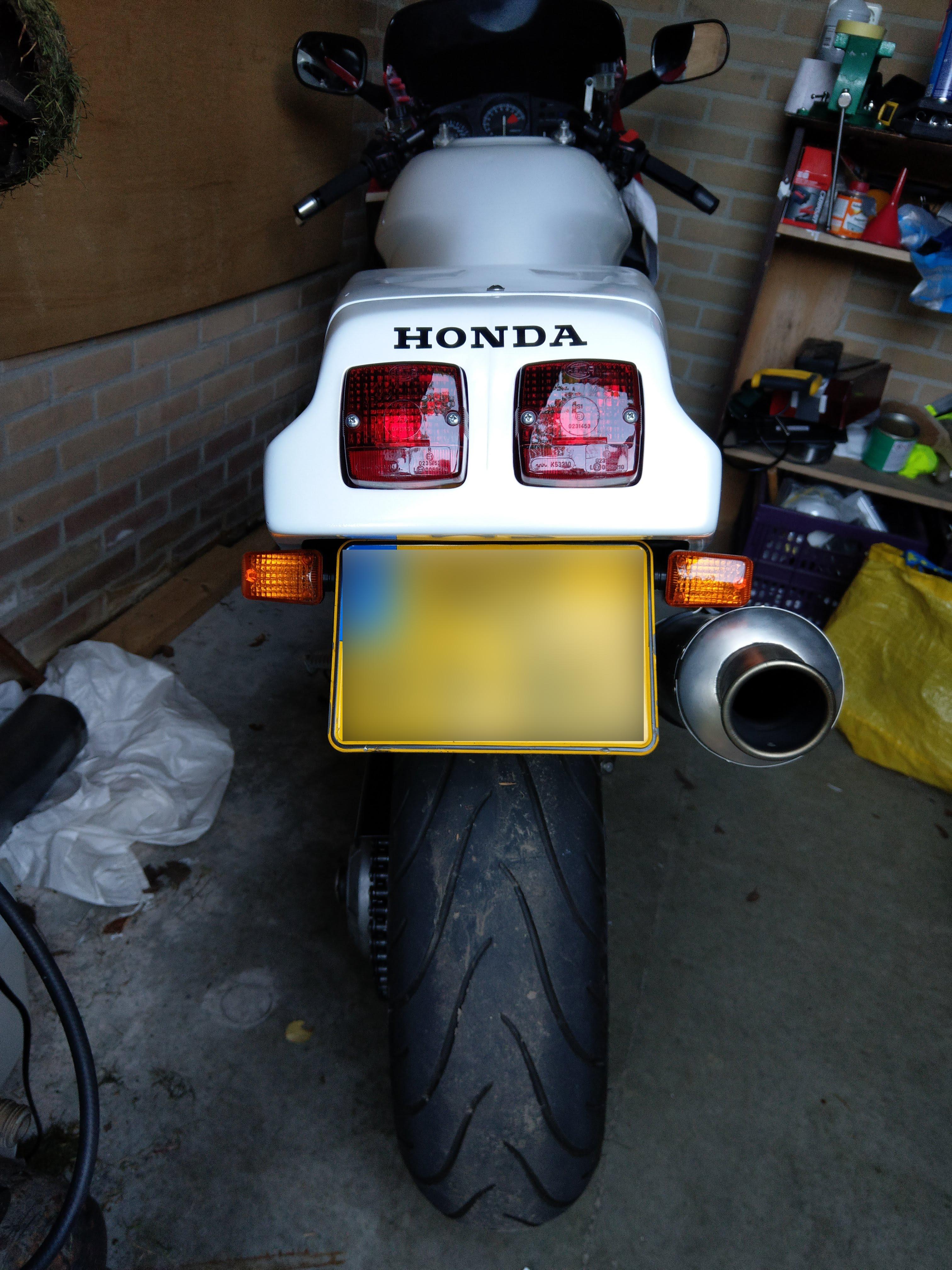

The next "modification" you need to make is the brackets so that you can bolt the fairing to the bike. It is a bit of trial and error, measure, fit, remove, alter, fit, repeat 🙂 I used aluminum square tubes and bars to create them. I also bought the square rear lights from Thurn and installed them. And, initially, I shortened the original rear fender since it is way to long, which doesn't look good at all. Although the shortening actually looked good, I ended up buying the short rear fender from, again, Thurn.
-

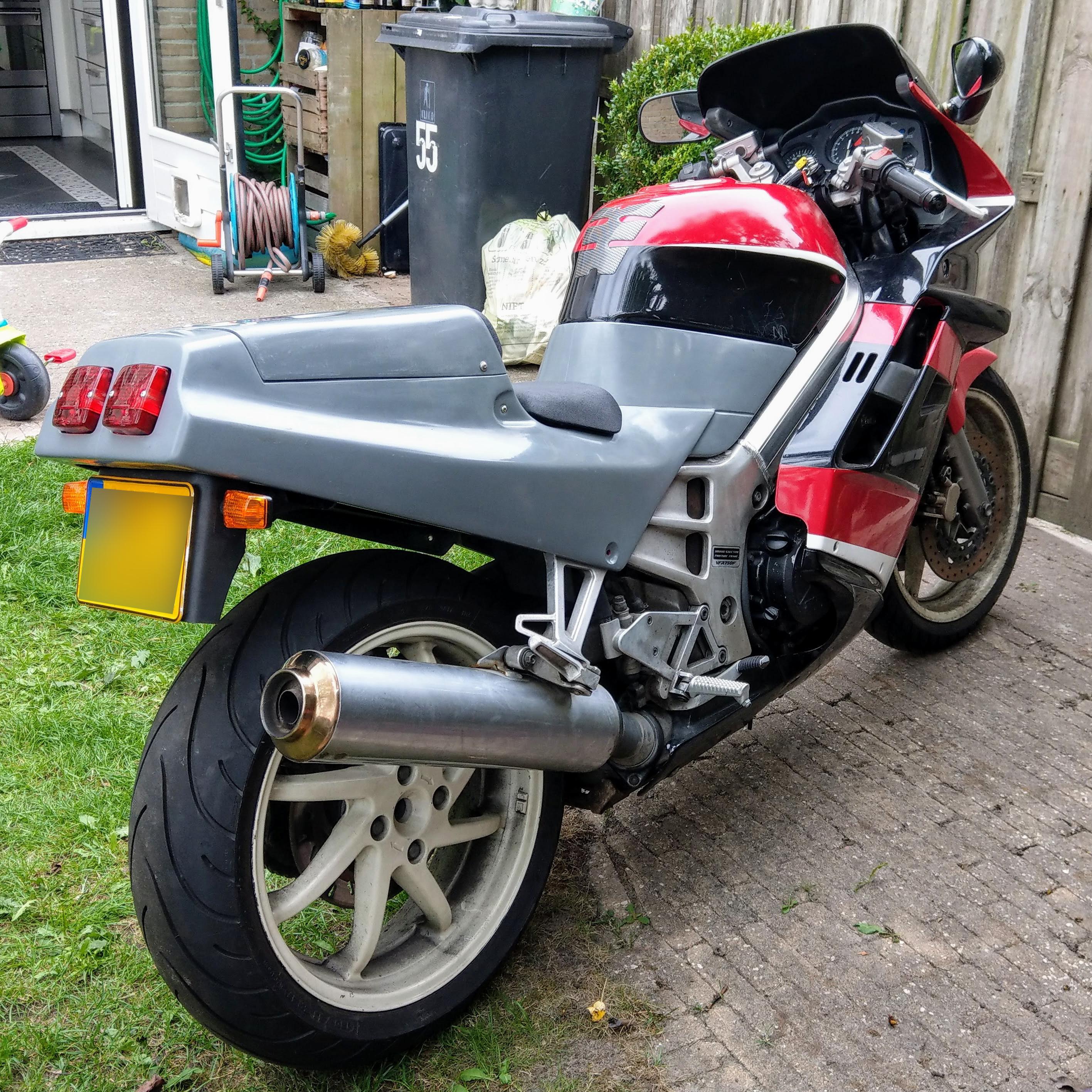

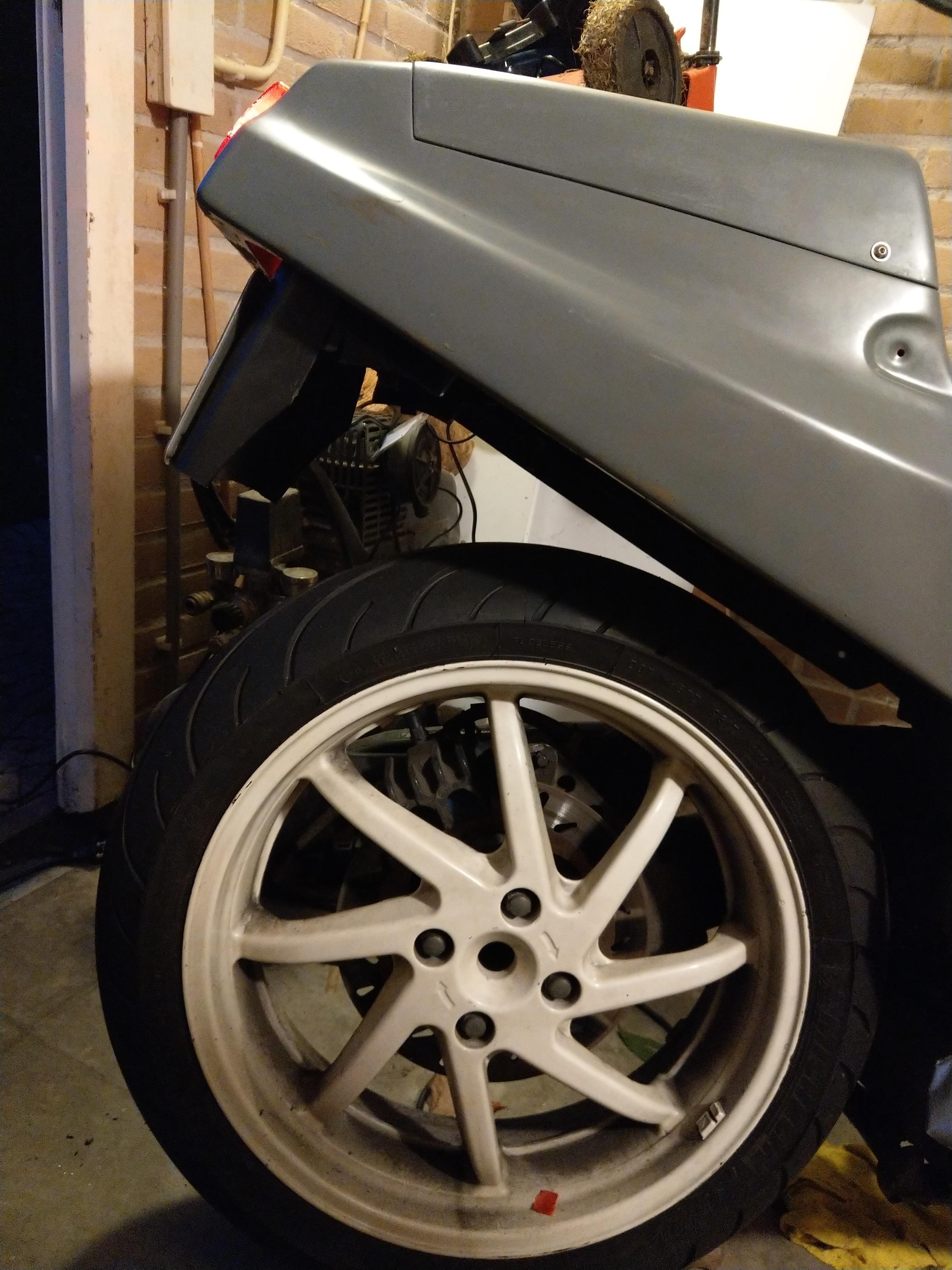

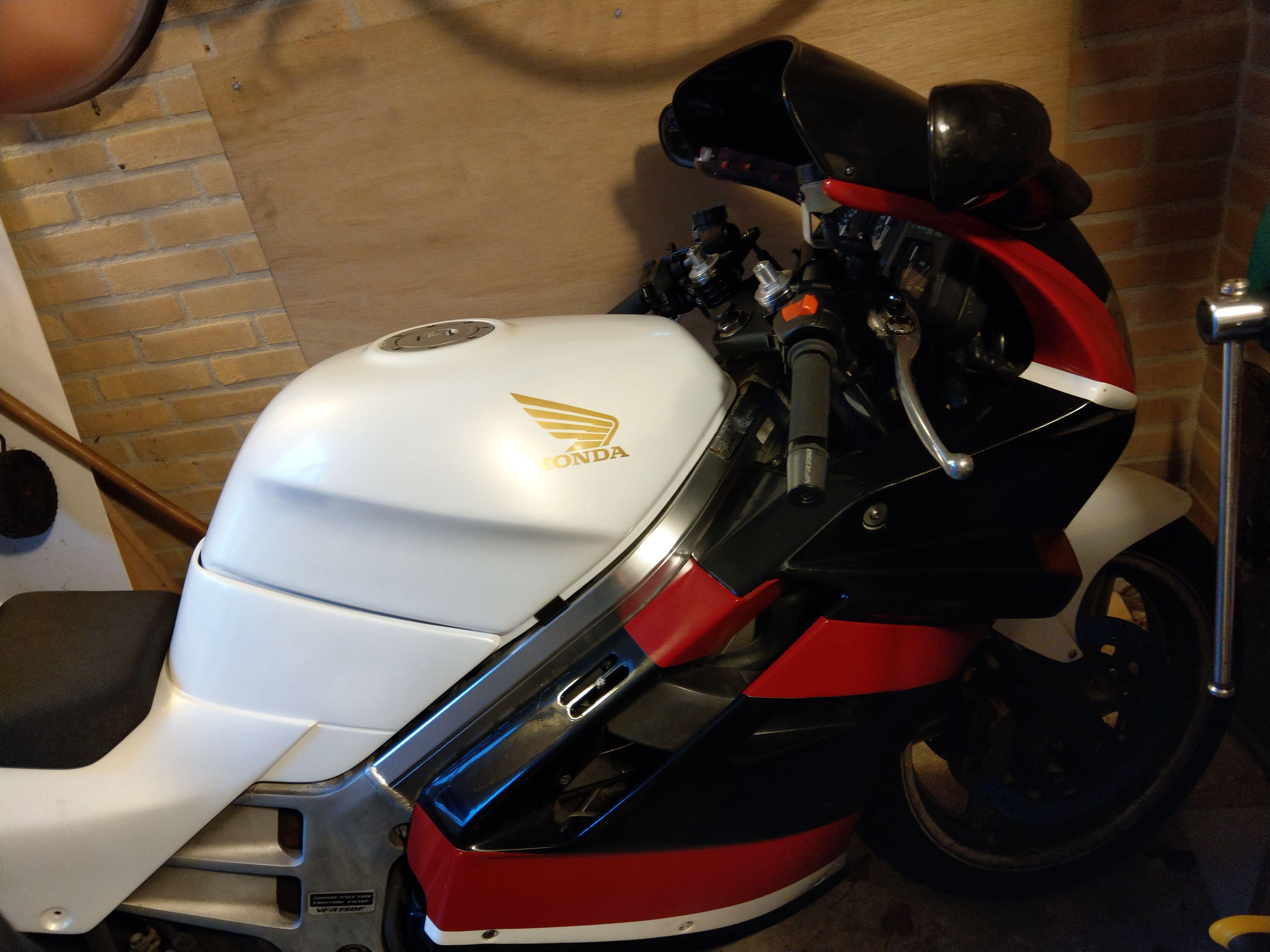

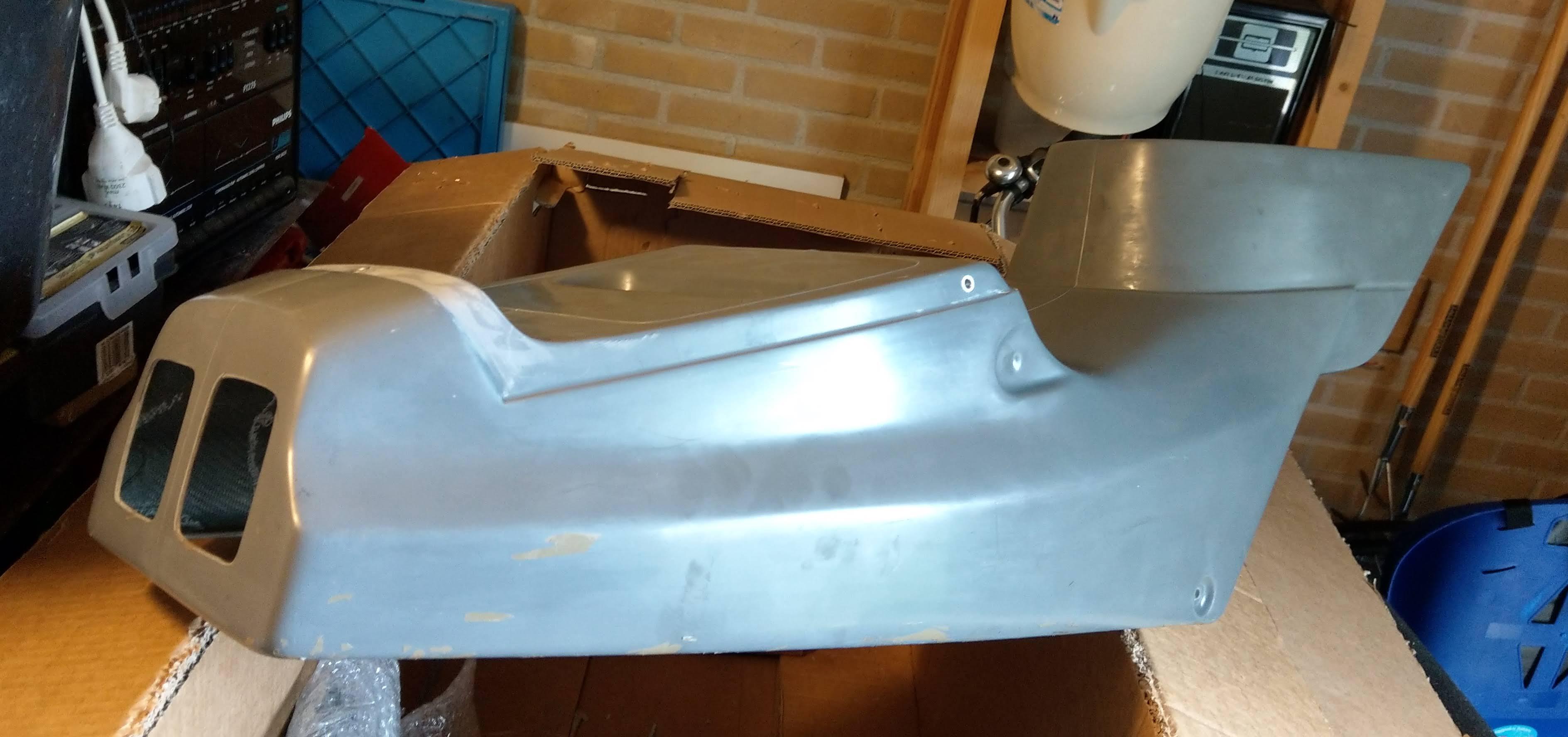

I was looking for an easy fix for the rear, that would give the bike a bit of the RC30 look, and ended up buying the rear cowl of Thurn (Germany). It is a bit bulkier than the rear of the RC30, but since I would use the (bulkier) original RC36 fuel tank, I thought that it would actually fit the design more. Moreover, this rear cowl fits the original subframe without major modifications. The only thing you need to shorten (remove) is the clip that holds the rear brake fluid container, and you can easily bolt it to the subframe again (there is an extra hole). The quality of this fairing is very very good; the best aftermarket fairing I have ever bought. Solid.
