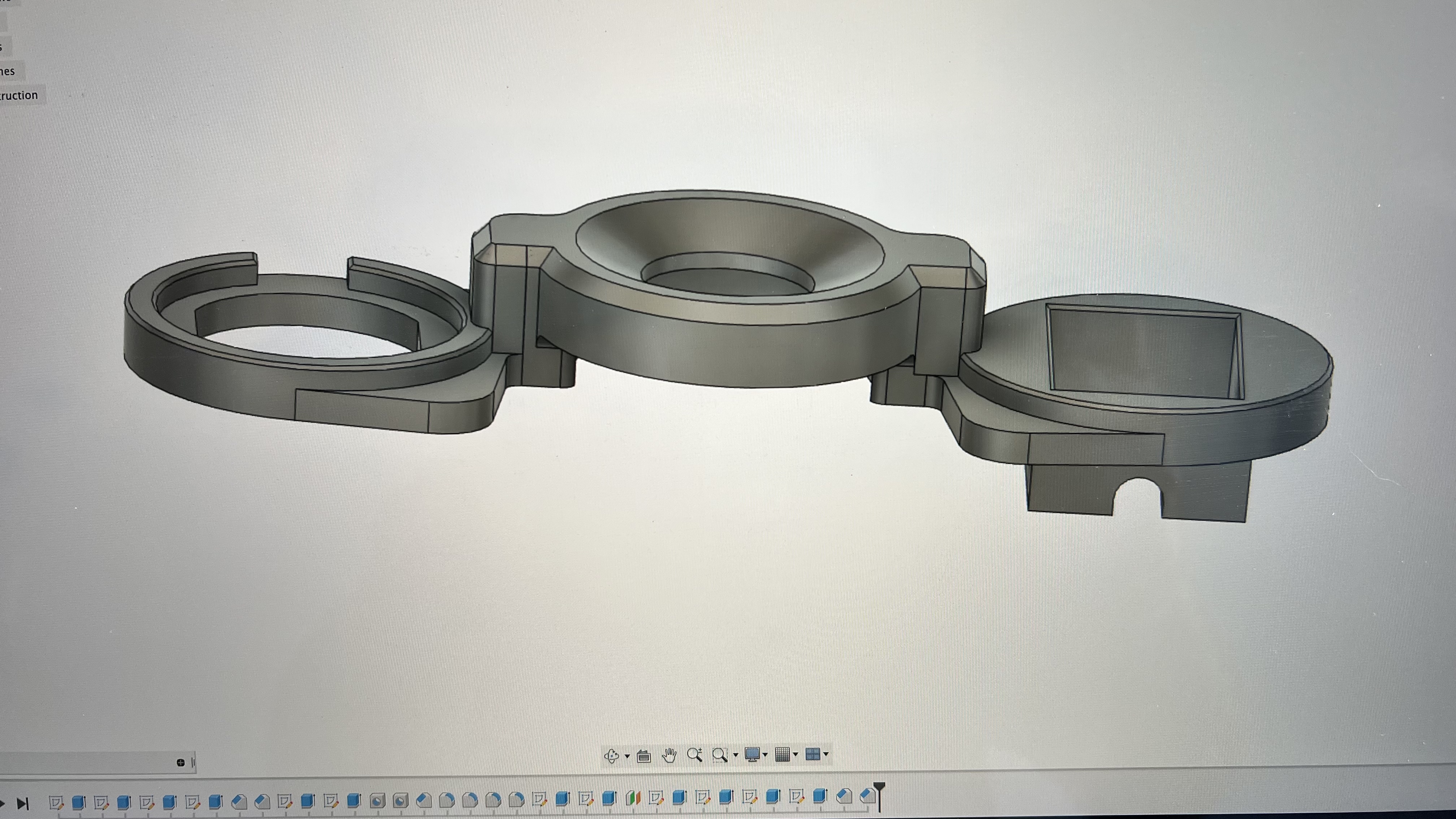

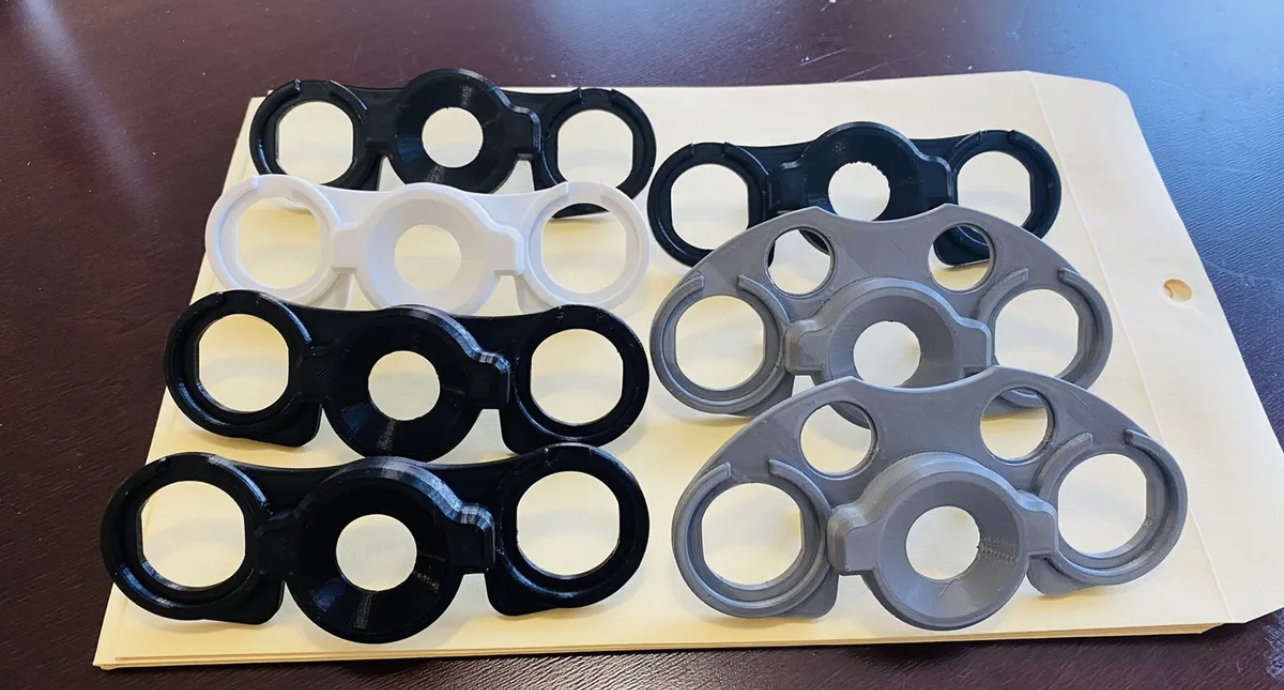

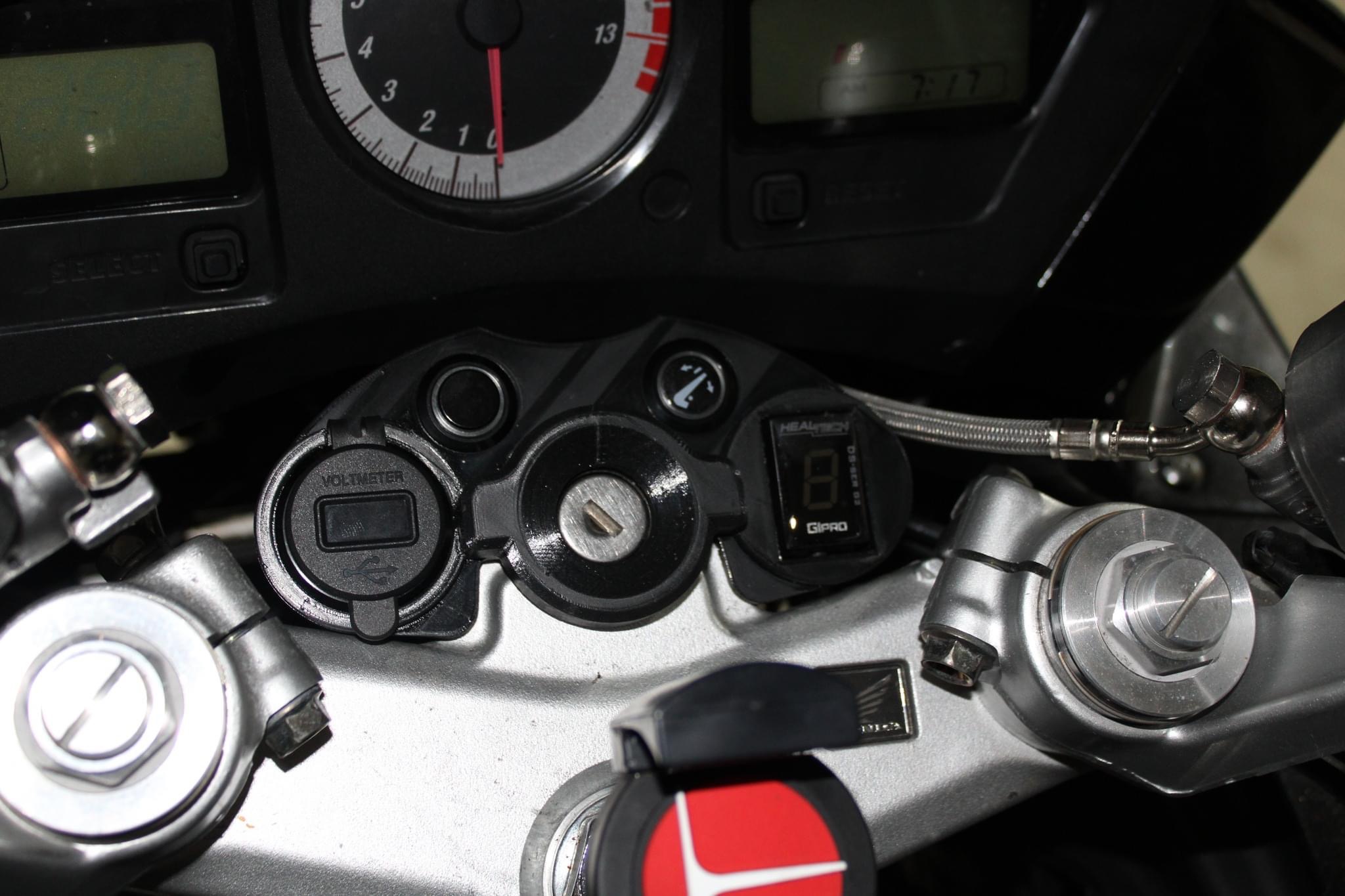

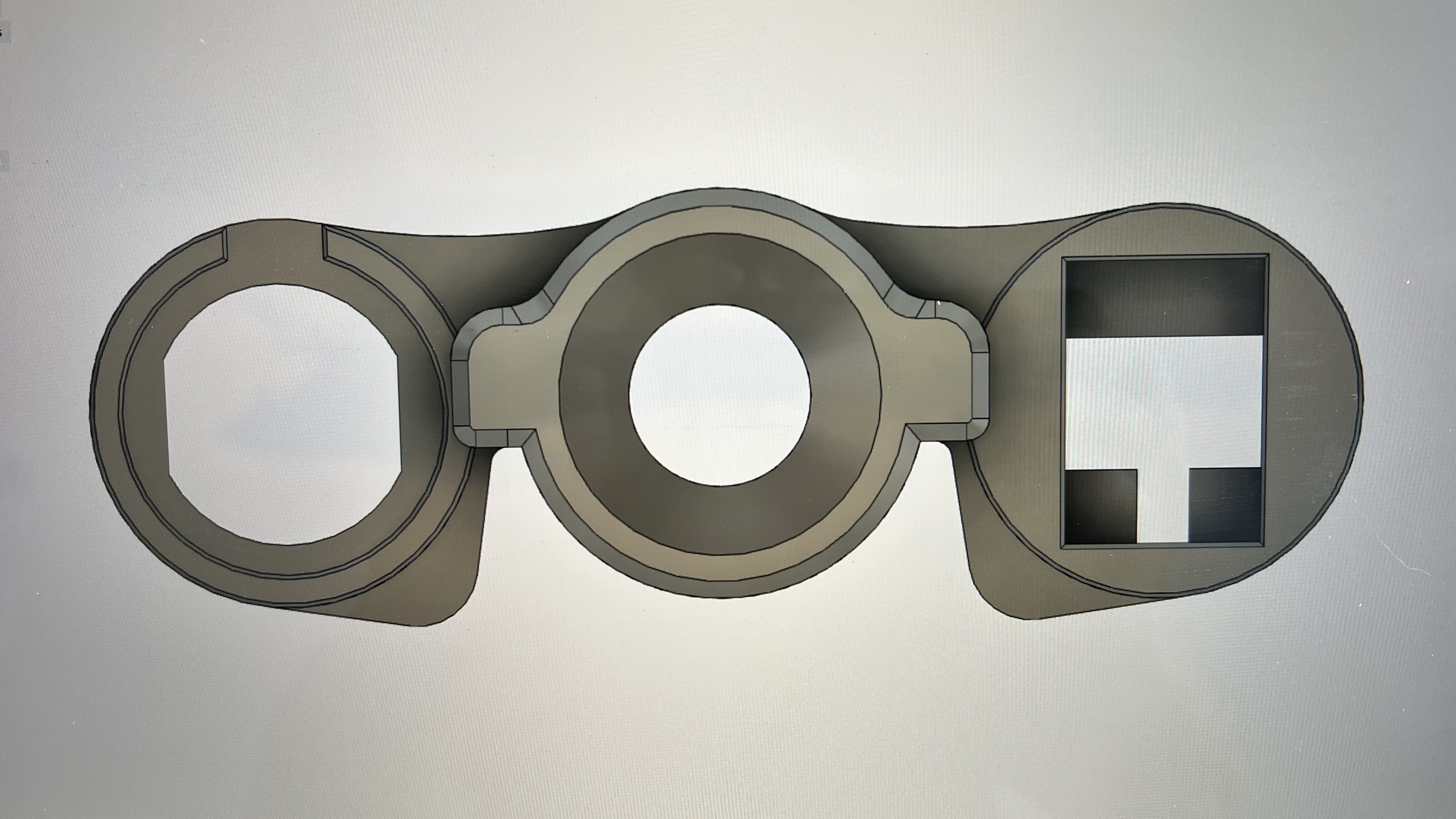

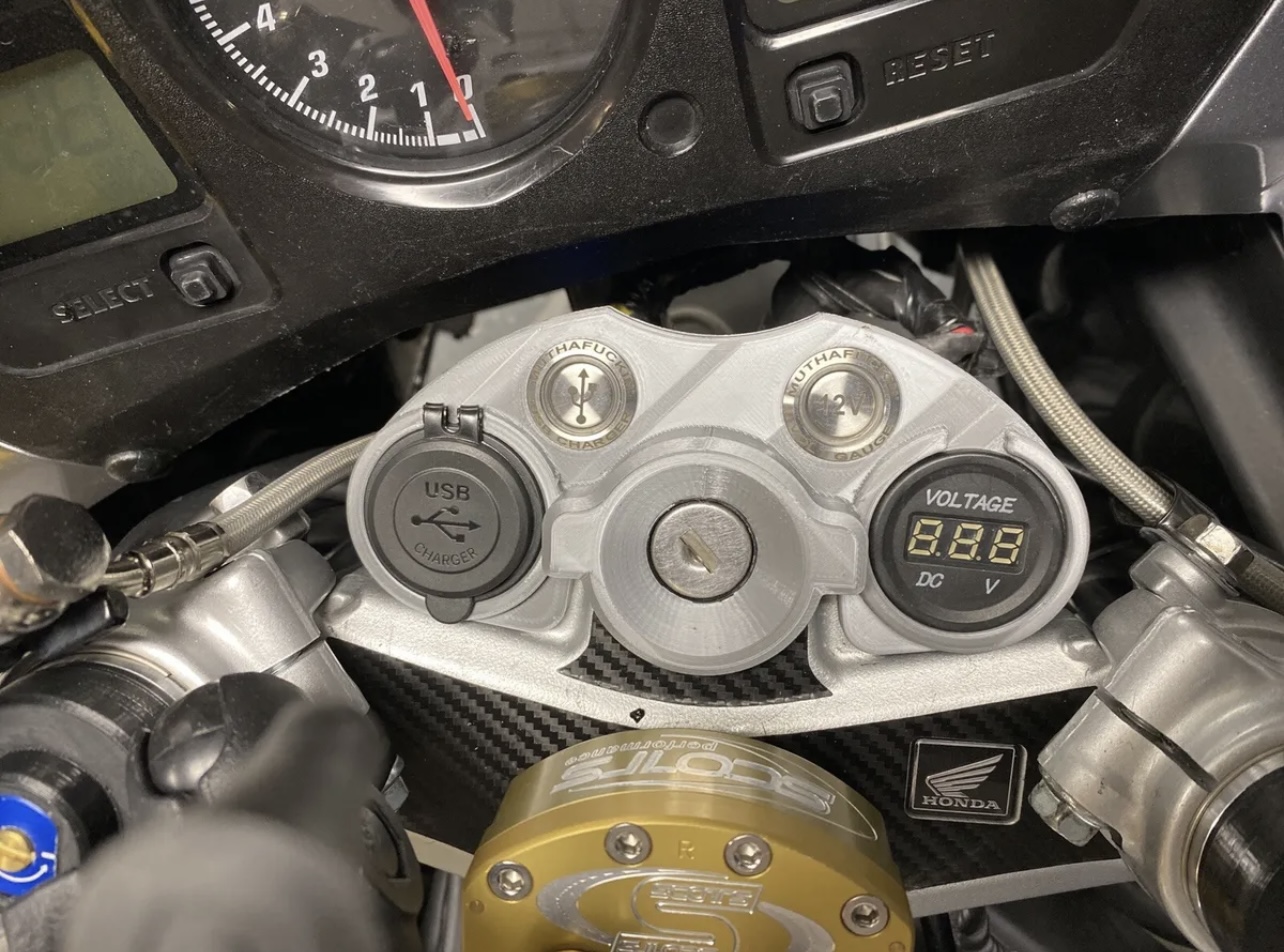

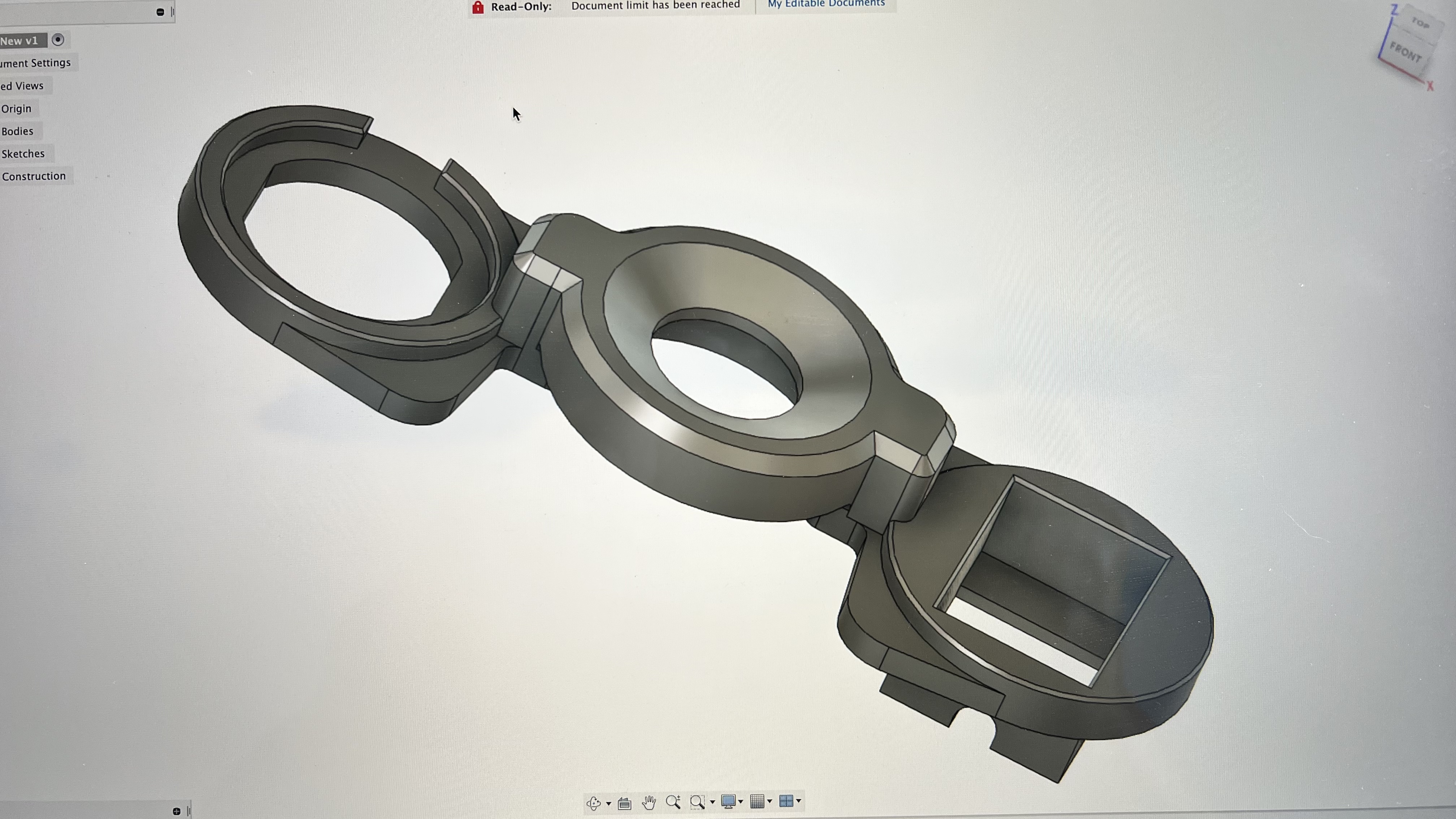

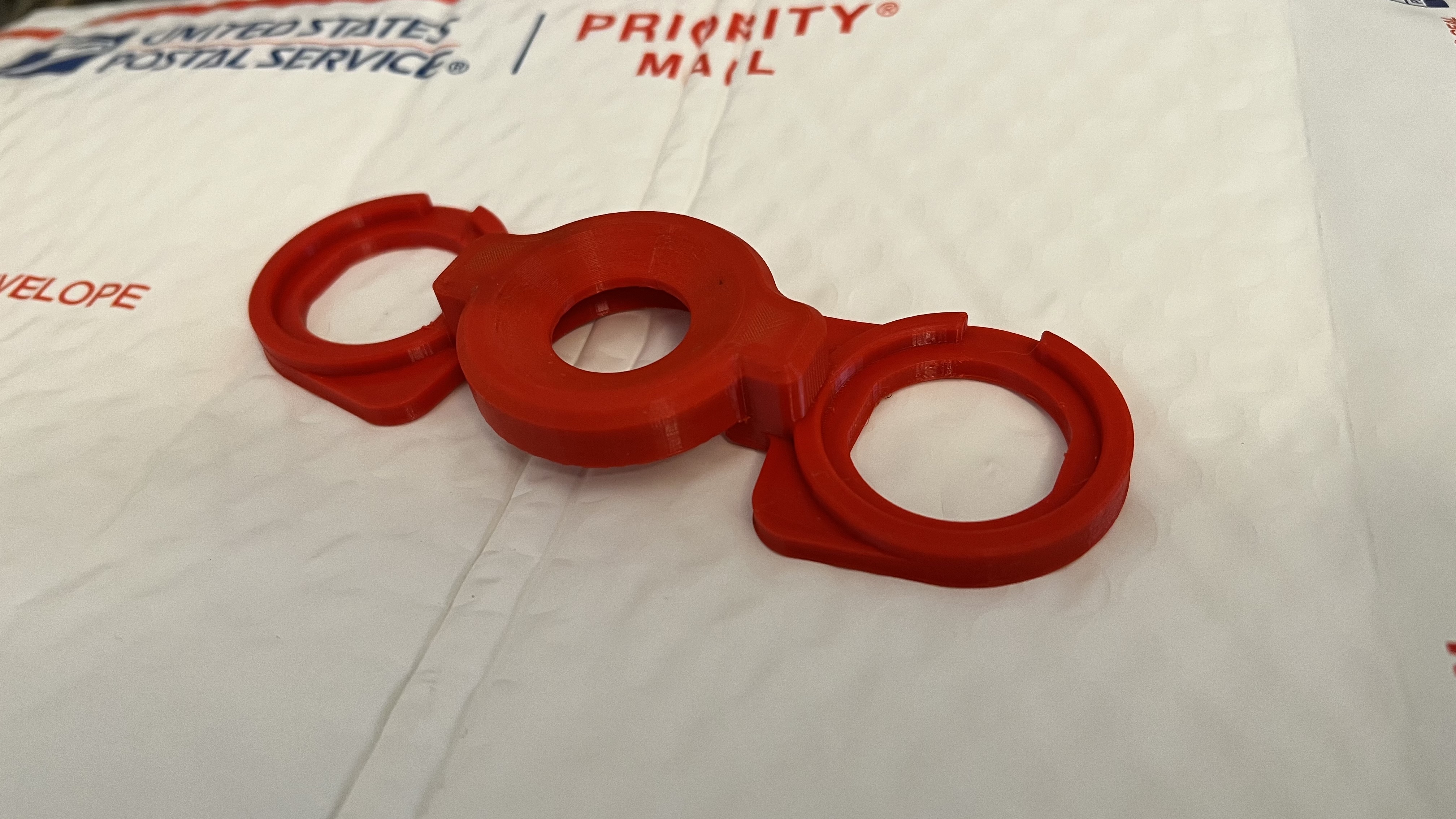

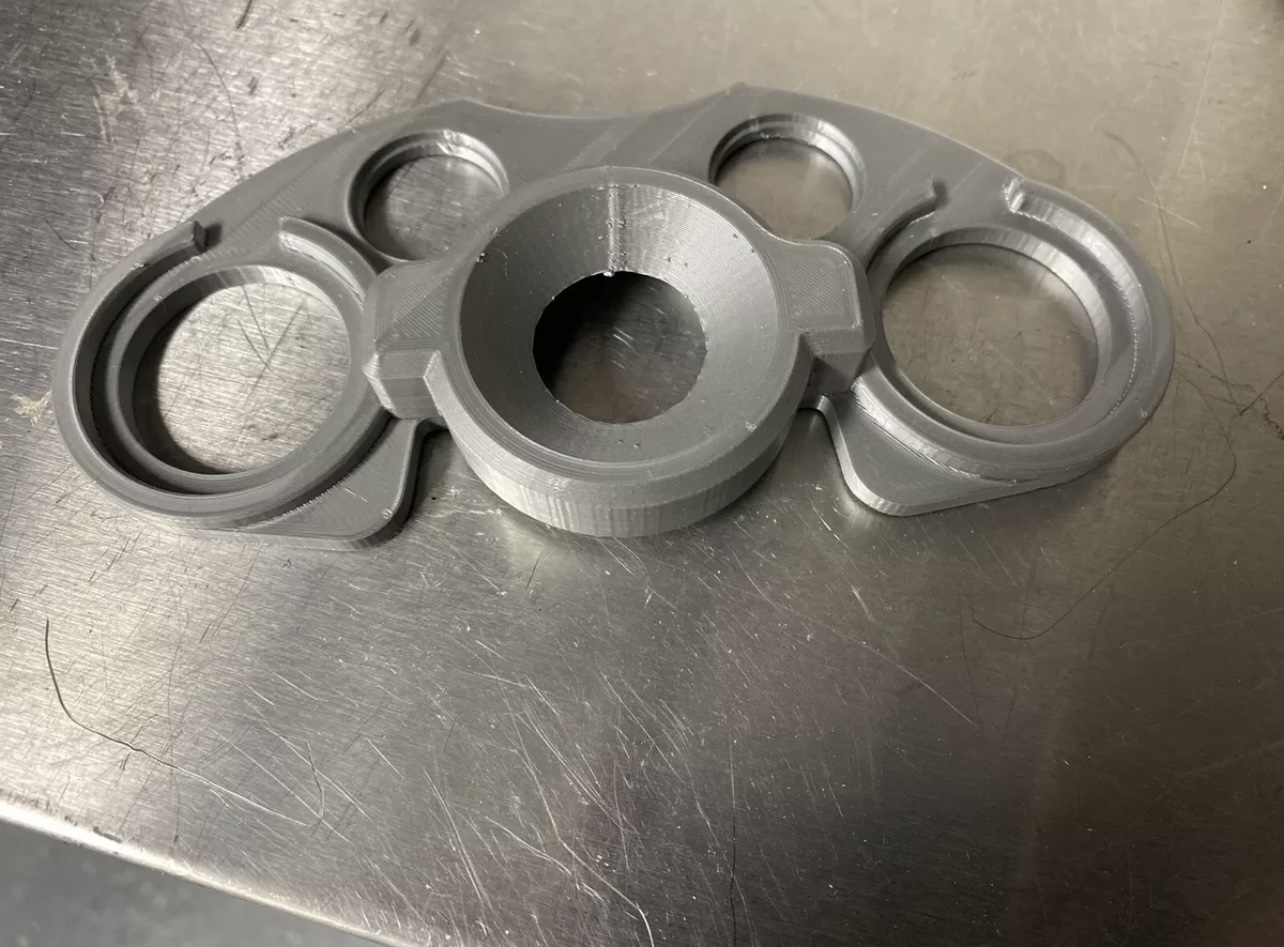

Hi everybody! I’ve had tons of people tell me I should post this this on the VFR forums, so here you go! VFR800 Gear Indicator Bracket. These brackets are designed to replace the black plastic ring on the key cylinder of a 2002-2009 Honda VFR800 (Non-HISS). It is designed to house a Healtech Gear Indicator, and a USB Charger port or volt gauge. It requires removal of the two screws, and then simply remove and replace the ring with this one, then install the new stainless allen screws (included). PLEASE SPECIFY COLOR, THE SUDE THAT YOU WANT THE GEAR INDICATOR ON, AND WHETER OR NOT YOU WOULD LIKE IT WITH THE BUTTON HOLES, OR WITHOUT WHEN ORDERING. I can make them without the buttons as well (see my listing for F4i Charger Bracket for photos; it will look the same, but fit the VFR). There is a wide variety of USB chargers (not included) that will fit this bracket. There are also voltmeters (pictured) that fit. The following link is for the charger that I have used for several years. The same manufacturer makes the voltmeter, and they are all available in a variety of colors. These brackets are 3D printed from a durable PETG plastic, and I can make them in gray (pictured), black, white, yellow, red, blue, purple, or green. If you want a custom color, please email me and I’ll see if I can make it happen. PLEASE SPECIFY COLOR, THE SUDE THAT YOU WANT THE GEAR INDICATOR ON, AND WHETER OR NOT YOU WOULD LIKE IT WITH THE BUTTON HOLES, OR WITHOUT WHEN ORDERING. Disclaimer: No 3D printed part is ever flawless. It is guaranteed to fit perfectly, but not guaranteed to be without minor cosmetic defects. For examples, please examine the photos carefully. That part was installed right off the printer and is representative of a typical part. VFR VFR800 Honda Motorcycle USB Charger phone charger gear indicator https://www.ebay.com/itm/125527979784?mkcid=16&mkevt=1&mkrid=711-127632-2357-0&ssspo=z6UO-uFgTjG&sssrc=2349624&ssuid=z6UO-uFgTjG&var=&widget_ver=artemis&media=COPY IMG_2874.MOV

Slowly but surely I am getting my VFR set up for waterproof USB power supplies. I got one installed tonite. A company called http://3brpowersports.com/products.php has got just what I want but just like everything these days....they proud of their chit. I removed all the fairings plus I removed the headlight composite from the upper fairing so I could have some access to measure for the clearance needed for the connector in the location I picked. They call this the "Panel Tapp" Splash proof usb power port... Using a 7/8" "boring bit" I drilled a hole and installed the port. Here with the upper fairing installed without the headlight composite you can see it does clear. From the battery I wrapped this spot with a triple layer of electrical tape for added protection against chafing. Along the frame rail on the left side I zipped tied the wire to the linked brake lines. ..and then around the head stem. I taped this connector to further help prevent any possible corrosion. I used red tape because I ran out of black. They also have available "Tapp Capp" USB cable seal kit. You can use your own usb cable and put this waterproof seal on it. They also have some pre-fabbed sealed cables also but remember I said they're proud of their chit? Not actually going to use this cable but here's a pic to give you an idea.
