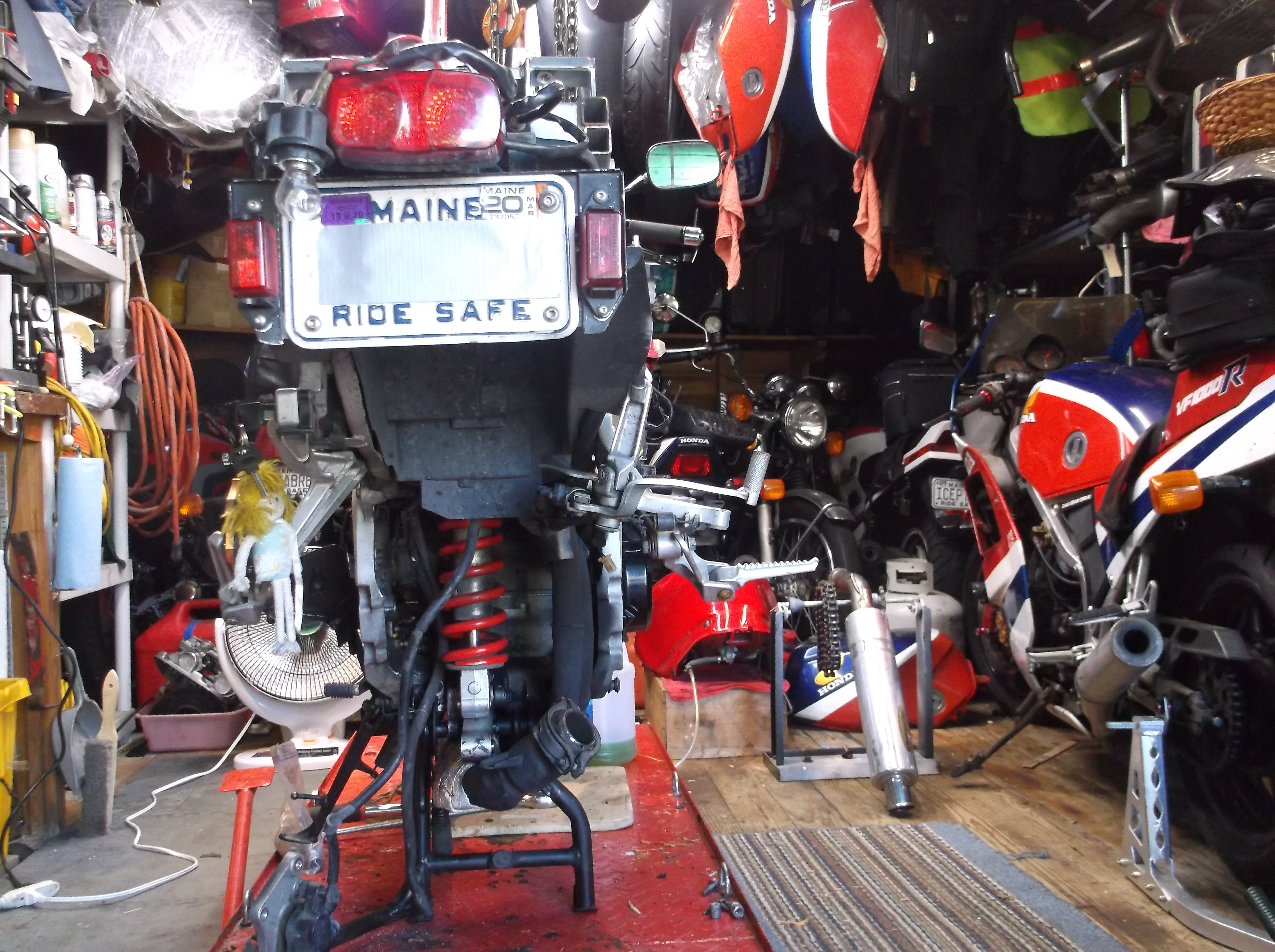

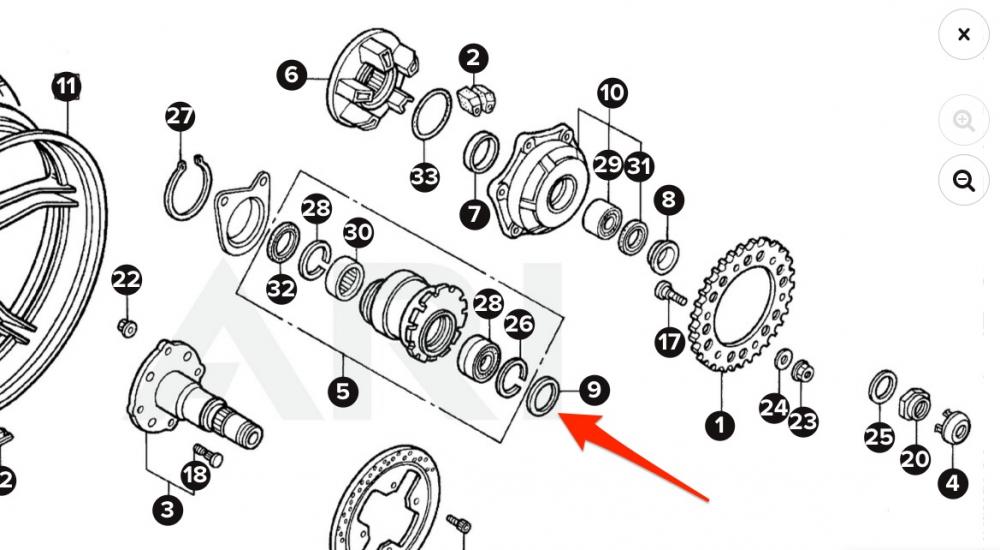

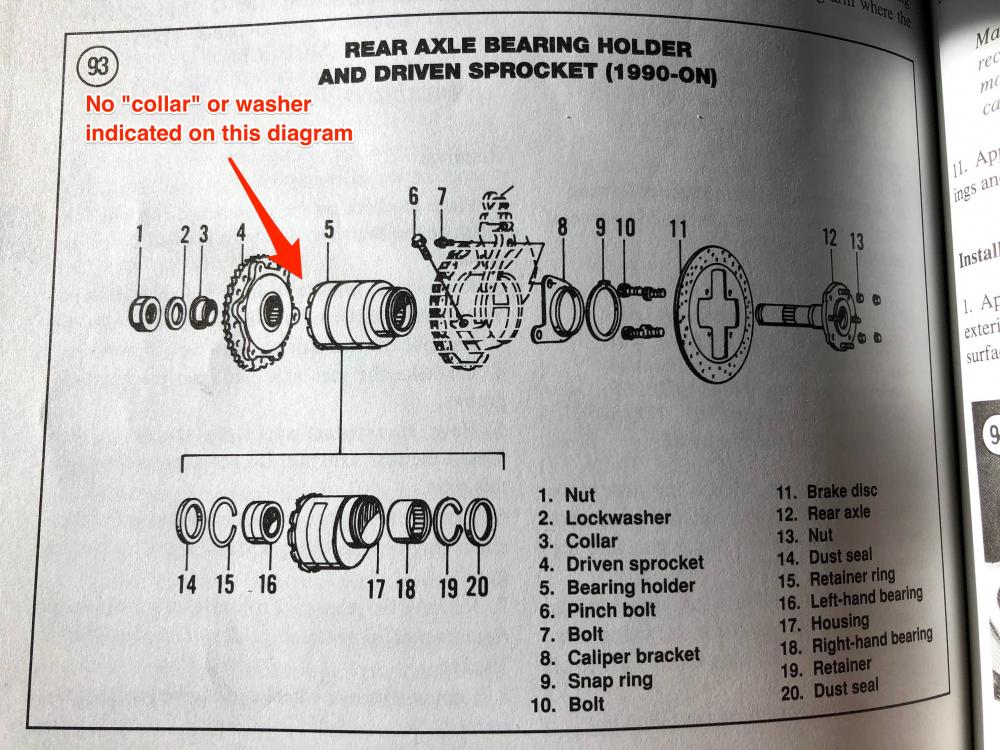

Member Contributer Khibbs Posted January 29, 2021 Member Contributer Posted January 29, 2021 I'm 99% sure that how I've got it is correct (in addition to that's how it came apart) but this VFR is new to me and you never know who's been in there before you. I'm going through the rear axle and chain adjuster and when I took everything apart there was a washer between the sprocket drive unit and the eccentric chain adjuster assembly. I laid everything out in order and labeled them. I was checking the Clymer manual that I got with the bike for the axle nut torque and the diagram does not show this washer. I checked another online (Partzilla) diagram and it does indicate this washer or "collar" as they call it. I just wanted to check with the group here before I put everything back together. Part # for the "collar" or washer in in the second diagram (# 9) is 42623-MT4-000 Thanks for any guidance! Khibbs Quote
Member Contributer COS_VFR Posted January 30, 2021 Member Contributer Posted January 30, 2021 You can Download the Honda Service manual here: Pages 13-3 and 13-4 in the Honda Service manual will show the rear axle. I think that it is item 14 in your Clymer manual, labeled "dust seal" 1 Quote
Member Contributer DannoXYZ Posted January 30, 2021 Member Contributer Posted January 30, 2021 The washer/seal is there. Shown in expanded assembly underneath as part #14. 1 Quote
Member Contributer Fritzer Posted January 30, 2021 Member Contributer Posted January 30, 2021 The collar you are dealing with spaces the splined damper drive #6 away from the bearing block. It fits in the dust seal #9 and contacts the radial bearing #28. Picture #s refer to the first page lower diagram. I just finished doing some maintenance on my rear axle a few weeks back, so this is still fresh in my mind. 1 Quote
Member Contributer JZH Posted February 1, 2021 Member Contributer Posted February 1, 2021 Also, the Clymer manual for the VFR750 isn't the most accurate, from what I've heard... Ciao, JZH 1 Quote
Member Contributer FromMaine Posted February 1, 2021 Member Contributer Posted February 1, 2021 15 hours ago, JZH said: Also, the Clymer manual for the VFR750 isn't the most accurate, from what I've heard... Ciao, JZH I would have to agree with that. This past Spring I serviced the swingarm on my 97 and I was bouncing from my Clymers, to my Honda Service Manual and finally the Board here for clear answers. Quote
veeeee4 Posted March 25 Posted March 25 I want to resurrect this thread and say thank you. I am rebuilding the swing arm on a 4th gen and ran into the same issue. I have the Honda Service manual and it shows on page 13-4 a Dust seal for the Bearing Holder but does not mention the distance collar and no mention on 13-3. Partzilla and CMSL show the distance collar but they don't show a dust shield. Thank you again. Honda Service manual 13-3, 13-4 IMG_6096.HEICIMG_6097.HEIC Distance Collar in question https://www.cmsnl.com/honda-vfr750f-1996-t-usa-california_model7619/collar-rraxle_42623mt4000/ 1 Quote
