A Couple Of Miscellaneous Mods


Darth Bling

1,129 views

I put a couple of new mods on my bike last week. Just finally got around to taking some pictures of them tonight.

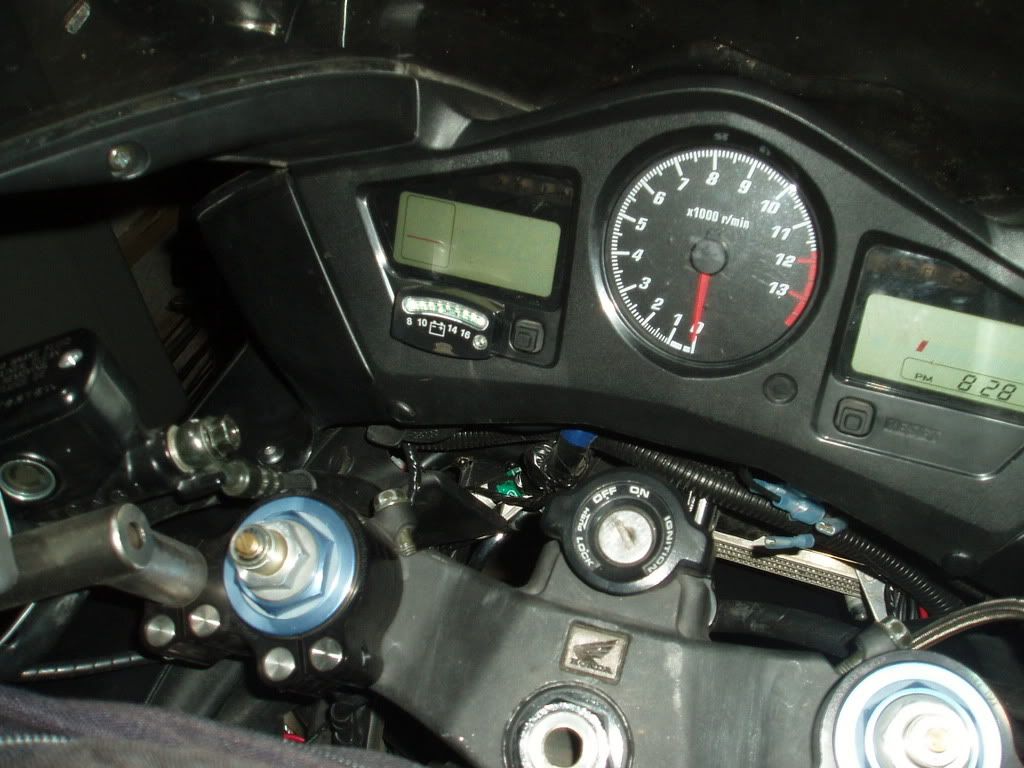

The first new mod is my Küryakyn Voltmeter. I mounted it underneath the speedometer display. It displays red, yellow, and green LED based on the health of your charging system. Obviously, green means everything is good.

th_Voltmeter_Off.jpg th_Voltmeter_On.jpg

And here's my new "Back Off" Brand LED license plate frame. I've got it wired up so it works as a running light and brake light. The yellow LEDs on the ends also work as turn signals. The frame originally came in chrome, but I took care of that with some spray paint. :D

th_License_Plate_Ring.jpg th_License_Plate_Ring_Lit_Up.jpg

2 Comments


Recommended Comments

Guest Ron Plichta

Posted

I'm adding a "Back Off" light to my Interceptor, but I can't figure out the taillight wirng scheme. How did you make your connections?

Link to comment
I'm adding a "Back Off" light to my Interceptor, but I can't figure out the taillight wirng scheme. How did you make your connections?

Green is ground. Green/Yellow is brake. Blue/Brown is running light. (At least according to the service manual).

I know for sure green is ground. But if you hook everything up and the brake light bar stays on all the time, then you've got the tail light and brake light wires switched.

Link to comment
