Electrical Upgrade - How To With Pics

Here is my version of "beef up 'dem 'dare wires!".

This mod/upgrade is meant to fix any under OR overcharging problems, and improve the Regulator/Rectifier (R/R) to battery charging wires and grounds. It was done to a 2002 VFR but years 2002-2005 should have the same wiring harness.

This was my 30 Amp fuse wire problem:

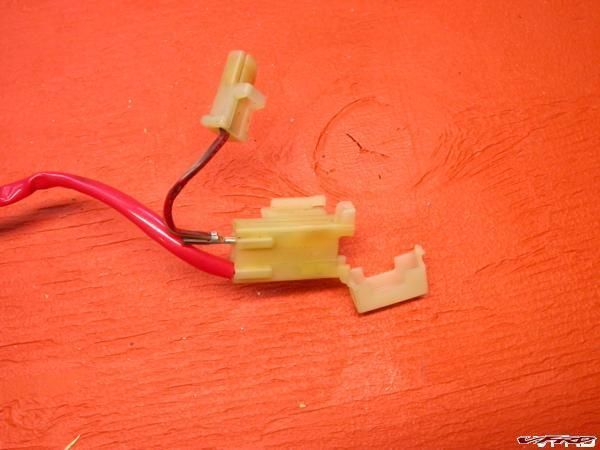

Toasted 30 Amp fuse wire

Followed shortly by a fried stator to R/R 3P connector (to be fair these two problems may not have been related):


Totally melted white connector block - located on right hand side under fairing

Here is what you'll need:

  • 12 Gauge wire (red and green - nice festive colors)
  • 16 Gauge wire (black - goes with anything)
  • 6 Gauge 1/4" lug (or any lug will fits on your battery terminal and is large enough to take 3 - 12 Ga wires and 1 - 16 Ga wire)
  • 1/4" ring terminal (large enough to crimp in 2 - 12 Gauge wires)
  • Connectors of your choice (female spade and Posi-Lock connectors shown - www.posi-products.com)
  • 12 Gauge in-line fuse (this will be your replacement for the toasty 30 Amp fuse)
  • Fuse block (not shown) - or 3 more in-line fuses
  • Solder Gun
  • Torch
  • Solder
  • Shrink Tube
  • Tape

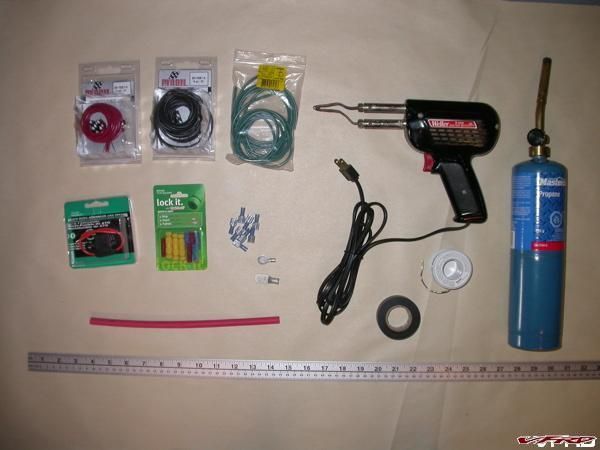

Supplies

Here is the final result (note that I re-used my factory 30 amp fuse only because I screwed this mod up the first time):

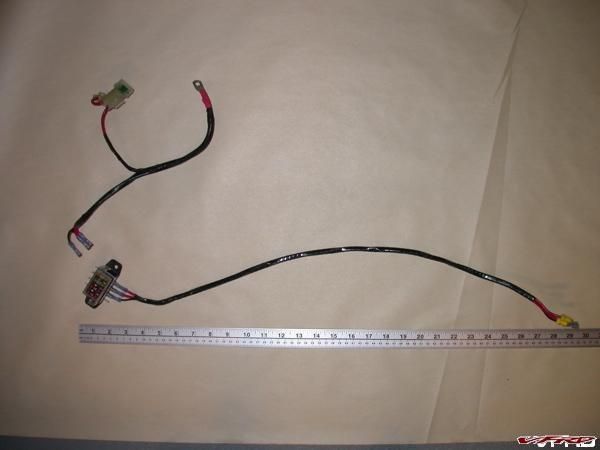

Finished product

How to:

First of all, I tried the "How To: Replace 30amp Fuse Wires, Charred 30amp fuse wires" post and succeed in mangling the positive post cable connector. There was absolutely no way I was getting that battery terminal de-soldered or pried off. In the end I ordered a new harness and just reused my old 30 Amp fuse holder.

*Leave everything on your factory battery harness as is. If you want you can repair the toasty 30 Amp wire and use that lead to power something but I'm not going to use it here.

Strip and twist together 3 - 12 Ga wires (red) and 1 - 16 Ga wire (black) - about 18 inches each or enough to reach wherever you place your fuse block.

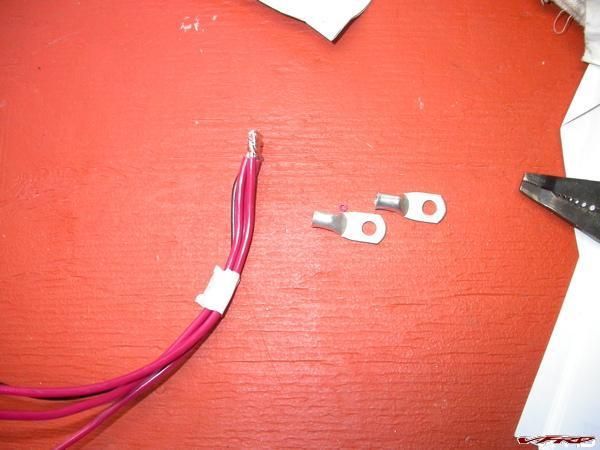

6 Ga 1/4 inch Lug and wires - ready to solder

Ready your 6 Ga lug with some solder cut and placed inside it. The first time I did this I used vice grips to hold the lug but I found that they soak up so much heat that it takes a while to get lug hot and the solder melted. The next time I did it I clamped the lug in between some wood - the lug heats up very quickly this way! Stand the lug up vertically so you can heat it with your torch and melt the solder - creating a pool of solder inside the lug. With the solder still liquid, jam the 4 wires that you grouped together into hot solder and hold the wires there until the solder cools. I suppose you could crimp the lug at this point but mine was a nice fit.

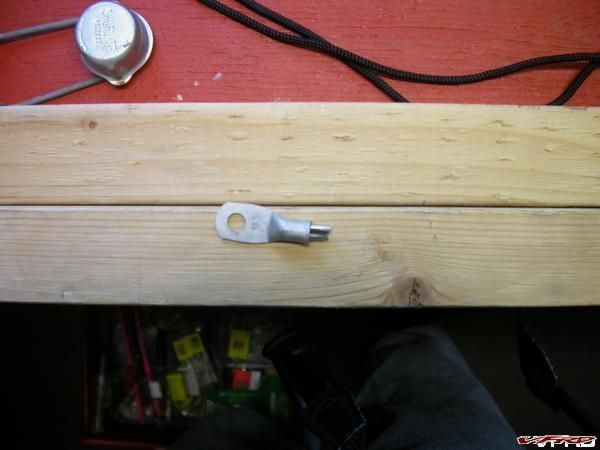

6 Ga 1/4 inch Lug

Add some shrink tubing and your ready to test fit in the bike. I found there was more space around the back side of the battery - opposite the factory harness. 2 of the reds wires and the 1 black go to the fuse block. The other red wire gets an inline fuse and goes to the factory connector to the bike (where you disconnected the toasty section of the 30 Amp wire from - just seen in the top right side of the following picture).


Battery Side - before tape

Next you'll need to remove your R/R. Kanadian Ken shows you how to do it here -- 6th Gen Monitor Wire Fix. I'll cover the monitor wire fix also.

Remove the 6 pin connector so that you can get at the 2 red charging wires and the 2 green ground wires (see Kens post on how to remove the spade connectors - a small jewelers screwdriver does the trick).

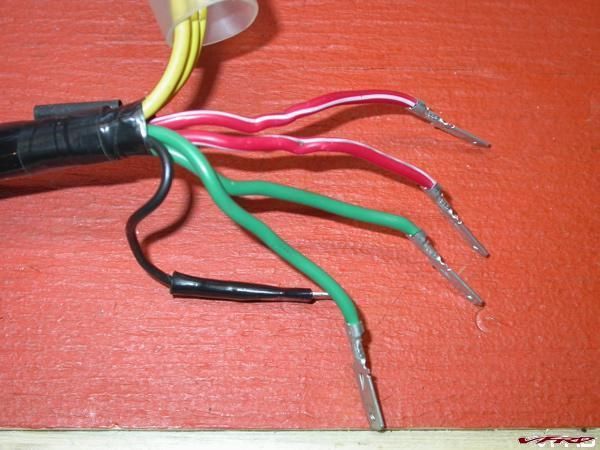

R/R 6P connector removed

Here is the point of no return - where you modify the a factory piece - but hey it's only the R/R and that seems to need replacing on a regular basis anyway :rolleyes: .

Using 2 - 12 Ga (red wires - about 36 inches each) and 2 - 12 Ga (green wires - about 24 inches each) wires, I made "button hook" connections (covered on the forum somewhere?) to the charge and ground wires of the R/R.

To do that, you'll want to strip off about 3/4 inch of insulation from each of the factory R/R wires (the green and red ones). Then using my jewelers screwdriver, I opened up the factory wires in the center so that I could pass the new 12 gauge wire through. Once the new wire was through the hole I split the 12 gauge wire in two parts and twisted them tightly around the outside of the factory wire - closing the hole up. Then I soldered the connection and finished with tape. Finally, fit the spade connectors back into the 6P plug, but leave the black "monitor" wire out.

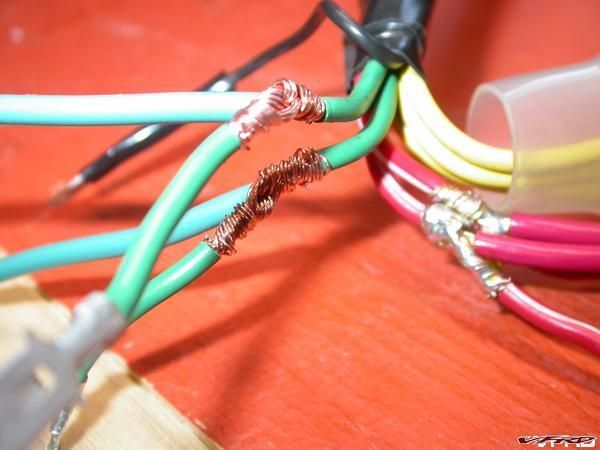

Button hook connections

If I had to do it over again I would remove the factory black insulation jacket to about half way beween the 6P plug and the R/R and make my connection there. This would keep the mess of connections farther away from all the plugs and allow straighter wire runs. Just look at your R/R when it's on the bike and you'll see how much room is over the radiator - this would be a better place to make those connections.

Reattach the R/R and route your wires.

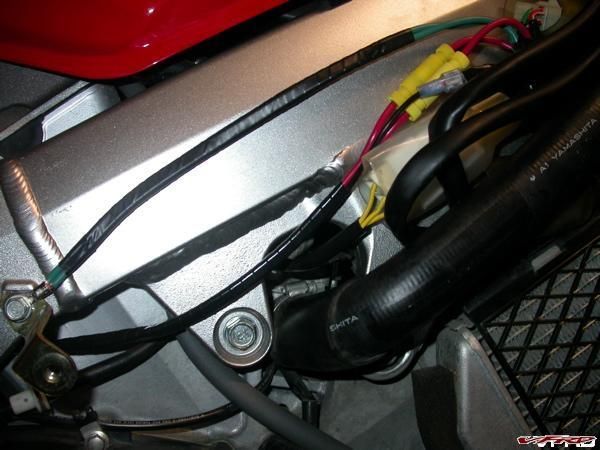

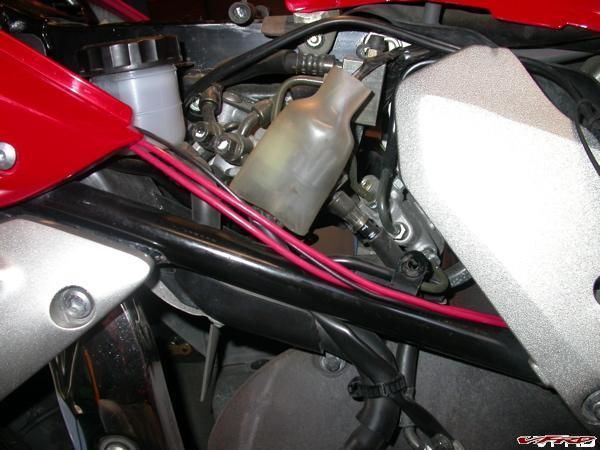

Wire routing on right hand side

I initially made my connections to the R/R charge wires with Posi-Taps. However, they are quite large and there wasn't enough room for 4 of them. Another issue is that they come off at a 90 degree angle which is fine if it works for you. Lastly the posi-taps only make the connection with a small needle point and this seemed like a bit of a choke point to me. Here is a picture before I removed them, you can see the small hole they make ...

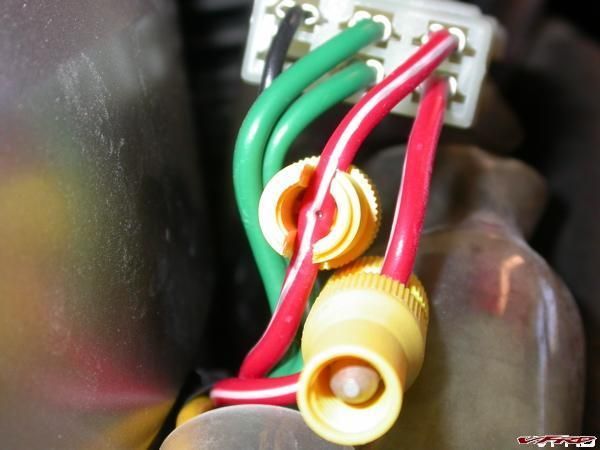

FYI - Posi-Tap connectors - later removed

Instead I used the Posi-Lock straight connectors which make a nice solid, beefy connection - and they are removable (so I could pull the whole harness out to show you guys).

*You will also notice that the Black "sensing wire" was NOT put back into the 6P plug. It gets some shrink tube on it's rather long blade and then gets connected to a spade connector and run to the fuse block.


New charge and ground wires

Next, to attached the new ground wires, I crimped on a ring terminal and then added soldered for security. Since the grounds were a such a short run I didn't bother making a disconnect. I did wonder if I should run the grounds all the way back to the main frame ground (under the fuel tank) but after taking some resistance reading it would not have made a difference. The grounds hook up to the bolt that holds the fairing offset.


New charge and ground wires taped

Then I measured and cut my wires from the battery and from the R/R to the fuse block. The fuse block is a nice little "Hella Splash Proof 4 Gang ATC Fuse Block, Spade Side Connectors HL62936". It was about $12 at the independent NAPA dealer here. Of course you could just use some inline fuses to do the job as well.


Stolen Webpic of HL62936 Hella Splash Proof 4 Gang ATC Fuse Block, Spade Side

The one thing that I didn't like about the fuse block was that the base was open. I simply took some silicone and sealed it up - the top cover has a little gasket to keep water out. It's a pretty tight fit - I even used some pla-doh to check the clearance between the top of the fuse box and the seat - VERY tight.


Fuse Block - close up

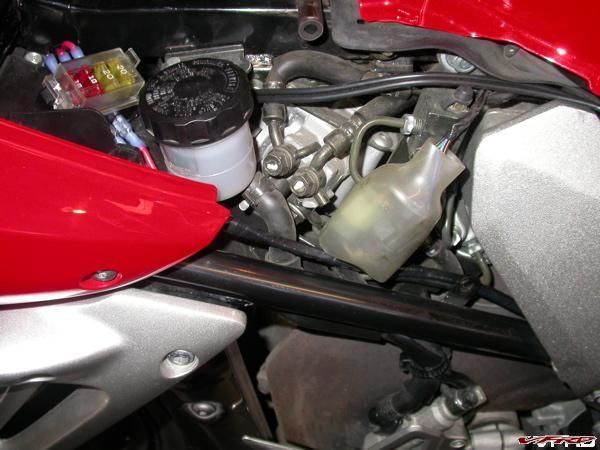

Fuse Block


Fuse Block - side

With all the wires in place I then taped everything and zip-tied it into place. I also made sure to put dielectric grease on everything - new or old. If you want to reverse this mod (lets say for warranty reasons) you'll need to cut the wires from the R/R or buy a new R/R and then simply remove the harness.

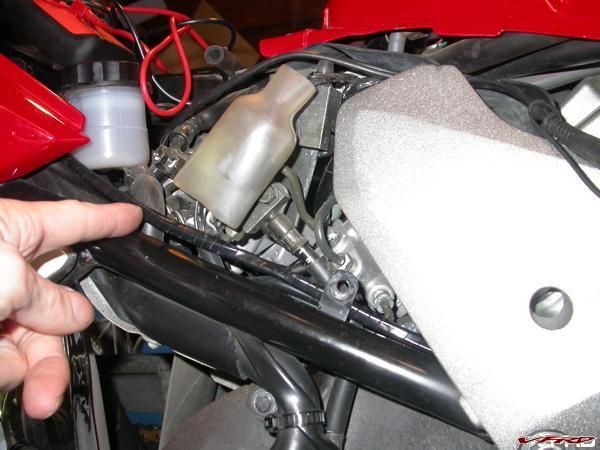

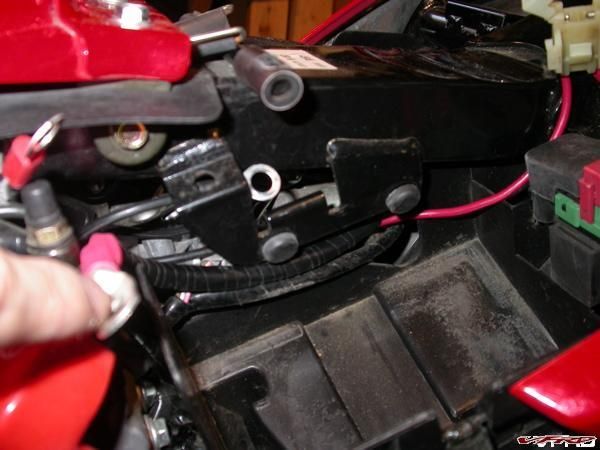

Battery Side - routed behind battery


Taped and routed

In the end my beefed up charging system now has three routes - 1 factory routing and 2 re-enforced routings direct from the R/R. The grounds from the R/R are beefed up and redundant which should hopefully help. And finally, running the the black monitor wire directly to the battery solves any issues with resistance in the ignition circuit causing overcharging.

I haven't quite decided on what size fuses to use in the charging wires - I started with 25 amp then switched to 20 Amp fuses.


Stock RR and Suggested Rewired RR

My charging voltage is stable at 13.4 to 13.5 (edit - must have been drinking when I wrote that) 14.3 to 14.5 volts with high or low beams on, from idle all the way up and I am much more confidant with the electrics now.

The last thing I added was a voltmeter to monitor the situation. You can see it here at Lascar Voltmeter Install Pics.

Edited by talus
1 person likes this

Share this post


Link to post
Share on other sites

Thanks for that posting and all the pictures> excellant job> Has anyone tried that modification on a 4th generation VFR????I think i need to do it soon..Thanks again Tom

Edited by T Albert

Share this post


Link to post
Share on other sites

Great post - I'd really like this mod, but it's just not something I'm willing to do myself. Any drawbacks to adding just the voltmeter to a stock system? ('02)

Share this post


Link to post
Share on other sites

Tits. This needs to be pinned. Outside all of the debates,... This is an assurance, (non-harmful in nature), that should be done. MOD # 1, 6th gen. Hands down!

Share this post


Link to post
Share on other sites
Great post - I'd really like this mod, but it's just not something I'm willing to do myself. Any drawbacks to adding just the voltmeter to a stock system? ('02)

The volt meter will allow you to see low or high voltage before you get stranded or things fried, but it will do nothing to prevent or fix these problems.

Excellent post and how-to talus :thumbsup:

Share this post


Link to post
Share on other sites

I am concerned that your voltage is only 13.5....I think 14.3 or so is the intended voltage. I don't know why yours would be different.

Very nice write up, I was working on one but yours is better....I only did the sensor wire and fixed the 30 Amp fuse part.

Share this post


Link to post
Share on other sites
Tits. This needs to be pinned. Outside all of the debates,... This is an assurance, (non-harmful in nature), that should be done. MOD # 1, 6th gen. Hands down!


Nice job on the write up Talus!!

Share this post


Link to post
Share on other sites

does the 06 & 07 not need this? Do they have different wiring?

Share this post


Link to post
Share on other sites
does the 06 & 07 not need this? Do they have different wiring?

Everyone that has seen them side by side says that much of the wiring has been changed/upgraded. I would still install a volt meter.

Share this post


Link to post
Share on other sites

Looks like a nice clean job. :thumbsup:

But, DEAR HONDA! None of us riders should have to go through this electrical crap,

that should be good to go for 20 years+ right out of the crate! :rolleyes:

Share this post


Link to post
Share on other sites

I was thinking the same thing...mine is 14.5 - 14.6 after doing the mods.

I am concerned that your voltage is only 13.5....I think 14.3 or so is the intended voltage. I don't know why yours would be different.

Share this post


Link to post
Share on other sites

talus' volts are in Canadian, it translates up to about 14.3 - 14.5 American Volts................

Excellent job on the How to - you are hired!!!!! :thumbsup: :thumbsup:

Share this post


Link to post
Share on other sites

Oops.... My bad. Voltage should have read 14.3 - 14.5 .... dyslexia.

Share this post


Link to post
Share on other sites

Definitely - add the voltmeter!

Although I have to point out that the little Lascar voltmeter that I use onboard updates so quickly that I see the numbers bouncing from 13.9 to 15.1 Volts. I'm positive that these are very momentary peaks and troughs - since my "Meterman" voltmeter show a rock steady 14.29 - 14.51 Volts. I don't think it can be any better.

Thanks for all the complements - it was really all of your idea's rolled into one!

t

Share this post


Link to post
Share on other sites
Definitely - add the voltmeter!

Although I have to point out that the little Lascar voltmeter that I use onboard updates so quickly that I see the numbers bouncing from 13.9 to 15.1 Volts. I'm positive that these are very momentary peaks and troughs - since my "Meterman" voltmeter show a rock steady 14.29 - 14.51 Volts. I don't think it can be any better.

Thanks for all the complements - it was really all of your idea's rolled into one!

t

Not mine, but there's. LOL.

Kodos on the perfect summation, of a dozen threads. :thumbsup: :thumbsup: :thumbsup: :thumbsup: :thumbsup: :thumbsup:

Share this post


Link to post
Share on other sites

Did I mention, THIS NEEDS PINNAGE????

Share this post


Link to post
Share on other sites

Add it to the permanent 'fixes' section.

Talus, thank for your spending your time documenting this. It is because of people like yourself that VFRd is such an amazing resource.

Oh, and Papa Honda...WAKE UP!!!!! :rolleyes:

Share this post


Link to post
Share on other sites

Is it the same on a 5th generation?

I've been searching for this....

Thanks!

Share this post


Link to post
Share on other sites
Is it the same on a 5th generation?

I've been searching for this....

Thanks!

I don't reckon it would hurt, but keep in mind the 5th gen doesn't have the black feedback wire leaving the R/R. Beefing up the red and green wires would probably be an advantage... also the R/R is located on the left hand rear part of the bike, under the seat cowl attatched to the subframeabove where the helmet lock is...

I've been asking about that black wire out of interest's sake 'cause I can't get my head around which way it runs, to what device it provides feedback, as it's black in some parts and B&W in others... but haven't yet had a reply. I took the easy path for my 6th gen and bought Tightwad's VFRness. Now I see I probably could have done it myself... but I'm sure Tightwad has done a much finer and sturdy job than I would have... Thanks again Josh...

I know Tightwad does a harness for the 5th gen as well...

Edited by Auspañol

Share this post


Link to post
Share on other sites

Doesn't the recall kinda cover the issues here. I understand that the upgrades are nice, but with the recall, they shouldn't be required, right?

Share this post


Link to post
Share on other sites

Might be better to do this upgrade than the recall. I recently took my 04 for the wiring upgrade and since then have experienced a couple of unusual things happen. It may be a coincidence but since the upgrade my temp gauge does not read correctly, very sporatic. It some times does not read anything and sometime will stay at 95 or will go up to like 135 and occasionally drop 20-30 degrees instantly while riding or even go back to 95. I know it is not running hot but can't tell at what temp it is running. The gas gauge has never read full since the maintenance was done either. Gas gauge will also start flashing that is near empty then a little later will jump up to 3 bars. There seems to be no syncronization between the two gauges. I took it back to the dealer and it has been there for more than two weeks now with no resolution. They replaced the temp sensor but I was sure that would not fix. Seems more like a voltage issue, maybe low voltage? Anybody else see anything like this?

Javier

Edited by jdenison

Share this post


Link to post
Share on other sites

Ok, I'm looking at this MOD and the first thing that comes to mind is, do I need to do this if I have the recall wiring installed? My bike refused to start the other day. Ok, I jumped it from the car, no problem. Driving to work, I noticed that the lights were getting dimmer. Went home and checked the voltage ~10-11vdc. Yanked the battery and charged it. Battery was checked at auto store at 150 CCA's and checked good, but I discovered that my battery has 250CCA's so it might need to be checked again.

Did a check on the stator and got .3-.4 ohms per leg. Good. Checked all three legs to ground and got continuity. BAD!!! During the wiring recall they also replaced the R/R and Stator since mine was hard wired togther due to a meltdown of the connector. It's been around 6 months since the recal work was completed. How could the stator go bad so quickly? I don't mind replacing it, but how can I prevent it? Do I really need to do the wiring MOD for the new harnesses. I had the main and front harnesses replaced.

So far, 2 days of riding and the battery appears to be holding it's voltage. I haven't been using my high beams like I normally would though. How long can a fully charged battery last? It was at 12.79vdc this morning and 12.63vdc this afternoon after baking in the Texas sun.

It sounds like I'll need to change the stator quickly before it fries the R/R or battery or both. The EE's involved with the design of this bike need to be tortured as much as we have been tortured with solving their issues.

Share this post


Link to post
Share on other sites

Where did the pics go ..... Melted ???? PLEASE I need the pics.

Share this post


Link to post
Share on other sites

Great Guide. I'm new on this forum, the images seem to be gone. Is there anywhere else I can get this guide with images.



Thanks again

Share this post


Link to post
Share on other sites
